Right Panel - Sign Video ENG-44 Operator's Manual

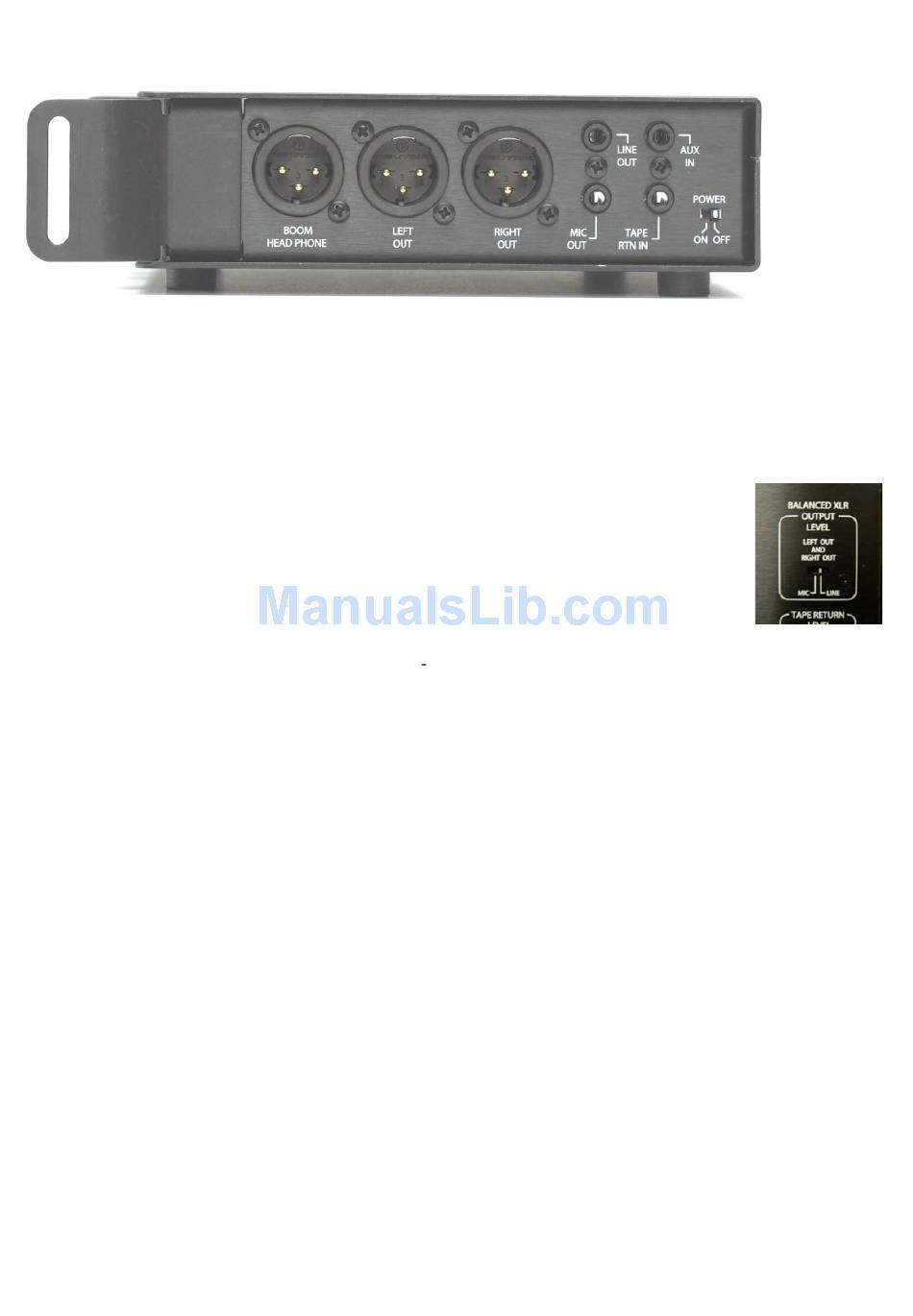

Right Panel

1. Boom Head Phone Out
cable with XLR connectors rather than one with 1/4" connectors. Use a 1/4" adapter to connect to head phones.
This way your spare XLR cable also serves as your spare boom operator cable, and you only need carry a small
spare 1/4" adapter.
2. XLR Outputs
2 Balanced MIC/LINE audio outputs, selected using the MIC/LINE switch on
the Underside Panel. Use LINE level whenever possible to minimize signal noise.
3. Line Out
Line level 3.5 mm (1/8") unbalanced audio output jack. Can be used to feed
audio to cameras that only provide a 3.5 mm audio input jack. This is not recommended
when using cables longer than a few feet. For longer cables runs to camera see the Using
an XLR-Pro ™ Adapter section of this manual.
4. Mic Out
Microphone level 3.5 mm (1/8") unbalanced audio output jack. Can be used to
feed audio to cameras that only provide a mic level 3.5 mm audio input jack. This is not recommended when using
cables longer than a few feet. For longer cables runs to camera see the Using an XLR-Pro™ Adapter section of
this manual.
5. Auxiliary In
3.5 mm (1/8") unbalanced audio input jack
6. Tape Return In
3.5mm (1/8") unbalanced audio input jack for connection to a video camera, tape recorder or
other audio device. This is usually used to feed back the recorded audio signal for monitoring on headphones.
7. Power on/off Switch
XLR audio output for boom operator head phone monitoring. XLR output allows use of
6
Version 3.0
