Summary of Contents for Hanna Instruments HI 9828
- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Instruction Manual HI 9828 Multiparameter Meter with GPS...
- Page 2 Dear Customer Dear Customer Dear Customer Dear Customer Dear Customer, Thank you for choosing a HANNA instruments ® product. Please read this instruction manual carefully before using the instrument. It will provide you with the necessary information for correct use of the instru- ment, as well as a precise idea of its versatility.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER 1- INTRODUCTION 1.1 Preliminary Examination ................. 7 1.2 Model Identification ..................7 1.3 General Description ..................8 1.4 Power Supply ....................10 1.4.1 Battery Installation .................. 10 1.4.2 Charging Batteries .................. 10 1.5 Probe Description and Installation ..............11 1.5.1 Sensor Description .................. - Page 4 4.5 Atmospheric Pressure Calibration ..............38 4.6 ORP Calibration ..................38 4.7 Temperature Calibration ................39 CHAPTER 5 - GPS MENU (optional) ............... 40 CHAPTER 6 - LOGGING MODE 6.1 Logging ...................... 43 6.1.1 Logging Options ..................43 6.2 Log Data Setup .................... 45 6.2.1 Lots ......................
-
Page 5: Chapter 1- Introduction
Chapter 1 - INTRODUCTION 1.1 PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it carefully to make sure that no damage has occurred during shipping. If there is any notice- able damage, notify your Dealer. HI9828 HI9828 HI9828 HI9828 HI9828 is supplied complete with:... -
Page 6: General Description

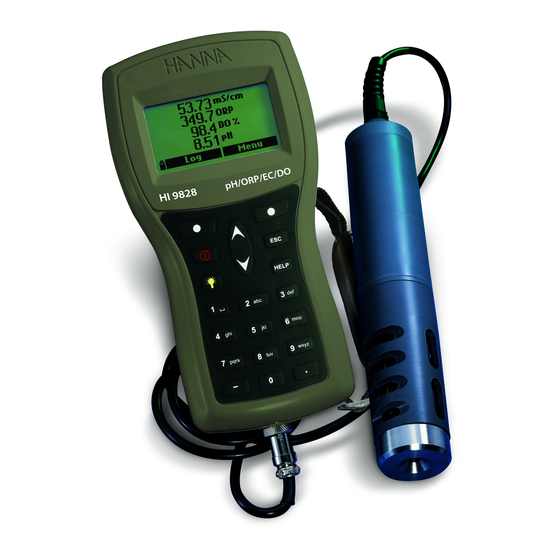

1.3 GENERAL DESCRIPTION HI9828 is a multiparameter system that monitors up to 13 different water qual- ity parameters (6 measured, 7 calculated). The microprocessor based multisensor probe allows to measure all the param- eters necessary to evaluate the water quality, as dissolved oxygen saturation per- centage, conductivity, seawater specific gravity and other parameters that en- sure life in water as pH and temperature. - Page 7 Main features of the HI 9828 system: • Simultaneously displaying of up to 12 parameters • Tracking of measurement locations with GPS (optional) • IP67 waterproof protection for meter and IP68 for probe • Exclusive Fast Tracker™—T.I.S. (Tag ID System) •...
-
Page 8: Power Supply
1.4 POWER SUPPLY HI9828 HI9828 HI9828 HI9828 HI9828 is supplied with 4 rechargeable C size, Ni-MH batteries. The battery symbol on the LCD shows the remaining battery charge. When the symbol starts blinking, batteries should be charged or replaced with new ones. When the batteries are completely rundown the meter automatically shuts off to avoid erroneous readings. -
Page 9: Probe Description And Installation
Cigarette lighter supply HI710046 HI710046 To charge batteries from a vehicle cigarette lighter supply, use HI710046 HI710046 HI710046 cable. • Simply connect the cable to the meter and to the cigarette lighter plug. • The message “Battery charging in progress” will appear on the display, fol- lowed by the battery symbol. -
Page 10: Specifications Of Sensors
Since the Pt/PtO system depends on the pH, the pretreatment of the electrode may be determined by the pH and the redox potential values of the solution to be measured. As a general rule, if the ORP (mV) reading corresponding to the solution pH value is higher than the values in the table below, an oxidizing pretreatment is necessary;... -
Page 11: Do Sensor Activation
1.5.3 DO Sensor Activation The DO probe is shipped dry. To hydrate the sensor and prepare it for use, pro- ceed as follows: • Remove the black & red plastic cap. This cap is used for shipping purposes only and can be thrown away. •... -
Page 12: Specifications
1.6 SPECIFICATIONS TEMPERATURE Range Range Range Range Range -5.00 to 55.00 °C; 23.00 to 131.00 °F; 268.15 to 328.15 K Resolution Resolution Resolution 0.01 °C; 0.01 °F; 0.01 K Resolution Resolution Accuracy Accuracy Accuracy Accuracy Accuracy ± 0.15 °C; ± 0.27 °F; ±0.15 K Calibration Calibration Calibration... - Page 13 CONDUCTIVITY Range Range Range Range Range 0.000 to 200.000 mS/cm (actual EC up to 400 mS/cm) Resolution Resolution Resolution Resolution Resolution Manual 1 µS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm Automatic 1 µS/cm from 0 to 9999 µS/cm 0.01 mS/cm from 10.00 to 99.99 mS/cm 0.1 mS/cm from 100.0 to 400.0 mS/cm Automatic mS/cm...
- Page 14 SALINITY Range Range Range Range Range 0.00 to 70.00 PSU (extended Practical Salinity Scale) Resolution Resolution Resolution Resolution Resolution 0.01 PSU Accuracy Accuracy Accuracy Accuracy Accuracy ±2% of reading or ±0.01 PSU whichever is greater Calibration Calibration Calibration Calibration Calibration 1 custom point SEAWATER SPECIFIC GRAVITY 0.0 to 50.0 σ...
-
Page 15: Power Consumption
1.7 POWER CONSUMPTION For firmware versions before 2.0, the meter never features the GPS unit and the battery life does not depend on logging interval or logging state: • supplied rechargeable batteries (full charge): approximately 70 hours of continuous use, without backlight •... -
Page 16: Display And Keyboard Description
1.8 DISPLAY & KEYBOARD DESCRIPTION Graphic LCD Battery level indicator Softkey functions Left softkey: function defined on display On/off key: to turn the meter on and off Lamp key: to turn the backlight on and off Alphanumeric keyboard: to insert alphanumeric codes HELP key: to obtain information about the displayed screen Arrow keys: to scroll the displayed options/message ESC key: to return to the previous screen... -
Page 17: Help Function
1.9 HELP FUNCTION HI9828 HI9828 HI9828 features a context sensitive HELP , which provides useful information HI9828 HI9828 regarding the displayed screen. Simply press the HELP key to access this function, then use the arrow keys if you need to scroll long messages. To escape from the HELP window, press HELP key again or ESC. -
Page 18: Chapter 2 - Measurement Mode
Chapter 2 - MEASUREMENT MODE HI9828 HI9828 HI9828 HI9828 HI9828 can read at the same time different parameters from the same probe. As described in the previous section, up to 3 sensors can be mounted on the probe. • Connect the probe to the meter and carefully fix the protection sleeve. •... -
Page 19: Chapter 3 - Setup Mode
Chapter 3 - SETUP MODE A few parameters have to be set before taking any measurements. In the main menu two setup options are available: “Measurement” and “System”. Measurement setup allows to set the displayed readings and their units, while the system setup is used to set all system parameters, as the interface language, date and time, LCD contrast, acoustic signals, etc. - Page 20 pH, pH-mV, ORP , DO % Saturation, Salinity These parameters can only be enabled or disabled; measure unit and resolution are fixed. DO concentration The user can select ppm or mg/L measure unit. Conductivity and Actual Conductivity The user can select among the following options: Auto (autoranging for all µS/cm and mS/cm ranges), 1 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm, 1 mS/cm, Auto mS (autoranging for...
-
Page 21: System Setup
Note Note Note Note Note A maximum of 12 measurements can be displayed simultaneously. A warning message appears if trying to enable more than 12 measurements. GPS data (only for model with GPS) GPS data can be customized to meet specific requirements. The user can select the format of GPS coordi- nates among the following options: xx°xx’xx.x”;... - Page 22 Power save (min) The power save mode allows to save the battery life. After the set time is elapsed, the meter will: 1. automatically switch off, if in normal measure- ment mode. Press on/off to switch on again. 2. enter a sleeping mode, if the continuous log- ging mode is selected with a logging interval of at least 1 minute.
- Page 23 TDS unit TDS readings can be displayed in ppm-ppt or mg/L-g/L unit. Press <Modify> to select the desired option. Average length In order to obtain an average and more repre- sentative measurement with unstable samples, set a reading repetition number for the displayed parameters.
- Page 24 GPS unit power save (only for model with GPS) This item allows to save battery life by automatically switching off the GPS unit, while the meter is in continuous logging mode with a logging interval of at least 4 minutes. The GPS unit will turn off after each measurement and turn on again 3 minutes before the next measurement has to be taken.
-
Page 25: Table Of Measurement And System Setup Items
Restore factory settings This item allows to reset all “System Setup” and “Measurement Setup” parameters to their de- fault values. • Select the “Restore factory settings” item and press <OK>. • The meter will ask to confirm: press <Yes> to confirm or <No> to escape. Note Note Note... - Page 26 System Setup System Setup System Setup System Setup System Setup Item Description Default value Valid values Date Update calendar YYYY-MM-DD YYYY-MM-DD; MM/DD/YYYY; DD/MM/YYYY Time Update clock hh:mm:ss (24 hours) hh:mm:ss (12 hours); hh:mm:ss (24 hours) Power save (min) Auto shut-off or sleeping mode 5 min NO;...
-
Page 27: Chapter 4 - Calibration Mode
Chapter 4 - CALIBRATION MODE HI9828 HI9828 HI9828 HI9828 HI9828 allows to perform six different types of calibration, one for each pa- rameter, and a quick single-point procedure for some of them. Calibration data are stored in the non volatile memory of the probe, so that the same probe can be used with different meters without needing new calibration. - Page 28 • When the measure is stable, “Ready” is shown. Press <Confirm> to store calibration data. • The messages “Storing data on probe, please wait...” and “Updating GLP data, please wait ...” appear. Note Note Note Note Note If pH calibration is not required, the meter allows to skip to the EC quick calibration, by pressing the <Skip>...
-
Page 29: Ph Calibration
4.2 pH CALIBRATION It is recommended to calibrate the meter often for pH readings, especially if high accuracy is required. When the pH calibration is selected, the display shows two options: “Calibrate pH” and “Clear old calibration”. If “Calibrate pH” is selected, the user can perform a new calibration at 1, 2 or 3 points with standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01), or a single calibration with custom buffer. - Page 30 • Press <Confirm> to accept the calibration point or <Buffer> to select an- other buffer using the arrow keys. • After the first calibration point is confirmed, immerse the probe in the second buffer solution and stir gently. • When the reading is stable and close to the selected buffer, the display shows the “Ready”...
-
Page 31: Error List
4.2.3 Error List If the meter does not accept a pH calibration point, a short message is displayed to indicate the possible error source. See for example the following screens: These are the available messages: • “Input out of scale”: the pH value is out of scale. •... -
Page 32: Dissolved Oxygen Calibration
4.3 DISSOLVED OXYGEN CALIBRATION If the DO % saturation range is calibrated, the DO concentration range will also be calibrated, and vice versa. The DO % saturation value is referred to the DO concentration in air (100%). For this reason it is recommended to calibrate the probe near the area where the measurements will be taken. -
Page 33: Conductivity Calibration
• The following messages will appear: “Storing data on probe, please wait...”, “Updating GLP data, please wait ...” and “Calibration completed”. • Press <OK> to return to the “Calibration” menu. • To return to the main menu, press ESC repeatedly. Note Note Note... - Page 34 The 3 options are correlated, so that each of the procedures will calibrate all the 3 ranges. Note Note Note Note Note For correct EC readings, calibration should be performed using a stan- dard solution with a conductivity value close to the sample to be mea- sured.
- Page 35 Actual Conductivity • Select the “Actual conductivity” option and press <OK> to confirm. • Insert the custom value with the desired reso- lution. Press <OK> to confirm. • Immerse the probe in the conductivity solution and wait for stable reading. The probe sleeve must be inserted.
-
Page 36: Atmospheric Pressure Calibration
4.5 ATMOSPHERIC PRESSURE CALIBRATION For this procedure a reference barometer is needed. During calibration the cur- rent reading can differ up to 40 mbar from the calibration point. Choose the “Atmospheric pressure” option from the “Calibration” menu, then select the calibra- tion type using the arrow keys and press <OK>. -
Page 37: Temperature Calibration
• After confirmation, the following messages are displayed: “Storing data on probe, please wait...”, “Updating GLP data, please wait...” and “Calibration completed”. • Press OK to return to the “Calibration” menu. • To return to the main menu, press ESC repeatedly. •... -
Page 38: Chapter 5 - Gps Menu (Optional)
Chapter 5 - GPS MENU (optional) HI9828 model featuring GPS (Global Positioning System) is provided with a built-in 12 channel receiver and antenna to calculate meter position and track locations along with measurement data. The GPS unit tracks locations using satellites, with a position accuracy of 10 meters (30 ft). - Page 39 Press <Info> to view the GPS coordinates of the selected location; latitude and longitude. Press <Delete> to cancel the selected location. Note Note Note Note Note If the location is associated to an exist- ing lot, the meter will not allow to can- cel it.
- Page 40 Press <New> to add a new location to the existing list, then choose one of the two available options: “Current position to location” or “Add location manually”. In the first case the meter asks to enter the location ID only, while for manual addition also the latitude and longitude information has to be entered.
-
Page 41: Chapter 6 - Logging Mode
Chapter 6 - LOGGING MODE HI9828 HI9828 HI9828 can store up to 60,000 samples in 100 different lots, if the GPS unit is HI9828 HI9828 not enabled (if available). If readings are stored also using the GPS feature, the maximum number of samples is 45,000. In both cases, when using remarks, the maximum number of stored measurements decreases. - Page 42 • Then the “Add remark?” window will appear. If <Yes> is pressed and a remark list already exists, the user can select the desired note or press <New> to insert a new remark in the displayed text box. • If the GPS is enabled, the meter will ask if a location should be associated with the read- ings.
-
Page 43: Log Data Setup
Notes Notes Notes Notes Notes A logging list complete with remarks and locations (model with GPS only), can be created before taking any measurement and logging. See below paragraph “Log data setup”. Press ESC to return to the previous screen or keep it pressed to abort the logging procedure completely. In case of continuous logging, the data collection will start after the last option is confirmed. - Page 44 Use the arrow keys to change the sample number in the selected lot. The sample number is shown on the bottom right corner of the display. Note Note Note Note Note Details are available only for the enabled parameters (see section 3.1 “Measurement Setup”).
-
Page 45: Delete All Lots
6.2.2 Delete All Lots • If the “Delete all data” option is selected, the display shows the message “All stored log data will be erased! Continue?”. Press <Yes> to delete or <No> to return to the previous screen. 6.2.3 Remarks A remark can be associated to each sample, and the meter allows to enter up to 20 remarks. - Page 46 The display shows the message “Touch the tag with the tag reader”. Touch the tag with the tag reader located on the top of the meter. • When the tag is detected the meter displays the tag serial number and ID (if available).
- Page 47 Clear tag memory The tag memory can be completely cleared. • Select the “Clear tag memory” option and press <OK>. • The message “All tag identifiers will be erased. Continue?” appears. • Press <Yes> to confirm tag erasing or <No> to return to the previous screen. •...
-
Page 48: Chapter 7 - Glp Data
Chapter 7 - GLP DATA GLP (Good Laboratory Practice) is a set of functions that allows to store or recall data regarding the probe calibration. This feature also allows to associate a reading to “certified data” (standard solutions, reference meters, etc.) through the calibration procedure. -
Page 49: Dissolved Oxygen
7.2 pH • From the “GLP data” menu, select the “pH” option and press <OK>. • All data regarding last pH calibration appear: offset, acidic slope, basic slope, used buffers, time and date of the procedure. • Use the arrow keys to scroll the stored data of last 5 calibrations. -
Page 50: Conductivity
7.4 CONDUCTIVITY • From “GLP data” menu select the “Conductiv- ity” option and press <OK>. This menu allows to view data for conductivity, actual conductiv- ity and salinity calibrations. • All information regarding last conductivity calibration appears: calibrated point, cell constant value, calibration type (conductivity, actual conductivity or salin- ity), time and date. -
Page 51: Orp
7.6 ORP • From “GLP data” menu select the “ORP” option and press <OK>. • All data about last ORP calibration appear: calibrated point, time and date. • If the factory calibration was restored, the dis- play shows the warning message “Factory calibr. restored”. -
Page 52: Chapter 8 - Pc Connection
Chapter 8 - PC CONNECTION MODE The logged data can be transferred to PC using the HI929828 HI929828 HI929828 HI929828 HI929828 Windows ® compatible application software. HI929828 HI929828 HI929828 HI929828 HI929828 allows to use the powerful capabilities of most spread sheet pro- grams (e.g. - Page 53 Note Note Note Note Note To verify which PC COM port number is used for connecting the meter, press the “Detect Selected Instrument” button within the HI929828 “Set- tings” window. Otherwise, press START in the Windows ® task bar, select “Settings”...
-
Page 54: Chapter 9 - Error Messages
Chapter 9 - ERROR MESSAGES HI9828 HI9828 HI9828 HI9828 HI9828 displays a series of messages if probe or meter errors are generated. All possible error messages are listed in this section, together with the meaning and some indications to solve the problem. For quick information the help menu is always available by pressing the “Help”... - Page 55 • ”Probe critical error”: a probe generic error occurred. Turn the meter off, disconnect the probe and connect it again. If the problem per- sists, contact the HANNA service center. • “None of the enabled measurements is avail- able”: this message appears in measurement mode if no one of the selected parameters is available because the corresponding sensors are not mounted on the probe.
- Page 56 • “GPS signal not available” (only for model with GPS): the GPS signal is not sufficient. Move out- door to open sky and wait for 15 minutes. If the problem persists, contact the HANNA ser- vice center. • “Communication error with GPS unit” (only for model with GPS): the communication with the internal GPS unit can not be established.
-
Page 57: Appendixa - Probe Maintenance
APPENDIX A - PROBE MAINTENANCE HI9828 HI9828 HI9828 HI9828 HI9828 is supplied complete with a probe maintenance kit that includes HI7042S HI7042S HI7042S HI7042S HI7042S (electrolyte solution for DO sensor), 5 spare membranes with O- rings for DO sensor, a small brush for cleaning EC and DO sensors, 5 O-rings for sensor connectors and a syringe with grease to lubricate these O-rings. - Page 58 • • • • • Inspect the electrode for scratches or cracks. If any is present, replace the electrode. • Cleaning procedure: clean frequently the probe by soaking it for 1 minute in HI70670 HI70670 or HI70671 HI70670 HI70671 HI70671 HI70671 cleaning solution.
-
Page 59: B - Accessories
HI 769828-1 pH/ORP sensor HI 769828-2 DO sensor HI 769828-3 EC sensor HI 9828-25 Quick calibration solution, 500 mL bottle HI 9828-27 Quick calibration solution, 1 G bottle HI 7698281 USB interface cable HI 929828 Windows ®... - Page 60 HI 5074 pH 7.41 buffer solution, 500 mL bottle HI 5008 pH 8.00 buffer solution, 500 mL bottle HI 5009 pH 9.00 buffer solution, 500 mL bottle HI 5091 pH 9.18 buffer solution, 500 mL bottle HI 5010 pH 10.01 buffer solution, 500 mL bottle ORP SOLUTIONS HI 7020L ORP test solution, 200/275 mV @20°C, 500 mL...
-
Page 61: C - Warranty
APPENDIX C - WARRANTY All HANNA instruments ® meters are guaranteed for two years (sensors, meters are guaranteed for two years (sensors, meters are guaranteed for two years (sensors, meters are guaranteed for two years (sensors, meters are guaranteed for two years (sensors, electrodes and probes for six months) electrodes and probes for six months) electrodes and probes for six months) against defects in workmanship and...
