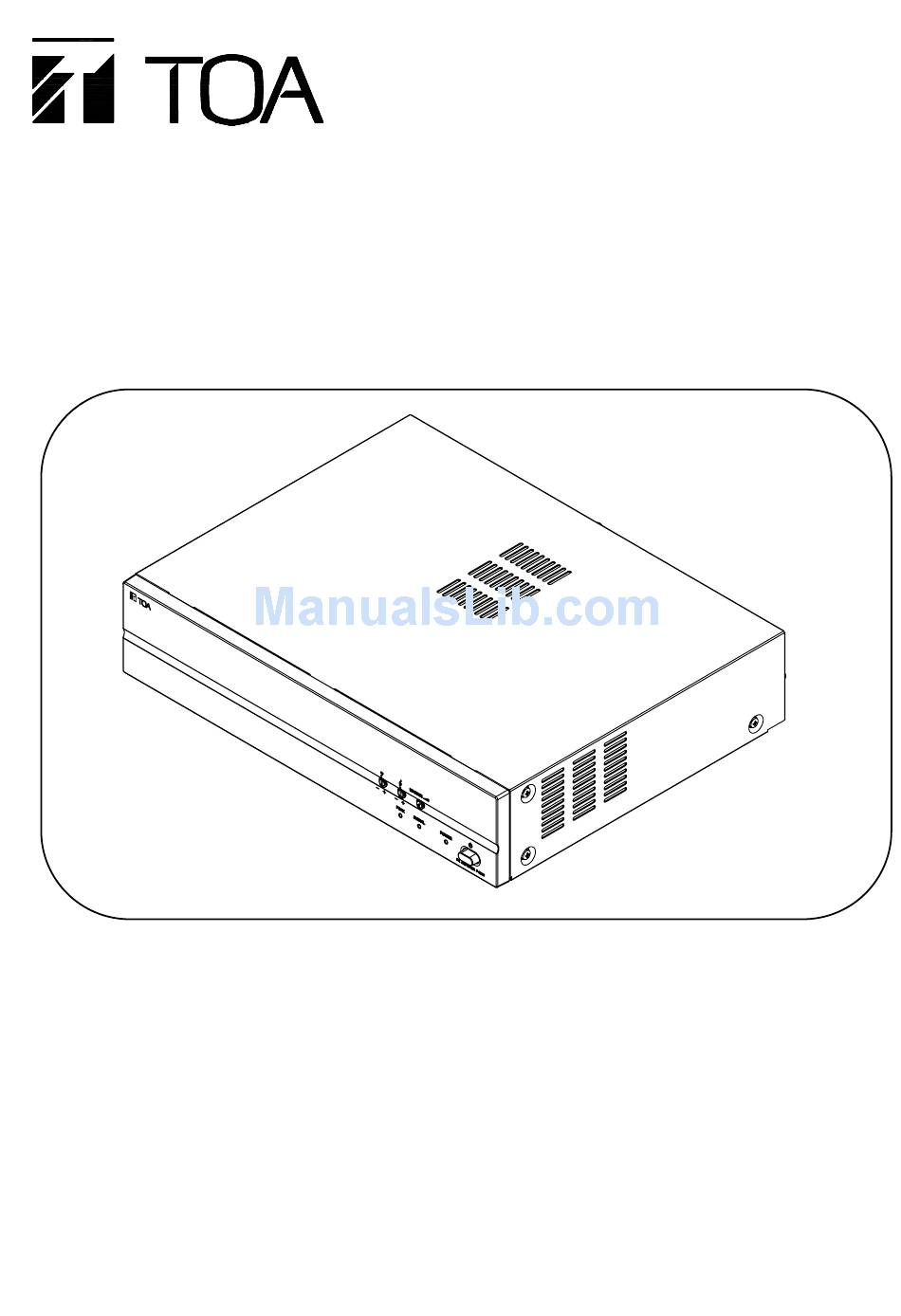

Page 1: Operating Instructions
OPERATING INSTRUCTIONS PA AMPLIFIERS P-2240 L P-2240 H P-2240 SA Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. TOA Corporation... -
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………….……….. 3 SAFETY PRECAUTIONS ………………………………………………… 3 GENERAL DESCRIPTION ……………………………………….………. 5 FEATURES…………………………………………………………………. 5 NOMENCLANTURE AND FUNCTIONS 5.1 Front …………………………………….………………..……………. 5 5.2 Rear ……………………………………………….………..………….. 5 CONNECTIONS 6.1. Input Connections ……………….………………………….….……. 6 6.2. Output Connections ………………………………….………..…….. 8 6.3. Example of External Equipment Connections …..….………..…… 8 INSTALLATION ……………………………………………..……..……... -
Page 3: Important Safety Instructions
1. IMPORTANT SAFETY 2. SAFETY PRECAUTIONS INSTRUCTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe • Read these instructions. operation. • Keep these instructions. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or •... - Page 4 • When connecting the unit's power cord to an AC power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to outlet, use the AC outlet with current capacity operate the unit in this condition as this may cause allowable to the unit.
-
Page 5: General Description

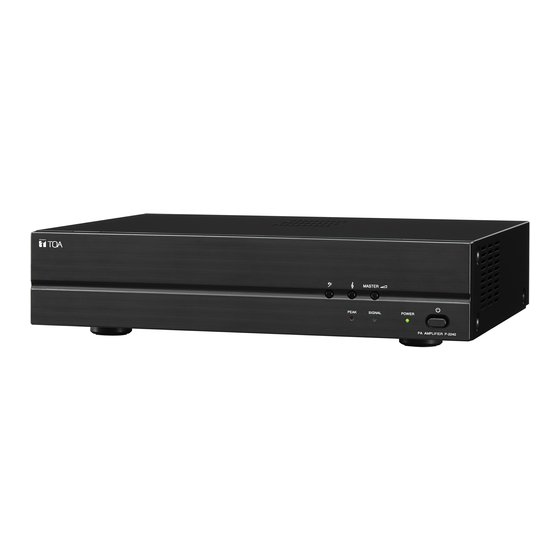

3. GENERAL DESCRIPTION TOA's Basic Power Amplifiers P-2240 is high cost-performance power amplifiers suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms. 4. FEATURES • High durability, high reliability, and high cost performance. -
Page 6: Connections
Power Switch 10. DC Terminal Press to turn ON the power. Connects to a DC power supply of 24V. Press again to turn the power OFF. Unplug AC Power Cord or disconnect DC Terminal to 11. Output Terminals get complete OFF the power. Connect to speakers. - Page 7 ● Connection with the mixer pre amplifier having the unbalanced type output. Please make the length of the cable less than several meters. LOOP OUT LINE IN Mixer Pre Amplifier ● Speaker Line Input Connection It is connected to the High Impedance (70V /100V) speaker wiring of other amplifier. SPEAKER LINE IN C O M 70 V 1 0 0 V Other...
-
Page 8: Output Connections
6.2. Output Connections ● Low Impedance Speaker ● 70V Line Speaker ● 100V Line Speaker +24V COM 4Ω COM 70V 100V +24V COM 4Ω COM 70V 100V +24V COM 4Ω COM 70V 100V 4 - 16Ω 70V Line 100V L Speake r Speake r Speak... -
Page 9: Installation
7. INSTALLATION Keep the unit’s all sides over 10 cm (3.94 inches) away from object that may obstruct air flow to prevent the unit’s internal temperature rise. 8. VOLUME CONTROL SETTINGS Output levels are adjustable with individual volume controls. For music play or announcement, adjust the corresponding volume control so that the red peak indicator lights intermittently. -
Page 10: Dimensional Diagram
10. DIMENSIONAL DIAGRAM units: mm(inches) -
Page 11: Specifications
11. SPECIFICATIONS P-2240 L P-2240 H P-2240 SA Model No. Power Source 110 - 120 V AC or 24 V DC 220 - 240 V AC or 24 V DC 220 - 240 V AC or 24 V DC Rated Output 240 W Power Consumption 238 W... - Page 12 Traceability Information for Europe (EMC directive 2004/108/EC) Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: http://www.toa.jp/ Part No: 533-01-076-70...
