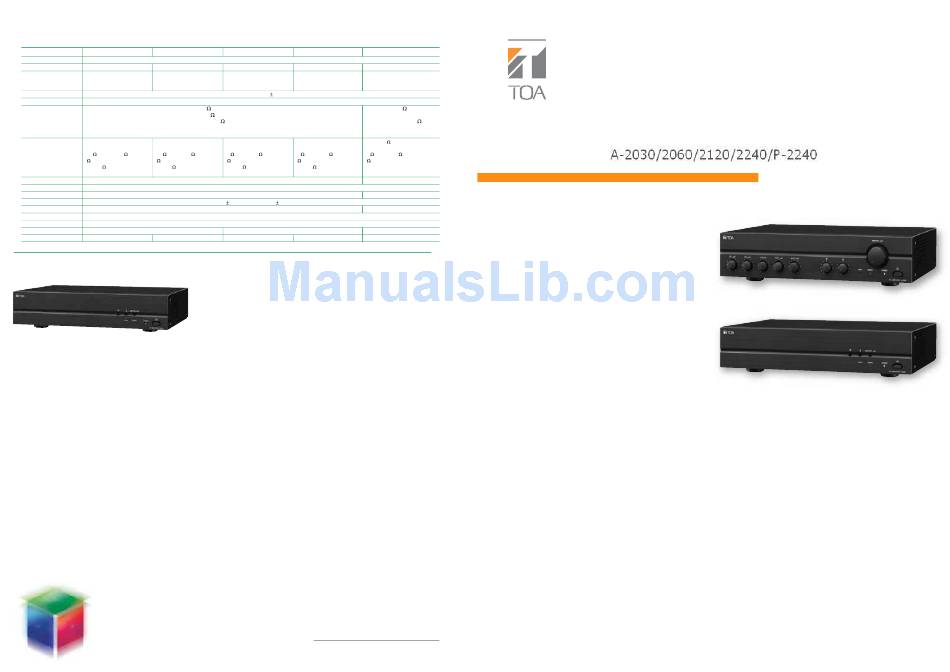

SPECIFICATIONS
A-2030 A-2060
Model No.
Power Source
Rated Output 30W 60W
Power Consumption 34W (EN60065), 72W (EN60065),
78W (AC operation at rated output), 150W (AC operation at rated output), 260W (AC operation at rated output), 520W (AC operation at rated output), 520W (AC operation at rated output),
2A (DC operation at rated output) 4A (DC operation at rated output)
Frequency Response
Distortion
Input MIC 1: -60dB*, 600 , electronically balanced, 5-P DIN type
MIC 2, 3: -60dB*, 600 , electronically balanced, phone jack
AUX 1, 2: -20dB*, 10k , unbalanced, RCA pin jack
Mute: Contact Pin 4 – 5 Closure input (for MIC 1)
Output Loop out ---- ----
Speaker out Balanced (floating) Balanced (floating)
High impedance 330 (100V), 170 (70V) 170 (100V), 83 (70V)
Low impedance 4 (11V) 4 (15.5V)
Rec. out 0dB*, 600 , unbalanced, 0dB*, 600 , unbalanced,
RCA pin jack RCA pin jack
Phantom Power
S/N Ratio
Tone Control
Muting MIC 1: Mutes other input signals by 0 – 30dB attenuation
Indicator
Finish
Dimensions 420 (W) x 100.9 (H) x 280.3 (D)mm
Weight 5kg 7kg
P - 2 2 4 0 B o o s t e r A m p l i f i e r ( 2 4 0 W )
The P-2240 offers a high performance-to-cost ratio, and can be used with
TOA's A-2000 Series mixer power amplifiers. Because the P-2240 features
a 100V line input, it can be connected to the speaker line from another
amplifier. Also, the P-2240's power can be switched on and off by remote
control, allowing it to be operated independently of the A-2000 Series.
Human Society with
Sound & Communication
A-2120 A-2240 P-2240
220 – 240V AC or 24V DC
120W 240W 240W
124W (EN60065), 238W (EN60065), 238W (EN60065),
8A (DC operation at rated output) 15A (DC operation at rated output) 15A (DC operation at rated output)
50 – 20,000Hz ( 3dB)
Under 1% at 1kHz, 1/3 rated power
Line in: 0dB*, 10k , balanced,
screw terminal
100V line in: 40dB*, 330k ,
unbalanced, screw terminal
----- ------- 0dB*, 10k , balanced, screw terminal
Balanced (floating) Balanced (floating) Balanced (floating)
83 (100V), 42 (70V) 42 (100V), 21 (70V) 42 (100V), 21 (70V)
4 (22V) 4 (31V) 4 (31V)
0dB*, 600 , unbalanced, 0dB*, 600 , unbalanced, —
RCA pin jack RCA pin jack
DC +21V (MIC 1) —
Over 60dB
Fan cooling
Bass: 10dB at 100Hz/Treble: 10dB at 10kHz
—
Power. signal, peak
Panel: ABS resin, black/Case: Steel plate, black
420 (W) x 100.9 (H) x 360.3 (D)mm 420 (W) x 100.9 (H) x 351.3 (D)mm
10.8kg 13.2kg 13.2kg
TOA Corporation
www.toa.co.uk
Specifications are subject to change without notice.
*0dB = 1V
MIXER POWER AMPLIFIERS
Performance
P-2240
Amplifiers
Offering high-end performance at affordable cost
Think of TOA when you need amplifiers for
commercial audio applications
A-2000 Series Mixer Power Amplifiers are designed to be highly cost- effective solutions to
the demands of PA applications. They offer high levels of performance and versatility and
are especially well-suited for broadcasting paging and supplying background music in
Schools, offices, shops, factories, mosques, churches and large meeting rooms.
A-2000 SERIES
High

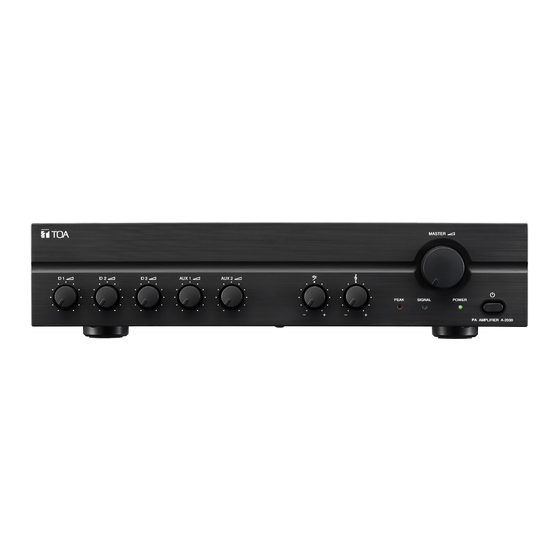

A-2030/2060/2120/2240
Mixer Power Amplifiers
*Amplifiers feature switching-mode power supply and Class-D technology.
Booster Amplifier
Never Compromise.........
............that's TOA.
P-2240
