Instructions for use

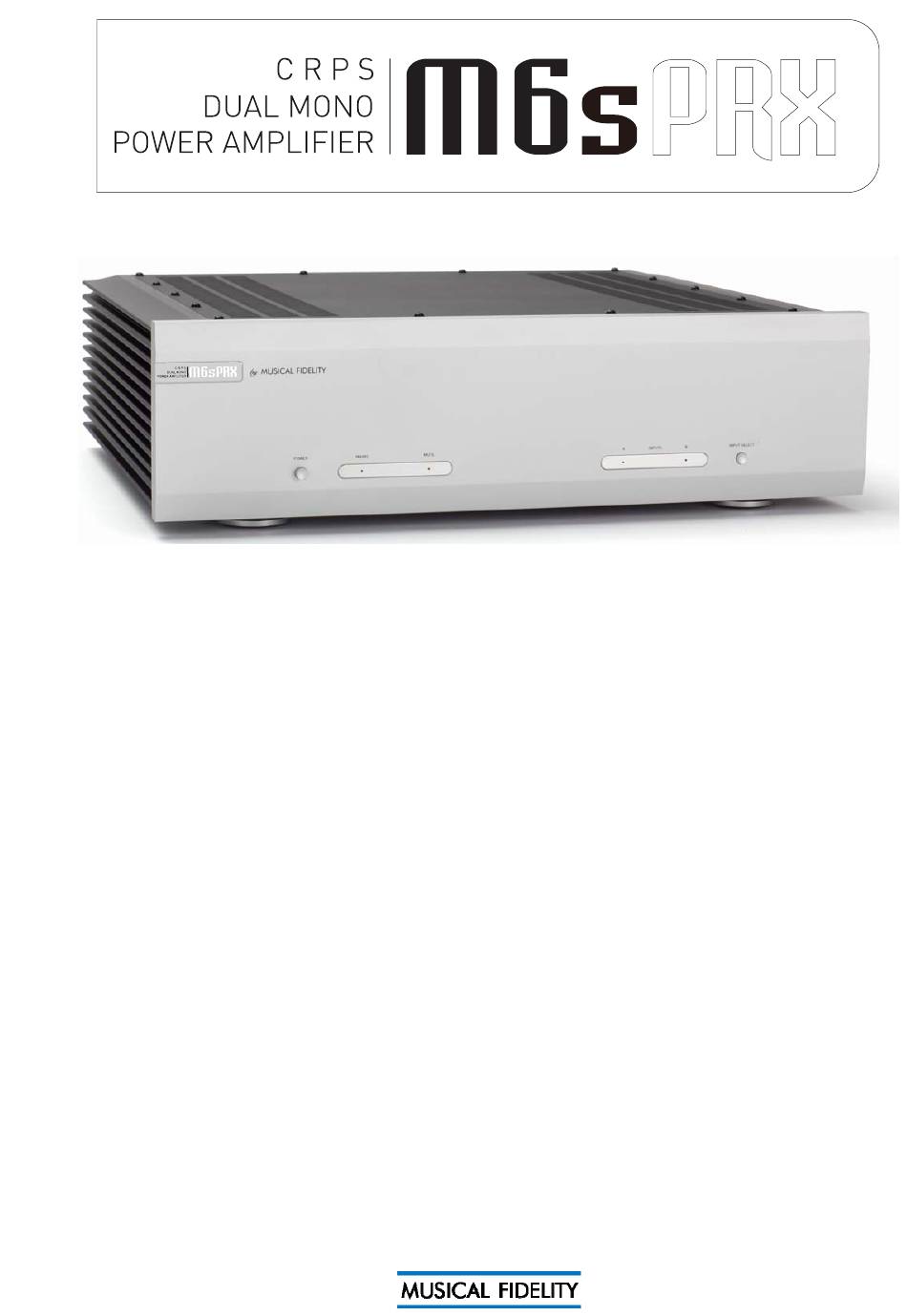

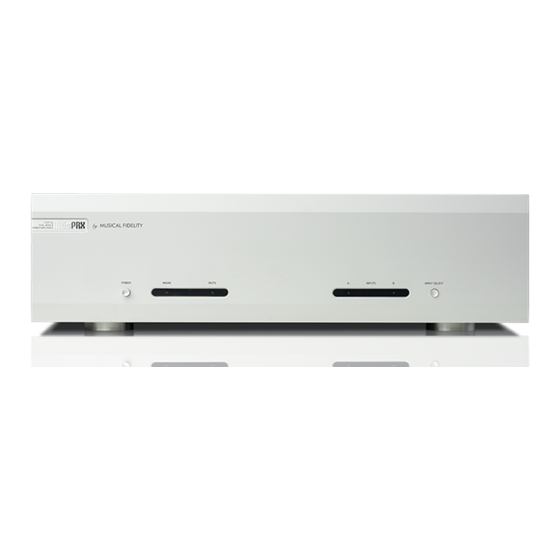

Thank you for purchasing the Musical Fidelity M6sPRX CRPS dual mono power amplifier.
The M6sPRX is designed to be partnered with present and future M6 series products. It features twin
conservatively rated power amplifier sections connected in dual mono configuration for the absolute best in
stereo imaging and drive capabilities. Two independent and over-specified choke regulated power supplies also
ensure the absolute best in supply noise filtering, separation and power reserve possible in a single box power
amplifier. This combination yields one of the best high-fidelity systems available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they may
harm the surface finish.
If there are any questions about the audio system, please consult the dealer who is there to help and advise.
Advertisement
Related Manuals for Musical Fidelity M6sPRX
Summary of Contents for Musical Fidelity M6sPRX
- Page 1 Thank you for purchasing the Musical Fidelity M6sPRX CRPS dual mono power amplifier. The M6sPRX is designed to be partnered with present and future M6 series products. It features twin conservatively rated power amplifier sections connected in dual mono configuration for the absolute best in stereo imaging and drive capabilities.
-
Page 2: Table Of Contents
CONTENTS Section Page Safety Information – Mains plug (UK only) – Modification warning General advice – l l a Disposal information – – Introduction, cleaning, installation, power connections, audio Installation connections Facilities and connections – u l l & Operation –... -
Page 3: Safety Information
• If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: MODIFICATIONS THIS PRODUCT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE STANDARDS COMPLIANCE COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. Issue 1... -
Page 4: General Advice
Heed all warnings shown on the back of the product. • Only connect the M6sPRX to a mains outlet having the same voltage as marked at the back of the unit. • Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off. - Page 5 ITEM DISPOSAL INFORMATION DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner.
-
Page 6: Installation
Power Connections The M6sPRX is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit (see page 7) -
Page 7: Facilities And Connections
FACILITIES & CONNECTIONS ON/OFF Button INPUT A/B indicator LEDs MAINS LED INPUT selector button MUTE LED 12 13 14 LOUDSPEAKER OUTPUTS Right 11 IEC MAINS INPUT BALANCED XLR right input 12 LOOP output RCA sockets BALANCED/RCA Selector for INPUT B 13 INPUT B RCA sockets BALANCED XLR left input 14 INPUT A RCA sockets... -
Page 8: Operation
OPERATION Starting Once all connections are made, switch on the unit, using the POWER button front of the unit. The MUTE LED will light. Speaker outputs are muted for about 6 seconds, so no sound will be heard from the speakers. Once the 6 seconds is up the MUTE LED goes out, indicating unit is settled, and ready for use. - Page 9 Check connections and make sure they are secure. low level output. If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the M6sPRX, as this will invalidate the guarantee.
- Page 10 125 mm (5 ”) Deep (front to back) including terminals 390 mm (15⅓ ”) Standard accessories IEC type mains lead (10-Amp type) Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Issue 1...
- Page 11 MANUAL HISTORY September 2018 Issue Issue 1...
