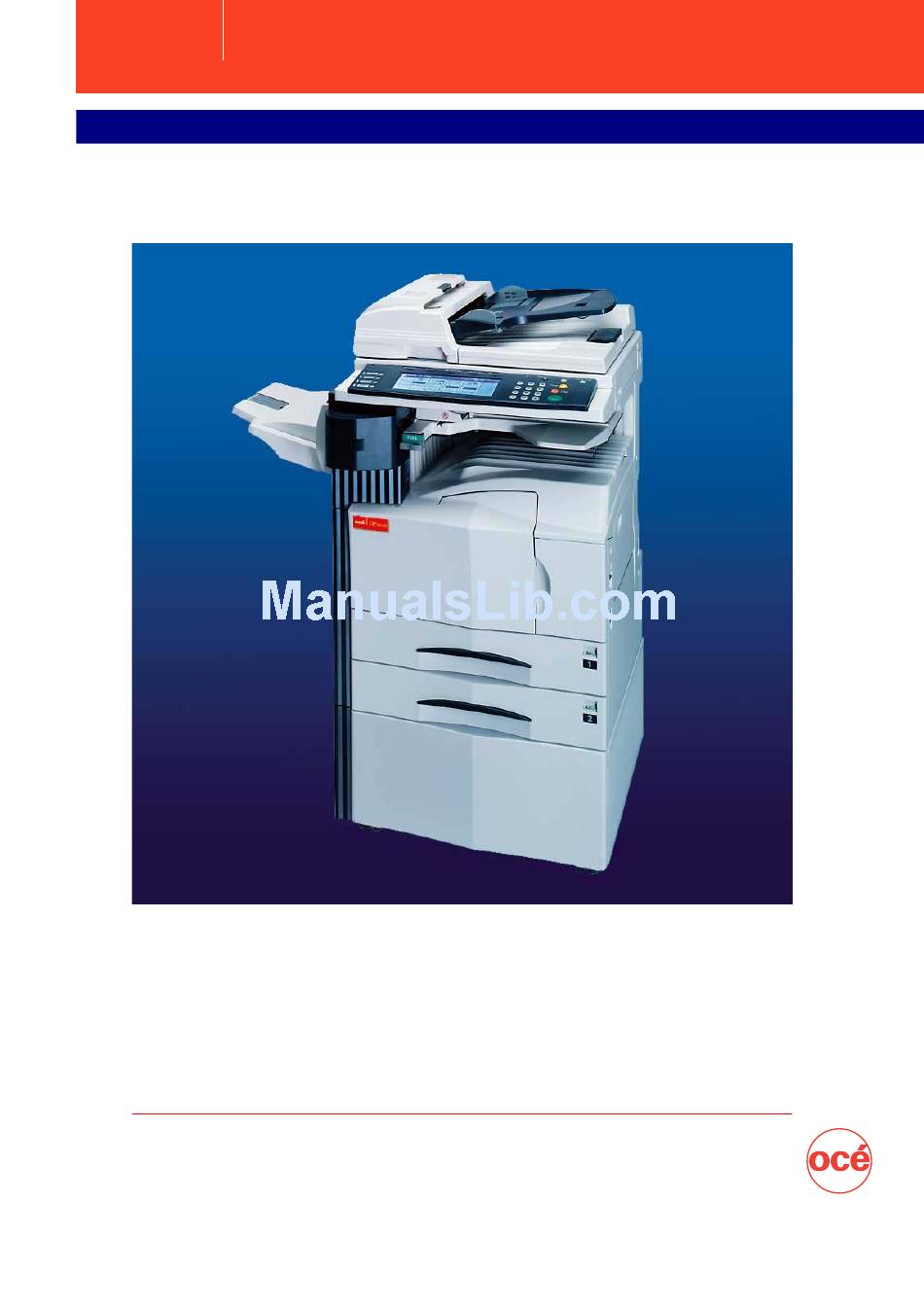

- Page 1 Océ Operations Guide Education Services 1.1.1. English version Océ OP1030/1040/1050 Printing System setup Operations Guide...
-
Page 3: Trademark Information
Trademark Information • Novell and NetWare are registered trademarks of Novell, Inc. • IBM and IBM PC-AT are trademarks of International Business Machines Corporation. • PowerPC is a trademark of International Business Machines Corporation of America and other corporations. • Adobe and Acrobat are trademarks of Adobe Systems Incorporated. •... - Page 4 IBM PROGRAM LICENSE AGREEMENT THE DEVICE YOU HAVE PURCHASED CONTAINS ONE OR MORE SOFTWARE PROGRAMS (“PROGRAMS”) WHICH BELONG TO INTERNATIONAL BUSINESS MACHINES CORPORATION (“IBM”). THIS DOCUMENT DEFINES THE TERMS AND CONDITIONS UNDER WHICH THE SOFTWARE IS BEING LICENSED TO YOU BY IBM. IF YOU DO NOT AGREE WITH THE TERMS AND CONDITIONS OF THIS LICENSE, THEN WITHIN 14 DAYS AFTER YOUR ACQUISITION OF THE DEVICE YOU MAY RETURN THE DEVICE FOR A FULL REFUND.
-
Page 5: About This Operation Guide
About this Operation Guide This Operation Guide <Set-up Edition> is meant to be read when the Printer Board is installed in your copier and the copier is to be used as a local printer or network printer. It contains explanations on set-up procedures for using the copier as a printer. - Page 6 Getting connected When connecting the printer directly to your computer (with a parallel cable or USB cable)… 1 Connecting the printer directly to your computer with a parallel Page 4 cable or USB cable ....Parallel cable or USB cable 2 Installing the printer driver into your computer ..
-
Page 7: Table Of Contents
Table of contents 1. Preparations ......................2 1-1 Accessories ..............................2 1-2 Required items ............................2 1-3 Name of parts (main body) ........................2 1-4 Name of parts (operation panel) ........................3 2. Set-up ........................4 2-1 Connecting the printer cable ........................4 2-2 Connecting the network cable ........................5 2-3 Installing the software ..........................5 2-4 Network (TCP/IP) settings .........................6 3. -
Page 8: Preparations
1. Preparations 1-1 Accessories • CD-ROM x 2 • This Operation Guide 1-2 Required items • When connecting the printer directly to your computer: Parallel cable (IEEE1284 compliant, 1.5 m or shorter) or USB cable (Hi-Speed USB2.0 compliant, 5.0 m or shoter) •... -
Page 9: Name Of Parts (Operation Panel)
1. Preparations 1-4 Name of parts (operation panel) 1 Printer key (indicator) Press to switch to the printer mode. The indicator is lit when the mode is engaged. 2 Status indicator Flashes/lights to indicate printer status. Lights green while receiving data. Lights amber when a printing error has occurred. -
Page 10: Set-Up
2. Set-up 2-1 Connecting the printer cable To connect the printer directly to your computer, use either a parallel Connect the other end of the printer cable to the parallel cable or USB cable. interface connector or USB interface connector on your computer. -
Page 11: Connecting The Network Cable
2. Set-up 2-2 Connecting the network cable 2-3 Installing the software To connect the printer to a network, use an Ethernet cable Perform the following procedure to install into your computer the (100BASE-TX or 10BASE-T). printer driver and other software that is appropriate to the operating system in use in that computer. -
Page 12: Network (Tcp/Ip) Settings
2. Set-up 2-4 Network (TCP/IP) settings To use the printer as a network printer, it is necessary to set an IP Use the “ ” and “ ” cursor keys to select “TCP/IP” and address for the printer. then touch the “Change” key. Notes •... - Page 13 2. Set-up Enter the next 3 digits and press the sharp (#) key. Use the “ ” and “ ” cursor keys to select “Gateway” and • To change an entered address, press the sharp (#) key to touch the “Change” key. select a 3-digit block and use the numeric keys to enter the correct address.
-
Page 14: Troubleshooting
3. Troubleshooting 3-1 Canceling printing Perform the following procedure when you want to stop printing or you want to clear data. Touch the “Cancel” key. Processing. Output Orig. page Count/Set ——— Plain Plain 1 sided Top tray Cancel Select the interface over which the job to be cancelled was received. -
Page 15: When An Error Message Appears
3. Troubleshooting 3-2 When an error message appears… If an error message appears on the operation panel, first check the following tables for cause of the trouble and then perform the corresponding procedure. For more detailed information, refer to the Operation Guide for your copier as well as the Operation Guide for any optional equipment that is installed in your machine. - Page 16 3. Troubleshooting Display message Procedure Memory card error Press GO Code:## Check the error code displayed in place of ## and refer to the following. 01: Format error. Reformat the memory card. 02: Memory card load error. Correctly load the memory card. 03: A write error has occurred.
- Page 17 3. Troubleshooting Display message Procedure Insert the same memory card The Memory Card (CompactFlash) could not be detected during an operation in which the printer was reading data from that card. Reinsert the Memory Card. * BE SURE to turn the main switch Off BEFORE inserting the Memory Card. Format error Memory card Initialization of the Memory Card (CompactFlash) currently inserted is necessary.
- Page 18 3. Troubleshooting Display message Procedure Option ROM error Press GO An error occurred when reading the optional ROM. Press the Printer key to switch to the printer mode and then touch the “GO” key to clear the error. Format error Hard Disk Initialize the hard disk.
-
Page 19: Basic Troubleshooting Chart
3. Troubleshooting 3-3 Basic troubleshooting chart If you experience trouble while you are using this machine as a printer, refer to the table below to perform minor adjustments. If trouble persists, contact your service representative or an authorized service center. * For information in regard to general mechanical trouble with the machine, refer to the Operation Guide for your copier. -
Page 20: Specifications
4. Specifications CPU ..............PowerPC 750CXe (500 MHz) Printing Speed ........... KM-3035: 30 pages/min. (A4 [11" x 8 1/2"]) KM-4035: 40 pages/min. (A4 [11" x 8 1/2"]) KM-5035: 50 pages/min. (A4 [11" x 8 1/2"]) Printing Resolution ..........Fast 1200 mode With smoothing OFF: 1800 dpi x 600 dpi With smoothing ON: interpolated 2400 dpi x 600 dpi Maximum Printing Size ........ - Page 21 MEMO...
