Manhattan 516075 User Manual

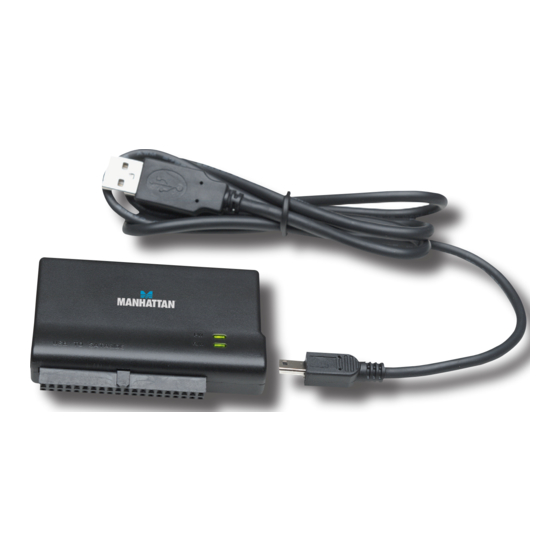

Hi-speed usb 2.0 to sata/ide adapter with power supply
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Hi-Speed USB 2.0
to SAtA/ide AdApter
witH power SUpply
USer
MANUAl
MODEL 516075
MAN-516075-UM-1106-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 516075 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan 516075

Summary of Contents for Manhattan 516075

  • Page 1 Hi-Speed USB 2.0 to SAtA/ide AdApter witH power SUpply USer MANUAl MODEL 516075 MAN-516075-UM-1106-02...
  • Page 2 Thank you for purchasing the MANHATTAN Hi-Speed USB 2.0 to SATA/IDE Adapter with ® Power Supply, Model 516075. This device connects SATA, SATA-enhanced, IDE and enhanced-IDE hard disks and CD/DVD drives to desktop and notebook computers using a USB port. Backing up files or storing large file archives on external drives is faster and easier to accomplish.
  • Page 3 • Y power cable, 20 cm (15.5 in.) • IDE 40-pin to 44-pin adapter • User manual and driver CD NOTE: As data stored on hard disks is not guaranteed by the disk manufacturers, MANHATTAN accepts no responsibility for lost data. Back up all data regularly.
  • Page 4 SetUp & operAtioN System Requirements Hardware: PC or notebook computer with an available USB interface. Operating system: Windows 98/SE/Me/2000/XP/Vista. Setup for Windows 98/SE 1. Plug the adapter into an available USB port. 2. Attach the SATA and/or the IDE drive(s) to the adapter. 3.
  • Page 5 any yellow, red or green question mark. After finishing the setup, the USB device will be found in "My Computer." Setup for Windows Me/2000/XP Under Windows Me/2000/XP, the system can find and set up "USB Mass Storage Device" directly. NOTE: Partition and format any new hard disk drive (HDD) into FAT16 or FAT32 segments prior to connecting to the Hi-Speed USB 2.0 to SATA/IDE Adapter.

  • Page 6: Specifications

    SpecificAtioNS Standards • Complies with USB 2.0 standards • Complies with USB 1.1 standards • Complies with SATA 150 standards • Complies with ATA/ATAPI-66 spec v1.0 General • One Hi-Speed USB 2.0 (mini-B type), one SATA 150 (L-type) and one IDE 40-pin (female) port •...
  • Page 7 Power Supply • Input: 100 V – 240 V / 50 – 60 Hz maximum 1.0 A • Output: 5 V / 2A; 12 V / 2 A • Cord length: 1.7 m (68 in.) overall...
  • Page 8 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
