Summary of Contents for Manhattan SIMPLENET 506663

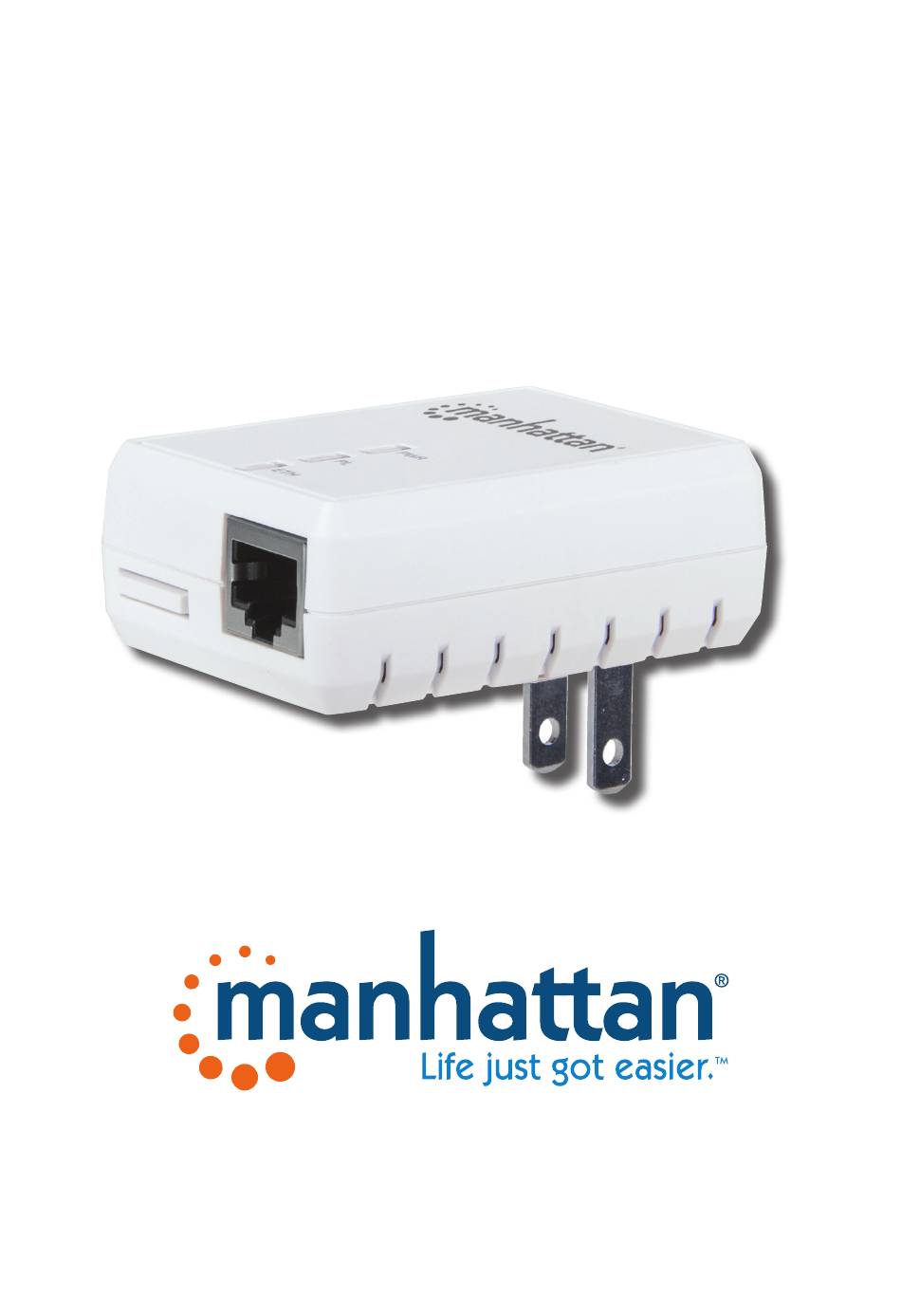

- Page 1 SIMPLENET USER MANUAL MODEL 506663 manhattan-products.com MH-506663/536670-UM-1112-01...

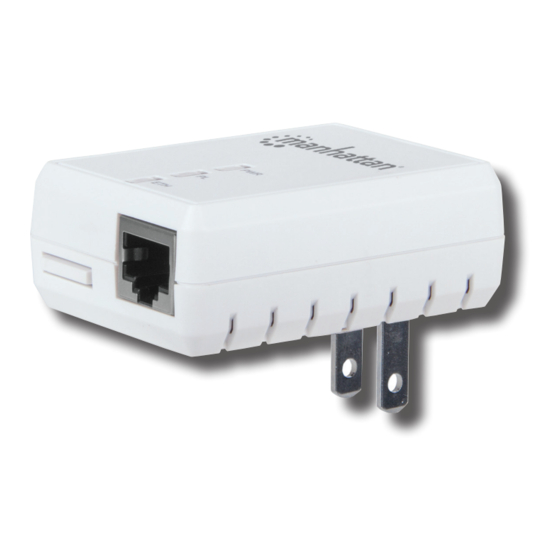

- Page 2 INTRODUCTION Thank you for purchasing the Manhattan SimpleNet (Powerline AV500 Ethernet ® Adapter), Model 506663. The Starter Kit, Model 506670, features a pair of units, the minimum number required to operate the devices. This device allows you to create a high-speed network for your home or office by simply plugging it into any electrical outlet.
-
Page 3: Initial Setup
INITIAL SETUP The SimpleNet adapter allows you to connect a device that has an Ethernet port to a building’s power line network; that is, the wiring system that runs throughout a home, office, etc. In operation, this “bridge” is completely transparent: It simply passes data from the Ethernet port along the wiring network. - Page 4 Setup The SimpleNet adapter is a Plug and Play device. By simply pressing a button, you can securely connect to the Internet or to other devices (computers, Blu-ray players, game consoles, etc.) on a network. 1. Use the included Ethernet cable to connect the adapter to your modem or router.
- Page 5 INDEPENDENT NETWORK SETUP Each SimpleNet adapter is set with a default security key so it automatically links to all other such devices sharing the same electrical lines. If there are other such devices in the building (in an office or apartment building, perhaps), you may want to create your own individual (independent) network group so others’...
- Page 6 Adding Adapter C to Existing Network AB (Network ABC) As shown below, one unassociated Adapter (C) is added to expand an existing network: Network AB. Adapter A Adapter B Adapter C 1. Press and hold the Security button on Adapter C for 10 seconds. Release it when the Power light flashes.
- Page 7 Removing Adapter B from the ABC Network and Joining with Adapters D & E (Network BDE) As shown below, a networked Adapter (B) is removed from one existing network (ABC) and added to another (forming BDE). Adapter Adapter Adapter Adapter Adapter Adapter Electrical Wiring...
-
Page 8: Troubleshooting
TROUBLESHOOTING If any of the SimpleNet adapters in your network have difficulty communicating with one another, consider the following suggestions. • Try power-cycling the unit by unplugging it from the wall for 10 seconds and plugging it in again. • Press the Reset button for 2 seconds on each unit you’re trying to connect. The LEDs will flash as the units reset and attempt to link using default factory settings. -
Page 9: Specifications
• Storage temperature: -10 – 70°C (14 – 158°F) • Storage relative humidity: 10 – 90%, non-condensing Minimum System Requirements • Existing Manhattan SimpleNet Ethernet Adapter • TCP/IP protocol • CD-ROM drive • Configuration utility requires Windows XP, Vista, Windows 7 or Windows 8... -
Page 10: Waste Electrical And Electronic Equipment
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. - Page 11 located or operating in conjunction with any other antenna or transmitter. The equipment version marketed in the U.S. is restricted to usage of channels 1-11. R&TTE This device complies with the requirements of R&TTE Directive 1999/5/EC. The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden and the United Kingdom, and is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and...
- Page 12 © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
