Manhattan 179010 Quick Install Manual

Bluetooth
AdApter /
micro AdApter

QuicK iNStAll

Guide
Models 179010, 179058,
179201 & 179218

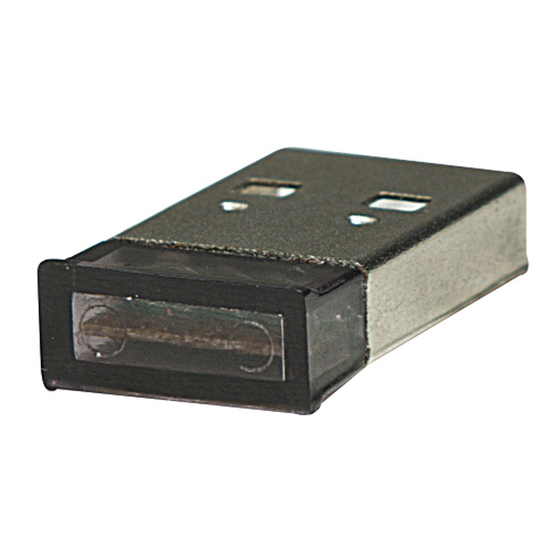

Micro Adapter Models
179201 & 179218
•
Piconet and
scatternet compatible
•
Built-in security (with a
protective cover on 179010 & 179058
•
Micro Adapter stays installed during
transport
•
Plug and Play installation; Windows
compatible
•
Lifetime Warranty

SpecificAtioNS

Standards/Certifications
• Hi-Speed USB 2.0, CE, FCC,
Bluetooth v2.1 + EDR
Radio
• Freq. range: 2.4–2.483 GHz
• Data rate: up to 3 Mbps
• Range:
- 179010: to 100 m (328')
- 179058: to 20 m (65.6')
- 179201: to 50 m (164')
- 179218: to 10 m (32.8')
MANHATTAN
Accessories. Ask your local computer dealer for more information or visit us online at
All products mentioned are trademarks or registered trademarks of their respective owners.
• Modulation type: GFSK
(1 Mbps); D/4-DOPSK
(2 Mbps); 8DPSK (3 Mbps)
• Spread spectrum: FHSS
• I/O interface: Hi-Speed
USB 2.0
• Input power: 5 V (USB
power)
• Sensitivity: -82 dBm
(typical), GFSK
• RF output power: 13 dBm
(typical), GFSK
® offers a complete line of PC Components, Peripherals, Cables and
www.manhattan-products.com
Thank you for your purchase of the
MANHATTAN
Model 179010 (100m) or 179058 (20m);
or Bluetooth Micro Adapter, Model
179201 (50m) or 179218 (10m).
Adding Bluetooth capability to any
notebook or desktop PC with a USB
port, this device helps create ad hoc
networks to share files and resources
without adding wires, cables or costly
equipment. (Instructions on back.)
Supported Profiles
• See back of sheet
Physical
• Chipset
- 179010/179058: ISSC
- 179201/179218: CSR
• Built-in antenna
• LED activity indicator
(179201/179218 only)
• Dimensions:
- 179010/179058: 51 x 16
x 8 mm (2.0 x 0.6 x 0.3 in.);
5.7 g (0.2 oz.)
Copyright © MANHATTAN
MH-179010/179058/179201/179218-QIG-0408-03
Bluetooth Adapter,
®
Adapter Models
179010 & 179058
- 179201/179218: 19 x 12
x 5.5 mm (0.75 x 0.5 x
0.2 in.); 1.8 g (0.68 oz.)

System Requirements

• Windows 2000/XP/Vista/7
• Available USB port

Package Contents

• Bluetooth Adapter or
Bluetooth Micro Adapter
• Driver/software CD
• Quick install guide
