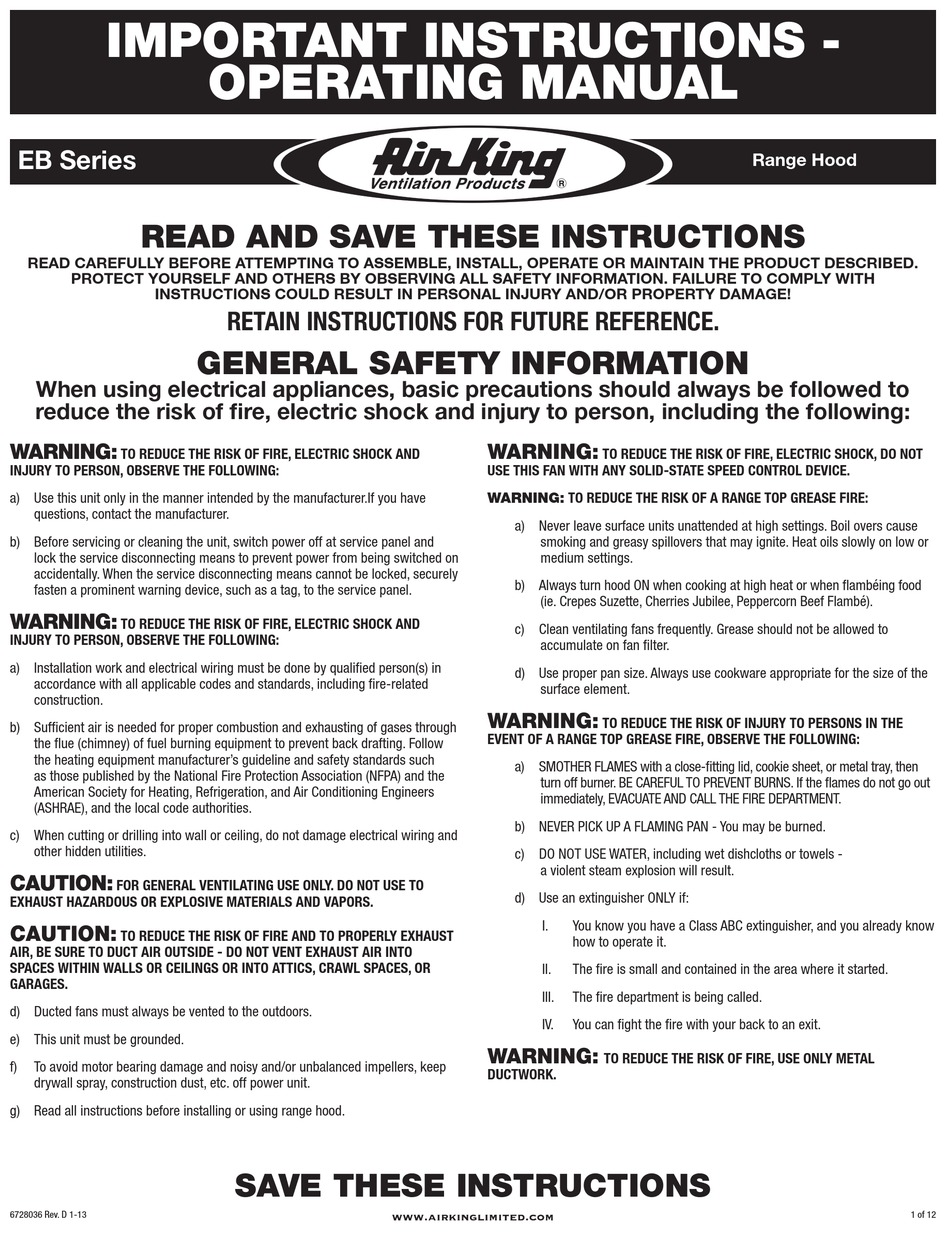

IMPORTANT INSTRUCTIONS -
EB Series
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
When using electrical appliances, basic precautions should always be followed to
reduce the risk of fire, electric shock and injury to person, including the following:
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
INJURY TO PERSON, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer.If you have
questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
INJURY TO PERSON, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-related
construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer's guideline and safety standards such
as those published by the National Fire Protection Association (NFPA) and the
American Society for Heating, Refrigeration, and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
CAUTION:
FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO
EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
CAUTION:
TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST
AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT EXHAUST AIR INTO
SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES, OR
GARAGES.
d) Ducted fans must always be vented to the outdoors.
e) This unit must be grounded.
f)
To avoid motor bearing damage and noisy and/or unbalanced impellers, keep
drywall spray, construction dust, etc. off power unit.
g) Read all instructions before installing or using range hood.
6728036 Rev. D 1-13
OPERATING MANUAL
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

SAVE THESE INSTRUCTIONS
WARNING:
USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boil overs cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium settings.
b) Always turn hood ON when cooking at high heat or when flambéing food
(ie. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan filter.
d) Use proper pan size. Always use cookware appropriate for the size of the
surface element.
WARNING:
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels -
a violent steam explosion will result.
d) Use an extinguisher ONLY if:
I.
II.
III.
IV.
WARNING:
DUCTWORK.
www.airkinglimited.com
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO NOT
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
You know you have a Class ABC extinguisher, and you already know
how to operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You can fight the fire with your back to an exit.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
Range Hood
1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Air King EB Series

  • Page 1: General Safety Information

    IMPORTANT INSTRUCTIONS - OPERATING MANUAL EB Series Range Hood READ AND SAVE THESE INSTRUCTIONS READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 2: Installation Instructions

    INSTALLATION INSTRUCTIONS CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION. Wood Strip SECTION 1 Preparing the Range Hood Unpack hood from the carton and confirm that all pieces are present. In addition to the range hood you should have: 2 - Aluminum Grease Filters (36"...
  • Page 3 Determine where the electrical service will enter the hood and remove the appropriate Connect the 1 loose Black wire from the range hood to the Black wire from the supply, electrical knockout by inserting a screw driver into the slot and rocking back and forth until the and the 1 loose White wire from the range hood to the White wire of the supply.
  • Page 4: Troubleshooting Guide

    Replace with: operating properly. 30" wide models: Air King model CF-09S combination odor/grease filter 36" wide models: Air King model CF-10S combination odor/grease filter If there is any vibration noise, check for the source and try to tighten fasteners.
  • Page 5: Limited Warranty

    WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model.
  • Page 6: Replacement Parts Diagram

    REPLACEMENT PARTS DIAGRAM Qty. Description Replacement Part # Motor 5S2145001 Motor Housing 5S6145002 Impeller 5S9199025 Grease Filter GF-09S (30" models) 5S6145003 Odor Filter CF-09S (30" models) 5S6145005 Grease Filter GF-10S (36" models) 5S6145004 Odor Filter CF-10S (36" models) 5S6145006 Wire Compartment Cover 5S6145016 Harness 5S6145012...
  • Page 7: Hotte De Cuisinière

    INSTRUCCIONES IMPORTANTES – MANUAL DE OPERACIÓN Séries EB Hotte de cuisinière LIRE ET CONSERVER CES INSTRUCTIONS LIRE SOIGNEUSEMENT AVANT DE TENTER D’ASSEMBLER, INSTALLER, OPÉRER OU DE RÉPARER LE PRODUIT DÉCRIT. PROTÉGEZ VOUS-MÊME ET LES AUTRES EN OBSERVANT TOUTE L’INFORMATION DE SÉCURITÉ. FAILLIR À SE CONFORM- ER AUX INSTRUCTIONS PEUT RÉSULTER EN BLESSURE PERSONNELLE GRAVE ET/OU EN DOMMAGE À...
  • Page 8: Instructions D'installation

    INSTRUCTIONS D’INSTALLATION MISE EN GARDE : ASSUREZ-VOUS QUE L’ALIMENTATION ÉLECTRIQUE EST COUPÉE À PARTIR DU PANNEAU DE DISTRIBUTION AVANT DE COMMENCER L’INSTALLATION. Bande de bois SECTION 1 Préparation de la hotte de cuisinière Sortez la hotte de l’emballage et assurez-vous d’avoir toutes les pièces. En plus de la hotte, vous devriez avoir : 2 - Filtres à...
  • Page 9: Installation De La Hotte

    SECTION 4 Connecter le fil lâche Noir de la hotte de cuisine au fil Noir de l’alimentation, et le fil lâche Blanc de la hotte au fil Blanc de l’alimentation. Connecter le fil de mise à la terre Installation de la hotte (vert ou dénudé) de l’alimentation à...
  • Page 10: Guide De Dépannage

    Remplacer avec: Modèles 30 po: Filtre combiné à graisse / odeur modèle CF-09S de Air King S’il y a un bruit de vibration, recherchez-en la source et essayez de serrer les attaches ou d’ajuster le ruban pour canalisations pour faire un raccord ou un scellant plus serré.
  • Page 11: Garantie Limitée

    Cette garantie ne couvre pas les coûts d'expédition pour le retour des produits à Air King pour la réparation ou le remplacement. Air King payera les frais d'expédition de retour de Air King après les réparations ou le remplacement de garantie.
  • Page 12 DIAGRAMME DES PIÈCES DE REMPLACEMENT # de pièce Qte. Description de remplacement Moteur 5S2145001 Cabinet de moteur 5S6145002 Hélice 5S9199025 Filtre à graisses GF-09S (modèles 30 po) 5S6145003 Filtre à odeur CF-09S (modèles 30 po) 5S6145005 Filtre à graisses GF-10S (modèles 36po) 5S6145004 Filtre à...
