Skype Gateway Box
VO-4500SK V2.0
User's Manual
2005/11/15 (Ver:1.0.2.4b)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VO-4500SK and is the answer not in the manual?

Questions and answers

Related Manuals for Edimax VO-4500SK

Summary of Contents for Edimax VO-4500SK

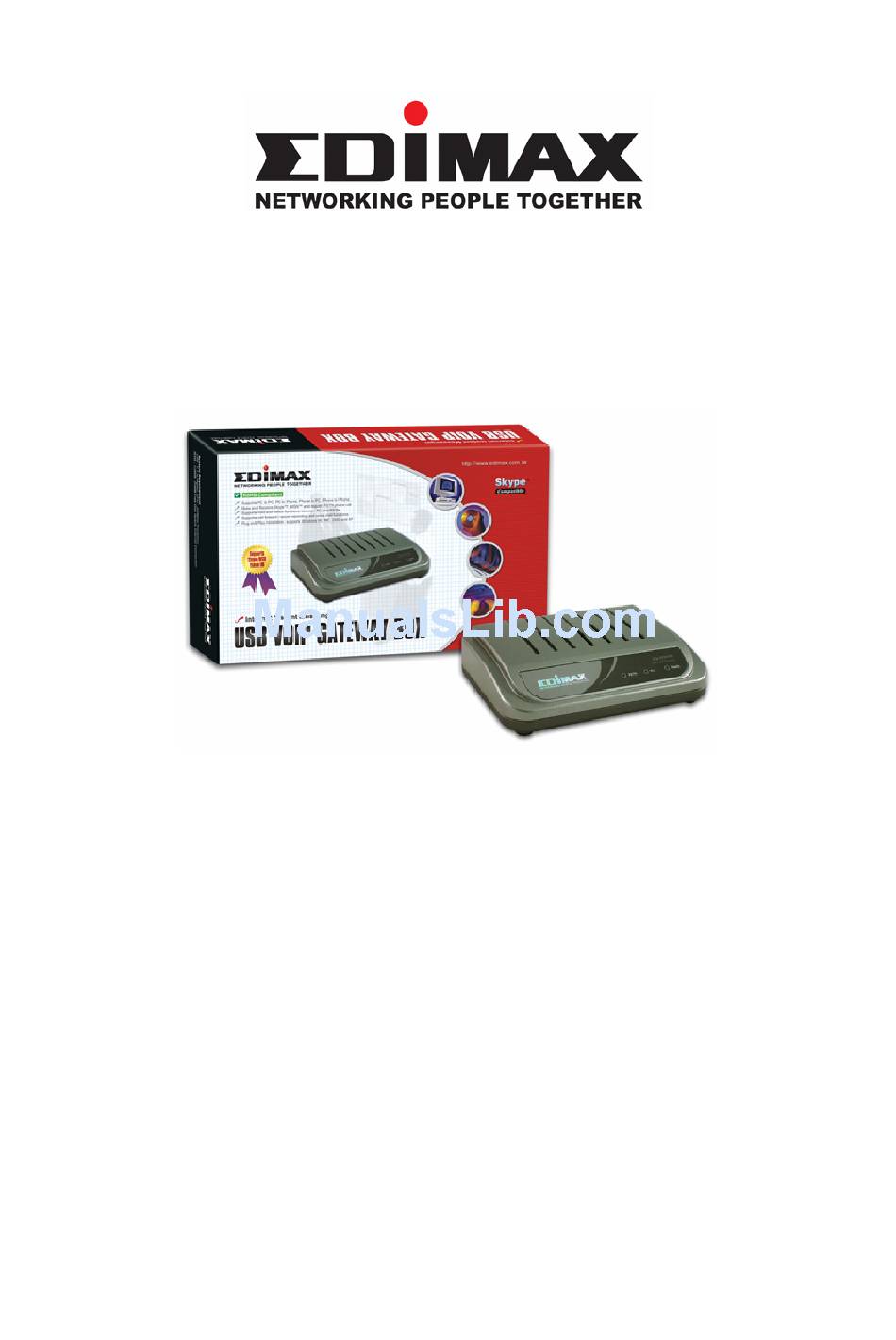

  • Page 1 Skype Gateway Box VO-4500SK V2.0 User’s Manual 2005/11/15 (Ver:1.0.2.4b)

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction 1.1 Features 1.2 Package Contents 1.3 System Requirements 2. Install Skype Software 2.1 Downloading and Installing Skype 2.2 Creating a Skype Account 2.3 Adding Accounts 2.4 Assign a Speed-Dial Number 3. Connecting Hardware/Installing 3.1 Skype Gateway Box Connecting 3.2 Connecting the Skype Gateway Box Hardware 3.3 Installing Skype Gateway Box Driver 3.4 Installing Skype Gateway Box Software...

  • Page 3: Introduction

    1. Introduction 1.1. Features • Support USB 1.1/2.0 • Plug and play • Support PC-PC, PC-Phone, Phone-PC, Phone-Phone • Make/receive Skype call and regular PSTN call • Talk through Phone or MIC/SPK • Hold and Switch between PC and PSTN •...

  • Page 4: Install Skype Software

    2. Install Skype Software Before using Skype Gateway Box and Middleware, please download and install Skype on your computer or notebook. 2.1. Downloading and Installing Skype Step 1： Go to WWW.SKYPE.COM Website to get the Skype Installation File. Step 2： When the Skype web page appears, click Download Skype now, It’s free.
  • Page 5 Step 6： In the next window, Check the “I accept the agreement” Radio Button, then click “Next”. Step 7： Once Skype is installed. Click “Finish” to complete the installation. The Skype software is now installed on the computer. Go to the next section to create a Skype account.

  • Page 6: Creating A Skype Account

    2.2 Creating a Skype account Step 1： After Skype is installed, the “Create a new Skype account” window appears. In the “New Users -Create a Skype Account” tab, enter the required information in the suggested available fields (Note the Red Asterisk “*” are required to be filled in). Click “Next” once this has been done. Step 2：...
  • Page 7 2.3 Add a Contact Step 1： Go to the main Skype account window. From the menu at the top of the window, select Tools, then Add a Contact…. Step 2： When the “Add a Contact” window appears, enter the name of another Skype user in the text box, then click “Search”.
  • Page 8 Step 3： A “Request Authorization” window appears. Select the following statement (Circled in Red below) then click “OK”. Step 4： Click “Finish”. The contact has been added.

  • Page 9: Assign A Speed-Dial Number

    2.4 Assign Speed-Dial Number Step 1： From the main Skype window, select the Contact tab. Step 2： 　 Right-click on a contact name then Select “Assign Speed-Dial”. Step 3： In the next window, enter a speed-dial number, then click “OK”.
  • Page 10 Step 4： Repeat to assign speed-dial The speed-dial number is now assigned to that specific contact. numbers to other contacts.

  • Page 11: Connecting Hardware/Installing

    3. Connecting Hardware / Installing Skype Gateway Box Software 3.1. Skype Gateway Box Connection Figure ADSL Modem Modem Dial-Up Behind Router/NAT 3.2. Connecting the Skype Gateway Box Hardware Step 1： Remove the Skype Gateway Box from product package.
  • Page 12 Step 2： 　 Remove the telephone cable (RJ11) from the package, and connect one end to your existing telephone and the other end to the “Phone” port at the back of the Skype Gateway Box. As well connect your existing telephone line, from the wall, to the “PSTN” port, also located at the back of the Skype Gateway Box.
  • Page 13 3.3. Installing Skype Gateway Box Middleware Step 1： Insert the Installation CD into the CD-ROM drive of the computer, upon which the autorun window will appear. (InstallShield will select the appropriate language automatically) Step 2： Click “Next” through each of the following steps, then click “Install” to start the process.
  • Page 14 Step 3： Start Installing … Step 4： Once installation is complete, click “Finish”.
  • Page 15 Step 5： A “Middleware” Icon is also created in the process.
  • Page 16 3.4. Start Using Skype Gateway Box Step 1： Starting Skype on your PC. Double-Click the “Skype” Icon and make sure your Skype is running with the Skype icon appearing on the bottom-right hand of your screen. Step 2： Click the “Middleware” Icon. A Window will immediately appear, indicating that Skype has detected another program (Middleware) that is try to access it please select “Allow this program to use Skype”...
  • Page 17 Step 4： 　 The Middleware application as shown on your Screen. Step 5： You may use the functions and settings on the Middleware application.
  • Page 18 3.5. Skype Audio Setup Step 1：　 Start Skype, and Select the Tools menu. Click on “Options” . Step 2： Find the Sound Devices tab, and click on it. In the Audio In/Out drop down menu select the USB device Click the Save button...
  • Page 19 Step 3： Click on the Start button and continue to the Settings section within the Start menu. Click on the Control Panel tab within the Settings submenu. In the Control Panel window find the “Sounds and Audio Devices” icon, and click on it. Step 4：...

  • Page 20: Using Skype Gateway Box

    4. Using Skype Gateway Box 4.1 Make a Speed-Dial Call 1. Pick up the handset. (Hear the Dial Tone Generated from PSTN) 2. Press the ＊ button to switch to Skype mode. (Hear the Dial Tone Generated from Middleware) 3. Dial your contact's assigned speed-dial number. 4.

  • Page 21: Middleware Interface

    5. Middleware Interface 5.1 Voice Mail Messages Select and press “Play” Button to listen Voice Message. 5.2 Voice Mail Settings...
  • Page 22 How to Use Voice Mail Function: Step1. Check “Activate Voice Mail”. Step2. Set the “Setting Response Time” parameter (Default: 6 Rings) (This means Middleware will start the voice mail function and pick up phone after 6 Rings.) Step3. Set “Maximum Incoming Message time” parameter (Default: 30 sec) (This means the max.

  • Page 23: Telephone Settings

    5.3 Telephone Settings When picking up the Phone If checked: Hear Dial Tone from PSTN If uncheck: Hear Dial Tone from Middleware You can set the desired button (* or #) used to switch between PSTN and Skype.
  • Page 24 How to Use Call Forward Function: Step1. Check “Activate Automatic Call Forwarding (PC to Phone)”. Step2. Set the “Call Forwarding Ring” (Default: 6 Rings) (This means Middleware will begin forwarding after 6 Rings) Step3. Fill in the “Forwarding Phone number setting” field. (Middleware will forward this number to PSTN) How to verify this function: Skype-A...
  • Page 25 How to use Skype through accepting an incoming PSTN call: Step1. Check “Activate Automatic Call Forwarding (Phone to PC)” Step2. Set the “Call Forwarding Ring” (Default: 6 Rings) Step3. Set the “Call Forwarding Transfer Password” (Default: 0000) How to verify this function: Skype-A Skype-B Step1.

  • Page 26: Recording Function

    5.4 Recording Function If checked: Middleware will record every Skype calls Select Item and press “Play” to listen to the recorded Voice Messages.

  • Page 27: Magic Voice

    5.4 Magic Voice User can use this magical function to change to either a male or female voice. Select “Men” to lower your voice tone. Select “Female” to heighten your voice tone.
