Edimax VO-4500SK User Manual

Edimax VO-4500SK User Manual

Usb voip gateway box
Hide thumbs Also See for VO-4500SK:
Table of Contents

Advertisement

Quick Links

Download this manual
U
S
B
V
o
I
P
G
a
t
e
w
a
y
B
o
x
U
S
B
V
o
I
P
G
a
t
e
w
a
y
B
o
x

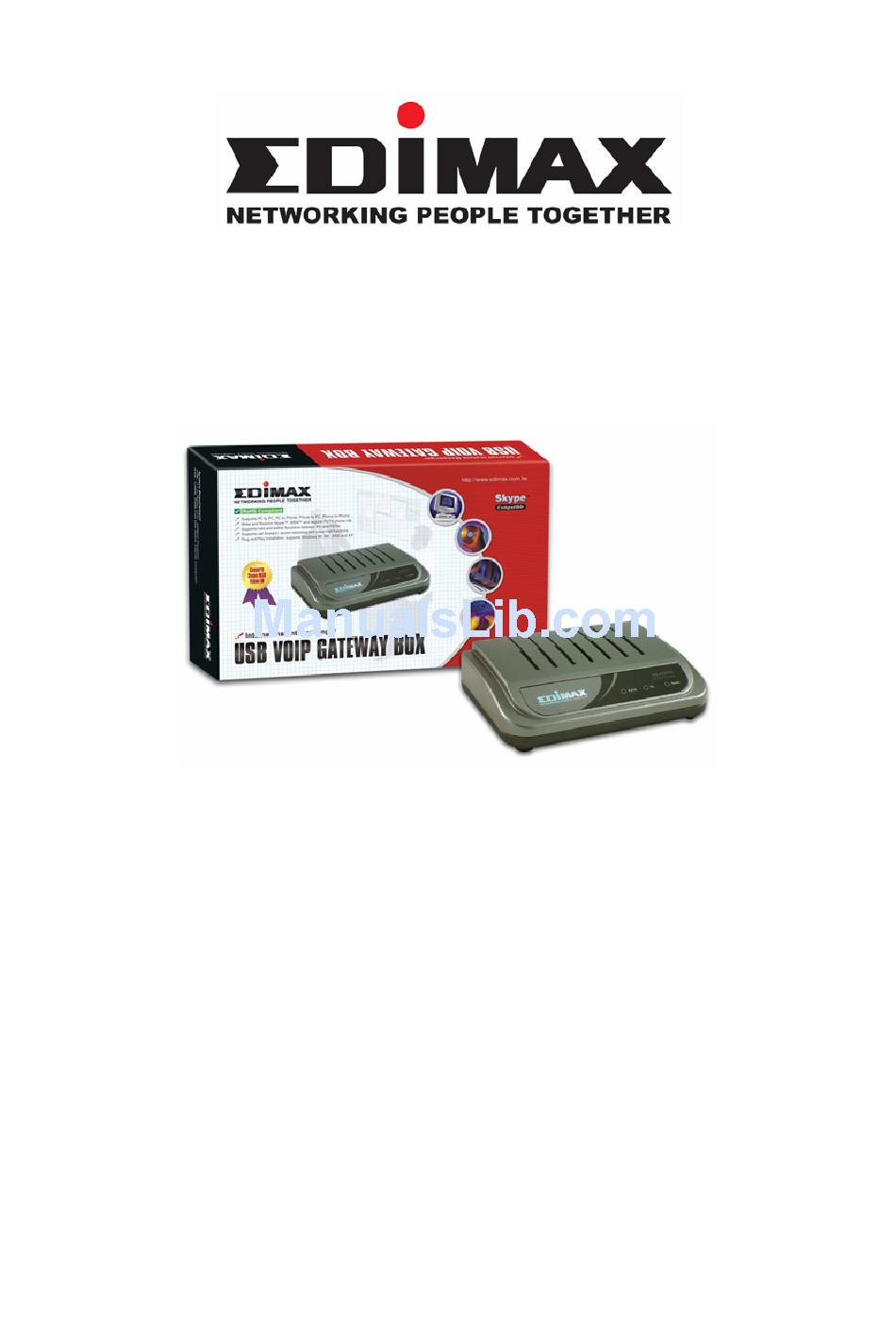

VO-4500SK
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VO-4500SK and is the answer not in the manual?

Questions and answers

Related Manuals for Edimax VO-4500SK

Summary of Contents for Edimax VO-4500SK

  • Page 1 VO-4500SK User’s Manual...

  • Page 2: Table Of Contents

    1. Introduction 1.1 Features 1.2 Package Contents 1.3 System Requirements 2. Install Skype Software 2.1 Download and Install Skype 2.2 Create a Skype Account 2.3 Add a Contact 2.4 Assign a Speed-Dial Number 3. USB VoIP Gateway Box Installation 3.1 USB VoIP Gateway Box Connection Diagram 3.2 Connect the USB VoIP Gateway Box 3.3 Install USB VoIP Gateway Box Driver 3.4 Install USB VoIP Gateway Box Software...

  • Page 3: Introduction

    1. Introduction 1.1. Features Support USB 1.1/2.0 Plug and play Support PC-PC, PC-Phone, Phone-PC and Phone-Phone Make/receive Skype and regular PSTN calls Talk through regular Phone or MIC/SPK Hold and Switch between PC and PSTN Call forwarding function Voicemail function Echo cancellation and Noise reduction No external Power needed FXO (PSTN) inbound password protection...

  • Page 4: Install Skype Software

    2. Install Skype Software Before using USB VoIP Gateway Box and C-Media Middleware, please download and install Skype to your computer. 2-1. Download and Install Skype Step 1： Go to www.skype.com website to get the latest Skype installation file. Step 2： When the Skype web page appears, click on “Download Skype”.
  • Page 5 Step3： Click on the “Run” to install Skype to your PC. Step 4： After downloading, the system will start installing Skype, select a language then click “Install” to continue.

  • Page 6: Create A Skype Account

    2.2 Create a Skype account Step 1： After Skype is installed, the “Create a new Skype account” window will appear. In the “New Users -Create a new Skype Account” tab, enter the information to each field. (Note: The Red Asterisk “*” are required fields to be filled.).

  • Page 7: Add A Contact

    2.3 Add a Contact Step 1： Go to the main Skype account window. From the top menu at the tool bar, select Tools, and then add a Contact…. Step 2： When the “Add a Contact” window appears, enter the name of another Skype user in the text box. Then click on “Search”.
  • Page 8 Step 3： A “Request for Authorization” window appears. Type some message to the contact, (Circled in red below) then click “OK”. Step 4： Your contact will receive a “Hello” screen. After your contact clicks on “OK”, the contact will be added to your list.

  • Page 9: Assign A Speed-Dial Number

    2.4 Assign Speed-Dial Number Step 1： From the main Skype window, select the Contact tab. Step 2： Right-click on a contact name. Then select “Set Speed-Dial”. Step 3： In the next window, enter a speed-dial number, then click “OK”.
  • Page 10 Step 4： The speed-dial number is now assigned to this specified contact. Repeat these steps to assign speed-dial numbers to other contacts.

  • Page 11: Usb Voip Gateway Box Installation

    3. USB VoIP Gateway Box Installation 3.1. USB VoIP Gateway Box Connection Figure 3.2. To Connect the USB VoIP Gateway Box Step 1： Remove the USB VoIP Gateway Box from the package. Step 2： 　 Remove the telephone cable (RJ11) from the package, and connect one end to your existing telephone and the other end to the “Phone”...
  • Page 12 3.3. Install USB VoIP Gateway Box Middleware (Utility) Step 1： Insert the Installation CD into the CD-ROM drive of the computer. When the auto run window appears, click on the “Middleware “ to install. (Install Shield will select the appropriate language automatically)
  • Page 13 Step 2： Click on “Next” through each of the following steps. Then click “Install” to start the process.
  • Page 14 Step 3： Installation Starts… Step 4： Once installation is completed, click on “Finish”. The middleware icon “Home Gateway” is also created in the start menu...
  • Page 15 3.4. Start Using USB VoIP Gateway Box Step 1： Start Skype on your PC. Double-click the “Skype” icon and make sure your Skype is running with the Skype icon appearing in Taskbar. Step 2： Click on the “Middleware” icon. A pop-up window indicates that Skype has detected another program (Middleware) trying to access Skype.
  • Page 16 Step 3： Right click on Middleware icon and choose “Advance Setting”. When the USB VoIP Gateway Box is ready, the Middleware icon will appear red. Step 4： The Middleware application window pops up as below. Step 5： You may set the functions on the Middleware application. When the USB VoIP Gateway Box is not ready or when Skype is not running, the Middleware icon will...
  • Page 17 3.5. Skype Audio Setup Step 1：　 Start Skype and select “Tools” on the top menu. Choose “Options”. 　...
  • Page 18 Step 2： Find the Sound Devices tab, and click on it. In the Audio In/Out drop down menu select the USB device Click on “Save”. Step 3： Click on the Start button and go to Control Panel In the Control Panel window find the “Sounds and Audio Devices” icon and double click on it.
  • Page 19 Step 4： Find the Audio tab (within the selections on the top), and click on it to the Audio Settings section. Within the Sound Playback drop down menu, select the default Windows device. Click on “OK”.

  • Page 20: Make A Speed-Dial Call

    4. Using USB VoIP Gateway Box 4.1 Make a Speed-Dial Call 1. Pick up the handset. (You will hear the dial tone generated from your phone line.) 2. Press the ＊ button to switch to Skype mode. (You will hear the dial tone generated from Middleware.) 3.

  • Page 21: Voice Mail Settings

    1. Voice Mail Settings How to Use Voice Mail Function? Step1. Check “Activate Voice Mail”. Step2. Set the “Setting Response Time” parameter (Default: 6 rings) (This means Middleware will start the voice mail function after 6 rings.) Step3. Set “Maximum Incoming Message time” parameter (Default: 30 sec) (This means the max.

  • Page 22: Telephone Settings

    How to Record Voice Mail Greeting? Step1. Select the “Playback Device” and “Record Device”. Step2. Press “Record” to start recording the greeting. Step3. Press “Stop” to end the recording. Step4. Press “Play” to listen to the recorded greeting. 5.1 Telephone Settings When picking up the Phone If checked: Hear dial tone from your phone If uncheck: Hear dial tone from Middleware...
  • Page 23 How to Use Call Forwarding Function? Step1. Check “Activate Automatic Call Forwarding (PC to Phone)”. Step2. Set the “Call Forwarding Ring” (Default: 6 rings) (Middleware will begin forwarding the call after selected no of rings.) Step3. Fill in the “Forwarding Phone number setting” field. (Middleware will forward the incoming Skype call to this preset phone number.) How to verify this function? Skype-A...
  • Page 24 How to use Skype Call Forwarding from an incoming PSTN call? Step1. Check “Activate Automatic Call Forwarding (Phone to PC)” Step2. Set the “Call Forwarding Ring” (Default: 6 rings) Step3. Set the “Call Forwarding Transfer Password” (Default: 0000) How to verify this function: Skype-A Skype-B Step1.

  • Page 25: Recording Function

    5.2 Recording Function 5.3 Magic Voice User can use this function to change to either a male or female voice. If checked: Middleware will record every Skype calls Select item and press “Play” to listen to the recorded calls. Select “Male” to lower your voice tone.

  • Page 26: Applications

    2. Applications 6.1 Follow-Me Description: When you are away, you can set a call forwarding number to C-Media Middleware. When the other Skype user calls you through Skype, the call will be forwarded to this preset number.

  • Page 27: Answer Machine

    6.2 Answer Machine Description: USB VoIP Gateway can be a PC based answering machine. When somebody makes a PSTN call, USB VoIP gateway will answer this call and play the greeting for voice mail. 6.3 Multi-User Conference Description: External MIC and speaker can be connected to USB VoIP Gateway enabling multi-users to have a conference call with remote contacts.
