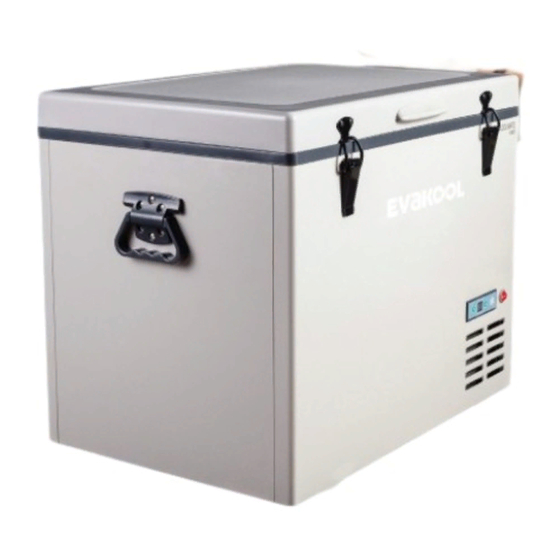

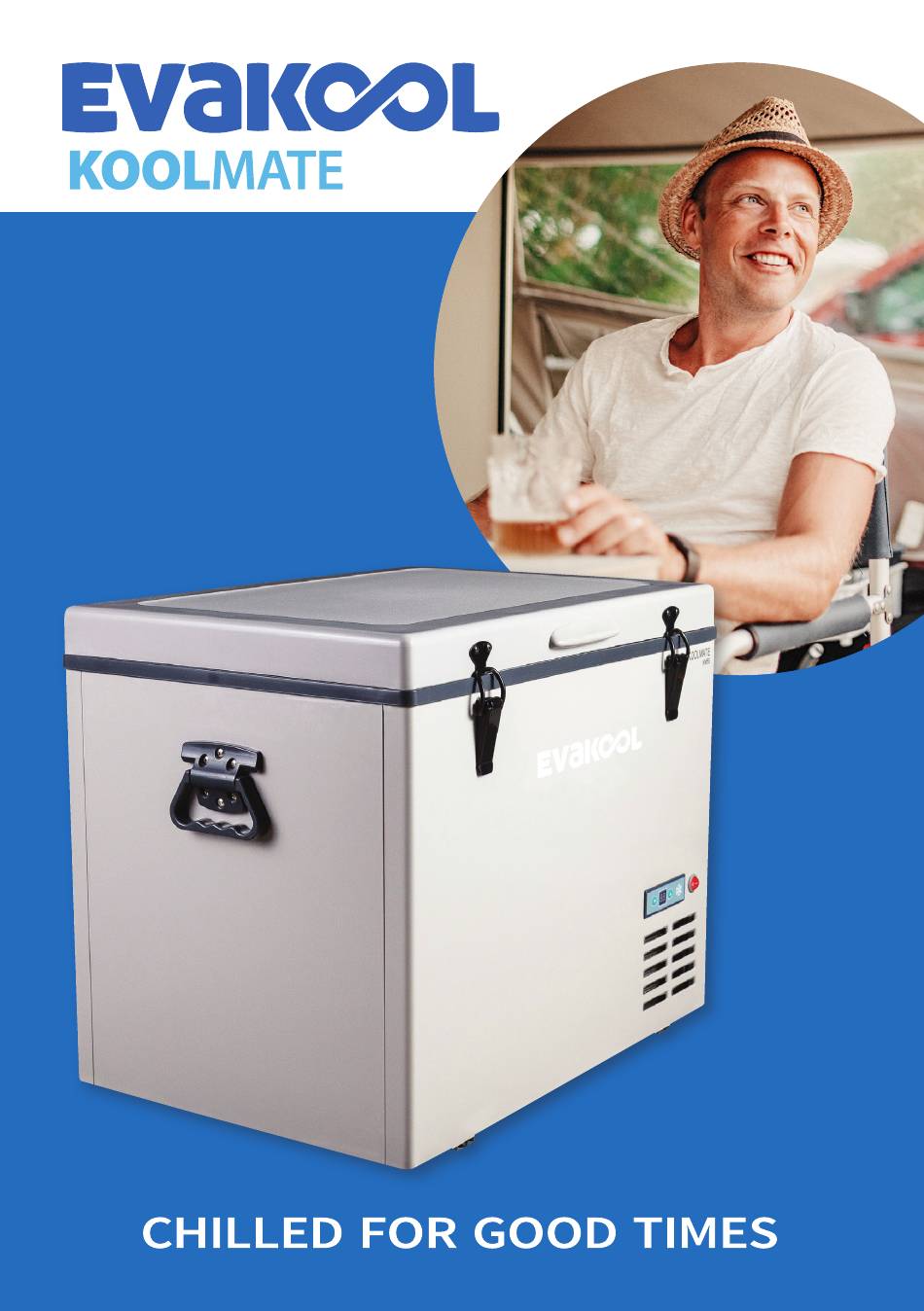

- Page 1 INSTRUCTION MANUAL FOR MODELS KM55 KM80...
-
Page 3: Table Of Contents
Please read operating manual carefully before using your unit. Please keep manual in a safe place. If lost find a digital copy at Evakool.com.au or contact Evakool on (07) 5492 5495. Contents Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Features
1. Features This advanced fridge, combines the latest compressor and computerised digital control system technology . The high efficiency compressor will freeze to -18°C at 30°C ambient temperature . Perfect Cooling Performance Temp Ambient Temp 30°C 30°C 0°C Freezer -18°C 30min 60min 90min... -
Page 5: Technical Drawings
2. Technical Drawings KM55 Door Gasket Basket Door Latch Handle Ventilation Slide Socket for DC Cord Control Panel Vents On/Off Power Switch Compressor Housing Cover KM80 Door Gasket Handle Door Latch Socket for DC Cord Vents Control Panel Compressor Housing... -
Page 6: Safety Instructions
3. Safety Instructions • Keep fridge upright while it is turned on and in use . • Never switch the fridge on with wet hands or when your feet are in contact with water . • Always ensure that the correct voltage and current is applied to the fridge . The voltage and current is clearly marked on the manufacturer’s label which can be found underneath the fridge . -
Page 7: Temperature Settings
Note: The fridge can be operated between 10 .3V and 17 .5V DC or 22V and 26V DC . If the voltage is out of range, the fridge will not work . Over voltage could cause damage to the electronic components of the fridge . Operation from main power When using the fridge indoors from mains, please use the AC/DC adapter (optional item) . -
Page 8: Trouble Shooting
11. Trouble Shooting PROBLEM CAUSE SOLUTION Loose contact between Plug firmly into unit socket plug and unit socket . and cigarette lighter . Check unity whether it’s plugged The fridge is not Power voltage into power supply of 12V or 24V, cooling . -
Page 9: Technical Data
12. Technical Data KM55 KM80 Capacity Rated Voltage 12V/24V DC Total input power (W) Refrigerant R134a 47 grams 58 grams Product Dimensions (mm) 690 x 490 x 535 690 x 490 x 570 Pack Dimensions (mm) 74 5x 545 x 630 745 x 545 x 670 N . -
Page 10: Warranty Statement/Terms & Conditions
. • Service agents may charge a fee for viewing or testing the unit . This is not covered by EvaKool or this warranty and is payable at the service point unless authorised by EvaKool . - Page 12 For your nearest stockist contact EvaKool T: +61 7 5492 7777 E: warranty@evakool.com or visit us at evakool.com.au...
