Service Manual

xystus
Color Television
CHASSIS
:
CN-201A/B
NTSC-M SYSTEM
:
MODEL
DTQ-14Q1FS, DTQ-14Q2TS
DTQ-14Q3FS, DTQ-14T1AS
DTQ-14T2FS, DTQ-20Q1FS
DTQ-20Q2FS, DTQ-20Q3FS
DTQ-20T1AS, DTQ-20T2AS
DTQ-20T1FS, DTQ-20T2FS
DTQ-20T3FS, DTQ-21T1FS
DTQ-21T2FS, DTQ-21T5FS
DTQ-21T9FS, DTQ-20T1FC
DAEWOO ELECTRONICS CO., LT D .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTQ-14Q1FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DTQ-14Q1FS

Summary of Contents for Daewoo DTQ-14Q1FS

  • Page 1: Service Manual

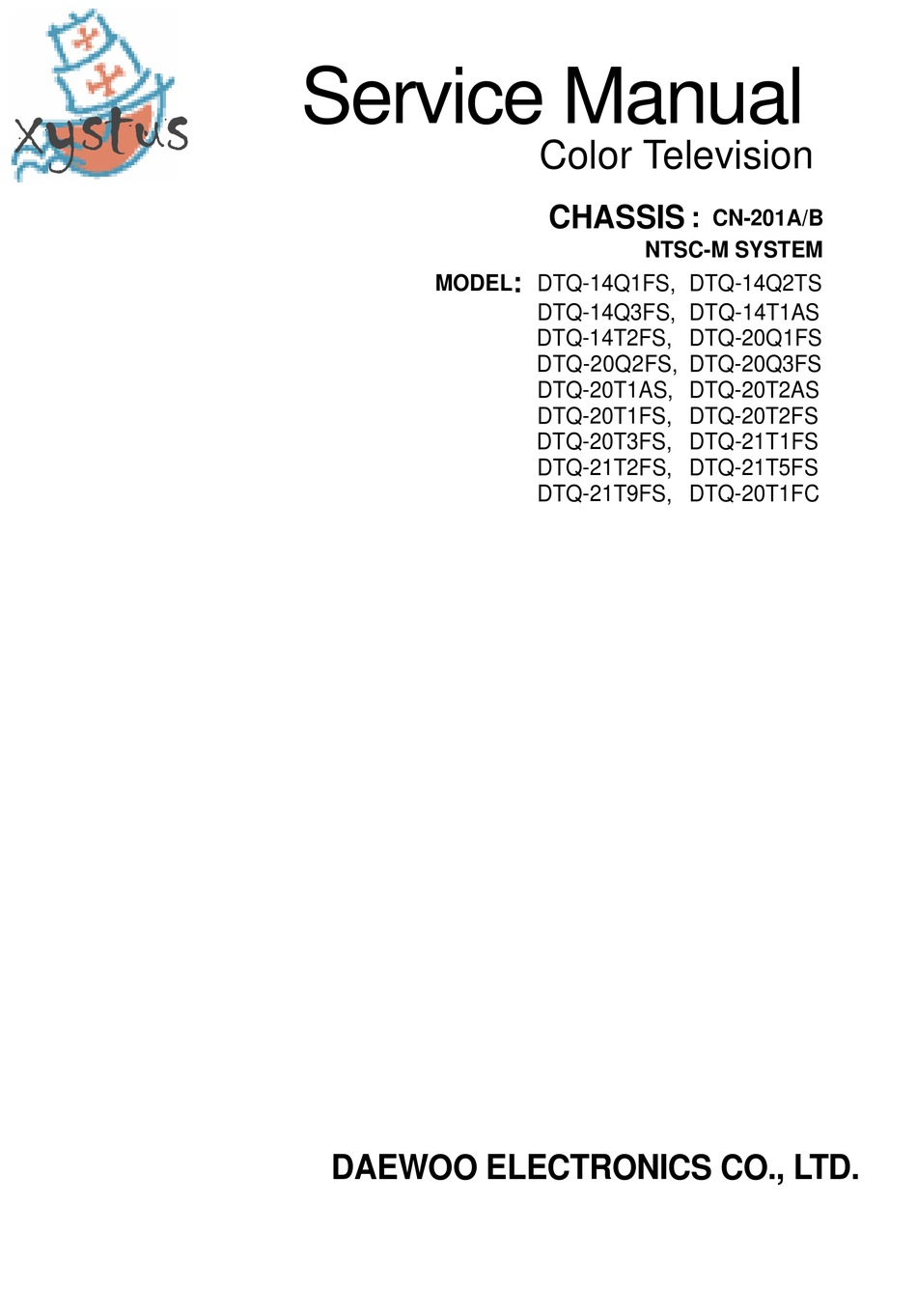

    Service Manual xystus Color Television CHASSIS CN-201A/B NTSC-M SYSTEM MODEL DTQ-14Q1FS, DTQ-14Q2TS DTQ-14Q3FS, DTQ-14T1AS DTQ-14T2FS, DTQ-20Q1FS DTQ-20Q2FS, DTQ-20Q3FS DTQ-20T1AS, DTQ-20T2AS DTQ-20T1FS, DTQ-20T2FS DTQ-20T3FS, DTQ-21T1FS DTQ-21T2FS, DTQ-21T5FS DTQ-21T9FS, DTQ-20T1FC DAEWOO ELECTRONICS CO., LT D .

  • Page 2: Electrical Specifications

    FEATURES FS (Frequency Synthesizer) Tuning System CATV Ready High Focus Minineck CRT ELECTRICAL SPECIFICATIONS POWER INPUT AC90V - AC250V 50/60Hz DTQ-20T1FC : 120V 60HZ ONLY POWER RATING 14” Model 20” MONO Model 20” ST Model 21” ST Model INTERMEDIATE FREQUENCIES PICTURE IF CARRIER FREQUENCY 45.75MHz SOUND IF CARRIER FREQUENCY...

  • Page 3: Safety Checks

    PRODUCT SAFETY SERVICING GUIDELINES FOR AUDIO VIDEO PRODUCTS 950ART94 1009 CAUTION SUBJECT : X-RADIATION DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY. NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFACTURER S APPROVAL. 1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSONNEL COVER UNAUTHORIZED MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT MAY THE SUBJECT OF X-RADIATION.
  • Page 4 Product safety servicing guidelines for color A.C. VOLTMETER television receivers CAUTION : Do not attempt to modify this product in any way. Unauthorized modifications will not only void the warranty, but may lead to your being liable for any resulting property damage or user injury. Service work should be performed only after you are thoroughly familiar with all of the following safety checks 0.15µF...
  • Page 5 with a meter to be certain that the high voltage does not 2. Avoid conditions of high humidity such as : Outdoor exceed the specified value and that it is regulating patio installations where dew is a factor. Near steam correctly.

  • Page 6: Overview Of Your Equipment

    CONTROL VIEW STEREO MODEL MONO MODEL Overview of Your Equipment Your TV comes with a remote control. The section below summarizes the buttons, controls, and terminals that you will use with your TV. Your TV's Front Panel 1 POWER Use this button to turn your TV on or off. 2 VIDEO IN jack Use this jack to receive a video signal from another A/V component.

  • Page 7: Remote Control Unit

    REMOTE CONTROL UNIT 1 POWER Use this button to turn your TV on or off. Use these buttons to change channels on your TV, or select items in the menu system. Use these buttons to change your TV's volume, to activate selections in the menu system, or to change audio and video settings.
  • Page 8 CONTROL VIEW STEREO MODEL MONO MODEL Overview of Your Equipment Your TV comes with a remote control. The section below summarizes the buttons, controls, and terminals that you will use with your TV. Your TV's Front Panel 1 POWER Use this button to turn your TV on or off. 2 VIDEO IN jack Use this jack to receive a video signal from another A/V component.
  • Page 9 REMOTE CONTROL UNIT 1 POWER Use this button to turn your TV on or off. Use these buttons to change channels on your TV, or select items in the menu system. Use these buttons to change your TV's volume, to activate selections in the menu system, or to change audio and video settings.

  • Page 10: Important Service Notes

    IMPORTANT SERVICE NOTES 1. X-RAY RADIATION PRECAUTION tion transformer during this check). Use an AC voltmeter having 5000 ohms per volt or more sensitivi- 1) Excessive high voltage can produce potentially ty in the following manner. hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit.
  • Page 12 GENERAL ADJUSTMENTS 1. GENERAL 7. X-RADIATION PROTECTION CIRCUIT TEST In the majority of cases, all color televisions will need only When service has been performed on the horizontal slight touch-up adjustment upon installation. Check the deflection system, high voltage system or B+system. the basic characteristics such as height, focus and sub- basic X-RADIATION protection circuit must be tested for proper characteristics such as height, focus and sub- bright.
  • Page 13 10. CONVERGENCE MAGNET ASSEMBLY 8) Check the purity of the red and blue raster by adjusting the BIAS controls. POSITIONING 9) Obtain a white raster, referring to White Bodance If Convergence magnet assembly and rubber wedges need mechanical positioning follow figure 2. ADJUSTMENT 10) Proceed with convergence adjustment.
  • Page 14 10-2. CONVERGENCE ADJUSTMENTS B. CIRCUMFERENCE CONVERGENCE ADJUSTMENT NOTE NOTE : This adjustment requires Rubber Wedge Kit. : Before attempting any purity adjustments, the receiver should be operated for at least 15 1) Loosen the clamping screw on deflection yoke to allow minutes.
  • Page 15 11. APC DET & PLL Tunning ADJUSTMENT 1) Receive the signal of RF 100% Full Color bar 85dBuV. 2) Press the S5(58H) key of Service Remocon, then execute Auto adj Start. 3) Confirm the OSD of Auto adj. OK. 4) If it was Auto adj. NG, Receive the signal of adjacent channel, then perform Auto adj. Start again. 5) Press the RECALL key to store.
  • Page 16 OPERATION CHARACTERISTICS OF POWER BLOCK(I801) This chassis designed for free voltage(AC 100V ~ AC 220V) power. power block contains power IC, SMPS transformer and several passive components. The power IS STR-S5707 has power transistor. oscillator circuit, voltage comparator circuit, thermal protection circuit, OCP(over current protection)circuit inside.
  • Page 17 4. EXPLANATION OF CIRCUIT OPERATION 1) V terminal, start-up circuit A Start-up circuit is to start and stop a operation of a control IC by detecting a voltage appearing at a V terminal(pin- 9).At start up of a power supply, when a voltage at the V terminal reaches to 8V by charging up C809 by the function of a start-up resistor, Rs, a control circuit starts operating by the function of the start-up circuit.
  • Page 18 As the circuit in Fig. 3 shows, the ON-time is controlled by changing a current charged by C1, which is as the result of that the detection winding (L1), which detects a change of voltage in a secondary side, connected to the sensing terminal (Pin No.
  • Page 19 4) Quasi-resonant operation By inputting a voltage signal which is synchronized with the energy discharge time of a secondary winding of a transformer to the. INH terminal, quasi-resonant operation can be achieved. As shown in Fig. 8, the voltage of L1 winding which is synchronized.
  • Page 20 5) Drive circuit The STR-S5707 applies the proportional drive system in order to minimize turn-on and saturation loss, and storage time. In the conventional RCC system, turn-on loss and switching noise due to the surge current appearing when the power transistor turns on are high as because the transistor is driven by the drive current shown in FIg. 10-1. In addition, since is decreases linearly when the transistor turn off and a peak value of l is not large, the storage time is long and the V...
  • Page 21 6) OCP (overcurrent protection)function Overcurrent protection is performed pulse by directly detecting collector current of the power transistor. Configuration of the OCP circuit is shown in. Detecting voltage is set to-1V below a reference point of GND (ground). In addition, since the detecting voltage is set by a comparator, very stable characteristics against temperature is achieved and drift of the deteting voltage against temperature change is almost OV.
  • Page 22 when the latch circuit is on. V terminal voltage increases and decreases with-in the range from 4.9V typical to 8V typical and is prevented from abnormally rising. Fig. 12 shows an example of V terminal voltage waveform. Cancellation of the latch-is done by decreasing V terminal voltage below 3.3V.
  • Page 23 5. OCP (OVER CURRENT PROTECTION) CIRCUIT This circuit is designed to protect the circuit from over current due to overload occurred at the rear of 123[V] line 1) CONFIGURATION OF OCP CIRCUIT 2) EXPLANATION OF THE OPERATION There is very little voltage drop at R423 of 123[V] line.
  • Page 24 TROUBLE SHOOTING CHART S NO POWER (NO OUTPUT SECOND POWER) L801 D801 T801 LINE FIL TER PBS208GU SMPS TRANS CHECK CHECK F801 R801 R802 250V A R CEMENT CHECK SUPPLY VOLTAGE I801 VIN 9 SENS 7 CHECK FEED BACK INPUT COLEECTOR 1 DON'T OPERATE POWER ON I701...
  • Page 25 NO PICTURE CHECK THE WAVE FORM OF GOTO U101 #IF GOTO CHECK I501 VIDEO SIGNAL RC539 CHECK Z502 45 VIDEO OUTPUT HEATER 4.6V VTG 6.3Vms L505 47 INTERNAL VIDEO INPUT T 402 2.6V 42 SELECT 2Vp-p VIDEO OUTPUT HEATER D405 CHECK 32 ABL BRIGHT...

  • Page 26: No Sound

    NO SOUND MONO MODEL GOTO GOTO STEREO MODEL I501 Z503 Z502 RC539 45 VIDEO OUTPUT CHECK L505 AUDIO 47 INTERNAL OUTPUT VIDEO INPUT SIGNAL I602 8 -A-OUT 49 SOUND IF INPUT CHECK 6 +A-OUT SOUND B+ DC 12V 3 A-IN CHECK AUDIO 51 AUDIO OUTPUT...
  • Page 27 CH DON'T STOP GOOD CHECK INPUT SIGNAL GOTO E CONDITIONS LOSS OF SIGNL OR WEEK SIGNAL CHECK I501 I702 COIL SF 501 5 DATA L501 SAW FILTER 6 CLK 6 RF AGC OUTPUT CHECK RF AGC OUTPUT DC 5V - 8V CHECK CLK, EN, DATA SIGNAL...

  • Page 28: No Vertical Deflection

    NO VERTICAL DEFLECTION CHECK V.OUT SUGBAK I301 INV 5 17 V.OUT V.D.Y CHECK SYNK OUTPUT 2 SIGNAL CHECK 37 SYNC OUTPUT VCC 6 CHECK DC 25V...

  • Page 29: Remote Control Does Not Operate

    ON SCREEN DISPLAY DOES NOT OPERATE CHECK FOR,60Hz / VS R, G, B, BL IC701 CHANGE / HS IF OSD DOES NOT OPERATE, CHANGE IC701 CHECK FOR, 15, 734Hz OSC CHECK REMOTE CONTROL DOES NOT OPERATE lL701 REMOCON SENSOR GND 5V OUT CHECK WAVE- FORM...
  • Page 30 DESCRIPTION OF SEMICONDUCTORS LA76070 (BUS CONTROL, VIF/SIF/Y/C/DEF) I501 LA76070A BUS CONTROL, VIF/SIF/Y/C/DEF...
  • Page 31 PIN ASSIGN OF IC LC864728V(I701) OUTPUT NOTE) XT is used 32.768 KHZ X-TAL...
  • Page 32 PIN ASSIGN OF IC TDA 7057Q (I603) 2 X 3 W sterei BTL audio output amplifier PINNING SYMBOL DESCRIPTION SGND1 signal ground 1 Vi(1) vollage input 1 positive supply voltage Vi(p) voltage input 2 SGND2 signal ground 2 n.c. not connected n.c.
  • Page 33 PIN ASSIGN OF IC TDA 9852 (I601) C-bus Controlled BTSC stereo/SAP decoder and audio processor PINNING PINS SYMBOL DESCRIPTION SDIP42 QFP44 OUTL output, left channel input loudness, left channel input volume, left channel output effects, left channel automatic volume control capacitor reference voltage 0.5Vcc input line control, left channel input automatic volume control, left channel...

  • Page 34: Parts List

    PARTS LIST (DTQ-21T1FS) Item Code Item Name Description ZZ100 48B3225C04 TRANSMITTER REMOCON R-25C04 ZZ110 PTACPWJ591 ACCESSORY AS DTQ-20T1FS 486A716200 BATTERY 4859000240 ADAPTER 2P15A 300V(D=4.0) 4850A00650 TRANS ANT MATCHING IMT-060 (CAPRISTOR OUT) B 4850A02510 ANT ROD S3BW216B (L=600 MM) 10000 48586054K1 MANUAL INSTRUCTION DTM-2082CW M821...
  • Page 35 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description C304 CEXF1V471V C ELECTRO 35V RSS 470MF (10X20) TP C305 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP C307 CXSL2H100D C CERA 500V SL 10PF D (TAPPING) C308 CMXL1J104J C MYLAR 63V MEU 0.1MF J C309 CEXF1H100V C ELECTRO...
  • Page 36 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description C601 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C602 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C603 CMXL1J154J C MYLAR 63V MEU 0.15MF J C605 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP C606 CEXF1H478V C ELECTRO...
  • Page 37 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description C810 CCXB3A471K C CERA 1KV B 470PF K (T) C811 CCXB3A471K C CERA 1KV B 470PF K (T) C812 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP C813 CCXB3D102K C CERA 2KV B 1000PF K (TAPPING) C814 CEYF2C101V C ELECTRO...
  • Page 38 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description CC715 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012 CC716 HCBK104KCA C CHIP CERA 50V X7R 0.1MF K 2012 CC717 HCBK104KCA C CHIP CERA 50V X7R 0.1MF K 2012 CC718 HCBK104KCA C CHIP CERA 50V X7R 0.1MF K 2012 CC722...
  • Page 39 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description I301B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN I501 1LA76070A- IC VIDEO PROCESSOR LA76070A I601 1TDA9852-- IC AUDIO PROCESSOR TDA9852 I603 1TDA7057Q- IC AUDIO AMP TDA7057Q I603 PTC2SW6109 HEAT SINK ASS`Y 1TDA7057Q- + 7174301011 I603A 4857026109 HEAT SINK...
  • Page 40 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description J037 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J041 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J042 85801065GY WIRE COPPER...
  • Page 41 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description J607 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J608 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J609 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J610 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J615 85801065GY WIRE COPPER...
  • Page 42 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description L501 58N0000037 COIL VCO TRF-V004 L502 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM) L503 58C5580019 COIL CHOKE TRF-9225 (0.55UH) L504 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM) L505 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM) L507 58S0000045 COIL SIF...
  • Page 43 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description QC703 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC704 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC901 T2SA1037KB TR CHIP 2SA1037K-T146-R R102 RS02Z220JS R M-OXIDE FILM 2W 22 0HM J SMALL R103 RD-2Z820J- R CARBON FILM 1/2 82 OHM J R104 RS01Z273J- R M-OXIDE FILM...
  • Page 44 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description R905 RS02Z123JS R M-OXIDE FILM 2W 12K 0HM J SMALL R906 RS02Z123JS R M-OXIDE FILM 2W 12K 0HM J SMALL R907 RS02Z123JS R M-OXIDE FILM 2W 12K 0HM J SMALL R908 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J R909...
  • Page 45 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description RC519 HRFT274JCA R CHIP 1/10 270K OHM J 2012 RC520 HRFT561JCA R CHIP 1/10 560 OHM J 2012 RC521 HRFT684JCA R CHIP 1/10 680K OHM J 2012 RC522 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012 RC523 HRFT624JCA R CHIP...
  • Page 46 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description RC705 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RC706 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RC707 HRFT102JCA R CHIP 1/10 1K OHM J 2012 RC708 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012 RC709 HRFT472JCA R CHIP...
  • Page 47 PARTS LIST (DTQ-21T1FS) Item Code Item Name Description RC913 HRFT201JCA R CHIP 1/10 200 OHM J 2012 RC917 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC918 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC919 HRFT000-CA R CHIP 1/10 0 OHM 2012 RC920 HRFT000-CA R CHIP...
  • Page 48 DTQ-20T1FC DIFFERENT PARTS LIST Item Code Item Name Description PCW1 4859903610 POWER CORD AS DJ-10W + BSP3 -1/2H = 2100 F801 5F1GB4021L FUSE GLASS TUBE 4L/CSA TL 4A 125V MF51 RS801 DSVC271D14 VARISTOR SVC271D14A...
  • Page 49 OPTION LIST CN-201A/B MODEL(Inch, Mono, Stereo) 14 Inch DTQ-14Q1 SERIES, DTQ-14Q2 SERIES, DTQ-14Q3 SERIES, DTQ-14T1 SERIES, DTQ-14T2 SERIES (Mono) 20 Inch DTQ-20Q1 SERIES, DTQ-20Q2 SERIES, DTQ-20Q3 SERIES, DTQ-20T1AS (Mono) DTQ-20T2AS, DTQ-20T3AS 20Inch DTQ-20T1FS, DTQ-20T2FS, DTQ-20T3FS (Stereo) 21 Inch DTQ-21T1FS, DTQ-21T2FS, DTQ-21T5FS, DTQ-21T9FS (Stereo) CN-201A/B 14”/20”/21”...
  • Page 50 CN-201A/B 14”/20”/21” AUDIO OPTION Loc. 14 Inch(Mono) 20 Inch(Mono) 20 Inch(Stereo) 21 Inch(Stereo) C603 63V MEU 0.15MF 63V MEU 0.15MF C605 50V RSS 2.2MF 50V RSS 2.2MF C606 50V RSS 0.47MF 50V RSS 0.47MF C607 25V RSS 100MF 25V RSS 100MF C608 50V RSS 2.2MF 50V RSS 2.2MF...
  • Page 51 Loc. 14 Inch(Mono) 20 Inch(Mono) 20 Inch(Stereo) 21 Inch(Stereo) J605 INSERT INSERT J606 INSERT INSERT J607 INSERT INSERT J608 INSERT INSERT J609 INSERT INSERT J610 INSERT INSERT J611 INSERT INSERT J614 INSERT INSERT JAC01 1/10 0 OHM 1/10 0 OHM JAC02 1/10 0 OHM 1/10 0 OHM...
  • Page 69 ENGINEER NOTE...
  • Page 70 DAEWOO ELECTRONICS CO., LTD. 686, AHYEON-DONG, MAPO-GU, SEOUL, KOREA. C.P.O. BOX 8003 SEOUL KOREA TELEX : DWELEC K28177-8 F A X : (02) 364-5588,5305 ~ 4, 7315 7 T E L : (02) 360-7360 S/M NO :CN201N-010 PRINTED DATE:APR. 1998...
