Capacitor and Diode

WARNING: Always be certain the capacitor is
discharged before servicing. Mechanically
discharge by placing an insulated handle
screwdriver between the diode connection of the
capacitor and the oven chassis ground.
Note: The high voltage capacitor has an internal
discharge resistor that automatically discharges
the capacitor when the oven turns OFF. Under
normal operation, the capacitor should fully
discharge within 30 seconds.
• The case may be removed to provide greater
access to the capacitor and diode.
1. Remove the grille and vent cover (see
procedures).
2. Remove the sub PCB (see procedure).
3. Disconnect the wire leads from the capacitor.

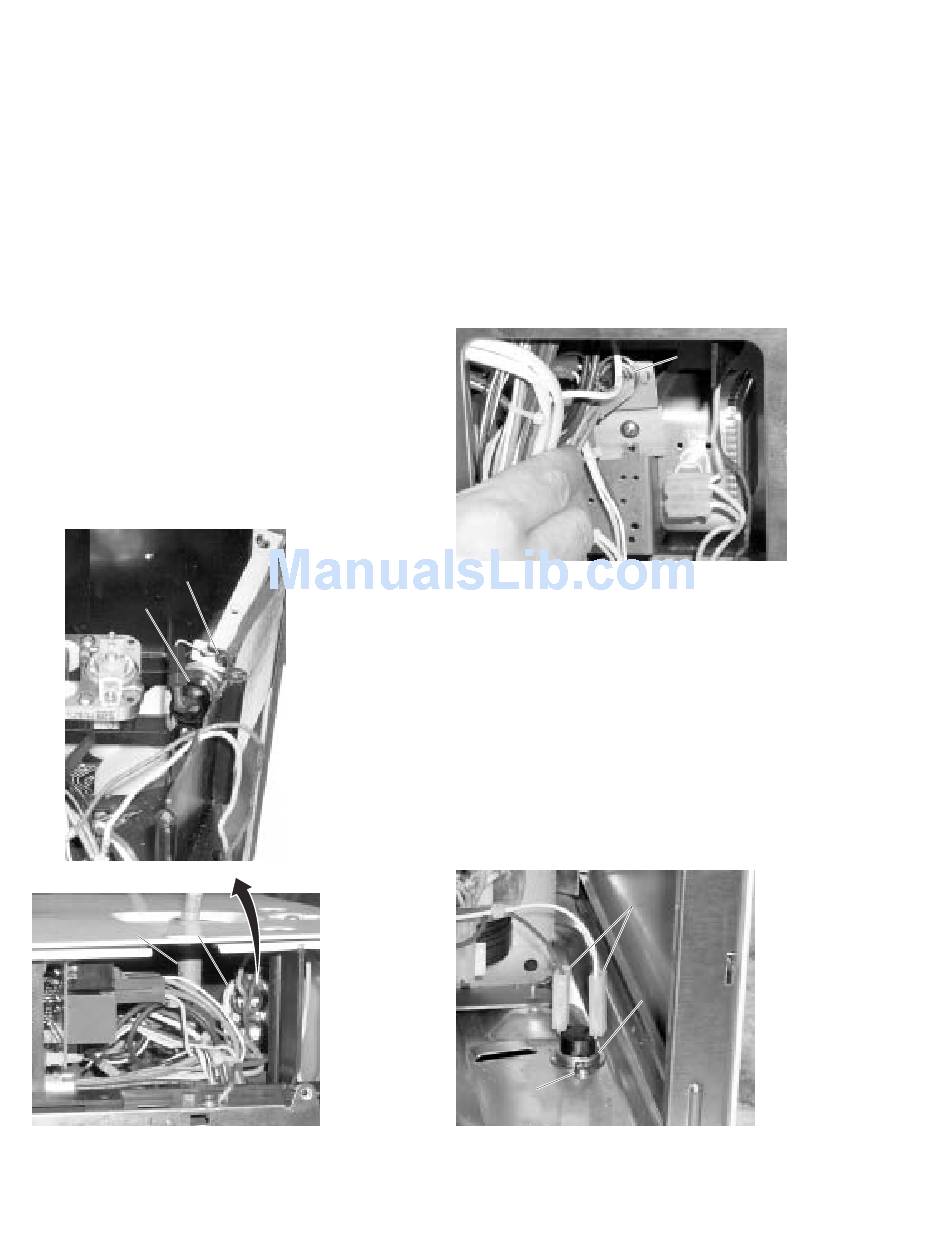

Screw Screw Screw
Capacitor Capacitor Capacitor
Outer Case Removed FOR CLARITY
Capacitor Capacitor Capacitor
Power Cord Power Cord Power Cord
4. Remove 1 screw from the capacitor mounting
5. Remove the capacitor and diode from the

Magnetron TCO

1. Remove the control panel to access the
2. Disconnect the wire leads from the magnetron
3. Remove 1 screw and the TCO bracket from
4. Remove 1 screw and the TCO from the

Hood TCO

1. Remove the control panel (see Procedure).
GEA00998
2. Disconnect the wire leads from the hood TCO.
3. Remove 1 screw and the TCO.
– 32 –
