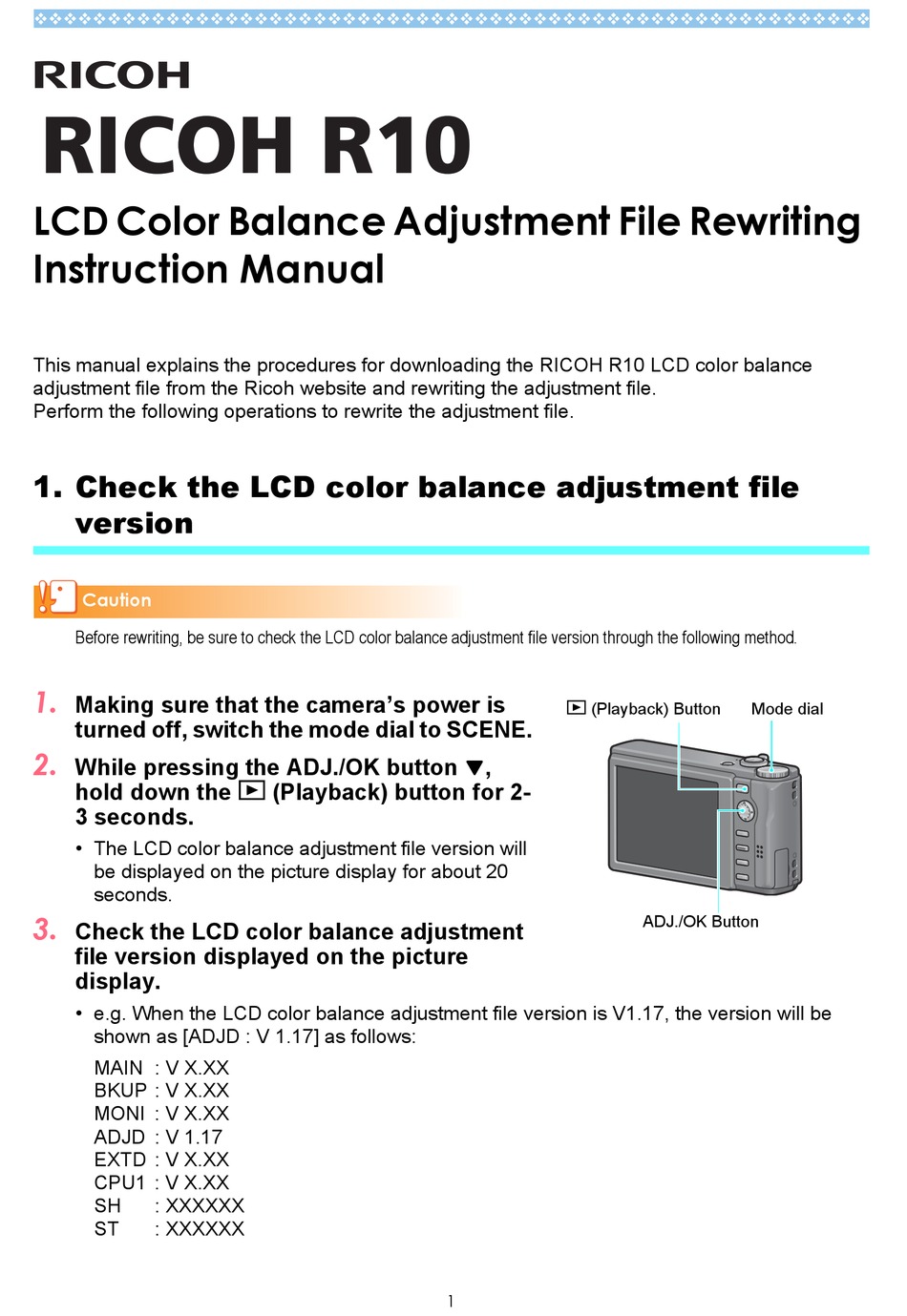

LCD Color Balance Adjustment File Rewriting

Instruction Manual

This manual explains the procedures for downloading the RICOH R10 LCD color balance
adjustment file from the Ricoh website and rewriting the adjustment file.
Perform the following operations to rewrite the adjustment file.
1. Check the LCD color balance adjustment file
version
Caution
Before rewriting, be sure to check the LCD color balance adjustment file version through the following method.
1.
Making sure that the camera's power is
turned off, switch the mode dial to SCENE.
2.
While pressing the ADJ./OK button @,
hold down the 6 (Playback) button for 2-
3 seconds.
• The LCD color balance adjustment file version will
be displayed on the picture display for about 20
seconds.
3.
Check the LCD color balance adjustment
file version displayed on the picture
display.
• e.g. When the LCD color balance adjustment file version is V1.17, the version will be
shown as [ADJD : V 1.17] as follows:
MAIN : V X.XX
BKUP : V X.XX
MONI : V X.XX
ADJD : V 1.17
EXTD : V X.XX
CPU1 : V X.XX
SH
: XXXXXX
ST
: XXXXXX
6 (Playback) Button
1
Mode dial
ADJ./OK Button

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricoh R10

Summary of Contents for Ricoh R10

  • Page 1: Instruction Manual

    LCD Color Balance Adjustment File Rewriting Instruction Manual This manual explains the procedures for downloading the RICOH R10 LCD color balance adjustment file from the Ricoh website and rewriting the adjustment file. Perform the following operations to rewrite the adjustment file.
  • Page 2 2. Extract the file Download the LCD color balance adjustment file from the Ricoh website. Double-click or right-click and select [Open] on the downloaded file. • A dialog screen appears. Click [OK]. • The folder [r10adj-XXX] (where XXX is the version number) is created and the file is extracted to the folder.

  • Page 3: For Windows

    Select [Yes], and press the ADJ./OK button. • The SD memory card is formatted. Caution If you format a card that still has images stored on it, the images will be lost. Save the images you do not want to erase in your computer before formatting the card.
  • Page 4 Select [USB Mass Storage Device], and click [Stop]. Click [OK]. Click the [Close] button. Turn the camera off, and disconnect the USB cable. To copy the file using a card reader or a card writer to an SD memory card Load the SD memory card into the camera, and turn the power on.
  • Page 5 4. Rewrite the file Making sure that the camera’s power is 6 (Playback) Button Mode dial turned off, switch the mode dial to SCENE. While pressing the ADJ./OK button !, hold down the 6 (Playback) button for 2- 3 seconds. •...
