5.4 Operation
5.4.1 EDID Data Inspection and Writing to the D-SUB Connector (Analog)
1) Connect the EDID data-writing unit with jigs, etc.
2) Copy all the files of the service tool Ver. 3.27 in a proper directory.
3) Start [Service2.EXE] of the service tool Ver. 3.27.

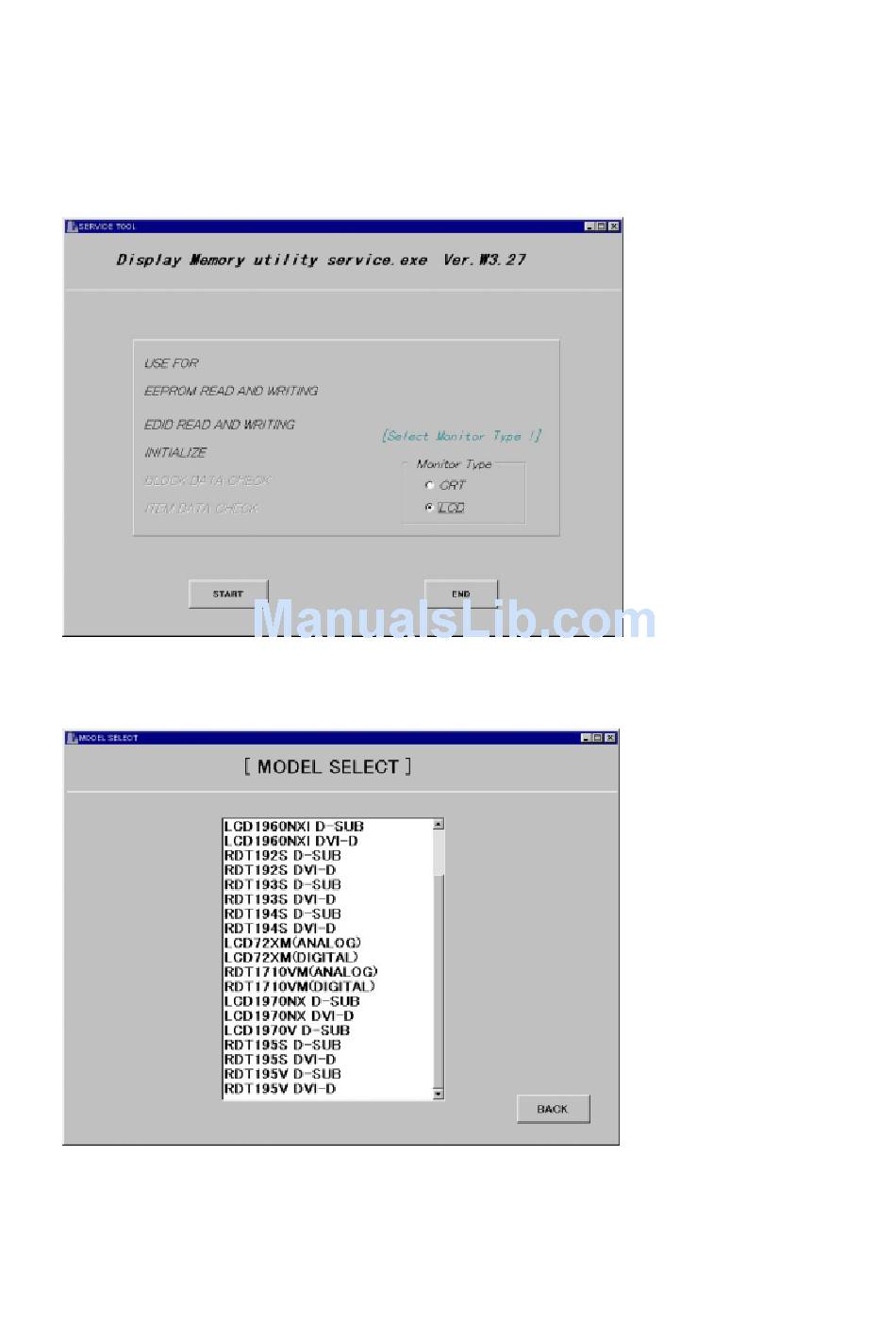

4) When the screen as shown below appears, check to [LCD] of [Monitor Type] and press the [START]
button.
5) When the screen as shown below appears, adjust the cursor to [LCD1970NX D-SUB] and double click.
