NEC MultiSync LCD1970NX Service Manual page 47

:Bright Dot

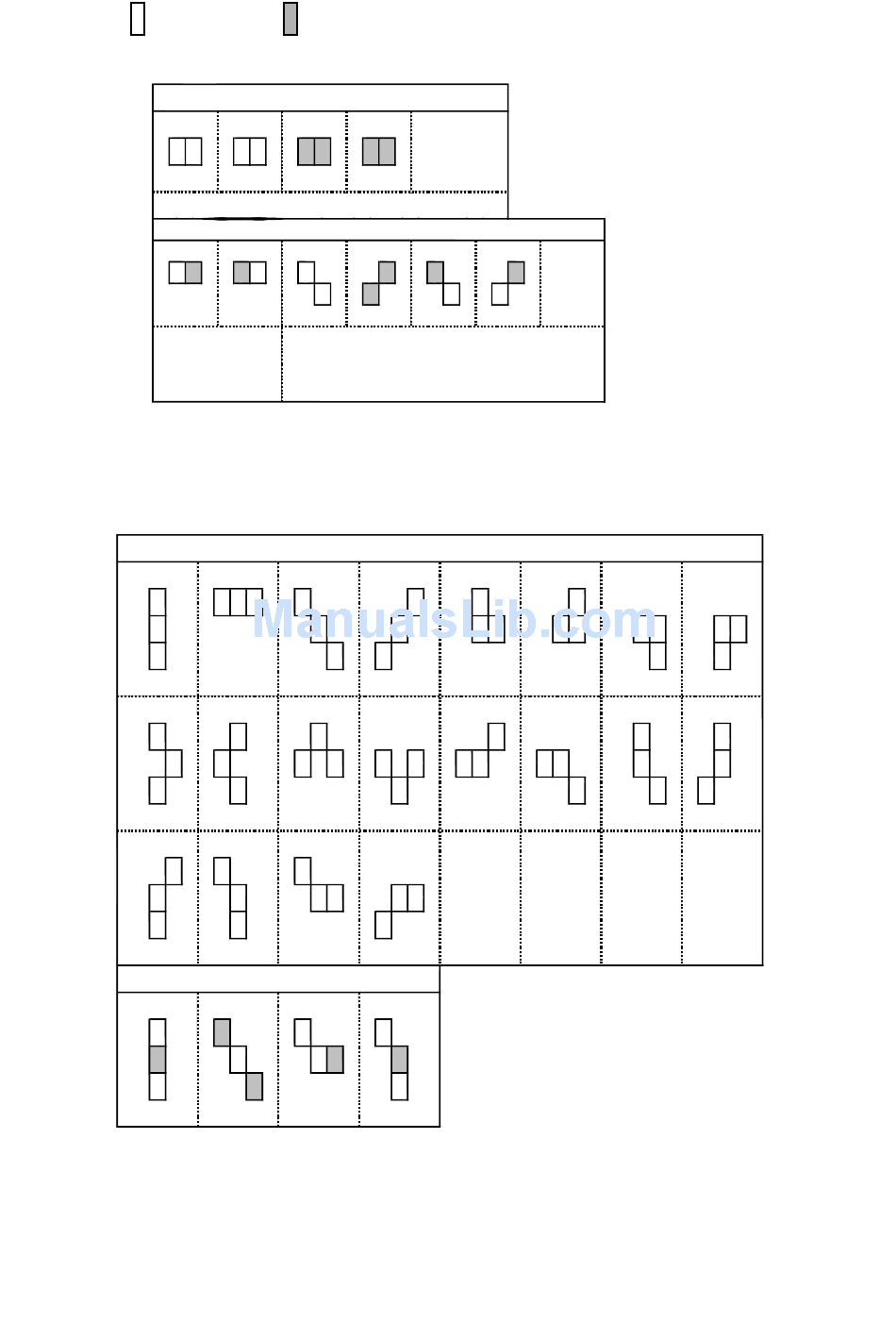

Note 1. Horizontally adjacent 2 dots (R+G, G+B)
Count as horizontally adjacent 2 dots
R G
R G
Combination
with Bright
& Dark Dot
Note 2. 1) + 2) : Max. 3
Note 3. Horizontally, vertically or combined adjacent 3 dots (separately bright dots and dark dots)
Do not count as adjacent 3 dots
Note 4. Do not count the horizontally adjacent 2 dots (R-G, G-B)
:Dark Dot
G B R G G B
Do not count as adjacent 2 dots
R G R G R G
Combination except horizontally
adjacent 2 dots.
Count as adjacent 3 dots
R G R G
etc.
5-7
