RHINO 1958 Parts Manual

Servis boom arm mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Rev 01-14
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: parts@servis-rhino.com
PART'S MANUAL
© 2006 Alamo Group Inc.

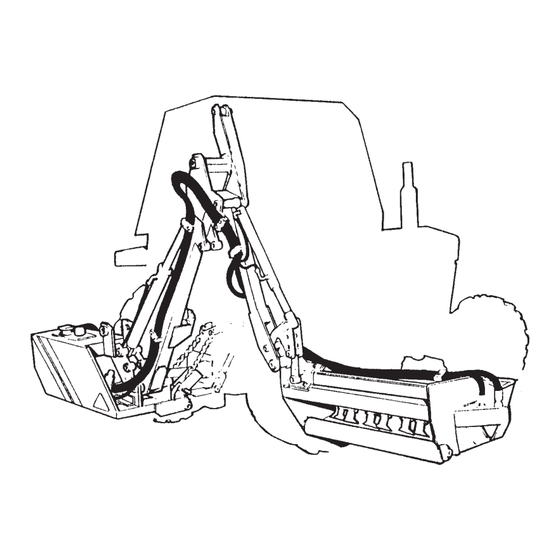

SERVIS BOOM ARM MOWER
1958
Part No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1958 and is the answer not in the manual?

Questions and answers

Related Manuals for RHINO 1958

Summary of Contents for RHINO 1958

  • Page 1 READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. If the Operator's Manual is not with the equipment, contact your dealer or Servis-Rhino (800-446-5158) to obtain a Free copy before operating the equipment.
  • Page 2 TO THE OWNER/OPERATOR/DEALER All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
  • Page 3 PARTS SECTION Parts Section – 1...
  • Page 4 Part Number when ordering Replacement Safety Decals. For maximum safety and to guarantee optimum product reliability, always use genuine Servis-Rhino Parts. The use of inferior replacement parts may cause premature or catastrophic failure which could result in serious injury or death.
  • Page 5 WARRANTY 1. LIMITED WARRANTIES 1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.

  • Page 6: Table Of Contents

    CONTENTS Page No Schedule No Schedule Description 74.803.04 FILTER ASSY 76.150.01 76.382.23 TANK ASSEMBLY RH 76.420.10 ARM FLOAT KIT 76.458.02 LINKAGE KIT 76.467.04 PTO/GEARBOX ASSY 76.474.13 PUMP ASSY 77.104.17 FIRST RAM 77.111.04 SLEW RAM ASSY 77.113.09 RAM ASSY COWL 77.114.18 SECOND RAM ASSY 77.117.09 ACCUMULATOR SLEWASSY...

  • Page 8: Filter Assy

    74.803.04 A - FILTER ASSY Page 2 of 59...
  • Page 9 74.803.04 A - FILTER ASSY Part No Description 212.013 FILTER ASSY 100 L 8401095 ELEMENT 05.290.07 SEAL 05.264.02 SETSCREW 05.282.01 SP.WASHER 08.955.25 ADAPTER Page 3 of 59...

  • Page 10: Kit

    76.150.01 A - KIT Page 4 of 59...
  • Page 11 76.150.01 A - KIT Part No Description 06.023.01 HOSE TIE 41585.01 SPRING 41755.01 MESH 41745.01 HOOK 42076.01 FOAM 41586.01 HOOK 41755.02 MESH 41587.01 GUARD HOOK Page 5 of 59...

  • Page 12: Tank Assembly Rh

    76.382.23 D - TANK ASSEMBLY RH Page 6 of 59...
  • Page 13 76.382.23 D - TANK ASSEMBLY RH Part No Description 08.605.01 GASKET 05.495.01 PLUG 08.921.01 FLUID LEVEL GAUGE 8401047 ELEMENT 05.287.04 05.282.01 SP.WASHER 9293054 BOLT 05.264.36 SETSCREW 05.264.37 SETSCREW 05.264.40 SETSCREW 05.281.04 WASHER 48028.22 FILTER PLATE RH 42112.18 TANK - OIL RH 05.839.49 SETSCREW Page 7 of 59...

  • Page 14: Arm Float Kit

    76.420.10 A - ARM FLOAT KIT Page 8 of 59...
  • Page 15 76.420.10 A - ARM FLOAT KIT Part No Description 8126035 05.290.01 SEAL 05.290.05 SEAL 05.124.01 ADAPTER 05.123.01 ADAPTOR 41451.02 ACCUMULATOR 08.200.01 VALVE 04.056.32 ADAPTOR TEE 08.958.23 HOSE ASSEMBLY Page 9 of 59...

  • Page 16: Linkage Kit

    76.458.02 A - LINKAGE KIT Page 10 of 59...
  • Page 17 76.458.02 A - LINKAGE KIT Part No Description 46438.01 LINKAGE KIT 46438.01 - LINKAGE KIT Part No Description 75.224.21 POLY BAG PL1790 FITTING INST 42276.01 BRACKET 42317.01 42316.01 TUBE OUTER 07.731.01 BALL JOINT 07.584.02 TOP LINK 00.372.01 LINCH PIN 03.873.01 05.201.11 SPIROL PIN 05.281.05...

  • Page 18: Pto/Gearbox Assy

    76.467.04 B - PTO/GEARBOX ASSY Page 12 of 59...
  • Page 19 76.467.04 B - PTO/GEARBOX ASSY Part No Description 06.023.01 HOSE TIE 41623.31 CROSS JOURNAL SET 41623.33 GUARD 47497.25 SEAL KIT 04.282.74 STUD 05.968.03 47497.01 70 LITRE GEARBOX 08.548.04 PTO CUP PLASTIC 46707.17 SPACER PLATE 47591.01 SPECIAL STUD 05.282.01 SP.WASHER 05.839.03 SETSCREW 41623.02 PTO SHAFT...

  • Page 20: Pump Assy

    76.474.13 - PUMP ASSY Page 14 of 59...
  • Page 21 76.474.13 - PUMP ASSY Part No Description 05.650.05 PUMP 09.537.32 PUMP 41.186.01 ADAPTER 09.293.01 ADAPTER 30.210.92 O RING 05.656.01 O RING 05.656.03 O RING 05.290.05 SEAL 08.955.14 ADAPTOR 1/2"BSPX1.1/ 06.251.01 ADAPTER 05.657.01 CAPSCREW 05.283.02 WASHER 9133005 05.287.02 47603.02 CLAMP 25-27MM 03.100.01 STUD Page 15 of 59...

  • Page 22: First Ram

    77.104.17 - FIRST RAM Page 16 of 59...
  • Page 23 77.104.17 - FIRST RAM Part No Description 08.297.08 BUSH 08.200.01 VALVE 05.290.04 BONDED SEAL 3/8" BSP 02.714.01 ADAPTER 05.953.01 GREASER 46518.01 RESTRICTOR 48069.01 RAM ASSY 08.955.06 ADAPTOR Page 17 of 59...

  • Page 24: Slew Ram Assy

    77.111.04 - SLEW RAM ASSY Page 18 of 59...
  • Page 25 77.111.04 - SLEW RAM ASSY Part No Description 48067.01 RAM ASSY PAINTED 05.290.04 BONDED SEAL 3/8" BSP 05.953.01 GREASER 05.953.05 GREASER 08.297.14 BUSH 46518.23 RESTRICTOR 46518.40 RESTRICTOR Page 19 of 59...

  • Page 26: Ram Assy Cowl

    77.113.09 - RAM ASSY COWL Page 20 of 59...
  • Page 27 77.113.09 - RAM ASSY COWL Part No Description 05.290.04 BONDED SEAL 3/8" BSP 05.953.05 GREASER 05.953.01 GREASER 48068.01 RAM ASSY 08.297.14 BUSH 46518.23 RESTRICTOR Page 21 of 59...

  • Page 28: Second Ram Assy

    77.114.18 - SECOND RAM ASSY Page 22 of 59...
  • Page 29 77.114.18 - SECOND RAM ASSY Part No Description 05.290.04 BONDED SEAL 3/8" BSP 05.953.05 GREASER 48068.02 RAM ASSY - PAINTED 08.297.14 BUSH 46518.27 RESTRICTOR 08.955.06 ADAPTOR Page 23 of 59...

  • Page 30: Accumulator Slewassy

    77.117.09 - ACCUMULATOR SLEWASSY Page 24 of 59...
  • Page 31 77.117.09 - ACCUMULATOR SLEWASSY Part No Description 8126043 ACCUMULATOR 8126035 8650322 SEAL 05.290.04 BONDED SEAL 3/8" BSP 8581284 ADAPTOR 46518.31 RESTRICTOR 04.056.31 ADAPTOR Page 25 of 59...

  • Page 32: Rear Guard Assy

    77.120.13 D - REAR GUARD ASSY Page 26 of 59...
  • Page 33 77.120.13 D - REAR GUARD ASSY Part No Description 48028.16 COVER 48028.18 COVER 46505.01 HOLDER 05.839.05 SETSCREW 05.281.10 WASHER 05.286.10 Page 27 of 59...

  • Page 34: Led Light Kit Rh

    77.134.06 B - LED LIGHT KIT RH Page 28 of 59...
  • Page 35 77.134.06 B - LED LIGHT KIT RH Part No Description 45662.08 LED LIGHTING KIT RH 45662.08 - LED LIGHTING KIT RH Part No Description 45594.06 WIRING LOOM 45662.97 LED LIGHT KIT CMPTS 45662.97 - LED LIGHT KIT CMPTS Part No Description 05.281.10 WASHER...

  • Page 36: Decals Eng 8852

    77.138.01 A - DECALS ENG 8852 Page 30 of 59...
  • Page 37 77.138.01 A - DECALS ENG 8852 Part No Description 08.632.01 DECAL 09.811.04 DECAL 09.821.28 DECAL 09.821.32 DECAL 09.821.33 DECAL 09.821.34 DECAL 09.843.06 DECAL 09.845.01 DECAL 09.846.02 DECAL 46681.01 DECAL Page 31 of 59...

  • Page 38: Shipping Pack

    77.143.22 - SHIPPING PACK Page 32 of 59...
  • Page 39 77.143.22 - SHIPPING PACK Part No Description 04.326.01 LIFTING EYE 05.264.22 SETSCREW 05.282.03 WASHER 05.286.03 05.286.04 05.291.39 BOLT 08.694.01 STAY - TRANSPORT 21160.03 HOOK 46189.01 STRAP Page 33 of 59...

  • Page 40: Cowl Bracket Assy

    77.182.06 - COWL BRACKET ASSY Page 34 of 59...
  • Page 41 77.182.06 - COWL BRACKET ASSY Part No Description 03.654.59 03.655.63 04.282.76 STUD 05.264.37 SETSCREW 05.282.04 WASHER 05.286.04 05.287.01 SELF LOCKING NUT M8 05.287.02 05.291.06 BOLT 05.291.18 BOLT 05.953.01 GREASER 05.953.03 GREASER 05.953.05 GREASER 07.942.03 WASHER 08.297.05 BUSH 08.297.10 BUSH 45491.01 PLATE 45950.01 LINK...

  • Page 42: Cable Assy - Arms Rh

    77.300.02 - CABLE ASSY - ARMS RH Page 36 of 59...
  • Page 43 77.300.02 - CABLE ASSY - ARMS RH Part No Description 06.023.01 HOSE TIE 30.058.66 CLIP 47531.01 CABLE 04.282.70 STUD 42256.05 ARM REST 47540.01 FIXING KIT 05.282.07 SP.WASHER 05.286.10 09.916.02 DECAL- 5 LEVER OP RH Page 37 of 59...

  • Page 44: Cdsr Cable Assy 3M

    77.300.08 B - CDSR CABLE ASSY 3M Page 38 of 59...
  • Page 45 77.300.08 B - CDSR CABLE ASSY 3M Part No Description 47531.03 CABLE ASSY 47539.01 CABLE KIT 06.820.02 DECAL 30.068.90 BOLT 05.282.09 SPRING WASHER 05.286.10 48171.02 BRACKET SPACER Page 39 of 59...

  • Page 46: Kingpost Assembly Rh

    77.301.12 B - KINGPOST ASSEMBLY RH Page 40 of 59...
  • Page 47 77.301.12 B - KINGPOST ASSEMBLY RH Part No Description 03.654.89 03.655.64 PIN 35 DIA. x 225 03.657.24 05.287.01 SELF LOCKING NUT M8 05.287.02 05.287.03 05.291.06 BOLT 05.291.18 BOLT 05.292.22 BOLT 05.953.01 GREASER 45965.01 46395.08 KINGPOST RH Page 41 of 59...

  • Page 48: Arm - First Rh

    77.353.05 C - ARM - FIRST RH Page 42 of 59...
  • Page 49 77.353.05 C - ARM - FIRST RH Part No Description 03.654.96 03.655.53 04.282.80 STUD 05.282.02 WASHER 05.287.01 SELF LOCKING NUT M8 05.287.02 05.291.06 BOLT 05.291.18 BOLT 08.297.01 BUSH 08.297.02 BUSH 47636.01 CLAMP 48263.02 ARM - FIRST RH 9100025 47636.07 CLAMP Page 43 of 59...

  • Page 50: Arm - Second Rh

    77.354.05 - ARM - SECOND RH Page 44 of 59...
  • Page 51 77.354.05 - ARM - SECOND RH Part No Description 03.100.01 STUD 03.654.79 03.654.89 04.282.80 STUD 05.282.02 WASHER 05.287.01 SELF LOCKING NUT M8 05.287.02 05.291.06 BOLT 05.292.11 BOLT 05.953.01 GREASER 05.953.04 GREASE NIPPLE 08.297.02 BUSH 43292.02 47636.01 CLAMP 47636.02 CLAMP 48264.02 ARM - SECOND RH 9100025 Page 45 of 59...

  • Page 52: Mainframe Assy Rh

    77.443.20 B - MAINFRAME ASSY RH Page 46 of 59...
  • Page 53 77.443.20 B - MAINFRAME ASSY RH Part No Description 00.372.01 LINCH PIN 03.654.94 05.227.01 SCREW 05.287.01 SELF LOCKING NUT M8 05.291.06 BOLT 05.774.07 PLATE 05.953.03 GREASER 07.574.01 08.297.13 BUSH 09.918.01 THRUST WASHER 46463.01 STAND ASSEM 47490.06 MAINFRAME RH 7191108 BUNG T1657 PIN - LINKAGE 46354.02...

  • Page 54: Dsr Pump Circuit

    77.470.27 - DSR PUMP CIRCUIT Page 48 of 59...
  • Page 55 77.470.27 - DSR PUMP CIRCUIT Part No Description 48033.01 VALVE - ROTOR 05.290.06 SEAL 47743.01 BRACKET 05.264.15 SCREW 05.264.03 SETSCREW 05.282.02 WASHER 05.282.01 SP.WASHER 05.286.02 05.286.01 05.377.01 ADAPTOR 08.955.45 ADAPTOR 48696.01 ADAPTOR 08.955.17 ADAPTER 8581192 ADAPTOR 05.433.10 ADAPTOR Page 49 of 59...

  • Page 56: Control Valve Assy

    77.471.08 - CONTROL VALVE ASSY Page 50 of 59...
  • Page 57 77.471.08 - CONTROL VALVE ASSY Part No Description 05.264.01 SETSCREW 05.282.01 SP.WASHER 05.290.04 BONDED SEAL 3/8" BSP 05.290.02 BONDED SEAL 1/4" BSP 05.123.01 ADAPTOR 05.124.01 ADAPTER 04.056.16 ADAPTOR 05.146.12 COUPLING 47745.01 VALVE 48027.01 PLATE 05.625.39 SOCKET SCREW 08.955.07 ADAPTOR 08.955.06 ADAPTOR 05.835.12 ADAPTOR...

  • Page 58: 47745.01 Valve

    47745.01 - VALVE Page 52 of 59...
  • Page 59 47745.01 - VALVE Part No Description 47745.04 SEAL KIT 47745.10 END SLICE 47745.11 FIRST SLICE 47745.12 SLICE 47745.13 CARTRIDGE 47745.14 END SLICE 2 47745.15 PLUG 47745.16 END CAP & SPTING 47745.17 PLUG 47745.18 FLOAT CAP & SPRING 47745.78 O-RING SEAL 47745.81 RING PARBAK 47745.98...

  • Page 60: Hose Serv Kit

    77.474.27 - HOSE SERV KIT Page 56 of 59...
  • Page 61 77.474.27 - HOSE SERV KIT Part No Description 06.023.01 HOSE TIE 43542.02 SLEEVE 43542.04 SLEEVE 43542.14 SLEEVE 47709.27 HOSE SERV KIT 47709.27 - HOSE SERV KIT Part No Description 08.957.08 HOSE 08.958.18 HOSE 08.959.19 HOSE 08.961.03 HOSE 08.962.15 HOSE 10.024.17 SUCTION HOSE 41677.18 HOSE...

  • Page 62: Cable Rcc Kit Rh

    77.754.02 - CABLE RCC KIT RH Page 58 of 59...
  • Page 63 77.754.02 - CABLE RCC KIT RH Part No Description 06.023.01 HOSE TIE 30.058.66 CLIP 03.152.01 WASHER 03.231.02 MOULDING 03.583.02 BRACKET 05.264.07 SETSCREW 05.281.01 WASHER 05.282.01 SP.WASHER 05.948.07 WING NUT Page 59 of 59...
  • Page 65 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety require- ments of tractor operators: REQUIRED OF THE OWNER: 1. Provide a Roll-Over-Protective Structure that meets the requirements of this Standard; and 2.
  • Page 66 1948 PL 0 / Printed U.S.A.
