RS232 Radio Paging System (Single Port, DC Version)
Installation & User Manual
Scope Communications UK Ltd, Quantum House, Steamer Quay, Totnes, Devon TQ9 5AL
Tel: +44 1803 860700 Fax: +44 1803 863716 Email: sales@scope-uk.com Web: www.scope-uk.com
II V7 SDC
ConneXions
ConneXions
ConneXions
ConneXions
ConneXions
II
CONV7SDC/4

Advertisement

Table of Contents
loading

Summary of Contents for scope ConneXions II V7 SDC

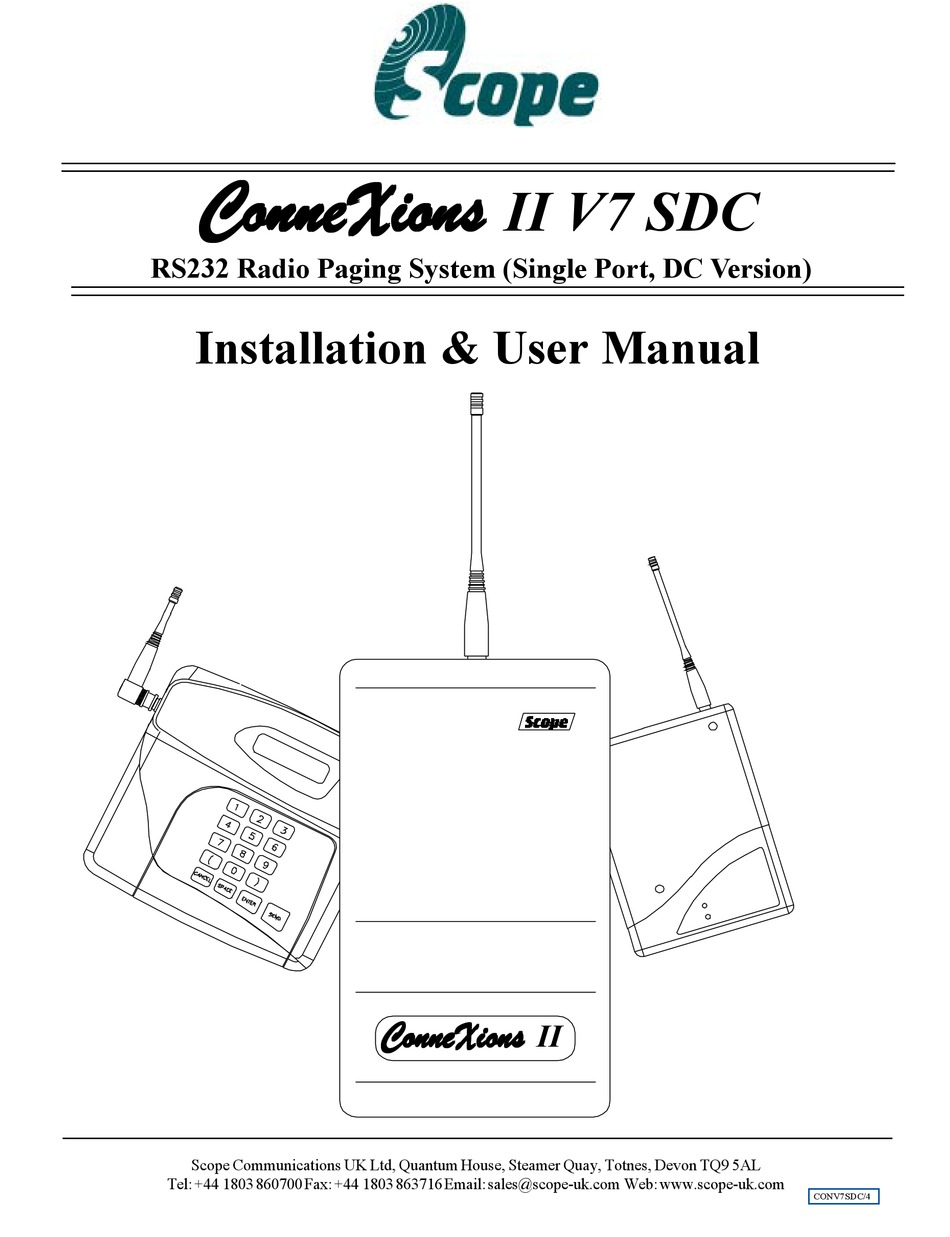

  • Page 1 RS232 Radio Paging System (Single Port, DC Version) Installation & User Manual ConneXions ConneXions ConneXions ConneXions ConneXions Scope Communications UK Ltd, Quantum House, Steamer Quay, Totnes, Devon TQ9 5AL Tel: +44 1803 860700 Fax: +44 1803 863716 Email: sales@scope-uk.com Web: www.scope-uk.com CONV7SDC/4...
  • Page 2: Important Installation Information

    For UK equipment, Scope has no control of the use and application of the frequencies issued by OFCOM. Some equipment that is licensed may have greater protection than other equipment which is operated on a WT Act License Exempt basis.
  • Page 3: Warranty

    Liability Scope does not accept liability for any damage or injury, howsoever caused as the result of misuse of this equipment. It is the responsibility of the user to ensure that the equipment is operated in the manner for which it was intended and that it is the correct item of equipment for the required task.
  • Page 4: System Overview

    ConneXions II V7 SDC DC, Single Port Version System Overview The Scope ConneXions II is a POCSAG data display radio paging system which can be used to transmit both text and numeric messages direct to pocket pagers carried by individuals or entire groups.
  • Page 5 ConneXions II V7 SDC DC, Single Port Version Some major points to consider when installing equipment: Never install antennas near or adjacent to telephone, public address or data communication lines or overhead power cables. Avoid, where ever possible, running antenna coax alongside other cables.
  • Page 6 ConneXions II V7 SDC DC, Single Port Version Installation The following procedure must be adhered to when installing the ConneXions paging system. Ensure you have taken into consideration all of the above information before selecting the location for your transmitter. If in doubt please feel free to telephone the technical helpline on 01803 860710.
  • Page 7 ConneXions II V7 SDC DC, Single Port Version Power input must be 12 to 13.8V dc max. The cable provided plugs into the connector on the bottom panel (see Diagram 1). An integral locking collar is fitted to prevent accidental removal;...
  • Page 8: Section 2: System Operation

    ConneXions II V7 SDC DC, Single Port Version Section 2: System Operation Confirmation of power connection is by way of the red LED on the base of the transcoder console. Confirmation of transmit is provided by way of the momentary green LED on the base of the transcoder console.
  • Page 9 ConneXions II V7 SDC DC, Single Port Version Optional Dry Contacts This option must be specified at time of ordering, along with the pre-programmed messages required. The purchaser should also order the dry contact interface box (Part Code: DC) for ease of connection to the contact terminals (see Diagram 2).
  • Page 10: Other Antennas

    In the event that a pager requires service, return it directly to Scope (in the pre-addressed service bag supplied with your system) by registered post. Ensure that you carefully fill out the service form provided.
  • Page 11: System Specification

    600 to 9600 software adjustable* Footprint (mm): 328 (L) x 190 (W) x 75 (D) max *dependent on system configuration excluding aerial Scope’s policy is one of continuous development and specifications are subject to change without notice CONV7SDC 07/05 Issue 4...
  • Page 12: Section 3: Technical Information

    ConneXions II V7 SDC DC, Single Port Version Section 3: Technical Information This section provides a more in depth understanding of how messages are formatted for serial communication from a host. It need only be studied by those intending to write their own serial comm.’s software.
  • Page 13 ConneXions II V7 SDC DC, Single Port Version Section 3: Technical Information Next follows the 7 digit pager identity number. All seven digits must be used. The letter following the identity is the beep type of which there are four valid characters, A, B, C or D.
