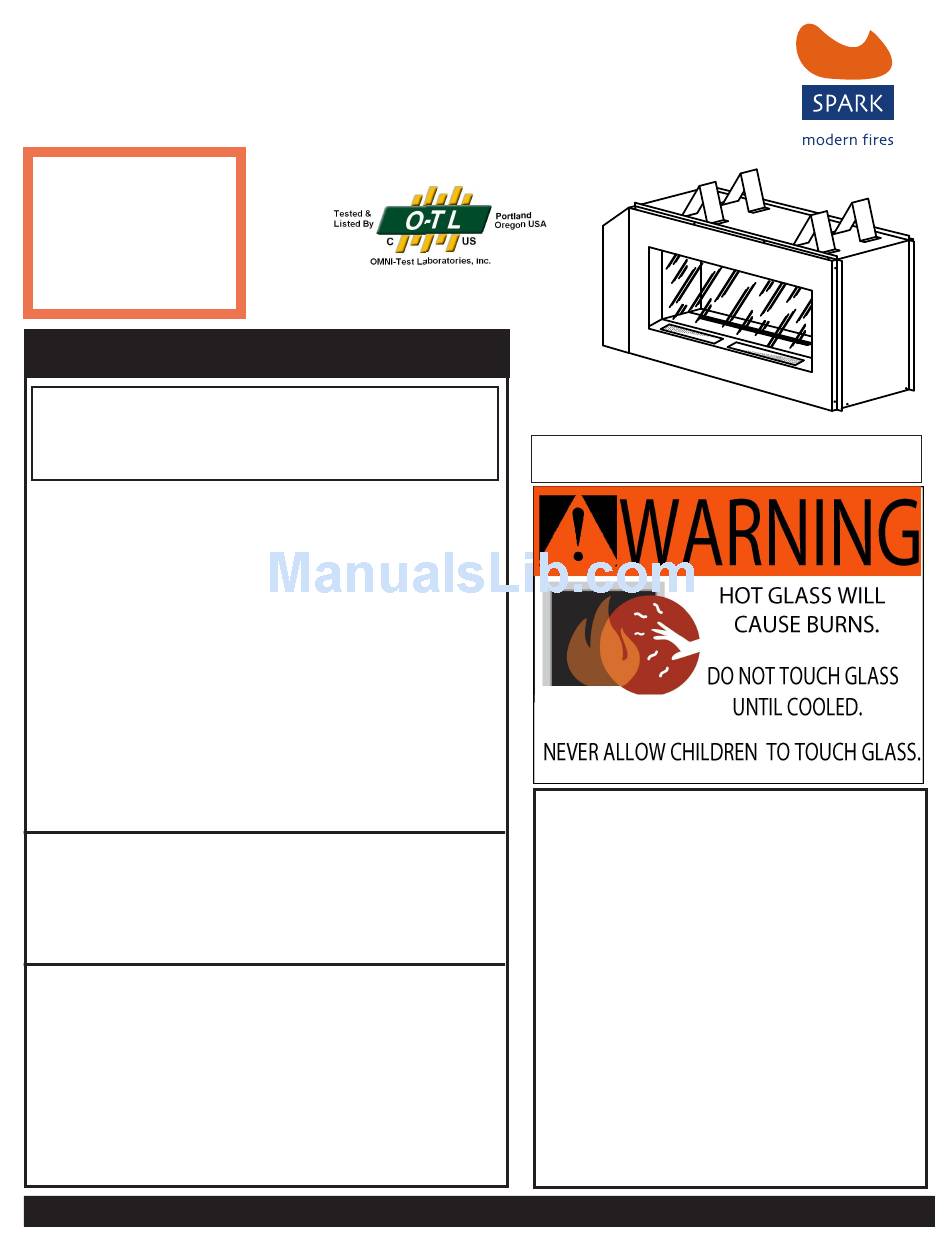

INSTALLATION AND OPERATING INSTRUCTIONS
WARNING: This
fireplace requires
2 feet of vertical
venting before
any horizontal runs
WARNINGS
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
–
Installation and service must be per formed
by a qualified installer, service agency or the
gas supplier.
WARNING: Improper installation, adjustment, alteration,
services or maintenance can cause injury or property
damage. Refer to this manual. For assistance or
additional information consult a qualified installer,
service agency or the gas supplier.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (US only) ,
where not prohibited by local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
Version française de ce manuel est disponible à partir du site WEB : www.sparkfires.com
French version of this Owners Manual is available at www. sparkfires .com
SPARK MODERN FIRES
DIRECT VENT GAS FIREPLACE SEE THRU / PENINSULA
MODELS: 91N, 91P, 92N, 92P
Report # 32 1- F -0 4b - 5
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT OF
TRAFFIC AND AWAY FROM FURNITURE AND
DRAPERIES.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING
IGNITION.
YOUNG CHILDREN SHOULD BE SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED ON OR
NEAR THE APPLIANCE.
KEEP THE ROOM AREA CLEAR AND
FREE FROM COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIQUIDS.
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spark 91N
Summary of Contents for Spark 91N
-
Page 1: Installation And Operating Instructions
SPARK MODERN FIRES INSTALLATION AND OPERATING INSTRUCTIONS DIRECT VENT GAS FIREPLACE SEE THRU / PENINSULA ™ MODELS: 91N, 91P, 92N, 92P WARNING: This fireplace requires 2 feet of vertical venting before Report # 32 1- F -0 4b - 5... -
Page 2: Table Of Contents
CONTENTS Important Safety Information ......3 Electrical Installation........Electrical Wiring ........28 Product Features..........5 Wall Switch ..........28 Code Approval ..........5 Glass Removal ..........29 Pre-Installation Information......6 Final Installation........... 30 ......Media Placement ..30 Installing Above 2000 Feet ......6 Orifice Sizes, Pressures and BTUs .... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION INSTALLER OWNER Please leave these instructions with the owner. Please retain these instructions for future reference. WARNING • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. • Any change to this fireplace or its controls can be dangerous. •... - Page 4 IMPORTANT SAFETY INFORMATION Continued from page 3 IMPORTANT: 12. Do not use this fireplace to cook food or burn paper or PLEASE READ THE FOLLOWING CAREFULLY other objects. It is normal for fireplaces fabricated of steel to give off some expansion and/or contraction noises during the start up or 13.
-
Page 5: Product Features
PRODUCT FEATURES CODE APPROVAL FIREPLACE CONTROLS PRODUCT SPECIFICATIONS (see Figure 1) 1 - Hi/Lo Knob • This appliance has been certified 2 - Off/Pilot/On Knob for use with either natural or propane gas. See appropriate data 3 - Remote Control Receiver (optional) plates. -
Page 6: Pre-Installation Information
Maximum Supply Pressure 13" Minimum Supply Pressure 4.5" Minimum Supply Pressure 11" Input Rate, Btu/hr Model Orifice Size Number Type As Shipped 91N - SeeThru Natural 39,000 27,000 91P - SeeThru Propane 38,000 27,000 92N - Peninsula Natural 39,000 27,000... -
Page 7: Fireplace Dimentions
PRE-INSTALLATION INFORMATION... -
Page 8: Fireplace Framing
PRE-INSTALLATION INFORMATION FIREPLACE LOCATION Plan for the installation of your appliance. This includes determining where the unit is to be installed, the vent configuration to be used, framing and finishing details, and whether any optional accessories (i.e. wall switch, or remote control) are desired. Consult your local building code agency to ensure compliance with local codes, including permits and inspections. - Page 9 PLANING FIREPLACE FRAMING AND COVERING FACE (continued) Figure 4 - Minimum outside dimensions of the face covering material...
-
Page 10: Securing Fireplace To Floor Or Framing
SECURING FIREPLACE TO FLOOR OR FRAMING The fireplace must be secured to the floor and/or to framing studs as shown in Figure 5. Use two (2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. FRAMING SIDE TABS SCREWS... -
Page 11: Clearances
CLEARANCES CLEARANCES TO COMBUSTIBLES (both sides) WARNING Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. The appliance cannot be installed on a carpet, tile or other combustible material other than wood flooring. If installed on carpet or vinyl flooring, the appliance shall be installed on a metal, wood or non-combustible material panel extending full width and depth of the appliance. -
Page 12: Installation Information
INSTALLATION INFORMATION FINISHING MATERIAL NOTE: Any remote wiring (i.e. remote control or wall switch) must be done prior to final finishing to avoid costly reconstruction. WARNING Never obstruct or modify the air inlet or outlet. This may create a fire hazard. VENT INSTALLATION WARNING Read all instructions completely and thoroughly before attempting installation. -
Page 13: Vent Installation
VENT INSTALLATION WARNING This fireplace must be vented to the outside. The venting system must NEVER be attached to a chimney serving a separate solid-fuel burning appliance. Each gas appliance must use a separate vent system. Do not use common vent systems. WARNING A Minimum of 4"... -
Page 14: Installation Planning
VENT INSTALLATION INSTALLATION PLANNING There are two basic types of direct-vent installation: • Horizontal Termination • Vertical Termination It is important to select the proper length of vent pipe for the type of termination you choose. It is also important to note the wall thickness. - Page 15 VENT INSTALLATION FOR HORIZONTAL TERMINATION Inside Corner Detail � � � � � � � � � � � � � ����� � � ������ ������ ����� � ��� ������ � � �������� � � � � � � � �...
-
Page 16: How To Use The Vent Graph
VENT INSTALLATION TERMINATION CLEARANCES FOR BUILDINGS WITH COMBUSTIBLE AND NONCOMBUSTIBLE EXTERIORS � � � ���� ������� � � � � � ���� ������� ������ ������ ������� ������ � � ������� ����� �� ��� �������� � ��� ������ �������� � � ������� ����� ��� ���� ���� �� �... -
Page 17: Rear Wall Vent Installation
VENTING INSTALLATION REAR WALL VENT INSTALLATION When installed as a rear vent unit this appliance may be vented directly to a termination located on the rear wall behind the appliance with 2' of vertical rise minimum. • The maximum horizontal distance between the rear of the appliance and the outside of termination is 20" (508 m). See Figure 11. - Page 18 VENT INSTALLATION REAR WALL VENT INSTALLATION (continued) 4. Apply a bead of non-hardening mastic around the outside edge of vent cap. Position the vent cap in the center of hole on the exterior wall with the arrow up on the vent cap Insure proper clearance of 1"...
-
Page 19: Horizontal Termination Configuration
VENT INSTALLATION HORIZONTAL TERMINATION CONFIGURATIONS — RIGID VENTING Since it is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as to vent configurations apply and must be strictly adhered to. The Vent Graph, showing the relationship between vertical and horizontal side wall venting, will help to determine the various dimensions allowable. - Page 20 VENT INSTALLATION HORIZONTAL TERMINATION CONFIGURATION — RIGID VENTING (Continued) • If a 90° elbow is used in the horizontal vent run (level height maintained) the horizontal vent length is reduced by 36" (914 mm) (Fig. A and B) This does not apply if the 90° elbows A+B=12' Maximum.
-
Page 21: Below Grade Installation
VENT INSTALLATION BELOW GRADE INSTALLATIONS — RIGID VENTING When it is not possible to meet the required vent terminal clearances of 12" above grade level, a snorkel kit is recommended. It vent pipe as it penetrates through the wall. Ensure that sidewall venting clearances are observed. If venting system is installed below ground, we recommend a window well with adequate and proper drainage to be installed around the termination area. -
Page 22: Vertical Through-The-Roof Installation
VENT INSTALLATION VERTICAL THROUGH-THE-ROOF APPLICATIONS — RIGID VENTING ONLY This Gas Fireplace has been approved for, V ertical installations up to 40' (12m) in height. Up to a 10' (3m) horizontal vent run can be installed within the vent system •... -
Page 23: Installation For Vertical Termination
VENT INSTALLATION INSTALLATION FOR VERTICAL TERMINATION 1. Determine the route your vertical venting will take. If ceiling joist, Roof roof rafters or other framing will obstruct the venting system, consider Flashing an offset. See Figure 27 to avoid cutting load bearing members. NOTE: Pay special attention to these installation instructions for required clearances (air space) to combustibles when passing Wall Strap... -
Page 24: Cathedral Ceiling Installation
VENT INSTALLATION 4. Connect a section of pipe and extend up through the hole. NOTE: If an offset is needed to avoid obstructions, you must support the vent pipe every three (3) feet. Use wall straps for this purpose. See Figure 25, page 22. Whenever possible, use 45° elbows instead of 90° elbows. The 45° elbow offers less restriction to the flow of the flue gases and intake air. -
Page 25: Fireplace Installation
FIREPLACE INSTALLATION CHECK GAS TYPE Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. INSTALLING GAS PIPING TO FIREPLACE / BURNER SYSTEM LOCATION WARNING A qualified installer or service person must... - Page 26 FIREPLACE INSTALLATION CAUTION WARNING Only persons licensed to work with gas piping A manual shutoff valve must be installed upstream may make the necessary gas connections to of the appliance. Union tee and plugged " this appliance. NPT pressure tapping point should be installed upstream of the appliance.
-
Page 27: Checking Gas Pressure
CHECKING GAS PRESSURE Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. Control knob 2. -
Page 28: Electrical Installation
ELECTRICAL INSTALLATION ELECTRICAL WIRING This fireplace will work without any electrical supply. Electricity is only needed to operate blower. NOTE: If installed in mobile home, fireplace must be bolted securely to floor. WARNING Electrical connections should only be performed by a qualified, licensed electrician. Main power must be off when connecting to main electrical power supply or performing service. -
Page 29: Glass Removal
GLASS REMOVAL GLASS FRAME REMOVAL (see Figure 36) GLASS REMOVAL 1. Remove the front air panel using a screwdriver to lift from center if necessary. 2. Remove the left and right cover plates by lifting up and moving to the center. . -
Page 30: Final Installation
FINAL INSTALLA TION MEDIA TRAY PLACEMENT Place media tray (see Figure 37) on the support brackets as shown on Figure 38. Fill the tray with media supplied. Do not place media on burner or block air flow between burner and tray. See Figure 39. Figure 37 - One piece media tray Figure 38 - Placing media tray Figure 39 - Filling the tray with media... -
Page 31: Operating Instructions
OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in battery ignitor while following these instructions exactly. -
Page 32: Lighting Pilot
OPERATING INSTRUCTIONS LIGHTING PILOT FOR THE FIRST TIME APPROVED LEAK TESTING METHOD You may check for gas leaks with the following methods only: • Soap and water solution WARNING • An approved leak testing spray If using a soap and water solution to test for leaks, DO NOT spray solution onto •... -
Page 33: Lighting Burner
OPERATING INSTRUCTIONS LIGHTING BURNER MAIN BURNER SWITCH The “ON/OFF” switch for the main burner can be found either in the fireplace or on the wall depending on the installation. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. -
Page 34: Cleaning And Maintenance 3
CLEANING AND MAINTENANCE WARNING Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season. BURNER, PILOT AND CONTROL COMPARTMENT Keep the control compartment and burner areas clean by vacuuming or brushing at least twice a year. Make sure the burner porting, pilot air opening and burner air opening are free of obstructions at all times. -
Page 35: Vent System
CLEANING AND MAINTENANCE VENT SYSTEM The fireplace and venting system should be inspected before initial use and at least annually by a qualified field service person. Inspect the external vent cap on a regular basis to make sure that no debris is interfering with the airflow. Inspect entire venting system to ensure proper function. -
Page 36: Vent Components
ILLUSTRATED PARTS LIST RIGID VENT COMPONENTS (not supplied with fireplace) � � � Simpson Duravent Direct Vent Pro or Item Qty/Box Description Spark Modern Part # 46DVA-E30 — 30° Starter Elbow for Vertical from Firebox 46DVA-E60 — 60° Starter Elbow for Horizontal from Firebox 46DVA-HC Simpson Horizontal High Wind Horizontal Termination Cap 46DVA-VCH... -
Page 37: Firebox Components
ILLUSTRATED PARTS LISTS CONTROL COMPARTMENT BURNER COMPARTMENT FIREBOX COMPONENTS ACCESS AND MEDIA COMPONENTS... - Page 38 ILLUSTRATED PARTS LISTS PARTS LIST This list contains replaceable parts used in your fireplace. PART NUMBER DESCRIPTION 91,92(N) 91,92(P) C100012 C100012 BATTERY IGNITOR C100013 C100013 IGNITOR WIRE HARNESS C100019 C100019 BURNER CONNECTOR C100001 C100002 MAIN GAS VALVE D200099 D200099 VALVE BRACKET A100010 A100010 THERMOSTAT BLOWER WITH SPEED CONTROL...
-
Page 39: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE ACTION 1. Spark ignitor will not A. Wire disconnected. A. Open door and check to make sure wire is connected to ignitor. light pilot after repeated B. Check for spark at electrode and pilot. If no spark and electrode triggering of piezo. -
Page 40: Warranty Information
WARRANTY INFORMATION KEEP THIS FOR WARRANTY Model Serial No. Date Purchased Always specify model and serial numbers when communicating with the factory. LIMITED LIFETIME WARRANTY The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, and Steel Burner.
