Electrical Trouble
a
Pin

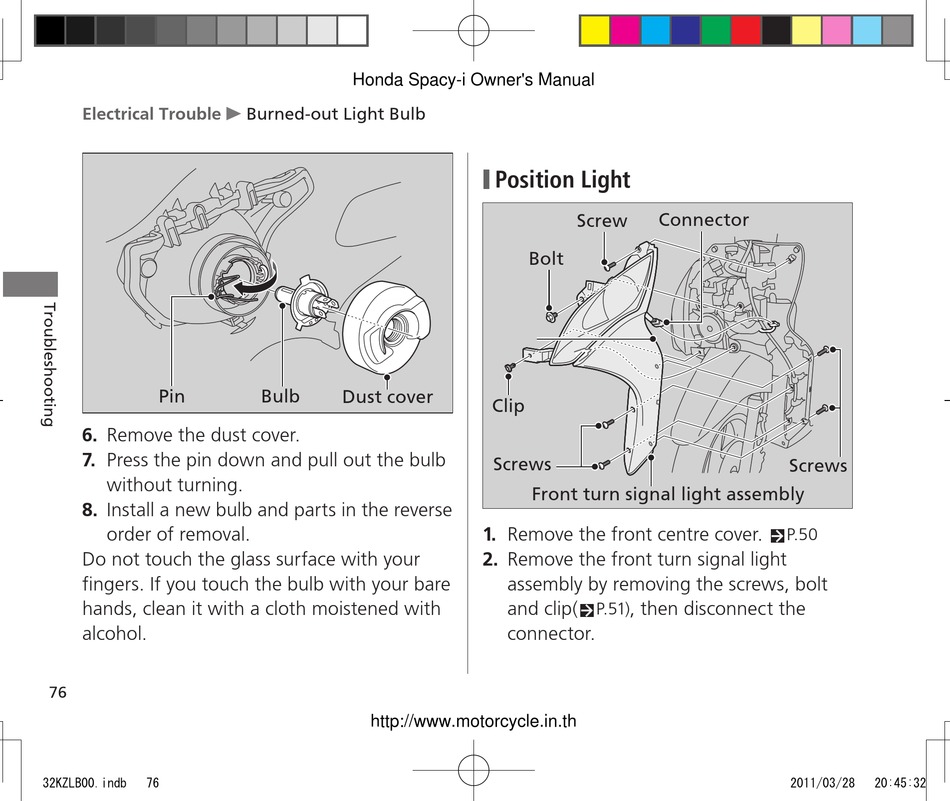

6. Remove the dust cover.
7. Press the pin down and pull out the bulb
without turning.
8. Install a new bulb and parts in the reverse
order of removal.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
alcohol.
76
Honda Spacy-i Owner's Manual
Burned-out Light Bulb
Bulb Dust cover
http://www.motorcycle.in.th
❙ Position Light
Connector
Screw
Bolt
Clip
Screws
Front turn signal light assembly
1. Remove the front centre cover.
2. Remove the front turn signal light
assembly by removing the screws, bolt
and clip( , then disconnect the
P.51)
connector.
Screws
P.50
