S1 User Guide
© 2009 BlueAnt Wireless

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blueant S1

Summary of Contents for Blueant S1

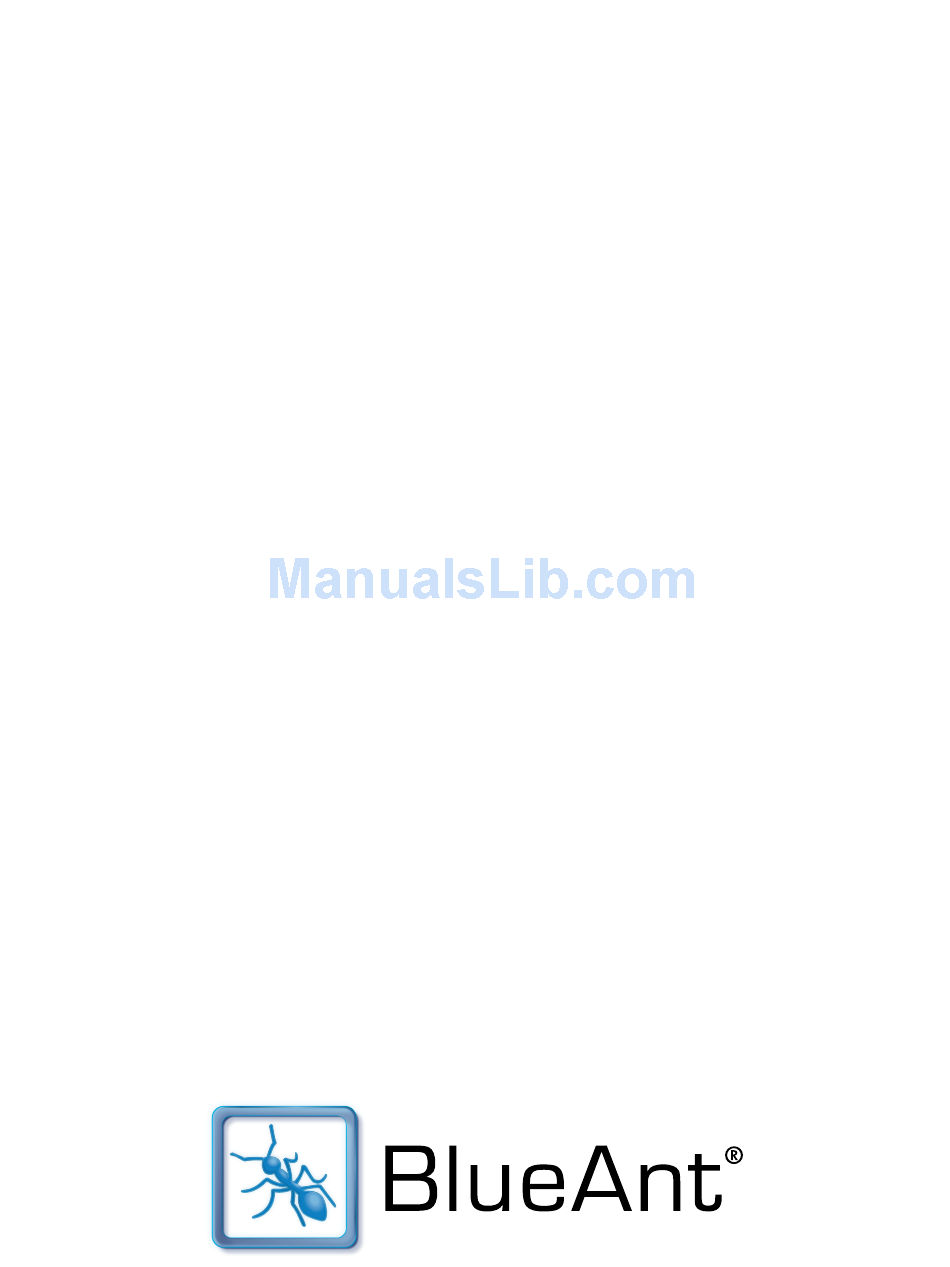

  • Page 1 S1 User Guide © 2009 BlueAnt Wireless...

  • Page 2: Table Of Contents

    Troubleshooting ......................20 Resetting the S1 ....................20 To Reset the S1.................... 20 My Phone Does Not Automatically Reconnect to the S1 ........20 Configuring Your Phone To Automatically Reconnect to the S1....21 S1 Reference ......................22 Understanding the Light Flashes ............... 22 Button Functions ....................
  • Page 3 Choking Hazard ....................27 Protect Your Ears ....................28 Care and Handling ....................28 Approved Accessories ..................29 Electromagnetic Interference ................29 Safety, Warning and Information Symbols ............30 Smart Practices While Driving ................30 BlueAnt Limited Global Warranty ............... 31...

  • Page 4: Introduction

    Welcome to the S1 user manual. If you are looking for help with your BlueAnt S1, then you've come to the right place. This manual explains everything you need to know about your S1, and more.
  • Page 5 Please consider the environment before printing the user manual.

  • Page 6: Getting Started: Pairing The S1

    1. Make sure the S1 is turned off. You can tell if the S1 is on or off by looking at the Bluetooth Light on the front. If the light is on or flashing, then the S1 is on: turn it off by holding down (the Multi-Function button) for about 5 seconds.
  • Page 7 If your phone does not connect to the S1, then use your phone's Bluetooth menu to initiate a connection to the S1. If you don't know how to do this, refer to the section on pairing in your phone's manual.

  • Page 8: Installing The S1 In Your Car

    The S1 is designed to attach to your car's sun visor. Use the supplied plastic clip to attach the S1 to the visor. 1. Attach the clip to the slots on the back of the S1 and slide it so that it locks in place. Do not force on the S1's buttons when you attach the clip.
  • Page 9 Do not leave the BlueAnt S1 in direct sunlight or in any area where the temperature may exceed 60°C (140°F), such as inside a closed car on a hot day.

  • Page 10: Using The S1

    Activating the Voice Answer Feature You can only turn the voice answer feature on or off when the S1 is in "Standby" mode (the S1 is turned on but there is no active call or music streaming).

  • Page 11: Making Calls

    1 second to transfer the audio to the BlueAnt Streaming Music If your phone supports the Bluetooth A2DP profile, you can play music from it through the S1 speaker. To play music, make sure that your phone is paired and connected, then simply go to your phone's...

  • Page 12: Switching The S1 On And Off

    On some phones you will need to restart the music manually. Switching the S1 On and Off You can tell if the S1 is on or off by looking at the Bluetooth Light on the front. If the light is on or flashing, then the S1 is on.

  • Page 13: Pairing

    Pairing You only need to pair your phone with the S1 once. Once you have paired your phone with the S1 they will reconnect to each other in future without you having to repeat the pairing process. If you need to pair an additional phone, simply: 1.

  • Page 14: Charging The S1

    Charging the S1 Your S1 has been given an initial charge to get going, but in future you will need to charge it for up to 3 hours. Use the supplied AC adapter to charge the S1 whenever the battery is low.

  • Page 15: Transferring Audio Between The S1 And Your Phone

    If this applies to your phone, you can avoid this by configuring the phone to treat the BlueAnt S1 as a "trusted connection". See "My Phone Does Not Automatically Reconnect to the S1" (page 20) for more information.

  • Page 16: Automatic Reconnection

    The BlueAnt S1 is designed to reconnect to your phone automatically. If you take your phone out of range of the BlueAnt S1 for more than 20 seconds (without turning the S1 off), and then come back into range the S1 will search for your phone and reconnect automatically.

  • Page 17: Using More Than One Phone At The Same Time (Multipoint)

    In this case you will not be able to tell which phone is the primary until you either initiate a call through the S1 or receive a call on one...
  • Page 18 Setting the Primary Phone You can force the S1 to change the primary phone by doing any of the following: • Answer an incoming call. The phone receiving the call will become the primary phone. • Initiate a call from one of the phone handsets. The phone making the call will become the primary phone.

  • Page 19: Multiple Calls

    Multiple Calls The S1 does not allow you to hear a call or music from 2 phones simultaneously. If you receive a call while you are already on an ongoing call, you will hear a special ringtone. • Click to end the current call and accept the incoming call.

  • Page 20: Troubleshooting

    3. The S1 will turn on. Hold down the "MFB" for about 5 seconds to turn it off again. The S1 has now been reset: all pairing information has been deleted. When you turn the S1 back on...

  • Page 21: My Phone Does Not Automatically Reconnect To The S1

    S1. If your phone keeps prompting you about the connection to the S1, then you should change the setting on your phone so that it treats the S1 as a trusted or authorized connection.

  • Page 22: S1 Reference

    S1 Reference This section contains detailed reference information about the S1. Understanding the Light Flashes The Bluetooth Light on the middle of the S1 changes indicates the current state of the S1. Light Description Flashing Blue Indicates that the S1 is on.

  • Page 23: Button Functions

    5 seconds the S1 is switching off. (until the Bluetooth Light turns red). Enter Pairing Mode You must switch the S1 off first With the S1 off, hold before you can enter pairing mode. about 5 seconds (until the Bluetooth Light starts flashing red and blue).
  • Page 24 Hold "Vol +" for 5 seconds (until the You can only turn the voice answer Answer Feature S1 beeps). feature on or off when the S1 is in "Standby" mode (the S1 is turned on but there is no active call or music streaming). For more information about answering calls with your "Answering Calls"...

  • Page 25: Safety And General Information

    FCC Notice To Users 15.21 BlueAnt has not approved any changes or modifications to this device by the user. You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.
  • Page 26 15.19(3) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).

  • Page 27: Industry Canada Notice To Users

    (Applicable in the European Union and other European countries with separate collection systems) This symbol on a BlueAnt product or its literature indicates that it should not be disposed of with other household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 28: Protect Your Ears

    Protect Your Ears All BlueAnt devices are designed to reach volumes of up 100 decibels. Prolonged use of a BlueAnt device at high volumes may affect your hearing capacity. Using for extensive time periods may result in noise induced hearing loss (NIHL).

  • Page 29: Approved Accessories

    RF energy. Aircraft When instructed to do so, turn off your BlueAnt device when on board an aircraft. Any use of a mobile device must be in accordance with applicable regulations and airline crew instructions.

  • Page 30: Safety, Warning And Information Symbols

    If you are in doubt about whether your BlueAnt device or mobile phone can be safely turned on or used, please consult an authorized person in the location you want to use your BlueAnt device. If no authorized person is available or you remain uncertain, BlueAnt recommends that you turn off your Bluetooth device and any mobile phones unless they are required in an emergency situation.

  • Page 31: Smart Practices While Driving

    If you choose to use your Bluetooth device while driving, remember the following tips: • Get to know your BlueAnt device and its features such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.

  • Page 32: Blueant Limited Global Warranty

    The first consumer purchaser agrees that there have been no affirmations of fact, promises, or representations made by BlueAnt relating to the Products and becoming part of the basis of the bargain. The descriptions of the Products covered by this Limited Warranty are for purposes of reference only, and there is no express or implied warranty that any Products conform to the description.
  • Page 33 Products will be confirmed to be faulty by BlueAnt, in its sole judgment, upon testing by BlueAnt or its authorized service centers. If a Product is found to be faulty under the terms of this Limited Warranty, BlueAnt will, at its option, repair or replace any Products that do not conform to this warranty.
  • Page 34 World You will receive instructions on how to ship the Products to a BlueAnt authorized customer service center. You will be liable for all costs associated with shipping the Products to the BlueAnt authorized customer service center. To obtain service, you must include: •...
  • Page 35 BlueAnt software such as the exclusive rights to reproduce and distribute copies of the BlueAnt software. BlueAnt software may only be copied into, used in, and redistributed with, the Products associated with such BlueAnt software. No other use, including without limitation...

  • Page 36: Product Registration

    Trademarks and Patents BlueAnt and other trademarks are trademarks of BlueAnt and may not be used without permission. The BlueAnt logo is registered in the U.S. Patent and Trademark Office and globally with the World Intellectual Property Organization under the Madrid protocol.
  • Page 37 Warning All BlueAnt headsets are designed to reach volumes of up to 100 decibels. Prolonged use at high volumes may affect your hearing capacity. Using for extensive periods may result in noise induced hearing loss (NIHL). Thank you for choosing a BlueAnt product.
