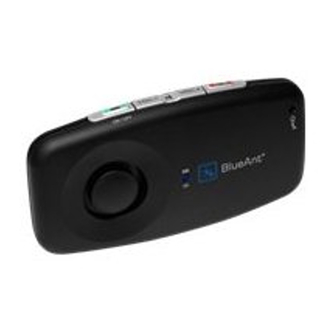

Blueant S1 User Manual

Volume
Up/Down
bluetooth car kit
Multi-Function
Button (MFB):
ON/OFF, pairing,
answer calls,
voice dial, redial,
audio transfer
Let's Get Started
To use the S1 you need to pair your phone:
1. Make sure the S1 is off. You can tell whether the S1 is
on or off by looking at the Bluetooth Light on the front.
If the light is on or fl ashing, then the S1 is on: turn it
off by holding down (the Multi-Function Button)
for about 5 seconds. The S1 will beep and the light will turn red and then go out.
2. With the S1 off, hold down (the MFB) for about 5 seconds, until the Bluetooth Light
starts fl ashing red and blue. The S1 is now in pairing mode.
3. Go to the Bluetooth menu on your phone. Turn on Bluetooth and perform a search for
Bluetooth devices (see the section on pairing
4. When the phone displays a list of devices, select the
prompted, and accept any connection requests. When the S1 has connected to your phone,
the Bluetooth Light will fl ash blue every few seconds.
You only need to pair each phone once: the S1 will automatically reconnect in future. On
some phones you need to set the S1 as a "trusted connection" in the options menu to enable
automatic reconnection: see your phone's manual for more details.
Installing the S1 in your Car
1 Attach the clip to the slots on 2 You can attach the clip 2 different ways, depending on
the back of the S1 and slide it how you want to position the S1 on your car's visor.
so that it locks into place.
3
Slide the clip and the S1 onto your
car sun visor.
Make sure that the microphone
is directed towards you.
When the Phone Rings
1 2
Say ACCEPT CALL,
ACCEPT, ANSWER or OK:
Answer
NOTE
You can only answer calls with your voice if you've turned on the
To turn voice answer on or off, the S1 must be in "Standby" mode (no ongoing call or music
streaming).
> To turn voice answer on, hold down VOL +
> To turn voice answer off, hold down VOL -
If the voice answer feature is on, the S1 plays an extra beep when the phone rings.
To use voice answer you must say the words
Making Calls
To make a call, do any of the following:
> Dial a number on your phone: the audio will automatically transfer to the S1.
> To redial the last number you called, hold down
function is only available if your phone supports the handsfree Bluetooth profi le).
> If your phone supports voice dialing, then you can use it to make calls. Hold down
MFB) for about 1 second to activate your phone's voice dialing feature. You may need to record
voice tags on your phone to use this feature: see your phone's manual for more details.
> To end a call, click (the End/Reject button).
Transferring Audio Back to your Phone
You can transfer audio from the S1 back to your phone by holding down
about 3 seconds.
Hold down (the MFB) for about 1 second to transfer audio back to the S1 (although
please note that not all phones support this feature).
End/Reject
Button Charger Port
Microphone
Bluetooth Light
Speaker
Bluetooth Light
in your phone's manual for help with this).
BLUEANT S1, enter the code 0000 when
Microphone
Use the buttons:
OR
> Click to accept the call.
> Click to reject the call.
voice answer feature.
for about 5 seconds (until the S1 beeps).
for about 5 seconds (until the S1 beeps).
clearly and slowly.
(the MFB) for about 3 seconds (this
(the MFB) for
Pairing Another Phone: Multipoint
The S1 can simultaneously connect to 2
Bluetooth devices. To pair and connect
®
a second phone, simply repeat the pairing
process.
When 2 phones are connected:
> You can receive calls on either phone and
> If you use the S1 to initiate a call, it will happen on the current
The primary phone is the one that either connected to the S1 most recently or has most recently
had an active call through the S1.
You can also force the S1 to swap the primary and secondary phones by holding down
(the End/Reject button) for 5 seconds (you might want to do this so that you can use the S1's
calling functions to initiate a call on the new primary phone).
The S1 can store pairing information for up to 8 Bluetooth devices. If you pair a ninth device,
it will replace the pairing information for the phone that has not connected to the S1 for the
longest time.
Charging
Your S1 has an initial charge to get started. In future you must charge it for up to 3 hours.
1
Connect the supplied charger to the S1
and plug it in to an external power
source.
During charging,
the Bluetooth
Light will
turn
orange.
Automatic Reconnection
If you leave the S1 switched on when you take your phone out of Bluetooth range (for example
when you get out of the car) then the S1 will automatically search for your phone and reconnect
when you bring the phone back into range. It may take up to 10 seconds for the S1 to fi nd your
phone and connect.
Playing Music
If your phone supports the
play music from it through the S1 speaker.
To play music, make sure your phone is paired and
connected, then simply go to your phone's music
player and press play.
If the music does not automatically play through the S1,
select the S1 on your phone's "play via" or "listen via" setting.
> Double click
> The music will pause automatically if you receive a call on the phone.
Switching the S1 On and Off
> To turn the S1 on, hold down
(about 1 second).
> To turn the S1 off, hold down
goes out (about 5 seconds).
Problems?
If you are having trouble, the fi rst thing to try is to reset your phone (see your phone's manual for
help with this). If you are still having problems, you can
1. Switch the S1 off.
2. Hold down VOL +
3. The S1 will turn on. Hold down
The S1 has now been reset: all pairing and other information has been deleted. When you turn
the S1 back on again it will go straight to pairing mode.
Help and Support
This guide is just to get you started with your S1. If you are having trouble getting the S1 to work,
visit docs.blueantwireless.com
features and functions.
Please call us before returning the S1 to a store and we will help you through any diffi culty you
may have.
> In North America call
> In other countries please see
The Legal Bit
By using this product you are agreeing to BlueAnt's terms and
conditions, available at www.blueantwireless.com.
In order to activate your
register your product online at www.blueantwireless.com.
Check the laws and regulations on the use of mobile
(the
devices and accessories such as your BlueAnt device in the
areas where you drive. Always obey them.
Do not leave your device, or use your device, in any area
where the temperature may exceed 60°C (140°F), such as
inside a closed car on a hot day.
The Bluetooth word mark and logos are registered
®
trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by BlueAnt Wireless
is under license.
answer whichever one
2
Charge the S1 until the Bluetooth Light
turns solid green.
Bluetooth A2DP profi le, you can
(the MFB) to play/pause the music.
(the MFB) until the Bluetooth Light starts fl ashing blue
(the MFB) until the Bluetooth Light turns red and then
reset the S1
and (the MFB) until you hear a loud siren/distinctive tone.
(the MFB) for about 5 seconds to turn it off again.
to download the user guide, which has full details of all the S1's
1 866 891 3032.
www.blueantwireless.com for your local support number.
full warranty coverage, please
rings.
primary phone.
Bluetooth Light
and start again:
SIMPLY CONNECT
© 2009 BlueAnt Wireless.
All Rights Reserved.
