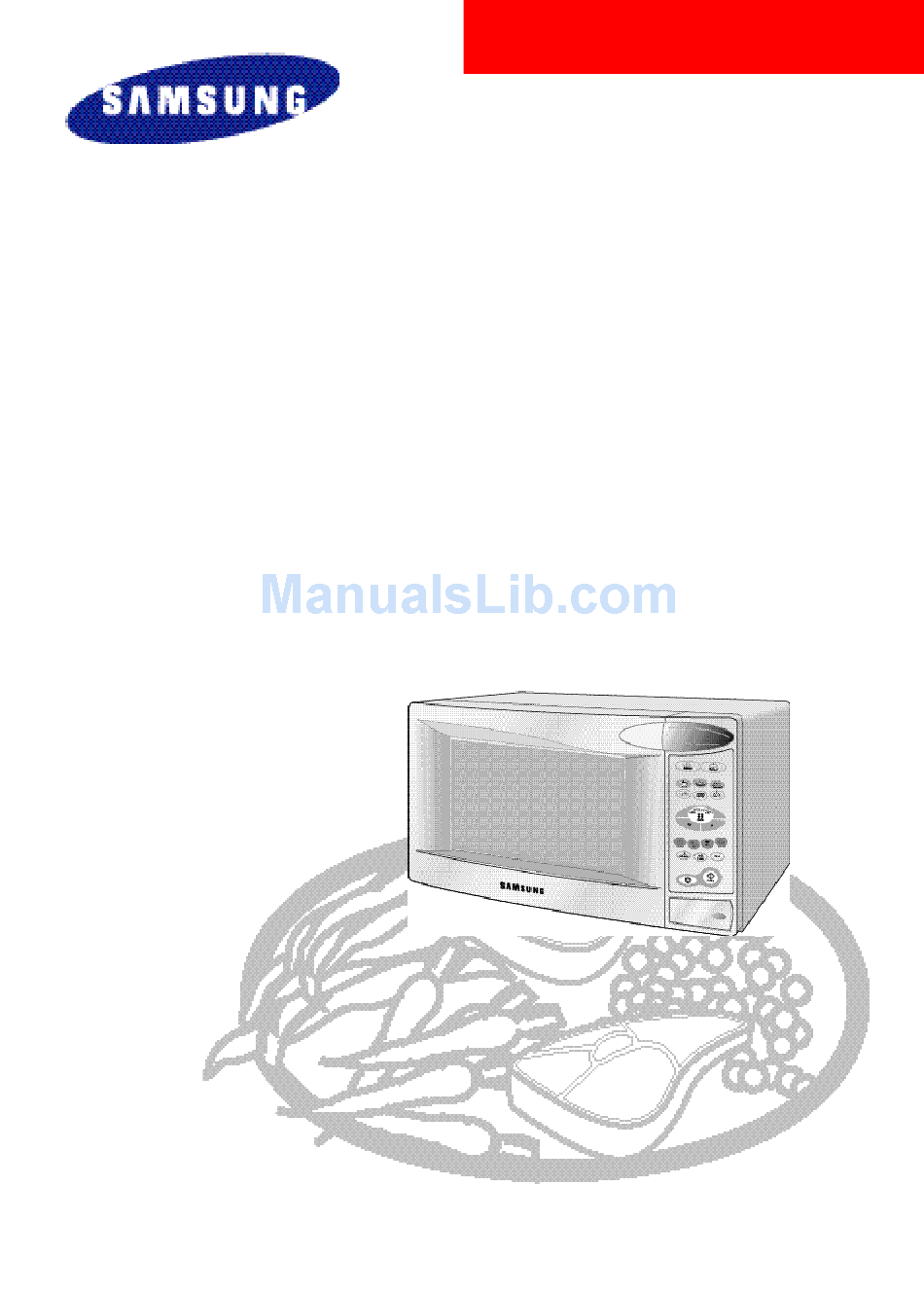

- Page 1 MICROWAVE OVEN MS9796W/MS9796 Owner’s Instructions Cooking Guide...
-
Page 2: Quick Look-Up Guide
Quick Look-up Guide If you want to cook some food 1 Place the food in the oven. Select the power level by pressing the button once or more times. 2 Select the cooking time by pressing the 10min, 1min or 10s buttons as required. -
Page 3: Table Of Contents
Contents Quick Look-up Guide................2 Oven ......................4 Control Panel....................5 Accessories ....................6 Using this Instruction Booklet ..............7 Safety Precautions..................8 Installing Your Microwave Oven..............10 Setting the Time..................10 How a Microwave Oven Works ..............11 Checking that Your Oven is Operating Correctly........12 What to Do if You are in Doubt or Have a Problem........12 Cooking/Reheating..................13 Power Levels ....................13 Stopping the Cooking................14... -
Page 4: Oven
Oven LIGHT CONTROL PANEL VENTILATION HOLES DISPLAY OPEN DOOR ROLLER GUIDE PUSH BUTTON DOOR SAFETY INTER- DOOR LAT C H E S LOCK HOLES TURNTABLE AMSUNG... -
Page 5: Control Panel
Control Panel DISPLAY SENSOR COOK SENSOR REHEAT BUTTON BUTTON INSTANT REHEAT/ COOK SELECTION AUTO DEFROST FEATURE SELEC- TION WEIGHT SELEC- MICROWAVE TION MODE SELECTION COOKING CLOCK SETTING CONDITION ADJUSTMENT(More/Less) STANDING TIME SETTING TIME SETTING START BUTTON STOP/CANCEL BUTTON OPEN DOOR PUSH BUTTON AMSUNG... -
Page 6: Accessories
Accessories Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways. Roller guide; Place the pre-assembled roller guide in the indentation in the center of the oven. Purpose: The roller guide supports the turntable. -
Page 7: Using This Instruction Booklet
Using this Instruction Booklet You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain much valuable information on cooking with your microwave oven: Safety precautions Suitable accessories and cookware Useful cooking tips Inside the cover you will find a quick look-up guide explaining three basic... -
Page 8: Safety Precautions
Safety Precautions Before cooking food or liquids in your microwave oven, please check that the following safety precautions are taken. Utensils DO NOT use any metallic cookware in the microwave oven: Metallic containers Dinnerware with gold or silver trimmings Skewers, forks, etc. Reason: Electric arcing or sparking may occur and may damage the oven. - Page 9 Safety Precautions (continued) Take particular care when heating liquids and baby foods. ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. Take care when handling the container after heating.
-
Page 10: Installing Your Microwave Oven
Installing Your Microwave Oven Place the oven on a flat, level surface strong enough to safely bear the weight of the oven. 10 cm 20 cm 1 When you install your oven, Make sure there is adequate behind above ventilation for your oven by leaving at least 10 cm (4 inches) of space behind, on the sides of the oven and 20 cm (8 inches) of 10 cm above. -
Page 11: How A Microwave Oven Works
How a Microwave Oven Works Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave oven to: Defrost Reheat Cook Cooking Principle 1 The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. -
Page 12: Checking That Your Oven Is Operating Correctly
If interference is detected by the oven’s microprocessor, the display may be reset.To solve this problem, disconnect the power plug and reconnect it. Reset the time. If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales service. AMSUNG... -
Page 13: Cooking/Reheating
Cooking / Reheating The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable and close the door 1 Press the button. -
Page 14: Stopping The Cooking
Stopping the Cooking You can stop cooking at any time to check the food. 1 To stop temporarily; Open the door. Result: Cooking stops. To resume cooking, close the door and press again. 2 To stop Completely; Press the button. Result: The cooking stops. -
Page 15: Setting A Standing Time
Setting a Standing Time The Hold Timer can be used in two different ways: As a simple timer To set a standing time for defrosting. Set standing time. 1 Press the button. 2 Select the required time by pressing the 10min, 1min, and 10s buttons. -
Page 16: Sensor Reheat Feature
Sensor Reheat Feature This sensor reheating program is suitable for reheating plated meal, soup/sauce, casserole/stew which are stored in the refrigerator. First, place the food in the centre of the turntable and close the door. 1 Press Sensor Reheat ( ) button. -
Page 17: Sensor Cooking Settings
Sensor Cooking Settings The following table presents the Sensor Cook Programmes, quantities, standing times and appropriate recommendations. Code Food Serving Standing Recommendations Size Time Fresh 250-750 g 2-3 min Wash and prepare vegetables and cut into a Vegetables similar size. Put them into a glass bowl with lid. -
Page 18: Instant Reheat/Cook Feature
Instant Reheat/Cook Feature With the Instant Reheat and Cook feature, the cooking time is set automatically and you do not have to press the button. You can choose appropriate serving size by pressing Instant Reheat/Cook button several times. First, place the food in the centre of the turntable and close the door. Press the Instant Reheat/Cook button which you want the required number of times Result: Cooking starts after about two seconds. -
Page 19: Instant Reheat/Cook Settings
Instant Reheat & Cook Settings The following table presents the various Instant Reheat & Cook Programmes, quantities, standing times and appropriate recommendations. When heating food you can use programmes no 1,2, or 3 when cooking you can use programmes no. 4,5 or 6. Code Food Serving... -
Page 20: Auto Defrost Feature
Auto Defrost Feature The feature allows you to defrost meat, poultry, fish or bread. With the Auto Defrost feature, the oven automatically sets the defrosting time and power levels. Enter the food weight in kilograms, use the auto defrost guide. Whenever press - ing button, code number change from 1 to 4 code no. -
Page 21: Auto Defrost Settings
Auto Defrost Settings For defrosting food with a temperature of -18 to -20°C, the following table presents the various Auto Defrost programmes, quantities, standing times and appropriate recom - mendations. Remove all kind of package material before defrosting. Place meat, poultry, fish and bread on a flat ceramic plate. -
Page 22: Multistage Cooking
Multistage Cooking Your microwave oven can be programmed to cook food in up to four stages. Example : You wish to defrost food and cook it without having to reset the oven after each stage. You can thus defrost and cook a 500g fish in four stages: Defrosting Standing for 20 minutes... -
Page 23: Switching The Beeper Off
Switching the Beeper Off You can switch the beeper off whenever you want. 1 Press the buttons at the same time. Result: The oven does not beep each time you press a button. The following indication is disappeared. 2 To switch the beeper back on, press the buttons again at the same time. -
Page 24: Cookware Guide
Cookware Guide To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. -
Page 25: Cooking Guide
Cooking Guide MICROWAVES Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. COOKING Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efficiency. -
Page 26: Cooking Guide
Cooking Guide (continued) Cooking Guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 45 - 60 ml cold water (3 - 4 tbsp.) for 500 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. - Page 27 Cooking Guide (continued) Cooking Guide for rice and pasta Rice : Use a large glass pyrex bowl with lid - rice doubles in volume during cook ing. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter.
- Page 28 Cooking Guide (continued) REHEATING Your microwave oven will reheat food in a fraction of the time that conventional oven hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20°C or a chilled food with a temperature of about +5 to +7°C.
- Page 29 Cooking Guide (continued) Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Food Portion Power Time Standing Instructions (min.) Time (min.) Drinks 150 ml (1 cup) 1000 W ca.1 1 - 2 Pour into cups and reheat uncovered: (coffee, tea 300 ml (2 cups) 1 cup in the centre, 2 cups opposite...
- Page 30 Cooking Guide (continued) Reheating Baby Food and Milk Use the power levels and times in this table as guide lines for reheating. Food Portion Power Time Standing Instructions Time (min.) Baby food 190 g 600 W 20-30 sec. 2 - 3 Empty into ceramic deep plate.
- Page 31 Cooking Guide (continued) DEFROSTING Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.
- Page 32 Cooking Guide (continued) SPECIAL HINTS MELTING BUTTER Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 1000 W, until butter is melted. MELTING CHOCOLATE Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted.
-
Page 33: Cleaning Your Microwave Oven
Cleaning Your Microwave Oven The following parts of your microwave oven should be cleaned regularly to pre - vent grease and food particles from building up: Inside and outside surfaces Door and door seals Turntable and Roller guide ALWAYS ensure that the door seals are clean and the door closes properly. Clean the outside surfaces with a soft cloth and warm, soapy water. -
Page 34: Technical Specifications
Technical Specification SAMSUNG strives to improve its products at all times. Both the design specifi - cations and these user instructions are thus subject to change without notice. Model MS9796W / MS9796 Power source 230V ~ 50 Hz Power consumption... - Page 35 Printed in Korea...
- Page 36 Sensor Cook Feature This sensor cooking program is suitable for cooking fresh vegetables, fresh fish and rice. You can cook food any weight within the range of weight which is listed in the table next page. Code No. are changed from S-1 to S-3 by pressing Sensor Cook but - ton each time.
