Summary of Contents for Linear HDMI-MX-4x4

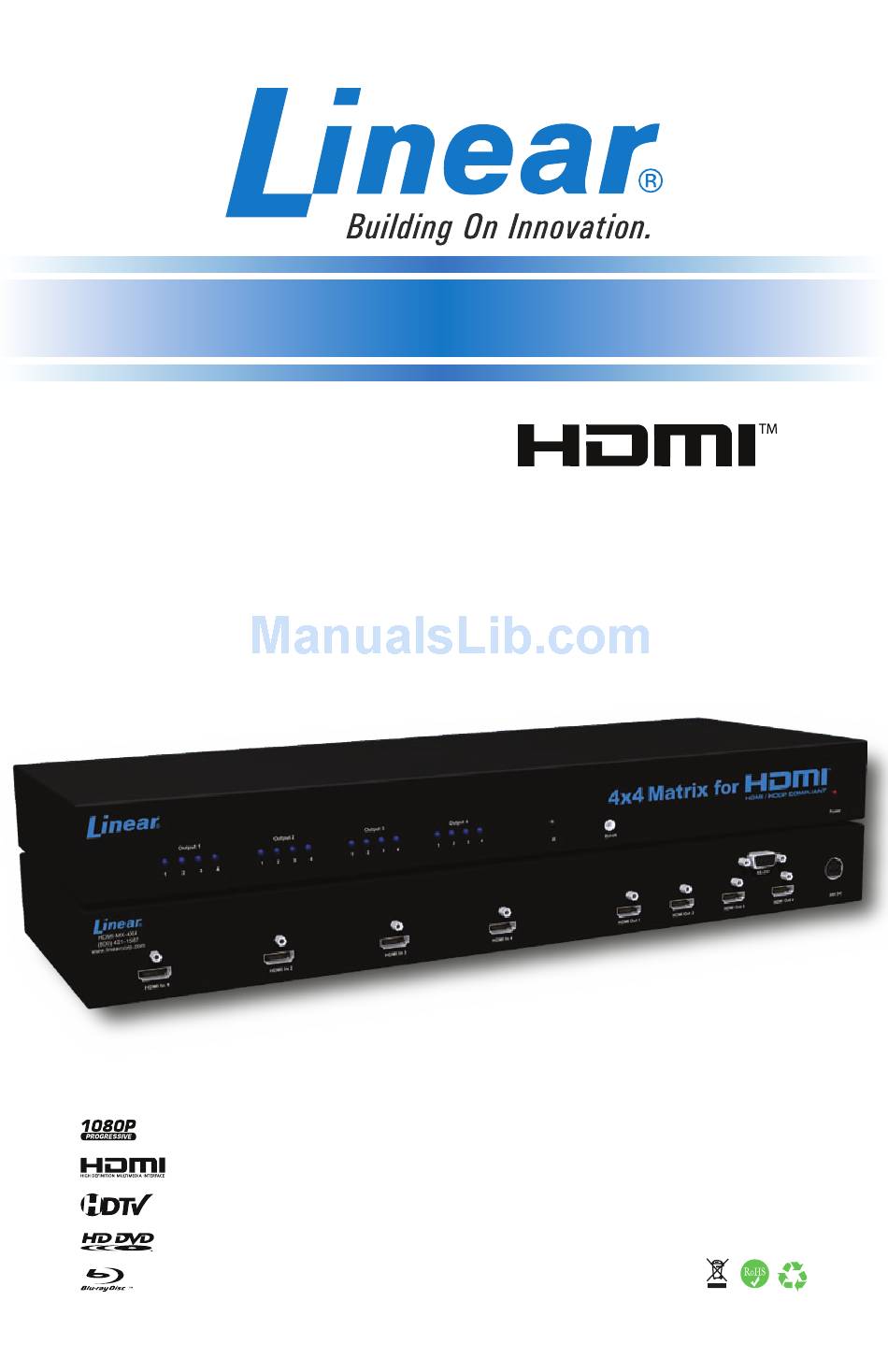

- Page 1 4X4 Matrix For HDMI Model # HDMI-MX-4X4 U S E R M A N U A L www.linearcorp.com...
- Page 3 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Notice Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2008 Linear LLC, All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Panel Descriptions Connecting And Operating the 4X4 Matrix For HDMI RMT-16IR Remote Control Installation IR Code Configuration RS-232 Serial Control Interface Rack Ears Installation Diagram Wiring Diagram Specifications Warranty... -
Page 5: Introduction / Operation Notes
INTRODUCTION The Linear 4x4 Matrix for HDMI allows maximum versatility and flexibility for creating an integrated HD system. The 4x4 matrix routes digital audio and high definition digital video in resolutions up to 1080p from any of four HDMI sources to any combination of four displays through the matrix. -
Page 6: Features
FEATURES Features • Switch easily between any four HDMI sources • Distributes any of the four inputs to any combination of the four HDMI output displays • Supports resolutions up to 1080p, 2K and 1920 x 1200 • Extends the range of HDMI compliant devices by equalizing and reclocking the •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS... - Page 8 CONNECTING THE 4X4 MATRIX FOR HDMI Connect the HDMI/DVI* sources (up to four) to the 4X4 Matrix For HDMI using the supplied HDMI cables. Connect the HDMI/DVI* displays (up to four) to the 4X4 Matrix For HDMI using user supplied HDMI cables. Plug the included 24V DC power supply into the 4X4 Matrix For HDMI.
-
Page 9: Rmt-16Ir Remote Control Installation
These actions will cause the remote to reset and steps 1-4 will have to be repeated. Note: The RMT-16IR ships with two batteries. Only one battery is required for operation, the other battery is complimentary. The optional IR extender allows you to relocate your HDMI Switcher and still retain IR control. Linear part# IR-EXTENDER... -
Page 10: Ir Code Configuration
IR CODE CONFIGURATION How to Resolve IR Code Conflicts In the event that IR commands from other remote controls conflict with the supplied RMT-16IR remote control, changing the remote channel will alleviate this issue. The RMT-16IR remote control and the 4X4 Matrix for HDMI have DIP SWITCHES for configuring the remote channel that both units use to communicate. -
Page 11: Rs-232 Serial Control Interface
RS-232 SERIAL CONTROL INTERFACE 1 2 3 4 5 1 2 3 4 5 6 7 8 9 6 7 8 9 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are needed to operate RS-232 Interface Binary Table ASCII Corresponding Binary ASCII... -
Page 12: Rack Ears Installation Diagram
RACK EARS INSTALLATION DIAGRAM Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit. -
Page 13: Wiring Diagram
WIRING DIAGRAM... -
Page 14: Specifications
SPECIFICATIONS Video Amplifier Bandwidth................165 MHz Input Video Signal..................1.2 Volts p-p Input DDC Signal................5 Volts p-p (TTL) Single Link Range................1080p/1920 x 1200 HDMI Connector................Type A 19 pin female Remote Control Port............RS232 female, mini-stereo Power Consumption................60 Watts (max) Dimensions................ -
Page 15: Warranty
This Linear LLC Warranty is in lieu of all other warranties express or implied. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. - Page 16 H DMI -M X -4 X4 (7 6 0) 4 38 - 7 0 0 0 ( 80 0 ) 4 2 1-15 87 FA X ( 8 0 0 ) 4 6 8 - 13 4 0 www. li ne arc o r p . c o m Re v A...
