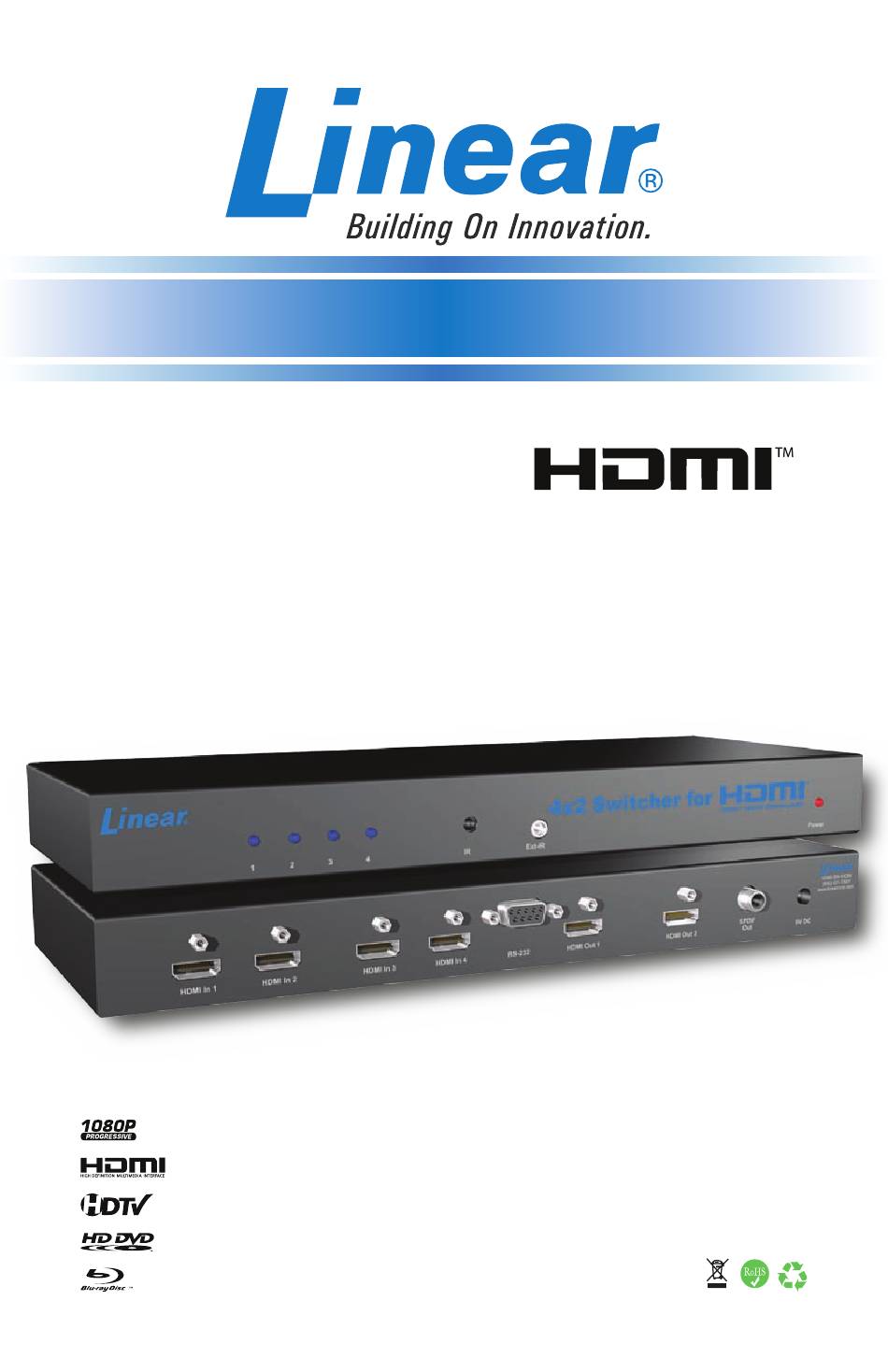

- Page 1 4X2 Switcher For Model # HDMI-SW-4X2M U S E R M A N U A L www.linearcorp.com...
- Page 3 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Notice Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2008 Linear LLC, All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Panel Descriptions Connecting and Operating the 4X2 Switcher For HDMI RMT-2 Installation IR Code Conflicts RS-232 Interface Wiring Diagram Specifications Warranty... -
Page 5: Introduction / Operation Notes
INTRODUCTION The Linear 4x2 Switcher for HDMI routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of four sources. Four inputs accommodate the simultaneous connection of up to four high definition video sources, such as satellite systems and Blu-ray and HD-DVD players. -
Page 6: Features
FEATURES Features • Switch easily between any four HDMI sources • Outputs are mirrored to two HDMI Displays simultaneously • Additional digital coax audio output is extracted from the HDMI input for easy connection to a multi-channel audio receiver • Extends the range of HDMI compliant device by equalizing and reclocking the HDMI signal •... -
Page 7: Panel Descriptions

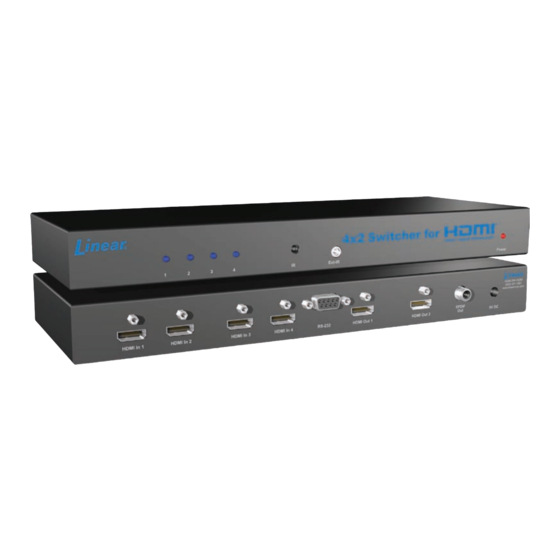

PANEL DESCRIPTIONS Front Panel IR Eye Power LED Input LED Indicator Indicator IR Eye Extension Port Back Panel HDMI HDMI 5V DC Power HDMI HDMI Input 2 Input 4 Input HDMI HDMI Output 1* Output 2 RS-232 Input 1 Input 3 Digital Coaxial Serial Control Output... - Page 8 CONNECTING THE 4X2 SWITCHER FOR HDMI How to Connect the 4X2 Switcher For HDMI Connect the supplied cables from the HDTV HDMI sources (up to four) into the HDMI input ports of the 4X2 Switcher for HDMI. Connect the displays (up to two) to the HDMI output ports* of the 4X2 Switcher for HDMI using user supplied cable(s).
- Page 9 These actions will cause the remote to reset and steps 1-4 will have to be repeated. Note: The RMT4-IR ships with two batteries. One battery is required for operation, the second battery is complimentary. The optional IR extender allows you to relocate your HDMI Switcher and still retain IR control. Linear part# IR-EXTENDER...
- Page 10 IR CODE CONFIGURATION How to Resolve IR Code Conflicts In the event that IR commands from other remote controls conflict with the supplied RMT-4IR remote control, changing the remote channel will alleviate this issue. The RMT-4IR remote control and the 4X2 Switcher for HDMI have DIP SWITCHES for configuring the remote channel that both units use to communicate.
- Page 11 RS-232 SERIAL CONTROL INTERFACE 1 2 3 4 5 1 2 3 4 5 6 7 8 9 6 7 8 9 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are needed to operate RS-232 Interface Binary Table ASCII Input Binary 0011 0001...
-
Page 12: Wiring Diagram
WIRING DIAGRAM... -
Page 13: Specifications
SPECIFICATIONS Video Amplifier Bandwidth ............165 MHz Input Video Signal ..............1.2 Volts p-p Input DDC Signal ............5 Volts p-p (TTL) Single Link Range ............1080p/1920 x 1200 HDMI Connector ............Type A 19 pin female Digital Audio Output ................ SPDIF Remote Control Port ........ -
Page 14: Warranty
This Linear LLC Warranty is in lieu of all other warranties express or implied. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. - Page 16 H D MI- S W-4 X 2 M (7 6 0) 4 38 - 7 0 0 0 ( 80 0 ) 4 2 1-15 87 FA X ( 8 0 0 ) 4 6 8 - 13 4 0 www.
