- Page 1 3x1 Switcher For Model #HDMI-SW-3X1 U S E R M A N U A L www.linearcorp.com...
- Page 3 6:30 AM - 4:30 PM PST Monday through Friday. Email: techsupport@linearcorp.com Website: www.linearcorp.com Notice Linear LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. © 2008 Linear LLC, All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 3X1 Switcher For HDMI 1.3 RMT3-IR Installation IR Code Configuration Wiring Diagram Specifications Warranty... -
Page 5: Introduction
INTRODUCTION You can now enjoy the benefits of HDMI1.3 while connecting multiple sources to one display. Linear’s HDMI 3x1 switcher routes three high definition video signals with multichannel digital audio to one display with resolutions up to 1080p. Three inputs accommodate the simultaneous connection of up to three HDMI 1.3 high definition... -
Page 6: Features
FEATURES Features Switch easily between any three HDMI sources Discrete push button for local switching Extends the range of HDMI compliant devices by equalizing the HDMI signal Maintains high resolution video - beautifully, with sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200. -
Page 7: Panel Descriptions

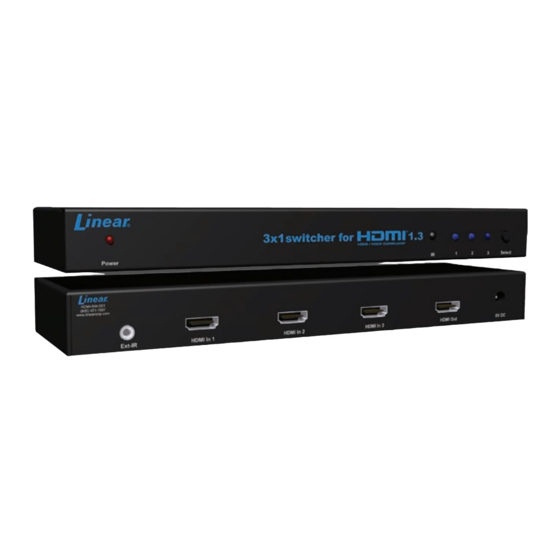

PANEL DESCRIPTIONS FRONT Power Indicator IR Eye Input Indicator LED’s Input Select Button BACK Input 1 Input 2 Input 3 HDMI Output 5V DC Power Supply Input IR Eye Extension Port DIP SWITCH LOCATION 4 Bank Dip Switch... -
Page 8: Connecting And Operating The 3X1 Switcher For Hdmi 1.3
CONNECTING AND OPERATING THE 3X1 SWITCHER FOR HDMI 1.3 How to Connect the 3X1 Switcher For HDMI to your devices Connect the supplied cables from the HDMI sources into the 3X1 Switcher for HDMI’s input ports. Connect the cable from your display (monitor or projector) into the HDMI output port of the 3X1 Switcher for HDMI. -
Page 9: Rmt3-Ir Installation
These actions will cause the remote to reset and steps 1-4 will have to be repeated. Note: The RMT-3IR ships with two batteries. Only one battery is required for operation, the other battery is complimentary. The optional IR extender allows you to relocate your HDMI Switcher and still retain IR control. Linear part# IR-EXTENDER... -
Page 10: Ir Code Configuration
IR CODE CONFIGURATION How to Resolve IR Code Conflicts In the event that IR commands from other remote controls conflict with the supplied RMT-3IR remote control, changing the remote channel will alleviate this issue. The RMT-3IR remote control and the 3X1 Switcher for HDMI 1.3 have DIP SWITCHES for configuring the remote channel that both units use to communicate. -
Page 11: Wiring Diagram
WIRING DIAGRAM... -
Page 12: Specifications
SPECIFICATIONS Single Link Bandwidth: ..................225 MHz Input Video Signal: .................... 1.2 Volts p-p Input DDC Signal: ..................5 Volts p-p (TTL) Single Link Range: ................. 1080p/1920 x 1200 HDMI Connector: .................. Type A 19 pin female Remote Control Port: ................. Mini-Stereo Jack Power Supply: ...................... -
Page 13: Warranty
This Linear LLC Warranty is in lieu of all other warranties express or implied. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the above exclusions may not apply. - Page 16 H DMI -S W- 3X 1 (7 6 0) 4 38 - 7 0 0 0 ( 80 0 ) 4 2 1-15 87 FA X ( 8 0 0 ) 4 6 8 - 13 4 0 www. li ne arc o r p . c o m Re v A...
