Always read the manuals prior to operating this equipment, & please follow all safety signs and precautions.
See DM Website for installation training videos at www.dakotamicro.com
Author: CNR
Users Manual
®
AgCam
Part Number: 9(7)M-C1(2)
Contents:
Included Components ..................................................... 2
Camera . ............................................................ 3
Monitor ............................................................ 3
Cables . .............................................................. 3
a.
b.
Camera function plugs . ................................... 4
Trigger Event Operations . ............................... 8
Standard Menu Settings . ................................................. 1 0-12
Hidden Menu Settings . .................................................... 1 2-13
Specifications .................................................................. 1 4
Warranty ......................................................................... 1 5
Warnings ......................................................................... 1 5
/ EnduraCam
Rev. 8/17/2011
Title: DMAC_DMEC 9M-7M Manual
®
Page
Page 1 of
16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Micro AgCam
Summary of Contents for Dakota Micro AgCam
-
Page 1: Table Of Contents
Dakota Micro, Inc. Title: DMAC_DMEC 9M-7M Manual Users Manual ® ® AgCam / EnduraCam Part Number: 9(7)M‐C1(2) Contents: Page Included Components ............. 2 Standard Features Camera ............. 3 Monitor ............ 3 Cables ............... 3 Installation & Mounting Camera Installation & Mounting .... 4 Camera function plugs ........ 4 ... -
Page 2: Included Components

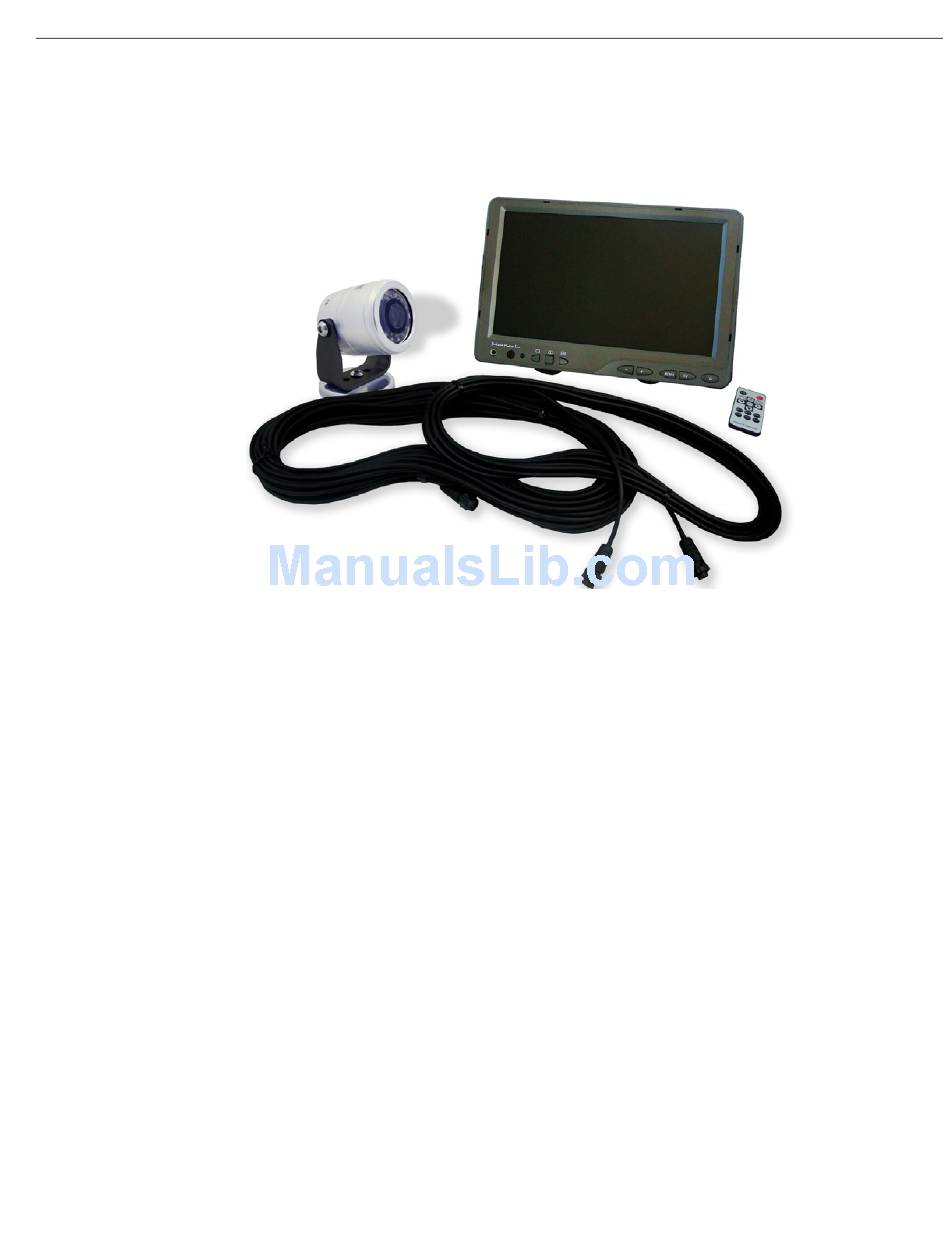

Dakota Micro, Inc. Title: 9M/7M Users Manual Included Components Monitor Kit Contents: 1. Monitor Remote (styles vary) 2. AC Power adaptor (styles vary) 3. Monitor Base 4. Monitor sun shield (pictured w/ 5 on monitor) 5. 9”or 7” LCD Monitor w/ sunshield (9” picture) 6. 12v power adaptor 7. A/V input harness (not pictured) Camera Kit Contents (per camera kit) 1. Camera w/ bracket & magnetic base 2. 60’ Video Cable 3. 20’ Video Cable ... -
Page 3: Standard Features
Dakota Micro, Inc. Title: 9M/7M Users Manual Thank you for purchasing the AgCam®/EnduraCam®. The AgCam®/EnduraCam® is a durable, reliable surveillance system with the innovative ability to be quickly moved from one application to the next. Training videos are available on the Dakota Micro website at www.dakotamicro.com 2. Standard Features a. Camera Waterproof, shockproof, suitable for nearly any use. Minimum focal distance of 5”. Built‐in, high quality CCD camera with high performance infrared (IR) illuminator modules. IR has effective range of 45’+ in complete darkness In‐line conditioner and surge suppressor prevents over/under powering of unit, preventing damage. Built‐in CDS light‐source sensor can automatically turn on/off the IR’s by detecting the light intensity of the environment. Our exclusive Photogray camera body lens darkens in bright conditions and becomes completely transparent under low light conditions. This lens is also transparent of infrared light, allowing the LED’s to penetrate even when it is darkened. Standard lens features 92° field of view (3.6mm). Optional lenses available include: 4.3mm, 6mm, 12mm & 16mm. (A complete lens ... -
Page 4: Installation & Mounting
Dakota Micro, Inc. Title: 9M/7M Users Manual 3. Installation & Mounting See DM Website for Installation training Videos a. Camera Installation & Mounting Camera Body *IR Function Plug (Elite Only) *MIR Function Plug (Elite Only) Retaining Screw (x3) Camera tail input Camera bracket Fiber Washer (x2) Magnet Magnet Nut b. Function Plugs (Elite Models Only) There are two function plugs on the bottom of each Elite Dakota Micro camera, near the camera tail. They will look like two additional screws at a slight angle recessed into the camera body. The function plugs utilize a polarized magnet to change camera functionality. 1) IR ON/OFF. This function plug requires a magnet to allow for the IR LED’s to function in low light conditions. If you remove the polarized magnet, the IR LED’s will NOT come on. 2) MIR/FOR. This function requires a magnet to activate/deactivate the ... -
Page 5: Cable Installation & Mounting
Dakota Micro, Inc. Title: 9M/7M Users Manual and as flat as possible to ensure that the magnetic camera base will have good contact and not vibrate off. Permanent Mounting: For permanent mounting, it is recommended that you remove the magnet and attach to any solid surface with two (2) screws. After camera is securely mounted, plug Power/Video Input into AgCam®/EnduraCam® extension power/video cable. Make sure they are securely attached and locked (¼ turn will lock the cables together). Suggestions for Mounting Camera: When determining the location for the camera it is always best to use a solid surface to minimize vibration. Ladders are not good mounting choices due to lack of stability. If you will be using your AgCam®/EnduraCam® for assisting in visibility for towing, you will want to position the camera so you can see the desired area and a portion of the vehicle/trailer in tow; this will give you some reference to distance. You will also want to use the mirrored setting in the monitor menu or remove the magnet in the MIR Function Plug on the camera so as to accurately represent left and right. This will give you the effect of looking in a rear view mirror. Camera Warnings NEVER RELY ON YOUR AGCAM®/ENDURACAM® AS A SAFETY FEATURE. It is up to your discretion to keep your road travel and other operations safe. Your AgCam®/EnduraCam® will provide you with information only based on what it sees. Operation of machinery safety guidelines still apply. The AgCam®/EnduraCam® is equipped with an array of infrared light emitters which are invisible to the human eye. This feature will aid in low light conditions but has limitations. The effective range of the night vision feature is 1 to 45+ feet and will produce a monochrome image only. Do not attempt to drive machinery using this ... -
Page 6: Monitor Installation & Mounting
Dakota Micro, Inc. Title: 9M/7M Users Manual Secure all cables to vehicle/equipment using included cable clips, zip ties or other style fastener. If you intend to use your AgCam®/EnduraCam® for short length PTO operated implement, avoid excess cable lengths if possible. When you decide on a location you should fix the camera to a permanent bracket using ¼ inch bolts, and attach any loose cable securely so there is no chance of entanglement in the PTO or other moving parts. If you use your AgCam®/EnduraCam® to monitor a combine hopper or other combine operations, take care to remember that combines have many moving parts. Use extreme care when routing cables, and it is strongly recommended that you use bolts to secure the camera. While it would be sufficient to use the magnetic base for monitoring purposes during road travel, it is advised to secure the camera with bolts during operation of the combine. d. Monitor Installation & Mounting Mounting: Remove your monitor carefully from packaging, and inspect all mounting hardware. Mounting location is the most important part of the monitor installation to ensure maximum visual benefit from your AgCam®/EnduraCam® system. Keep in mind: Least direct sunlight. Keeping your monitor out of direct sunlight will prolong the life of the unit as well as ensure optimum visibility Does not obstruct your view Does not interfere with the normal operation of vehicle ... - Page 7 Dakota Micro, Inc. Title: 9M/7M Users Manual 2. Tighten nut by turning the knob on the back of mounting bracket clockwise. (Optional style monitor brackets are available: suction cup style and hard mount. Both of these style brackets have a square mounting stud as well). Once you have attached the monitor to the mounting bracket, follow these steps to finalize the installation. 1. With the mount and monitor attached, find and mark the desired position for the monitor. 2. Remove the monitor from the mount. 3. Thoroughly clean the intended mounting location with alcohol prep wipe or other non‐oil based cleaner. 4. Remove the paper backing from the stand and press firmly in desired location. 5. If mounting in other than a flat, level location, use small screws in the four corners of the mounting bracket to permanently secure. 6. DO NOT expect that the adhesive will hold up your monitor (i.e. on the ceiling or side post of a cab), it is ONLY intended to hold the bracket down. 7. Attach the monitor to the mount and tighten the wing nut. Installation: 1) Input to Monitor ...
-
Page 8: Trigger Event Operations
Dakota Micro, Inc. Title: 9M/7M Users Manual Power: 12v Power: 1. Attach the Power Input connector (8 above) to your included 12v cigarette lighter adaptor** 2. Plug cigarette lighter adaptor into 12v power source *There is a small in‐line glass fuse located on the red power wire. When replacing blown fuses, use a MAX 2amp glass fuse **There is a small glass fuse located inside the tip of the 12v portion of the power adaptor. When replacing blown fuses, use a MAX 4amp glass fuse. Hardwire Power (7.5 amp maximum circuit capability): 1. Contact your local AgCam®/EnduraCam® dealer for available hardwire power adaptors. e. Trigger Event Operations: Camera selection Event trigger wires are as follows: Camera 1 – Green Camera 2 – Purple Camera 3 – Gray Camera 4 – White Event trigger wires can be attached to any 12V positive event. This will cause the monitor to change to that camera, regardless of the state of the monitor (i.e. ON/OFF or Channel selection). The most recent event will be the primary display, so if two video channels (AV1 & ... - Page 9 Dakota Micro, Inc. Title: 9M/7M Users Manual (9” Monitor shown. Actual button locations on 7” monitor may vary slightly): 1 Output jack Headphone Jack 2‐4 FOR USE ONLY WITH Quad Processor 2 Full screen When connected to Q2 will show cameras 1/2/3/4 each time pressed 3 Duplex screen When connected to Q2 will show Camera 1 /2 and camera 3 /4 each time pressed 4 Quad screen When connected to Q2 will display all 4 cameras connected 5 ‐ key To decrease parameter 6 + key To increase parameter 7 MENU To switch menu selection, press multiple times. To go to next icon, use + 8 AV Key Switches between AV1, AV2, AV3, & AV4 9 ...
-
Page 10: Standard Menu Settings
Dakota Micro, Inc. Title: 9M/7M Users Manual Remote: POWER ON/OFF Mute Enable/Disable sound Flip image Left/Right Flip image Up/Down Navigation Arrows MENU Enters the menu Also acts as “enter” button in menu settings Adjusts screen display modes Reset your selection Enables timer that will turn off monitor Superimpose a grid on screen Aspect Ratio adjustment normal/wide Chooses the highlighted selection in MENU Getting Started: 1. Power on monitor by pushing “POWER” button on the face of monitor or remote. 2. If you do not see video from your camera, push the AV button on monitor or SEL button on remote. Repeatedly pushing the AV or SEL button will cycle through the video channels. 5. Standard Menu Settings Press the MENU key on the monitor or remote. Use the – and + keys on the monitor or the LEFT ... - Page 11 Dakota Micro, Inc. Title: 9M/7M Users Manual 2. Use – or + on the monitor (left and right arrows on remote) to change the value of the highlighted item. 3. To exit: a. Press the – or + key on the monitor (left or right arrow on remote) multiple times till the menu goes away b. Allow monitor to time out (approximately 5 seconds). PICTURE BRIGHT: Adjusts the brightness of the image CONTRAST: Adjusts the contrast of the image BACKLIGHT: Adjusts the backlighting of the screen COLOR: Adjusts the color of the image TINT: Adjusts the tint of the image VOLUME VOLUME: Adjusts the volume level OPTION HORIZONTAL: Mirror the image left to right VERTICAL: Mirror the image top to bottom SYSTEM ENGLISH: Select your language COLOR‐‐SYS: Adjusts the color system for your ...
-
Page 12: Hidden Menu Settings
Dakota Micro, Inc. Title: 9M/7M Users Manual PRESET These settings allow you to determine how long (in seconds) an event triggered camera will remain on the screen (after the event ends) before returning to normal view. 6. Hidden Menu Settings The main reason most people will want to access the hidden menu is to turn on/off the extra camera inputs or enable/disable the VGA input. DO NOT modify any settings not clearly laid out in this section. This manual gives you access to all of the factory settings of your monitor, some of which must not be modified for the monitor to function properly. There are several menus which are NOT described in this section of the manual. Those menus MUST be left as factory default settings. To access the hidden menu, you MUST use the remote control and the power should be OFF. The hidden menu will be easier to see with no cameras input into the monitor With the monitor power off, press the following button sequence on the remote control: 1. MENU 2. LEFT arrow 3. RIGHT arrow 4. MENU ... - Page 13 Dakota Micro, Inc. Title: 9M/7M Users Manual Press MENU Button twice to access camera & VGA input settings. These are the ONLY settings in the hidden menu that should be tampered with/changed. Use & buttons on remote to navigate through menu options Use & buttons to change settings Menu Title Description Factory default (0=OFF 1=ON except where defined differently) POWER Auto Power ON Options 0 = power always off when vehicle/power source it turned on. Must press power button to turn on monitor each time 1 = auto power on when power is applied 2 = Return to last power state when you turned off the vehicle LOGO Logo display on startup ON/OFF 1 (display at startup/ON) OFF TIME Factory setting, do not modify 0 (disabled/OFF) OSD TIME ...
-
Page 14: Specifications
Dakota Micro, Inc. Title: 9M/7M Users Manual 7. Specifications A. Camera: Effective Picture 510*492 Elements Image Pick‐up Device SONY 1/3” Super HAD CCD sensor Horizontal Resolution 540 Horizontal lines Minimum Illumination 0 LUX @ F2.0 S/N Ration More than 48dB Auto Electronic Shutter 1/60s~1/100,000s, ON/OFF Switch‐able Auto White Balance Color Temperature: 2500K~9500K Auto Gain Control High/Low Switch‐able Auto Iris Control Video‐Drive Iris Control Scanning System Interlace 2:1 Gamma Characteristic 0.45 Lenses Furnished Board Lens 3.6mm/F2.0, Photogray Body Synchronous System Internal, Negative sync. Back Light Compensation On/Off Switch‐able Video Output 1 Vp‐p/75 Ohms. -
Page 15: Warranty
Dakota Micro, Inc. Title: 9M/7M Users Manual 8. Consumer Limited Warranty Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. (Dakota Micro) warrants that its AgCam/EnduraCam Products will be free from defects in material and workmanship for periods as stated hereafter from the date of original purchase. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. THE EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT. EXCEPT AS STATED IN THIS WARRANTY, DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL THEORY. Any oral statements or representations made by anyone which are contrary to or at variance with the terms stated in this LIMITED WARRANTY are void. Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period of three (3) years for cameras, two (2) years for monitors, quads and Ranch Hands, and one (1) year for cables and all other accessories. The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only. A one (1) year limited warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota Micro. This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the Product nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete DM “Warranty & Repair Policy” listed at www.dakotamicro.com , and provide proof of purchase to Dakota Micro. Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time periods described herein. The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Dakota Micro to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro. Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may not apply to you. Any action at law, suit in equity, or other judicial proceeding for the enforcement of any right provided for herein or otherwise, or with respect to any claim that a purchaser may have against Dakota Micro shall be instituted only in the Courts of the State of North Dakota, either in the state district court located in Wahpeton, North Dakota or in Federal District Court location in Fargo, North Dakota. Without regard to conflicts of law principles, the laws of the state of North Dakota shall govern the interpretation and enforcement of the terms of this Limited Warranty and all aspects of the relationship between Dakota Micro and the purchaser. ... -
Page 16: Dealer Information
Dakota Micro, Inc. Title: 9M/7M Users Manual 10. Dealer Information Date of Purchase:_____________________________________________ Serial Number:_______________________________________________ FAQ’s Dakota Micro, Inc. 1 866 462‐4226 www.agcam.com www.enduracam.com info@dakotamicro.com 8659 148 Ave. SE Cayuga, ND 58013 Dakota Micro Inc. products, specifications, pricing and programs are subject to change without prior notice. Dakota Micro Inc. reserves the right to make design changes at any time without obligation to retroactively install them on previously sold units. Author: CNR Rev. 8/17/2011 Page 16 of 16...
