Dakota Micro, Inc.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Always read the manuals prior to operating this equipment, & please follow all safety signs and precautions.
See DM Website for installation training videos at www.dakotamicro.com
Author: CNR
Users Manual
®

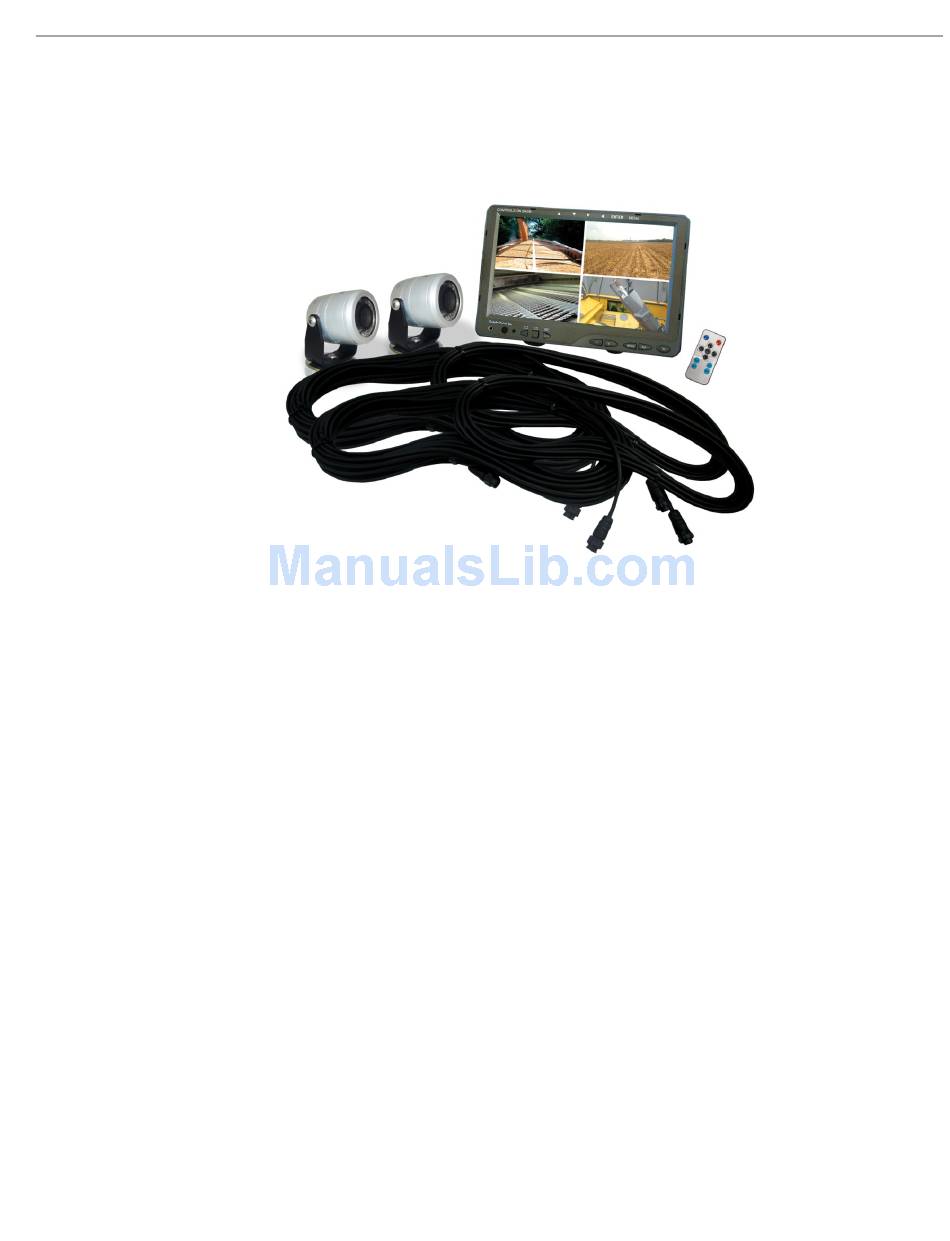

AgCam
/ EnduraCam
Part Number: 7MQ-C1(2)
Contents:
Included Components ..................................................... 2
Camera . ............................................................ 3
Monitor ............................................................ 3
Cables . .............................................................. 3
a.
b.
Camera function plugs . ................................... 4
Trigger Event Operations . ............................... 8
Standard Menu Settings . ................................................. 1 0-12
Specifications .................................................................. 1 3
Warranty ......................................................................... 1 4
Warnings ......................................................................... 1 5
Dealer Information . ......................................................... 1 6
®
/ AGCO
Rev. 09/04/12
7MQ Users Manual
Page
Page 1 of
16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dakota Micro 7MQ?C1(2)
Summary of Contents for Dakota Micro 7MQ?C1(2)
-
Page 1: Table Of Contents
Dakota Micro, Inc. 7MQ Users Manual Users Manual ® ® AgCam / EnduraCam / AGCO Part Number: 7MQ‐C1(2) Contents: Page Included Components ............. 2 Standard Features Camera ............. 3 Monitor ............ 3 Cables ............... 3 Installation & Mounting Camera Installation & Mounting .... 4 Camera function plugs ........ 4 ... -
Page 2: Included Components
Dakota Micro, Inc. 7MQ Users Manual Included Components Monitor Kit Contents: 1. 7” Quad Monitor Remote (monitor specific) 2. AC Power adaptor (styles vary) 3. Monitor Base 4. Monitor sun shield (pictured w/ 5 on monitor) 5. 9”LCD Quad Monitor w/ sunshield 6. 12v power adaptor 7. A/V input harness (not pictured) Camera Kit Contents (per camera kit) 1. Camera w/ bracket & magnetic base 2. 60’ Video Cable 3. 20’ Video Cable ... -
Page 3: Standard Features
Dakota Micro, Inc. 7MQ Users Manual Thank you for purchasing the AgCam®/EnduraCam®. The AgCam®/EnduraCam® is a durable, reliable surveillance system with the innovative ability to be quickly moved from one application to the next. Training videos are available on the Dakota Micro website at www.dakotamicro.com 2. Standard Features a. Camera Waterproof, shockproof, suitable for nearly any use. Minimum focal distance of 5”. Built‐in, high quality CCD camera with high performance infrared (IR) illuminator modules. IR has effective range of 45’+ in complete darkness In‐line conditioner and surge suppressor prevents over/under powering of unit, preventing damage. Built‐in CDS light‐source sensor can automatically turn on/off the IR’s by detecting the light intensity of the environment. Our exclusive Photogray camera body lens darkens in bright conditions and becomes completely transparent under low light conditions. This lens is also transparent of infrared light, allowing the LED’s to penetrate even when it is darkened. Standard lens features 92° field of view (3.6mm). Optional lenses available include: 4.3mm, 6mm, 12mm & 16mm. (A complete lens guide is available on our website at www.agcam.com www.enduracam.com... -
Page 4: Installation & Mounting
Dakota Micro, Inc. 7MQ Users Manual 3. Installation & Mounting See DM Website for Installation training Videos a. Camera Installation & Mounting Camera Body *IR Function Plug (Elite Only) *MIR Function Plug (Elite Only) Retaining Screw (x3) Camera tail input Camera bracket Fiber Washer (x2) Magnet Magnet Nut b. Function Plugs (Elite Models Only) There are two function plugs on the bottom of each Elite Dakota Micro camera, near the camera tail. They will look like two additional screws at a slight angle recessed into the camera body. The function plugs utilize a polarized magnet to change camera functionality. 1) IR ON/OFF. This function plug requires a magnet to allow for the IR LED’s to function in low light conditions. If you remove the polarized magnet, the IR LED’s will NOT come on. 2) MIR/FOR. This function requires a magnet to activate/deactivate the mirror/forward function of the camera. Elite cameras are shipped from the ... -
Page 5: Cable Installation & Mounting
Dakota Micro, Inc. 7MQ Users Manual and as flat as possible to ensure that the magnetic camera base will have good contact and not vibrate off. Permanent Mounting: For permanent mounting, it is recommended that you remove the magnet and attach to any solid surface with two (2) screws. After camera is securely mounted, plug Power/Video Input into AgCam®/EnduraCam® extension power/video cable. Make sure they are securely attached and locked (¼ turn will lock the cables together). Suggestions for Mounting Camera: When determining the location for the camera it is always best to use a solid surface to minimize vibration. Ladders are not good mounting choices due to lack of stability. If you will be using your AgCam®/EnduraCam® for assisting in visibility for towing, you will want to position the camera so you can see the desired area and a portion of the vehicle/trailer in tow; this will give you some reference to distance. You will also want to use the mirrored setting in the monitor menu or remove the magnet in the MIR Function Plug on the camera so as to accurately represent left and right. This will give you the effect of looking in a rear view mirror. Camera Warnings NEVER RELY ON YOUR AGCAM®/ENDURACAM® AS A SAFETY FEATURE. It is up to your discretion to keep your road travel and other operations safe. Your AgCam®/EnduraCam® will provide you with information only based on what it sees. Operation of machinery safety guidelines still apply. The AgCam®/EnduraCam® is equipped with an array of infrared light emitters which are invisible to the human eye. This feature will aid in low light conditions but has limitations. The effective range of the night vision feature is 1 to 45+ feet and will produce a monochrome image only. Do not attempt to drive machinery using this feature ... -
Page 6: Monitor Installation & Mounting
Dakota Micro, Inc. 7MQ Users Manual Secure all cables to vehicle/equipment using included cable clips, zip ties or other style fastener. If you intend to use your AgCam®/EnduraCam® for short length PTO operated implement, avoid excess cable lengths if possible. When you decide on a location you should fix the camera to a permanent bracket using ¼ inch bolts, and attach any loose cable securely so there is no chance of entanglement in the PTO or other moving parts. If you use your AgCam®/EnduraCam® to monitor a combine hopper or other combine operations, take care to remember that combines have many moving parts. Use extreme care when routing cables, and it is strongly recommended that you use bolts to secure the camera. While it would be sufficient to use the magnetic base for monitoring purposes during road travel, it is advised to secure the camera with bolts during operation of the combine. d. Monitor Installation & Mounting Mounting: Remove your monitor carefully from packaging, and inspect all mounting hardware. Mounting location is the most important part of the monitor installation to ensure maximum visual benefit from your AgCam®/EnduraCam® system. Keep in mind: Least direct sunlight. Keeping your monitor out of direct sunlight will prolong the life of the unit as well as ensure optimum visibility Does not obstruct your view Does not interfere with the normal operation of vehicle WARNING: Dakota Micro, Inc. is not responsible for any damages caused to your monitor, or ... - Page 7 Dakota Micro, Inc. 7MQ Users Manual Once you have attached the monitor to the mounting bracket, follow these steps to finalize the installation. 1. With the mount and monitor attached, find and mark the desired position for the monitor. 2. Remove the monitor from the mount. 3. Thoroughly clean the intended mounting location with alcohol prep wipe or other non‐oil based cleaner. 4. Remove the paper backing from the stand and press firmly in desired location. 5. If mounting in other than a flat, level location, use small screws in the four corners of the mounting bracket to permanently secure. 6. DO NOT expect that the adhesive will hold up your monitor (i.e. on the ceiling or side post of a cab), it is ONLY intended to hold the bracket down. 7. Attach the monitor to the mount and tighten the wing nut. Installation: 1) Input to Monitor 5) AV2 ‐ Audio/Video Input 2) AV1‐4 Event trigger wires (details pg. 8) 6) AV3 ‐ Video Input ...
-
Page 8: Trigger Event Operations
Dakota Micro, Inc. 7MQ Users Manual Power: 12v Power: 1. Attach the Power Input connector (8 above) to your included 12v cigarette lighter adaptor** 2. Plug cigarette lighter adaptor into 12v power source *There is a small in‐line glass fuse located on the red power wire. When replacing blown fuses, use a MAX 2amp glass fuse **There is a small glass fuse located inside the tip of the 12v portion of the power adaptor. When replacing blown fuses, use a MAX 4amp glass fuse. Hardwire Power (7.5 amp maximum circuit capability): 1. Contact your local AgCam®/EnduraCam® dealer for available hardwire power adaptors. e. Trigger Event Operations: Camera selection Event trigger wires are as follows: Camera 1 – Green Camera 2 – Purple Camera 3 – Gray Camera 4 – White Event trigger wires can be attached to any 12V positive event. This will cause the monitor to change to that camera, regardless of the state of the monitor (i.e. ON/OFF or Channel selection). The most recent event will be the primary display, so if two video channels (AV1 & AV2) are attached to an event output, the one that happens last will change the monitor to its ... - Page 9 Dakota Micro, Inc. 7MQ Users Manual 1 Output jack Headphone Jack 2 Full screen Will show cameras 1/2/3/4 each time pressed 3 Duplex screen Will show Camera 1 /2 and camera 3 /4 each time pressed 4 Quad screen First press will display all 4 cameras connected, second press auto rotates between quad screen/cam 1/cam 2/cam 3/cam 4. Duration each camera remains on screen is able to be changed in PRESET menu (Loop time) 5 ‐ key To decrease parameter 6 + key To increase parameter 7 MENU To switch menu selection, press multiple times. To go to next icon, use + 8 AV Key Will exit menu settings and return to camera view 9 POWER ...
-
Page 10: Standard Menu Settings
Dakota Micro, Inc. 7MQ Users Manual Remote: POWER ON/OFF Navigation Arrows MENU Enters the menu Also acts as “enter” button in menu settings Adjusts screen display modes A/V switching (camera 1 selection) A/V switching (camera 2 selection) A/V switching (camera 3 selection) A/V switching (camera 4 selection) Getting Started: 1. Power on monitor by pushing “POWER” button on the face of monitor or remote. 2. If you do not see video from your camera, push the quad screen button on monitor (4 in monitor image on pg. 9) or CH1/CH2/CH3/CH4 button on remote. Repeatedly pushing the Full Screen button will cycle through the video channels. 5. Standard Menu Settings Press the MENU key on the monitor or remote. Use the – and + keys on the monitor or the LEFT and RIGHT arrow keys on the remote to move through the icons at the top of the screen. 1. Use the MENU key on the monitor (up and down arrows on remote) to select an item under each section. Selected menu items turn red. 2. Use – or + on the monitor (left and right arrows on remote) to change the value of the highlighted item. 3. To exit: ... - Page 11 Dakota Micro, Inc. 7MQ Users Manual PICTURE BRIGHT: Adjusts the brightness of the image CONTRAST: Adjusts the contrast of the image COLOR: Adjusts the color of the image TINT: Adjust tint of image (appears only when camera is plugged in) RESET: Returns settings to default VOLUME VOLUME: Adjusts the volume level OPTION CAMERA 1: AV1 event trigger delay time CAMERA 2: AV2 event trigger delay time CAMERA 3: AV3 event trigger delay time CAMERA 4: AV4 event trigger delay time MIRROR: Press +/‐ keys to toggle through options. From left to right, digits represent camera 1‐4. When a “0” is present, camera is forward facing. When a “1” is present, camera is mirrored. ROTATE: Invert image on screen Author: CNR Rev.
- Page 12 Dakota Micro, Inc. 7MQ Users Manual SYSTEM LANG: Select your language (English default) SOURCE: Adjusts the AV input source (AV1 default) PRESET SLEEP: Enables sleep timer delay setting (in minutes) LOOP TIME: Allows users to set duration that each individual camera remains displayed on screen when monitor is auto rotating through AV1/AV2/AV3/AV3/Quad Screen VGA: Enable (ON) or Disable (OFF) VGA input Author: CNR Rev. 09/04/12 Page 12 of 16...
-
Page 13: Specifications
Dakota Micro, Inc. 7MQ Users Manual 7. Specifications A. Camera: Effective Picture Elements 510*492 Image Pick‐up Device SONY 1/3” Super HAD CCD sensor Horizontal Resolution 540 Horizontal lines Minimum Illumination 0 LUX @ F2.0 S/N Ration More than 48dB Auto Electronic Shutter 1/60s~1/100,000s, ON/OFF Switch‐able Auto White Balance Color Temperature: 2500K~9500K Auto Gain Control High/Low Switch‐able Auto Iris Control Video‐Drive Iris Control Scanning System Interlace 2:1 Gamma Characteristic 0.45 Lenses Furnished Board Lens 3.6mm/F2.0, Photogray Body Synchronous System Internal, Negative sync. Back Light Compensation On/Off Switch‐able Video Output 1 Vp‐p/75 Ohms. Operating Temp. ... -
Page 14: Warranty
Dakota Micro, Inc. 7MQ Users Manual 8. Consumer Limited Warranty Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. (Dakota Micro) warrants that its AgCam/EnduraCam Products will be free from defects in material and workmanship for periods as stated hereafter from the date of original purchase. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. THE EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT. EXCEPT AS STATED IN THIS WARRANTY, DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL THEORY. Any oral statements or representations made by anyone which are contrary to or at variance with the terms stated in this LIMITED WARRANTY are void. Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period of three (3) years for cameras, two (2) years for monitors, quads and Ranch Hands, and one (1) year for cables and all other accessories. The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only. A one (1) year limited warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota Micro. This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the Product nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete DM “Warranty & Repair Policy” listed at www.dakotamicro.com , and provide proof of purchase to Dakota Micro. Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time periods described herein. The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Dakota Micro to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro. Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may ... -
Page 15: Warnings
Dakota Micro, Inc. 7MQ Users Manual 9. Warnings • Do not look directly into camera. Use care when touching the body of the camera unit, it is normal for the camera to be heated up to 150°F. • To avoid electrical shock and maintain, do not open the enclosures. High voltage is present and there are no user serviceable parts inside. • When installing camera avoid pointing directly at paper or flammable materials. • Do not use any chemical solvent, cleaning agent or corrosive detergent to clean away dirt on the surface of the screen or lens. • Our photo‐gray camera lenses have been made impact‐resistant and have been drop‐ball tested according to Sec. 3.84,21 CRF BUT ARE NOT UNBREAKABLE. Because they have been hardened chemically, they show no stress pattern. Inspect your lenses frequently. Chipped or scratched surfaces will reduce protection. Such lenses should be replaced by the manufacturer, please contact your local dealership for more information. • This camera uses a special coated optic lens with photo chromatic properties; if the lens needs to be replaced we require that it be returned to the factory. • Power to cameras is not interrupted by turning off monitor; 12v power source must be terminated when not in use to avoid battery drain. To avoid this problem be sure when hard wiring a unit, use a fused circuit. Author: CNR Rev. 09/04/12 Page 15 of 16... -
Page 16: Dealer Information
Dakota Micro, Inc. 7MQ Users Manual 10. Dealer Information Date of Purchase:_____________________________________________ Serial Number:_______________________________________________ Can We Break It? Find out at CanWeBreakIt.com Dakota Micro, Inc. 1 866 462‐4226 www.agcam.com www.enduracam.com info@dakotamicro.com 8659 148 Ave. SE Cayuga, ND 58013 Dakota Micro Inc. products, specifications, pricing and programs are subject to change without prior notice. Dakota Micro Inc. reserves the right to make design changes at any time without obligation to retroactively install them on previously sold units. Author: CNR Rev. 09/04/12 Page 16 of 16...
