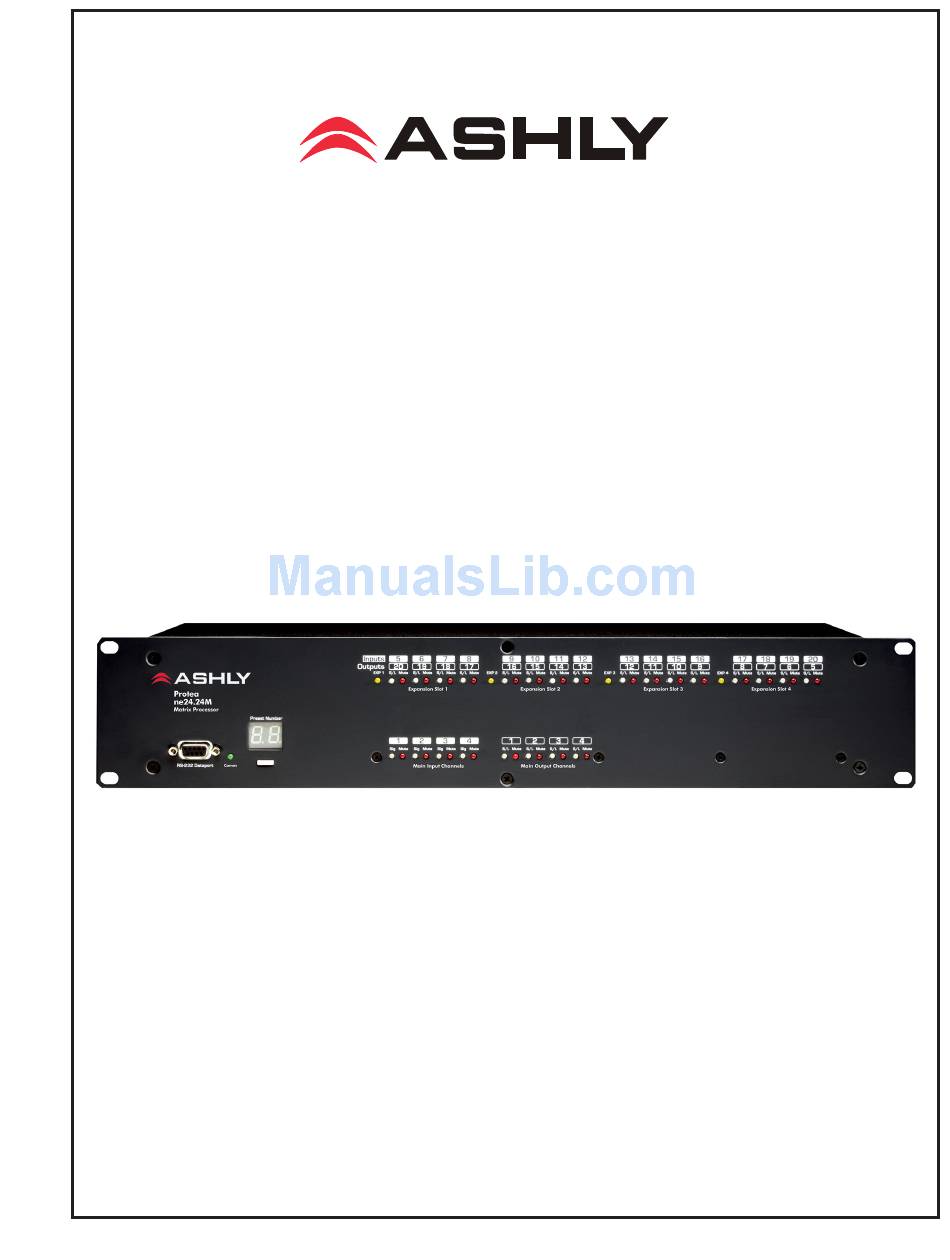

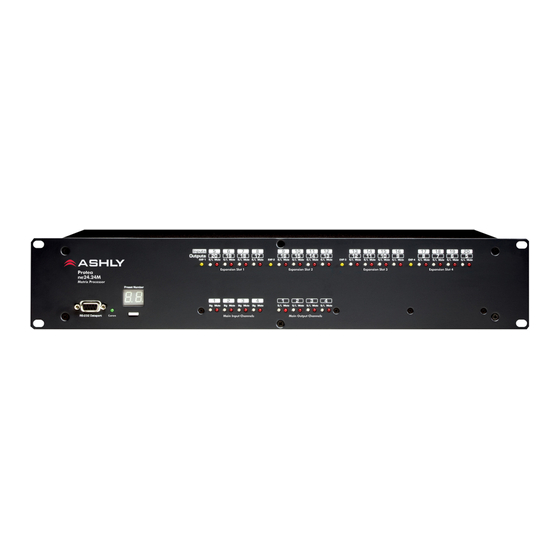

  • Page 1 24 Bit Digital Multiple Channel Matrix Processor Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...

  • Page 2: Important Safety Instructions

    Operating Manual - ne24.24M Matrix Processor Important Safety Instructions Consignes de sécurité à lire attentivement The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the Le symbole de la flèche dans un triangle équilateral symbolisant la foudre est prévu pour sen- user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Operating Manual - ne24.24M Matrix Processor Table Of Contents 1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 UNPACKING .

  • Page 4: Introduction

    Connectors are euroblock for all audio inputs and outputs, eight Logic Inputs for preset recall, eight channels of remote DC level control, and a data connection for Ashly’s WR-5 active remote . Ethernet uses an RJ45 connector, while RS-232 uses a Dsub 9 female .

  • Page 5: Front Panel Features

    4 .4 Main Input Channel LEDs The ne24.24M base unit has four fixed input channels. Each input channel’s two color Sig LED indicates input signal level of -20dB (green), or +20dB clip (red) respectively . The Sig LEDs detect signal levels after any gain adjustments are made within the ne24 .24M preamp section .

  • Page 6: Rear Panel Features

    Operating Manual - ne24.24M Matrix Processor 5 . REAR PANEL FEATURES 5 .1 Input Connections Balanced input signals are connected to the ne24 .24M using the included euroblock connector. A flat blade screwdriver is required to connect a stripped wire lead to the external connector piece, which is then inserted into the rear panel Euro Block receptacle .

  • Page 7: Ethernet Control Jack

    Software will not work using RS-232, use ethernet instead . 5 .8 Data In/Data Out Connection The Data In and Out connectors are used for connecting the ne24 .24M to the Ashly WR-5 programmable remote con- troller or the RD-8C level controller .

  • Page 8: Factory Reset Switch

    6 . EXPANSION MODULE INSTALLATION The Ashly ne24 .24M can be ordered from the factory with expansion modules pre-installed to suit the application, or as a 4 x 4 base unit . Should the need arise to add input or output capacity at a later time, as well as logic output function, ad- ditional modules can be purchased and easily installed in the field.

  • Page 9: Protea Ne Software

    Ashly Protea software is included on a CD with each unit . Check the Ashly web site at www .ashly .com to verify that you are installing the latest software release . Autorun will launch the application<ProteaSystemSoftwareNE> to install the Protea software.

  • Page 10: Audio Functions

    Operating Manual - ne24.24M Matrix Processor 8 . AUDIO FUNCTIONS 8 .1 Input Functions Editing of audio controls is done primarily in Protea System Software . Input and output expansion cards are autode- tected, and the software automatically updates to display the current ne24 .24M status . Note: Accidental, potentially destructive loudspeaker damage can occur when abrupt changes are made to EQ, filter, or level controls, so plan carefully before making radical changes to a live sound system .
  • Page 11 Operating Manual - ne24.24M Matrix Processor be crystal clear sound directly in front of any one loudspeaker can be unintelligible at the farther reaches of the venue with direct line-of-sound to multiple loudspeaker sources . The solution is to delay the audio signal to the loudspeakers located further away from the primary source, so that sound comes out of the distant loudspeakers at the exact time that sound from the main loudspeakers arrives .
  • Page 12 Operating Manual - ne24.24M Matrix Processor Protea ne24.24M parametric filters have a boost/cut range of +15dB to -30dB. There is more cut than boost because one of the more common uses for parametric filters is to dramatically cut, or “notch out”, very narrow frequencies (low bandwidth) in order to eliminate system feedback problems.
  • Page 13 Each input channel can be remotely attenuated through the back panel 0-5V Remote Level Control pins in conjunction with the Ashly WR-1, WR-1 .5, or by an Ashly RD-8C active remote attenuator connected to the 4-pin data connector on the back . The Remote Level Controls dialogue box then allows arbitrary assignment of the remote’s attenuator...

  • Page 14: Output Audio Functions

    Operating Manual - ne24.24M Matrix Processor Output Functions 8 .2 Output Audio Functions The following functions are available on all outputs: Mixer, High Pass/Low Pass Filter, Delay, EQ, Gain, Limiter, and Mute . 8 .2a Output Matrix Mixer (Input Mixer) Output channels can have any or all inputs as sources, and the output matrix mixer allows the level of each connected input to be adjusted in the “matrix mix”...
  • Page 15 The steeper the slope, the more abruptly the “edges” of the pass band will drop off. There is no best filter slope for every application, so experiment to see which one sounds most pleasing in a specific system. The Ashly default crossover fil- ter is 24dB/octave Linkwitz-Riley, but of course they can be changed to suit the application .
  • Page 16 Each output channel can be remotely attenuated through the back panel 0-5V Remote Level Control pins in conjunc- tion with the Ashly WR-1, WR-1 .5, or by an Ashly RD-8C active remote attenuator connected to the 4-pin data connector on the back panel .

  • Page 17: Other Software Functions

    <preset options>, then <Save Sub Preset> . Since there are no user controls on the ne24.24M, the only way to load presets is by using Protea NE Software to recall files saved on either the PC or the ne24.24M.

  • Page 18: Metering

    Separate software tabs allow for input/output metering in dBu, as well as dynamics metering in dB . 10 REMOTE CONTROL Ashly makes several remote control options which can be used with the ne24 .24M . The WR-1, WR-1 .5, and WR-2 are passive wall-box mounted remotes which can adjust volume or select presets .

  • Page 19: Volume Control And Preset Recall

    WR-2 remote level control ground to any other external grounds . The terminal numbers 1-8 correspond to the first 8 Preset Memory locations in the ne24.24M. Pressing a button will load the corresponding preset . A label template can be found on the Ashly website for printing preset names for the WR-2 and sliding the paper behind the mylar overlay windows .

  • Page 20: Programmable Zone Controller

    .24M . Up to four WR-5 units can be daisy-chained and phantom powered from one ne24 .24M, and even more can be added using an in-line power supply adapter such as the Ashly RPS-18 . Note: If a WR-5 is used, no other serial communica- tions devices, including the Ashly RD-8C, may be used with the ne24 .24M .

  • Page 21: Newr-5 Networked Programmable Zone Controller

    .24M . Connecting and powering the neWR-5 is done using Cat-5 Ethernet cable and an IEEE 802 .3af Power over Ethernet (PoE) switch, hub, or in-line PoE injector . If PoE is unavailable, the Ashly RPS-18 (sold separately) is a 15-48VDC power supply capable of at least 2 watts per neWR-5 and can be hard wired to the back of the neWR-5 .

  • Page 22: And Fr-16 Networked Programmable Fader Controllers

    Powered by IEEE 802.3af Power over Ethernet • Wall Box or Panel Cut-Out Mounting See the FR-8/16 owners manual on the Ashly website for further details . 10 .8 Ashly Remote Application for iPad® A custom and secure touch-screen control surface for the iPad can be designed ®...

  • Page 23: Gpo Logic Output

    1) No power - Is the detachable AC cord fully plugged in? Is the rear panel power switch on? 2) Software doesn’t work on unit - Is the ethernet connection properly made? Has the ne24.24M been identified by the software? Are the LEDs on theRJ-45 ethernet jack showing activity? 3) No sound - Check to see if the input or output is muted in software or by a remote control action .

  • Page 24: Specifications

    Operating Manual - ne24.24M Matrix Processor 13 . SPECIFICATIONS GATE INPUT ....Active Balanced, 18k Ohm Threshold: ....-80 to +20dBu, 1dBu increments Max Input Level: .

  • Page 25: Typical Applications

    Operating Manual - ne24.24M Matrix Processor 14 . TYPICAL APPLICATIONS - Corporate Boardroom System - Restaurant System - Left/Center/Right Theater System - Conference Center System - Fire Alarm Mute...
  • Page 26 Operating Manual - ne24.24M Matrix Processor...

  • Page 27: Limited Warranty

    Any implied warranties which may arise under the operation of state law shall be effective only for FIVE years from the original date of purchase of the product . ASHLY AUDIO, INC . shall be obligated to only correct defects in the product itself .
  • Page 28 Phone: (585) 872-0010 Fax: (585) 872-0739 Toll Free (800) 828-6308 ashly.com ©2014 by Ashly Audio Corporation, a division of Jam Industries Ltd. All rights reserved worldwide. All features, specifications, and graphical representations are subject to change or improvement without notice.
