Summary of Contents for Ashly Protea 3.6SP

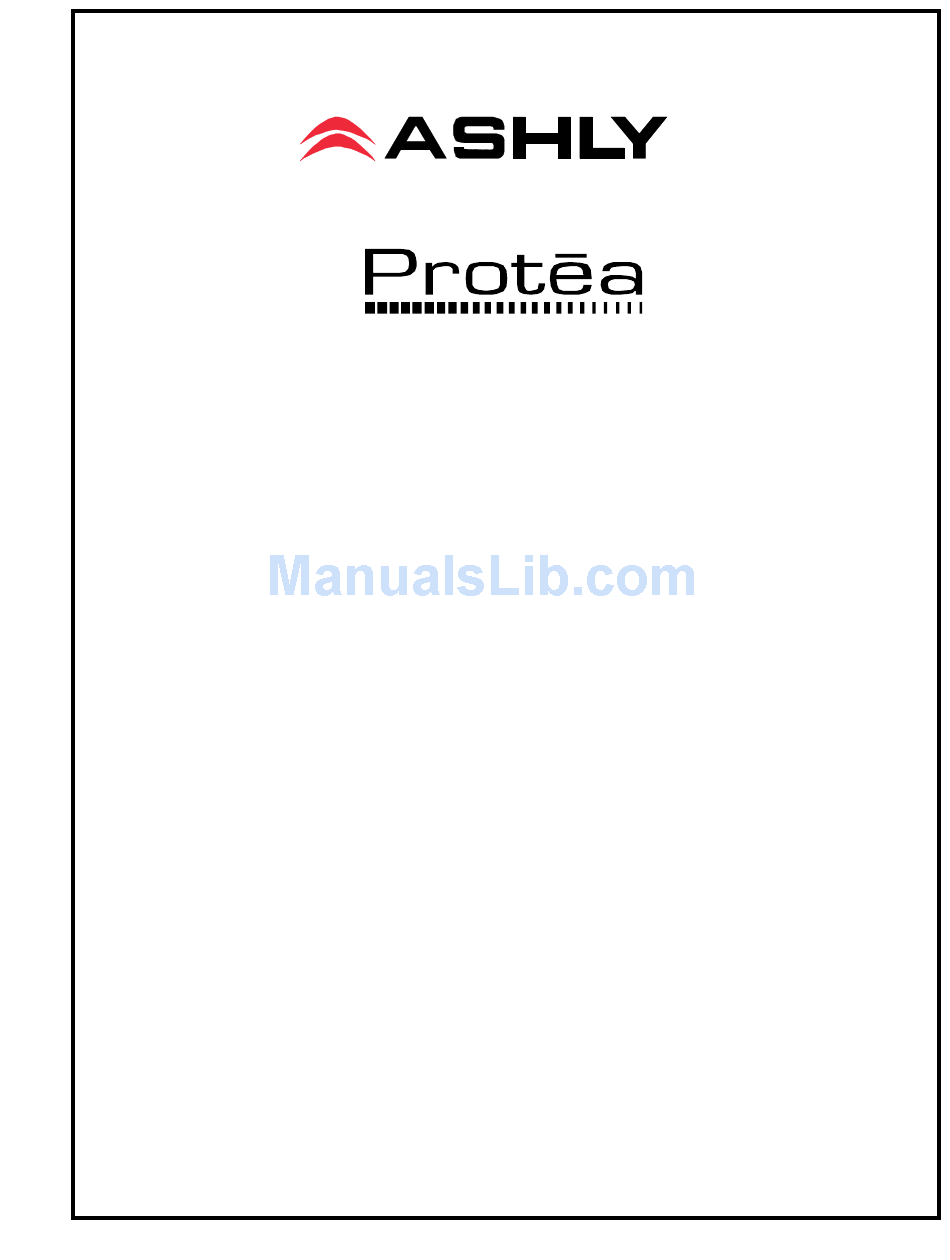

- Page 1 Digital Audio Products 4.8SP 3.6SP 24 Bit System Processor Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
-
Page 2: Table Of Contents
Operating Manual - PROTEA 4.8SP and 3.6SP System Processors Table Of Contents 1 INTRODUCTION ..........4 1.1 Audio Features . - Page 3 Operating Manual - PROTEA 4.8SP and 3.6SP System Processors Protea 4.8SP Protea 3.6SP CAUTION The lightning flash with arrowhead symbol, The exclamation point within an eqilateral tri- within an equilateral triangle, is intended to alert angle is intended to alert the user to the pres- the user to the presence of uninsulated "dan- ence of important operating and maintenance RISK OF ELECTRIC SHOCK...
-
Page 4: Introduction
PC control of the unit through a USB jack. Protea NE software is supplied with each unit, or can be down- loaded at no cost from the Ashly web site. Advantages of using the software include greater preset capacity, and a very intuitive visual representation of the audio routing and control process. -
Page 5: Front Panel Control Features
Operating Manual - PROTEA 4.8SP and 3.6SP System Processors 4. FRONT PANEL CONTROL FEATURES 4.1 Function Keys and Data Wheel To the right of the LCD dis- play are two unlabeled function keys and a rotary data wheel. All audio and system parameters are edited using these three controls. -
Page 6: Audio Functions
Operating Manual - PROTEA 4.8SP and 3.6SP System Processors 4.6 Audio Functions 4.6a Gain GAIN A 0.0dB Input and Output Gain are separately adjustable from -40dB to +12dB in 0.1dB increments. The output gain menu also provides for selection of input source(s) for a given output channel, as well as GAIN 1 Source:A... -
Page 7: Delay 1
3.6SP EQ section of Protea NE Software. The software works whether a unit is connected or not, so it is an invaluable teaching tool as well as an audio setup tool for Protea products. The program is shipped with SP units, but is also available on the Ashly web site. 4.6c Delay... -
Page 8: Crossover 1
The steeper the slope, the more abruptly the "edges" of the pass band will drop off. There is no best filter slope for every application, so experiment to see which one sounds most pleasing in a specific system. Ashly factory default presets use all 24dB/octave Linkwitz-Riley filters in the crossover section, but of course they can be changed to suit the applica- tion. - Page 9 Operating Manual - PROTEA 4.8SP and 3.6SP System Processors Butterworth Butterworth filters individually are always -3dB at the displayed crossover frequency and are used because they have a "maximally flat" passband and sharpest transition to the stopband. When a Butterworth HPF and LPF of the same crossover frequency are summed, the combined response is always +3dB.
-
Page 10: Limit
*Note: performing a Factory Reset will erase all user presets and replace them with the ten original Ashly preset templates. User defined presets can be stored off-line as files using Protea NE Software. -
Page 11: Utilities
Operating Manual - PROTEA 4.8SP and 3.6SP System Processors 4.7e Util The Protea 4.8SP and 3.6SP utilities include a security section for UTIL Secur:Off(none) password protected lockout, a dBu/VU Ref:dBu Device-Name meter preference select, and a device name display. Security There are four security modes in the 4.8SP and 3.6SP: Off, Preset Lock, Parameter Lock, and Full Lockout. -
Page 12: Interconnect Features
6. PROTEA NE SOFTWARE Loading the software Ashly Protea NE software is included on a CD with each unit. Check the Ashly web site at www.ashly.com to verify that you are installing the latest software release. Autorun will launch the application<ProteaSystemSoftwareNE>... - Page 13 The project canvas is used to visually represent and control a fixed physical sound system installation, and can display any of the Ashly processors, amplifiers, and remotes used in that system. The user can also place an assortment of isolated control objects such as level faders, single LEDs, meter bars, etc, and map them to specific product functions within that project.
-
Page 14: Troubleshooting
Operating Manual - PROTEA 4.8SP and 3.6SP System Processors 7. TROUBLESHOOTING 7.1 - Audio Troubleshooting Tips No power - Is the detachable AC cord fully plugged in? Is the rear panel power switch on? Controls don't work - check the Security Level. If set to Full Lockout, then Protea unit is "view only". Change security settings in Util menu or software. -
Page 15: Warranty Information
ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury which may result from or be incidental to or a consequence of such defect. -
Page 16: Block Diagram
2nd Order HS 2nd Order HS 48dB Bessel 48dB Linkwitz Block Diagram ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Fax: (585) 872-0739 Toll Free (800) 828-6308 www.ashly.com Copyright 2012 by Ashly Audio Corporation. All rights reserved worldwide.
