Atlas MMK15-RM Owner's Manual

15" / 17" lcd single rail console with modular kvm switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

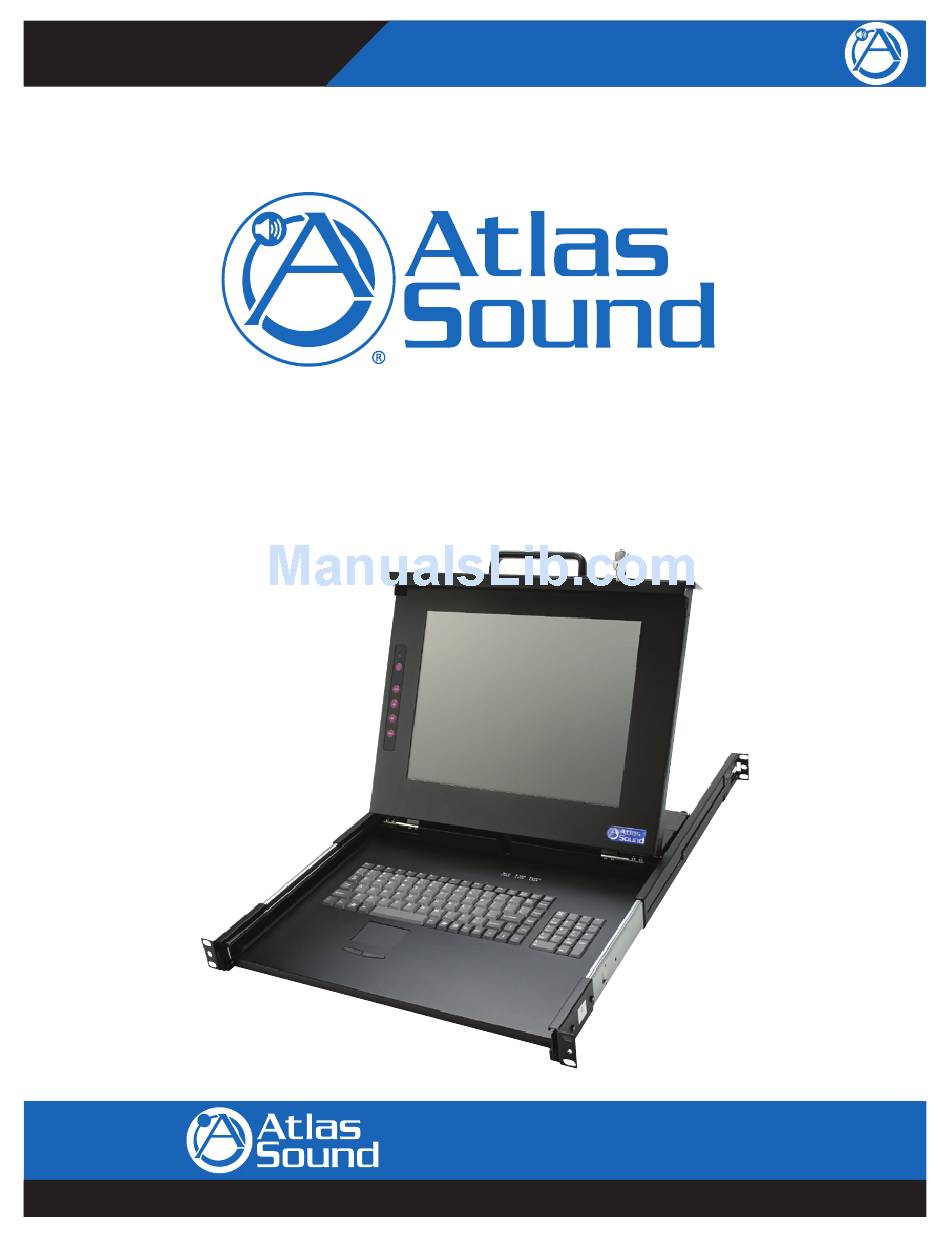

MMK15-RM
Owner's Manual
15" / 17" Single Rail Console
MMK17-RM
MMK15-RM / MMK17-RM
15" / 17" LCD
Single Rail Console with Modular KVM Switch
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMK15-RM and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas MMK15-RM

Summary of Contents for Atlas MMK15-RM

  • Page 1 MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM MMK15-RM / MMK17-RM 15" / 17" LCD Single Rail Console with Modular KVM Switch 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 –...

  • Page 2: Packing List

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM Packing List The complete 15" / 17" single rail console with modular KVM switch package consists of: • One 1RU 19" Rack Mount Console • Two Rails with Front and Rear Bracket • Two Extended Brackets. (See Below) • Two Short Brackets. (See Below) • Two Bracket Attachments. (See Below) • One 5.9' (1.8 m) KVM cable. (HDDB-15 / VGA + PS/2 x 2) • One USB Cable...

  • Page 3: Safety Instructions

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM Safety Instructions The lightning flash with arrowhead symbol within an CAUTION equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the prod- RISK OF ELECTRIC SHOCK uct’s enclosure that may be of sufficient magnitude...
  • Page 4 MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM CAUTION – When Installing the Product • P lugging in or unplugging the power cord with wet hands may result in electric shock. • N ever move the unit with the power cord plugged into the wall, as damage to the power cord may result. • W hen unplugging the cord from the wall, grasp the plug, NOT the cord. • N ever install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas where sooty smoke or steam are present. Fire and electric shock may result. • K eep all sides of the unit at least 3 ⁄ " away from objects that may obstruct air flow to prevent the unit's internal temperature rise.

  • Page 5: Table Of Contents

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM Table of Contents Packing List ..............2 3. Installation ............... 14 Install 15" Single Rail Console into Cabinet ..14 Safety Instructions ............3 3.1.1 Notes ...............14 3.1.2 Hardware Kits Contents ........15 Table of Contents ............5 3.1.3 Step A (Install Console): ........16 3.1.4 Step B (Replace short bracket): .

  • Page 6: General Information

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM General Information Single rail consoles with modular KVM switch offer an industrial level input solution to optimize your space utilization by controlling your systems in just 1RU. Feature • Easy to Install, Single Rail Design • 15" / 17" LCD Panel Options • Support Sun Native Resolution ™ • Support 17 Various Keyboard Languages (Increasing) • Bright Active TFT Display • OSD Function for LCD Display and KVM Switch • Durable Keyboard (Touchpad) • Panel Protected by Tempered Glass • Integration with KVM Switches Advantage Easy to Install: With the unique separate rail design. One man can install the console easily. In case you need to maintain the console, you can easily uninstall without effecting the server above or below.

  • Page 7: Product Specification

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM Product Specification 1.3.1 15" / 17" Single Rail Console with Modular KVM Switch Specification Model name Model Name MMK15-RM MMK17-RM Number Of Ports Dimension 18.5" x 17.6" x 1.7" (470.1mm x 447.5mm x 44mm) Package Dimension 23.9" x 21.7" x 9.0" (606mm x 551.5mm x 230mm) Net Weight 26.46 lbs / 12 Kg...

  • Page 8: 5" / 17" Single Rail Console With Modular Kvm Switch Specification

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 5.39" (137 mm) 5.39" (137 mm) 5.39" MMK15-RM (137 mm) MMK15-RM MMK15-RM 18.98" (482 mm) 18.31" (465 mm) 18.98" (482 mm) 18.31" (465 mm) 18.98" (482 mm) 18.31" (465 mm) 5.39"...

  • Page 9: Panel Controls And Osd Function

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 2. Panel Controls and OSD Function Controls Description Soft power on/off button. Adjacent LED is lit when on. Auto Auto-synchronize and scale down display to any valid factory preset timings. Press to scroll the function you want to adjust. Press to scroll the function you want to adjust. Menu To access the main menu. This button also acts as the “Enter” button. Table 2-1. Panel Controls Figure 2-1. Single Rail Console with Modular KVM Switch OSD Control Bar 1601 Jack McKay Blvd.

  • Page 10: Auto Tune

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 2.1 Auto Tune Press the “Auto Tune” button. The panel will adjust the display size automatically and also tune the panel for optimal viewing. 2.2 Input Source 1. Press the “Menu” button. 2. Use the “Down” and “Up” button to scroll. Auto Tune Input Source Brightness Contrast Color Position Language Recall Exit 3. Press the “Menu” button to enter, and you will see: VGA / DVI 4. Use the “Down” and “Up” buttons to select the input signal source. 5. Press the “Menu” button to enter. 2.3 Brightness 1. Press the “Menu” button.

  • Page 11: Contrast

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 2.4 Contrast 1. Press the “Menu” button. 2. Use the “Down” and “Up” buttons to scroll. Auto Tune Input Source Brightness Contrast Color Position Language Recall Exit 3. Press the “Menu” button to enter. 4. Use the “Down” and “Up” buttons to adjust the display contras. 5. Press the “Menu” button to enter. 2.5 Color 1. Press the “Menu” button. 2. Use the “Down” and “Up” button to scroll. Auto Tune Input Source Brightness...

  • Page 12: Position

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 2.6 Position 1. Press the “Menu” button. 2. Use the “Down” and “Up” buttons to scroll. Auto Tune Input Source Brightness Contrast Color Position Language Recall Exit 3. Press the “Menu” button to enter. And you will see: Icon Description Image Pos To adjust the position of the image. OSD Pos To adjust the position of the OSD. Return To exit and return to the previous page Table 2-3. Icon Description 4. Use the “Down” and “Up” buttons to scroll.

  • Page 13: Recall

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 2.8 Recall 1. Press the “Menu” button. 2. Use the “Down” and “Up” buttons to scroll. Auto Tune Input Source Brightness Contrast Color Position Language Recall Exit 3. Press the “Menu” button to enter, and you will see: Yes / No 4. Select “Yes” button then “Menu” button to recall the factory setting. Select “No” to return to the previous page. 2.9 Exit 1. Press the “Exit” button to quit OSD menu. 2.10 Power Indicator • GREEN ON • ORANGE...

  • Page 14: Installation

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3. Installation 3.1 Install 15" / 17" Single Rail Console Into Cabinet 3.1.1 Notes 1. P lease check all peripherals according the list before installation. To make sure that the unit was not damaged during shipping. If you encounter any problem, please contact Atlas Sound. 2. B efore installation, make sure all peripherals and computer have been turned off. 3. T he cabinet depth range must be in between 19.84" – 39.38" (504mm – 1000mm). Contact your Atlas Sound for deeper cabinet applications. 4. I f the cabinet depth is between 24.17" – 31.5" (614mm ~ 800mm), please refer to “Step A” (Page x).

  • Page 15: Hardware Kits Contents

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3.1.2 Hardware Kits Contents 1. T wo Rails with Front and Rear Brackets (Please Identify the Brackets. Right and Left Sides are Different.) 2. Two Extended Brackets 3. Two Short Brackets 4. Two Bracket Attachments 5. Six (6) Screws (Length = 0.24" (6 mm)) 6. Six (6) Screws 7. Two Keys 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 16: Step A (Install Console)

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3.1.3 Step A (Install Console): 1. Adjust rail until two screws appear. 2. Loosen (Not Remove) seven screws. 3. Adjust rail to fit your cabinet. 4. Install front and rear bracket on cabinet. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com –...
  • Page 17 MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 5. Tighten seven screws. 6. Repeat step 1-5 for the other side. 7. Push console into rails. (Be careful that the rear box is loose when removing the console from the carton.) 8. Unlock and pull rail-lock switch (left and right at the same time) then push console to the end. lock lock unlock unlock rail-lock switch 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 17 –...
  • Page 18 MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 9. Install three screws (Length = 0.24" / 6 mm) in rear of the console. (Both sides) 10. Finish installation as below. Rack mounting completed. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com – 18 – Specifications are subject to change without notice.

  • Page 19: Step B (Replace Short Bracket)

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3.1.4 Step B (Replace Short Bracket): 1. Remove seven screws. 2. Take the two original brackets out. 3. Install short bracket to rear of the rail. 4. Install four screws (do not tighten) to combine rail, short bracket and bracket attachment. 5. Repeat step 1 - 4 for the other side. 6. Repeat step 3 - 10 of Step A to finish the installation. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 20: Step C (Replace Extended Bracket)

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3.1.5 Step C (Replace Extended Bracket): 1. Loosen (Not Remove) seven screws. 2. Remove six screws. 3. Remove rear bracket. 4. A djust rail and input extended bracket to rear of the rail then adjust extended bracket to fit the cabinet. Install 2-3 screws (do not tighten) upon the length you need. One screw will not be used. 5. Repeat steps 1-4 for the other side. 6. Repeat steps 3-10 of step A to finish the installation. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 21: Unload Step

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3.1.6 Unload Step 1. Make sure the console has locked and turned off. 2. Loosen two thumb screws and pull modular KVM switch out, if installed. 3. Release three screws in rear of the console. (Both Sides) 4. Unlock. 5. Pull console out until the console locks. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
  • Page 22 MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 6. Pull rail-release switch and pull console out. (Both sides) (Be careful when you pull out console.) 7. Push rail-lock switch on the rail and push rail back. (Both sides) 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com – 22 – Specifications are subject to change without notice.

  • Page 23: Install Modular Kvm Switch Step

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3.3 Install Modular KVM Switch Step 3.3.1 Hardware Kits Contents 1. Two Brackets with Thumb Screws 2. Four Screws (Length = 0.24" (6 mm)) 3.3.2 Install Modular KVM Switch 1. Install two screws (Length = 0.24" (6 mm)) to combine bracket and KVM switch. (Both sides) 2. Push KVM switch into the rails from rear of cabinet. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 24: Installing The Video Card And Video Driver

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM 3. Tighten thumb screw of bracket to fix KVM switch in console and finish installation. (Both sides) 3.4 Installing the Video Card and Video Driver Before connecting the LCD console, make sure your computer has a video card already installed for the monitor. After you connect the console, install the video software driver. The video driver is supplied by the video card manufacturer and may be found on the CD-ROM that came with your computer. If you need information on installing a video card or video driver, refer to the manual that came with your video card. 3.4.1 Configuring the Display Settings After connecting the console and turning on your computer, you may need to configure one or more of the following display settings: • Display mode (also called desktop area or video resolution)

  • Page 25: Connecting The Console

    Before you begin, make sure that power to all the devices you will be connecting up have been turned off. To prevent damage to your installation due to ground potential difference, make sure that all the devices on the installation are properly grounded. Consult Atlas Sound for any technical issues, if necessary. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 26: Notes

    MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com – 26 – Specifications are subject to change without notice.
  • Page 27 MMK15-RM Owner’s Manual 15" / 17" Single Rail Console MMK17-RM Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 27 – AtlasSound.com Specifications are subject to change without notice.

  • Page 28: Warranty

    Atlas Sound Tech Support can be reached at 1-800-876-3333. Visit our website at www.AtlasSound.com to see other Atlas products. ©2008 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS003331 RevA 1/09 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
