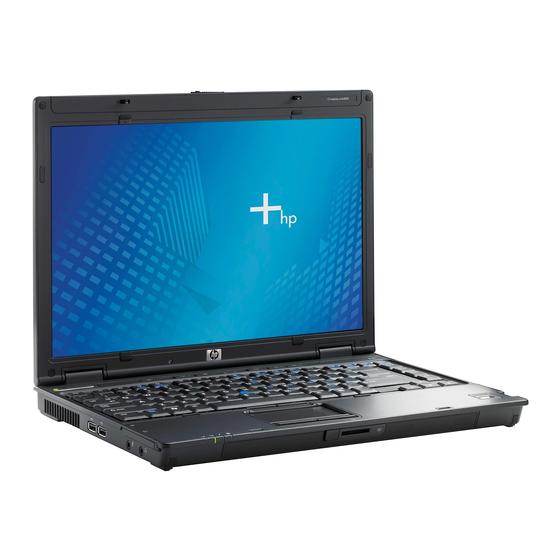

Intel Compaq nc6400 Quickspecs

Hewlett-packard notebook pc quickspecs
Hide thumbs

Advertisement

Quick Links

Download this manual
QuickSpecs

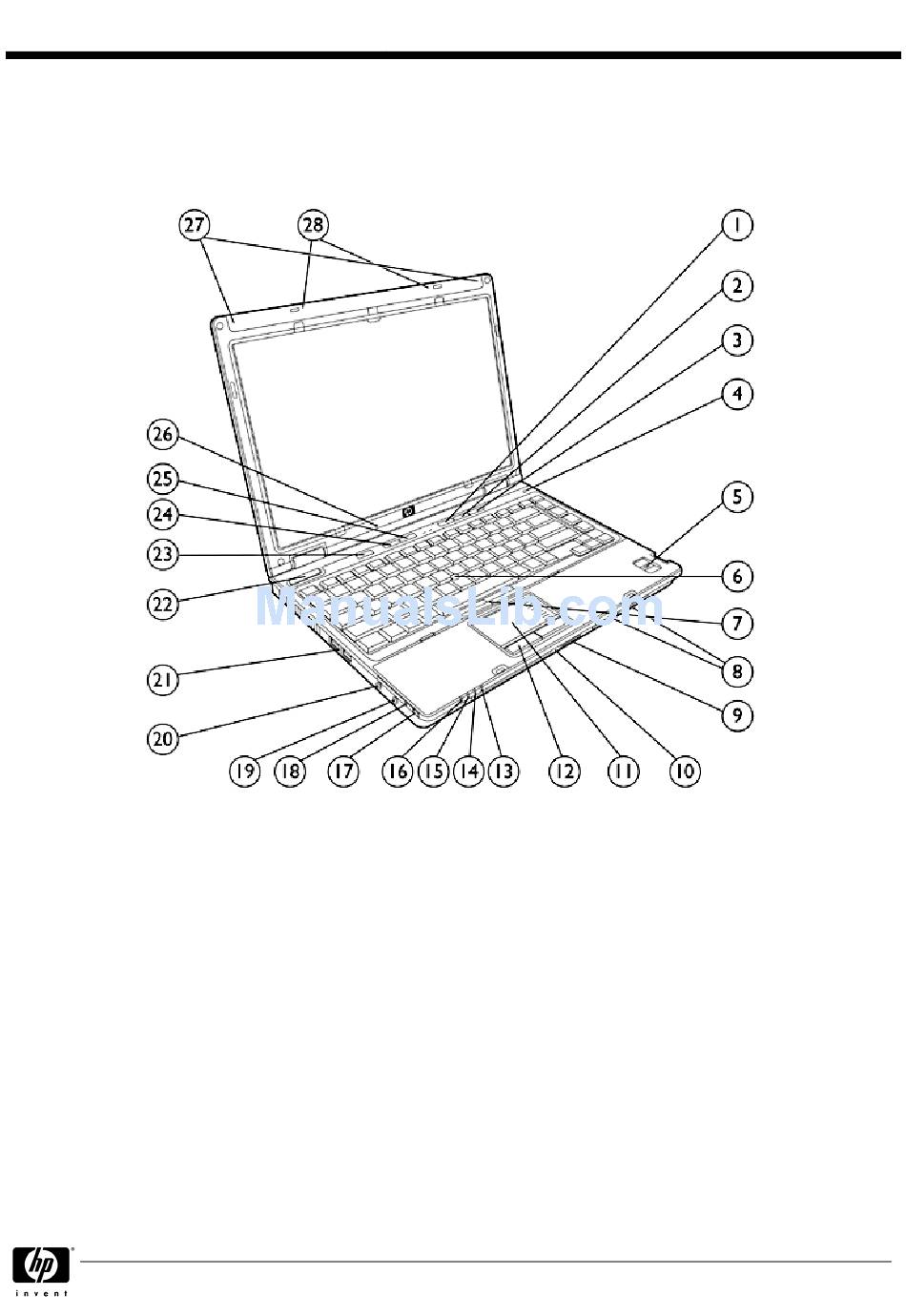

Overview
1.
Volume Mute Button with LED
2.
Volume Down Button
3.
Volume Up Button
4.
Integrated Microphone
5.
Biometric Fingerprint Sensor
6.
Pointstick
7.
Pointstick Buttons
8.
Stereo Speakers
9.
SD Media Slot
10. Fast Infrared Port
11. Touchpad with scroll zone
12. Touchpad Buttons
13. Hard Drive Activity LED
14. Battery Charging LED
DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007
HP Compaq nc6400 Notebook PC
HP recommends
Windows Vista™ Business
15. Power/Standby LED
16. Wireless On/Off LED
17. PC Card Eject Button
18. PC Card Slot
19. Headphone Jack
20. Microphone Jack
21. 2 USB 2.0 Ports
22. Power Button with LED
23. HP Info Center Button
24. Wireless On/Off Button with LED
25. Presentation Mode Button
26. Ambient Light Sensor
27. Dual-band Wireless LAN Antennas
28. 5-Band Wireless WAN Antennas (enabled with WWAN
option)
Page 1

Advertisement

loading

Related Manuals for Intel Compaq nc6400

Summary of Contents for Intel Compaq nc6400

  • Page 1 11. Touchpad with scroll zone 12. Touchpad Buttons 13. Hard Drive Activity LED 14. Battery Charging LED DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC HP recommends Windows Vista™ Business 15. Power/Standby LED 16. Wireless On/Off LED 17.
  • Page 2 Sleek light-weight design starting at under 4.4 lb (2.0 kg) and 1.1 inch (29.2 mm) thin at front 14.1-inch wide screen display Intel® Core™ 2 Duo processors, Intel Core Duo processors, or Intel Core Solo processor Mobile Intel 945GM Express Chipset or Mobil Intel 945PM Express Chipset...

  • Page 3: Standard Features

    Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit http://www.windowsvista.com/upgradeadvisor. Chipset Mobile Intel 945PM Express Chipset with 667-MHz front side bus (models with discrete graphics) Mobile Intel 945GM Express Chipset with 667-MHz front side bus (models with integrated graphics) DA - 12446 Worldwide QuickSpecs —...
  • Page 4 ATI Mobility Radeon X1300 512MB HyperMemory** Microsoft DirectX 9 capable For integrated graphics models: Intel Graphics Media Accelerator 950 with up to 224MB shared system memory, depending on model Microsoft DirectX 9 capable * Indicates dedicated video memory and shared system memory. 64MB dedicated video memory.
  • Page 5 DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Integrated dual band 800-MHz (cellular) and 1900-MHz (PCS) WWAN...
  • Page 6 HP Mobile Data Protection System 3D Optical Drives DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Supports 32-bit CardBus and 16-bit PC Cards Compatible with ISO 7816 compliant Smart Cards PC/SC interface support...
  • Page 7 *NOTE: Software marked with an asterisk is loaded on the hard drive and can be installed by running the Software Setup utility. DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC One Type I/II One – VGA One (4-Mb/s support) IrDA 4-MB compliant;...
  • Page 8 - Embedded Security for HP ProtectTools - Device Access Manager for HP ProtectTools DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC HP Client Manager Software Smart Card Security for HP ProtectTools Device Access Manager for HP ProtectTools...
  • Page 9 As with all batteries, the maximum capacity of this battery will decrease with time and usage. System Standby Time Up to 1 week DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC HP ProtectTools Security Manager HP Biometric Fingerprint Sensor Integrated Smart Card Reader TPM 1.2 Embedded Security Chip*...
  • Page 10 QuickSpecs Standard Features Power Conservation Supports enhanced Intel SpeedStep technology with Intel Core Duo and Intel Core Solo processors (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic mode) Intel Display Power Saving technology (models with integrated graphics) ATI PowerPlay technology (models with discrete graphics)
  • Page 11 QuickSpecs Standard Features Battery Power Warranty * Intel's numbering system is not a measurement of higher performance. ** TPM module disabled where use is restricted by law; for example, Russia. nc6400 Processor RM106AW#XXX Operating System (may vary based on local...
  • Page 12 Integrated Security Pointing Device MultiBay II Drive Battery Power Warranty * Intel's numbering system is not a measurement of higher performance. ** TPM module disabled where use is restricted by law; for example, Russia. nc6400 Processor RA252AW#XXX Operating System (may vary based on local...
  • Page 13 QuickSpecs Standard Features * Intel's numbering system is not a measurement of higher performance. ** TPM module disabled where use is restricted by law; for example, Russia. nc6400 Processor RA253AW#XXX Operating System (may vary based on local System Memory regulatory requirements)
  • Page 14 HP USB Digital Drive + 256-MB Secure Digital Card HP USB Diskette Drive Communications Intel PRO/Wireless 3945ABG 802.11 a/b/g WLAN option kit HP ev2200 1xEV-DO Broadband Wireless Module (Verizon software) HP hs2300 HSDPA Broadband Wireless Module (Vodaphone software)* HP hs2300 HSDPA Broadband Wireless Module (Cingular software) *NOTE: SIM card comes with Vodaphone service;...
  • Page 15 HP/Kensington Cable Lock Privacy Film for 6400 Series Input/Output Devices USB/PS2 Keyboard USB/PS2 Optical Mouse HP USB Optical Travel Mouse DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC DC852A#xxx DL617A DC915A PA847A DG102A DC350B...
  • Page 16 1024-MB 667-MHz DDR2 SDRAM 2048-MB 667-MHz DDR2 SDRAM * Above 3-GB, all memory may not be available due to system resource requirements. DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Slot 1 512 MB 1024 MB...
  • Page 17 Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay Up to two Dedicated hard drive bay and/or MultiBay II Dedicated hard drive bay Dedicated hard drive bay HP Compaq nc6400 Notebook PC Page 17...

  • Page 18: Technical Specifications

    Industry Standard Certifications DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 1.1 (at front) x 13.0 x 9.4 in (29.2 (at front) x 330 x 239 mm) with MultiBay II weight 4.4 lb (2.0 kg)
  • Page 19 Environmental Design Operating temperature EMI and Safety Certifications Option Kit Contents DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Saudi Arabian Compliance (ICCP) SABS UKRSERTCOMPUTER 5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm) 0.86 lb (390 g)
  • Page 20 Battery Re-Charge Time Fuel Gauge DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) 0.62 lb (280 g) 100 to 240 VAC...
  • Page 21 Dimensions (H x W x L) 0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm) Battery Weight Cells/Type Energy Temperature Battery Re-Charge Time DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 1.00 lb (0.455 kg) 8-cell Lithium-Ion Voltage 14.4V Watt-hour Capacity 52Wh Amp-hour Capacity 3.6Ah Operating (Charging) 32°...
  • Page 22 Number of Colors Contrast Ratio Refresh Rate Brightness Pixel Resolution Backlight Viewing Angle DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 0.55 lb (0.249 kg) 4-cell Lithium-Ion Voltage 14.4V Watt-hour Capacity 37Wh Amp-hour Capacity 2.55Ah...
  • Page 23 Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 0.25 lb (113 g) 100 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 1.0a...
  • Page 24 Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 0.22 lb (101 g) 100 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 1.0a...
  • Page 25 Supported Media (write)None Max Media Capacity (read) Transport DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 0.22 lb (101 g) 40 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 1.0a...
  • Page 26 Max Media Capacity (write) Transport DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm) 0.45 lb (205 g) Random <120 ms CD <155 ms DVD...
  • Page 27 Jack Integrated Microphone Yes DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Dimensions (H x W x D) 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm) Weight 0.16 lb (72 g) 0.22 lb (101 g)
  • Page 28 Manageability Interface NIC Device Driver Name Drivers Available DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 20 Hz – 20 kHz >85 dB 0.01% -110 dB 8 kHz – 48kHz 16, 20 or 24-bit...
  • Page 29 Fax Mode Capabilities TIA/EIA-578-B (Class 1) Command Set DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC MDC 1.5 Daughtercard APM Revision 1.2, ACPI UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian...
  • Page 30 Configuration Utilities Verizon Wireless VZAccess Manager LED Activity DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 1 (North American PCS) – Class II CDMA 1x Release 0/A; IS-95A, IS-95B, IS-2000 Meets or exceeds TIA/EIA IS-98-D...
  • Page 31 Humidity, Non- operating LED Activity Configuration Utilities Varies per country and mobile network operator DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC 850/1900/2100MHz WCDMA Power class 3 (+24dBm) 850MHz GSM/GPRS/EDGE 900MHz GSM/GPRS/EDGE, 1800MHz GSM/GPRS/EDGE...
  • Page 32 Non-operating Operating Non-operating Operating Non-operating HP Compaq nc6400 Notebook PC 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 32° to 176° F (0° to 80° C) -40°...
  • Page 33 ACPI compliant power management 802.11 compliant power saving mode 54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm High efficiency dual band antenna with spatial diversity, mounted in the display enclosure HP Compaq nc6400 Notebook PC Page 33...
  • Page 34 Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4). Multinational support with frequency bands and channels compliant to local regulations. HP Compaq nc6400 Notebook PC 600 feet – Outdoor Open Area 150 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet –...
  • Page 35 Non-operating Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet (required for Cisco Compatible Extensions support) LED Off – Radio OFF; Solid LED On – Radio ON HP Compaq nc6400 Notebook PC 600 feet – Outdoor Open Area 150 feet –...
  • Page 36 Non-operating Operating Non-operating Operating Non-operating HP Compaq nc6400 Notebook PC 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 32° to 176° F (0° to 80° C) -40°...
  • Page 37 Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet (required for Cisco Compatible Extensions support) LED Off – Radio OFF; Solid LED On – Radio ON 1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)
  • Page 38 Sleep (Energy Star low power mode) Heat Dissipation* Normal Operation Sleep DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Non-operating 5% to 95% Operating 15,000 ft (4,572 m) Non-operating 40,000 ft (12,192 m) (with Bluetooth for Windows 4.0 software)
  • Page 39 Batteries Additional Information This product is in compliance with the Restrictions of Hazardous Packaging DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Sound Power (LWAd, bels) 3.40 3.43 This product complies with ISO standards:...
  • Page 40 Technical Specifications Material Usage DA - 12446 Worldwide QuickSpecs — Version 15 — 1.30.2007 HP Compaq nc6400 Notebook PC Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
  • Page 41 Microsoft Corporation in the U.S. and/or other countries. Core Duo, Centrino, and SpeedStep are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.
