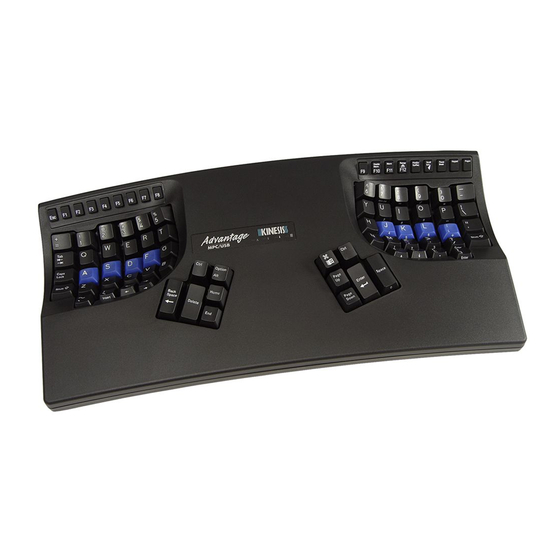

  • Page 1 Kinesis Advantage MPC ® ™ USB Contoured Ergonomic Keyboards ™ (Mac/PC switchable) USER’S MANUAL...
  • Page 3 KB510USB, Advantage Pro MPC USB keyboard (black, metallic finish on top) February 2011 Edition © 2002-2011 Kinesis Corporation, Bothell, Washington USA. All rights reserved. Printed in the U.S.A. on recycled paper. Please recycle! Kinesis, Contoured, Advantage, MPC, MPC/QD, and HumanKind are trademarks of Kinesis Corporation.
  • Page 4 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation.

  • Page 5: Table Of Contents

    Warranty ..................36 APPENDIX A. Ergonomic Guidelines for Computer Workstations ..... 37 B. Kinesis On-board Dvorak Key Layout ........ 39 C. PC International Key Actions ..........39 D. Mac International Key Actions ..........40 E. Special Instant Configuration Settings ......... 40...

  • Page 6: Health And Safety Warning

    Kinesis Corporation bases its product designs on research, proven features and user evaluations. However, because of the complex set of factors believed to contribute to computer-related injuries, the company can make no warranty that its products will prevent or cure any physical ailment.

  • Page 7: Read-Me-First

    It also includes tips for the ergonomic setup of your computer workspace. If you have used an early version of the Kinesis Contoured keyboard. This keyboard has significant differences in the location of some thumb-activated keys and in the commands used to customize the keyboard compared to earlier models.
  • Page 8 However, years of experience has shown us that most users find it easy and rapid – just try to schedule your first experience with the Kinesis keyboard during a period when you are not operating under a tight production deadline. See C...

  • Page 9: Chapter One: Quick Tour

    In a liberating departure from the constraints of a traditional, flat keyboard, the sculpted lines of the Kinesis Contoured keyboard fit the shape and movements of your body — reducing the physical demands of keyboarding. While it may look very different from the keyboard you have been using, you’ll find that making the transition is actually quite easy.
  • Page 10 US Windows and Macintosh keyboards (above & opposite). The Windows keyboard shown has the U.S. International layout with the standard extra “International key” inserted next to the left Shift key. The Advantage MPC keyboard also has this international key, located next to the Left Arrow key.
  • Page 11 Changing between Windows, PC, and Mac Configurations All Advantage MPC Contoured keyboards provide an Instant configuration feature for optimizing productivity in Windows, non-Windows PC, and Mac environments. The keys which change actions when re-configuring the keyboard are located primarily in the thumb- key region.
  • Page 12 Onboard Programmability Advantage MPC keyboards also provide the powerful Kinesis productivity feature known as “onboard programmability.” No drivers or software are required. For example, the keyboard can be instantly changed between QWERTY and Dvorak. Virtually any key (168 top level and embedded level key actions) can be copied, moved, or inactivated.
  • Page 13 The Kinesis Contoured keyboard relocates these keys to two arrays of thumb- ™ operated keys. Important note: Move your hands and forearms, if necessary, to reach keys on the thumb keypads without stretching your thumbs or bending your wrists. If you prefer, you can activate thumb keys with your index fingers.
  • Page 14 Function Keys The function keys comprise two elevated, tilted rows of soft, tactile keys which can be activated with minimal hand and arm movement: Esc and F1 through F8 (on left) and F9 through Progrm (on right). Most of these keys perform their traditional actions unless combined with the Progrm key.
  • Page 15 Keypad function key. However, the most convenient way to access embedded level key actions is with a Kinesis foot switch. Used with a foot switch, the embedded keypad significantly increases productivity when alternating between text and numbers, because the hands never need to leave the home row of keys.

  • Page 16: Led Indicators

    (next to Left Arrow) when the keypad layer is active. LED Indicators There are four green, light emitting diodes (LEDs) near the center of the Kinesis keyboard. The far left (“A”) is Caps Lock, with Num Lock (“1”) next. Num Lock is normally always on by default for most computers.

  • Page 17: Chapter Two: Installation

    Once your keyboard is operational, you may attach up to two USB low-power devices to the USB ports on the back of the Advantage MPC USB keyboard. As with the keyboard, the first time a new device is connected the system may go through an identification/driving...
  • Page 18 PC vs Mac legend differences When comparing PC and Macintosh keyboards, several keys have similar functions but use different names. On the Kinesis Advantage MPC keyboard, most of these keys have the PC legends. Mac and PC users commonly confuse the Delete and Backspace keys. Note that the Mac Delete key (backwards delete action) is legended Backspace on the Advantage MPC USB keyboard.
  • Page 19 Kinesis specifically for users transitioning from the traditional keyboard to the Kinesis keyboard. Whether or not you are a touch typist, typing exercises such as these can help you to rapidly adjust to your keyboard’s new reaches and motions. However, these exercises are not intended as a tool for a keyboard novice to learn proficient typing.
  • Page 20 Starting to type To start typing, place your fingers on the Kinesis home row keys (the blue key caps). Relax your right thumb over the Space key and your left thumb over Backspace. Raise your palms slightly above the palm rests while typing.

  • Page 21: Chapter Three: Adaptation Guidelines

    Typical adaptation period You will need a little time to adjust to the new shape of the Kinesis keyboard. Laboratory studies and many years of experience show that most new users of Kinesis contoured keyboards are productive (approximately 80% of full speed) within the first few hours.
  • Page 22 You also may experience muscle fatigue and/or mild discomfort for a few days until your body has adjusted to the required positions and motions. Note: If new symptoms persist for more than a few days, stop using the Kinesis keyboard and see C...

  • Page 23: Chapter Four: If You Are Injured

    When to begin using your new keyboard Consider beginning to use your Kinesis keyboard after you have taken a break from traditional keyboarding — perhaps after a weekend or a vacation. This gives your body a chance to rest.
  • Page 24 Remember, even if you are symptom free after using the Kinesis keyboard for a period of time, you are still susceptible to injury. Do not dramatically increase your keyboarding time or stop treatments without consulting your health care professional. If your thumbs are sensitive The Kinesis contoured keyboard is designed for increased thumb usage compared to the traditional keyboard.

  • Page 25: Chapter Five: Customizing Your Keyboard

    HAPTER USTOMIZING YOUR EYBOARD You can personalize the settings that control the electronic key click and toggle-key tones. Two non-volatile memory chips in the keyboard retain your settings even when the power is turned off. You can fully customize the layout for keys and foot switches, and store words, sentences, or key combinations in the keyboard’s memory as macros.
  • Page 26 If you wish to turn on the key click again, simply repeat the process. Note: Most experienced Kinesis keyboard users find that leaving on the key click function makes it easier to use the function keys.
  • Page 27 Macro size (approximate number of characters per macro) Keyboard model 24 macro mode 36 macro mode 48 macro mode Advantage Advantage Pro Performing the memory mode change (Progrm + Shift + Fxx) Before performing this configuration change, review “Performance limitations at higher macro settings,”...
  • Page 28 In fact two sticky modifiers keys can be tapped in sequence before pressing the key to be modified. In general, Kinesis recommends this feature be set in your operating system. With the Kinesis on-board sticky keys feature, if you prefer to occasionally hold down the "sticky modifier,"...
  • Page 29 Remapping from embedded level to top level You can copy an “embedded” key action (such as a “Windows” key) to the top level to make it more convenient. Simply turn on the keypad layer before activating remapping mode. Tap the Keypad key after tapping the source key and before tapping the destination key. Inactivating a key action by remapping The embedded Caps Lock key is a “null”...
  • Page 30 Customizing a foot switch action If you have a single Kinesis foot switch, you can use it to “shift” the embedded keypad to the active state. If you have a Kinesis Triple Action foot switch the other default actions are Shift and Keypad Enter.

  • Page 31: Chapter Six: Trouble Shooting, Technical Support, Repairs

    If no lights, Keypad beep, or clicks occur, the keyboard is not getting power. The most likely cause is a defective main cable. If you want to try your own repair, contact Kinesis Technical Support and ask if they will send you a replacement cable.
  • Page 32 Technical Support If, after reviewing the manual, you still have questions or concerns, you may contact Kinesis for free technical support. Be prepared with your keyboard’s model number and serial number (displayed on the bottom of the keyboard), as well as information about your computer type and operating system.
  • Page 33 When you contact Kinesis, please provide your name, address, and the serial number of your keyboard. If you are shipping the keyboard to Kinesis, you will be provided with a Returned Merchandise Authorization (RMA) number and shipping instructions.

  • Page 35: Chapter Seven: Caring For Your Keyboard

    Do not use the keyboard until it has dried completely. If you spill water on your Kinesis keyboard, tilt the keyboard so that the liquid can drain. Avoid getting the function keys wet in the process. Shake the keyboard vigorously to remove liquid trapped inside the switches.

  • Page 36: Warranty

    Product, contact Kinesis technical support. If you wish to return the Product to Kinesis for any reason, you must obtain from Kinesis an RMA number and instructions for returning the product. You are responsible for the cost of shipping the product to Kinesis.

  • Page 37: Ergonomic Guidelines For Computer Workstations

    In fact, hand and arm injuries can result from elements of your workstation other than your keyboard. To enhance the comfort of your work environment, Kinesis has joined with Herman Miller, Inc. to provide guidance for creating an ergonomically appropriate workspace.
  • Page 38 Reprinted in part with the permission of Herman Miller, Inc., Zeeland, MI USA. Herman Miller, Inc. does not necessarily recommend the use of the Kinesis keyboard. Design concept; LANDMARK bv DESIGN & CONSULT, THE NETHERLANDS © 1992 HERMAN MILLER, INC., Zeeland, MI USA...

  • Page 39: Appendix

    Hold down Progrm + Shift and tap F5 to toggle between QWERTY (upper left legends) and Dvorak (lower right legends). All Advantage MPC keyboards support this feature but only Advantage MPC/QD keyboards are shipped with dual legends. If you wish to purchase a dual legend upgrade kit, contact Kinesis Sales (see HAPTER...

  • Page 40: Mac International Key Actions

    Appendix D: Mac I NTERNATIONAL CTIONS The key to the left of Left arrow (²) is the "International key" which changes with the keyboard country established in your control panel. This action is shown below for selected countries: Country Unshifted Shifted §...
  • Page 41 To change a setting, pressing and hold the “=” key in the number row (above the Tab key) on your Advantage keyboard, then tap the appropriate second key. To turn off all settings in a group, activate one of the master settings (=m, =p, or =w).

  • Page 42: Index

    Individual Feature Settings These key combinations can be performed to change the status of an individual feature. To change a setting, pressing and hold the “=” key in the number row (above the Tab key) on your Advantage keyboard, then tap the appropriate second key.
  • Page 43 Returning any Kinesis product........
