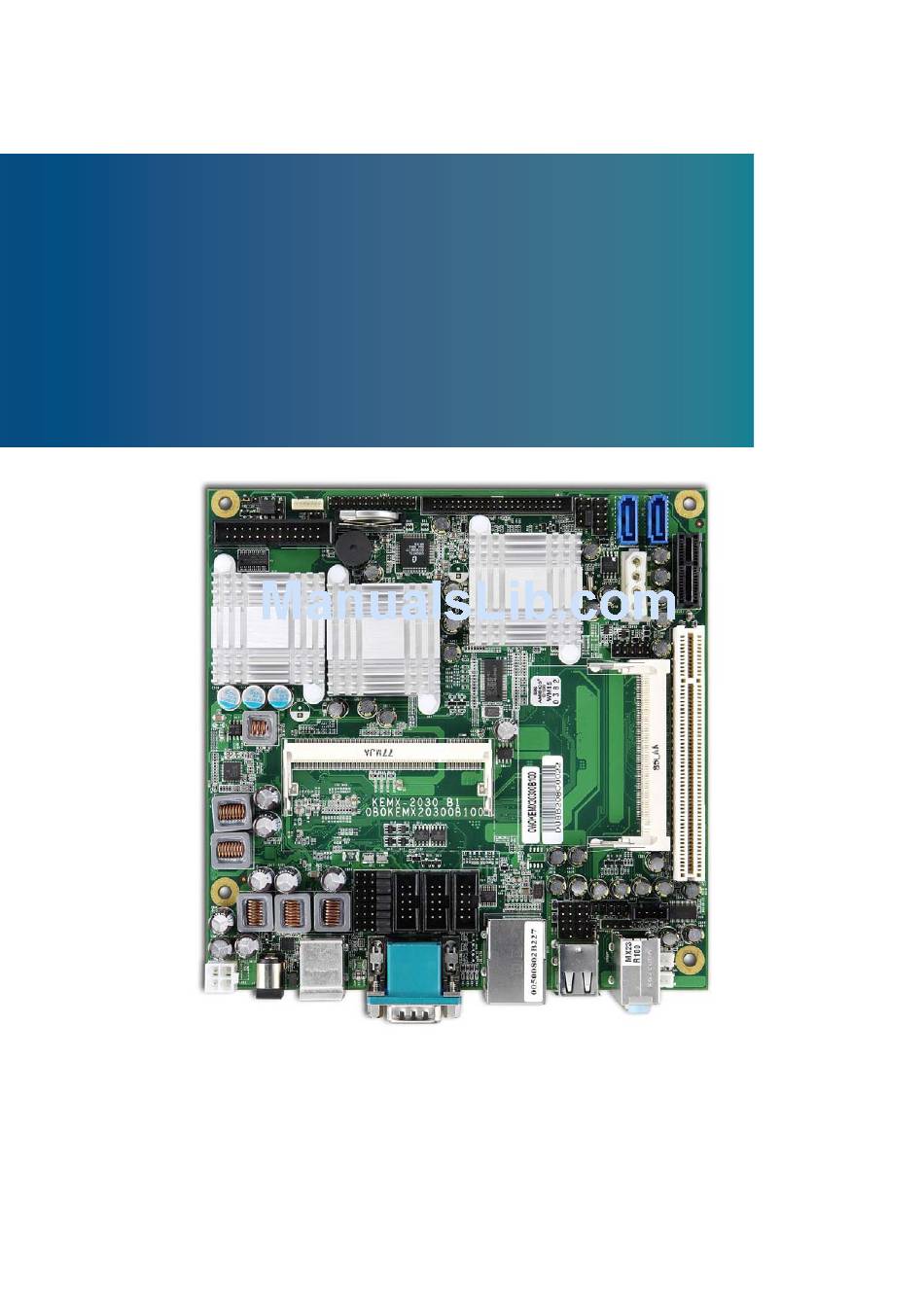

- Page 1 KEMX-2030 Industrial Motherboard in Mini-ITX form factor with Intel® Atom N270 User’s Guide KEMX-2030 User’s Manual...
- Page 2 Revision Date 12/31/2008 1.01 2/16/2009 1.02 4/06/2009 1.03 7/27/2009 1.04 12/16/2009 KEMX-2030 User’s Manual Edited by Changes SLee Initial Release SLee Add LPT SLee Add I/O Shield in packing list SLee Add COM1 RS422/485 pin out SLee Correct RS232/422/485 pin...
-
Page 3: Table Of Contents
Chapter 4 AMI BIOS Setup ... 39 Overview ... 39 Main Menu ... 40 Advanced Menu ... 41 Boot Menu ... 45 Chipset Menu ... 46 Power Menu ... 48 KEMX-2030 User’s Manual Content Content... - Page 4 Content Security Menu ... 49 Exit Menu ... 50 Chapter 5 Driver Installation ... 52 Appendix A System Resources ... 53 Appendix B DIO (Digital I/O) KIT User Guide ... 56 KEMX-2030 User’s Manual...
-
Page 5: Figures
Figure 5 Rear Panel IO ... 24 Figure 6 Expansive Interfaces ... 37 Figure 7 Align the SO-DIMM Memory Module with the onboard socket ... 38 Figure 8 Press down on the SO-DIMM Memory Module to lock it in place 38 KEMX-2030 User’s Manual... -
Page 6: Tables
Tables Tables Table 1 KEMX-2030 Specification ... 17 Table 2 Jumper List ... 22 Table 3 JP1 Backlight Enable Selection ... 22 Table 4 JP2 Backlight & Panel Power Selection ... 22 Table 5 JP3 Clear CMOS Selection ... 22 Table 6 JP4 COM1 Signal / Power Selection ... - Page 7 Table 47 Boot Menu ... 45 Table 48 Chipset Menu ... 46 Table 49 Video Function Configuration ... 47 Table 50 Power Menu ... 48 Table 51 Security Menu ... 49 Table 52 Exit Menu ... 50 KEMX-2030 User’s Manual...
-
Page 8: Safety Instructions
Turn off the computer and any peripherals. Disconnect the computer and peripherals from their power sources or subsystems to prevent electric shock or system board damage. This does not apply when hot swapping parts. KEMX-2030 User’s Manual WARNING Safety Instructions... -
Page 9: Preventing Electrostatic Discharge
ESD workstation or grounded. This will discharge any static electricity that may have built up in your body. When transporting a sensitive component, first place it in an antistatic container KEMX-2030 User’s Manual CAUTION Safety Instructions... - Page 10 Handle components and boards with care. Don’t touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields. KEMX-2030 User’s Manual...
-
Page 11: Preface
Operation of this equipment in a residential KEMX-2030 User’s Manual Preface NOTE... -
Page 12: Warranty Policy
Returns for Warranty must include a Failure Report for each unit, by serial number(s), as well as a copy of the original invoice showing the KEMX-2030 User’s Manual NOTE Preface... -
Page 13: Limitation Of Liability
Failure to do so may cause damage to internal components, particularly the hard disk drive. Humidity High-humidity can cause moisture to enter and accumulate in the system. This moisture can cause corrosion of internal components and degrade such KEMX-2030 User’s Manual Preface... -
Page 14: Power Protection
Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. Uninterruptible Power Supply KEMX-2030 User’s Manual Preface... - Page 15 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. KEMX-2030 User’s Manual...
-
Page 16: Chapter 1 Introduction
Overview The KEMX-2030 is a Mini-ITX form factor industrial motherboard combining the latest Intel 45nm Intel® Atom™ processor with the high integration of the Intel® 945GSE/ ICH7-M chipset. The new architecture of Atom™ N270 enable the lowest power consumption and smallest form factor for thin client and fundamental use. Featured are DDR2-400/533 SODIMM up to 2GB, 18/ 24-bit LVDS, Fast Ethernet, SATA 3 Gb/s, PCIe riser for 3x PCIe x1/ PCI/ mini PCI Expansion slot, 8x USB 2.0, 4 COM ports... -
Page 17: Product Specifications
Intel® 945GSE + ICH7-M Memory 1x DDR2 400/533 SO-DIMM Socket, up to 2GB BIOS AMI PnP 8Mb SPI ROM Integrated on Intel® 945GSE Chipset 18/24-bit dual-channel LVDS from Chrontel CH7308 Display 18-bit Dual channel LVDS from 945GSE optional 1x VGA... -
Page 18: System Block Diagram
Chapter 1 System Block Diagram Figure 1 Block Diagram KEMX-2030 User’s Manual... -
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Figure 2 Mechanical Dimensions KEMX-2030 User’s Manual... -
Page 20: Chapter 2 Hardware Settings
No.1. To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the pins and move it to the desired position. KEMX-2030 User’s Manual... -
Page 21: Jumper Settings And Pin Definitions
Jumper Settings and Pin Definitions For jumper and connector locations, please refer to the diagrams below. LVDS1 LPT1 ATX1 CN10 Figure 4 Jumper and Connector Locations KEMX-2030 User’s Manual IDE1 DIMM1 COM2 COM3 COM4 USB4 USB3 CN4 Chapter 2 SATA1... -
Page 22: Jumper Settings
Table 4 JP2 Backlight & Panel Power Selection Jumper Pitch 2.54mm [YIMTEX 3362*03SAGR] Table 5 JP3 Clear CMOS Selection Pitch:2.54mm [YIMTEX 3321*02SAGR(6T)] KEMX-2030 User’s Manual Table 2 Jumper List Function Backlight Enable Selection Backlight & Panel Power Selection Clear CMOS Selection... -
Page 23: Table 6 Jp4 Com1 Signal / Power Selection
Pitch:2.54mm [YIMTEX 3322*05SAGR(6T] Table 8 JP8 For Quanmax internal test only, do not change default setting Pitch:2.0mm [YIMTEX 3291*03SAGR(6T)] Table 9 JP9 Power Mode Selection Pitch:2.54mm [YIMTEX 3321*02SAGR(6T)] KEMX-2030 User’s Manual Setting 1-3 Short Pin 1 of COM1 = +12V 3-5 Short... -
Page 24: Rear Panel Pin Assignments
Table 11 AUDIO1 AUDIO JACK*3 DIP Vertical [Foxconn JA33331-H11P-4F] Table 12 USB2, USB2.0 Port 2, 3 Type A Connector USB DIP 4*2P 90D [KUON YI KS-002-ANB-L] KEMX-2030 User’s Manual Figure 5 Rear Panel IO 3-Port Audio phone jack Signal Name... -
Page 25: Table 13 Cn9, Usb2.0 Port 0, 1 Connector & Ethernet Rj-45 Connector
Table 13 CN9, USB2.0 Port 0, 1 Connector & Ethernet RJ-45 Connector USB*2/RJ45*1+TFM+LED(10/100)22P DIP 90° [UDE RU1-161A1Z1F(XB)] Table 14 CN1, VGA Connector & RS-232(422/485) Port A DB-9 Connector D-SUB 9P(M)&15S(19.05mm(F) FOR PC99 FOLLOW PANTONE KEMX-2030 User’s Manual Signal MDI[0]+ MDI[0]-... -
Page 26: Table 15 Cn 10, Ps/2 Kb/Ms Connector
MINI DIN DIP 6/6P MH11061-P36-4F 90D(F) Kb/Ms for PC99 CONNECTOR Table 16 J1, +12V Power Input Connector DC POWER DIP 3PIN φ 2.5mm 90° [KUON YI KD-014SA-L] Do not use J1 & ATX1 connectors at the same time. KEMX-2030 User’s Manual Signal KBDAT Keyboard Data... -
Page 27: Main Board Pin Assignments
MPCI1 PCI1 ATX1 LPT1 Table 18 CN2, Panel Backlight Wafer Pitch:1.25mm WAFER [YIMTEX 501MW1*7STR] KEMX-2030 User’s Manual Table 17 Internal Connector List Function Panel Backlight Wafer Digital Input / Output Pin Header Front Panel Audio Pin Header CD-In Connector Pin Header... -
Page 28: Table 19 Cn3, Digital Input / Output Pin Header
Table 20 CN4, Front Panel Audio Pin Header Pitch:2.54mm w/o Pin 8 [YIMTEX 3322*05SAGR(6T)-08] Pitch:2.54mm WAFER [YIMTEX 522CW4SGR] Table 22 CN6, S/PDIF Pin Header Pitch:2.54mm [YIMTEX 3321*04SAGR(6T)] KEMX-2030 User’s Manual Signal Digital Output 0 Digital Output 1 Digital Output 2... -
Page 29: Table 23 Cn7, Audio Amp Right Output Wafer
Table 25 CN11, AT Power Output Wafer Pitch: 5.08mm W/O LOCK [VENSIK 2470-F-04PST-PB] Table 26 FP1, Front Panel 1 Pin Header Pins 6-8 shorted: Internal Speaker Enable (default) Pitch:2.54mm [YIMTEX 3322*04SAGR(6T)] KEMX-2030 User’s Manual Signal Name Speaker+ Speaker- Signal Name... -
Page 30: Table 27 Fp2, Front Panel 2 Pin Header
Table 27 FP2, Front Panel 2 Pin Header Pitch:2.54mm [YIMTEX 3322*05SAGR(6T] Table 28 LVDS1, LVDS Panel Connector Pitch:2.0mm CUT27 [YIMTEX 3292*15SAGR(6T)-27] KEMX-2030 User’s Manual Signal Power LED + Power LED - Keyboard Lock Signal Name LVDS_A0- LVDS_A1- LVDS_A2- LVDS_ACK- LVDS_A3-... -
Page 31: Table 29 Ide1, Primary 44-Pin Ide Box Header
IDE Address 1 IDE Address 0 IDE Chip select 1# IDE activity Pitch:2.0mm [YIMTEX 32644SAGR(6T)] Table 30 SATA1,2, SATA Connector SATA WATM-07ABN4B2B8UW4 [WIN WIN] KEMX-2030 User’s Manual Ground Signal Name Chapter 2 Signal Name IDE Data 8 IDE Data 9... -
Page 32: Table 31 Usb3, Usb2.0 Port 4, 5 Pin Header
Pitch:2.54mm [YIMTEX 3322*05SAGR(6T) -09] Table 32 USB4, USB2.0 Port 6, 7 Pin Header Pitch:2.54mm [YIMTEX 3322*05SAGR(6T) -09] Table 33 COMx RS-232 Port-x Box Header（x = 2, 3, 4） Pitch:2.54mm [YIMTEX 32510SAG1R(6T)] KEMX-2030 User’s Manual Signal Name USB4- USB4+ Signal Name... -
Page 33: Table 34 Pcie1 Pcie Slots
PCI 18*2P EXPRESS 180D(F) Black [ Win Win WPES--036AN41B22UWS] Table 35 MPCI1, Mini-PCI Socket KEMX-2030 User’s Manual Table 34 PCIE1 PCIE slots PCIE slots Side B 3.3VSB PCIE_WAKE# PCI_RST# Ground PCIE_TXP2 PCIE_TXN2 Ground PCIE_TXP3 PCIE_TXN3 Ground Ground Ground Signal INTA# +3.3V... - Page 34 MINIPCI [FOXCONN AS0B126-S99N-4F] KEMX-2030 User’s Manual AD31 AD29 AD27 AD25 CBE3# AD23 AD21 AD19 AD17 CBE2# IRDY# +3.3V SERR# PERR# CBE1# AD14 AD12 AD10 +3.3V Chapter 2 PME# AD30 +3.3V AD28 AD26 AD24 IDSEL AD22 AD20 AD18 AD16 FRAME# TRDY# STOP# +3.3V...
-
Page 35: Table 36 Pci1, Pci Slots
KEMX-2030 User’s Manual Table 36 PCI1, PCI slots 5V Board PCI Revision 2.1 Side B Side A -12V TRST_L +12V Ground INTA_L INTB_L INTC_L INTD_L PRSNT1_L Reserved Reserved PRSNT2_L Reserved Ground Ground Ground Ground Reserved Reserved Ground RST_L Ground GNT_L... -
Page 36: Table 37 Atx1, +12V Power Input Connector
PCI 60*2P 180D (F) [FOXCONN EH06001-DAW-DF] Table 37 ATX1, +12V Power Input Connector Pitch:4.2mm [YIMTEX 576MWA2*02STR] Do not use J1 & ATX1 connectors at the same time. Pitch:2.54mm [YIMTEX 32526SAG1R(6T)] KEMX-2030 User’s Manual 5V Board PCI Revision 2.1 Side B KEYWAY KEYWAY... -
Page 37: Chapter 3 System Installation
SO-DIMM. Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a malfunction. KEMX-2030 User’s Manual Chapter 3 Figure 6 Expansive Interfaces NOTE... -
Page 38: Figure 7 Align The So-Dimm Memory Module With The Onboard Socket
SO-DIMM. Lift it out of the socket. Make sure you store the SO-DIMM in an anti-static bag. The socket must be populated with memory modules of the same size and manufacturer. KEMX-2030 User’s Manual Chapter 3... -
Page 39: Chapter 4 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. KEMX-2030 User’s Manual Chapter 4 Chapter 4... -
Page 40: Main Menu
:Not Detected LBA/ Large Mode DMA Mode S.M.A.R.T V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. KEMX-2030 User’s Manual Table 39 BIOS Main Menu BIOS SETUP UTILITY B o o t C h i p s e t P o w e r... -
Page 41: Advanced Menu
Options: Auto, Disabled, Enabled A d v a n c e d M a i n AMIBIOS Version : 1.3 Build Date: :12/26/08 Processor Intel® Atom™ CPU N270 Speed :1600MHz Count System Memory Size :1016MB V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. Advanced Menu... -
Page 42: Table 43 Onboard I/O Configuration
Options: Normal, IrDA, ASK IR, Smart Card Reader Parallel Port Address Options: 378, 278, 3BC Parallel Port Mode KEMX-2030 User’s Manual Table 43 Onboard I/O Configuration BIOS SETUP UTILITY B o o t C h i p s e t... -
Page 43: Table 44 Onboard Peripherals Configuration Settings
Audio Controller Options: Enabled, Disabled Onboard LAN Controller Options: Enabled, Disabled Onboard LAN OPTROM Options: Enabled, Disabled KEMX-2030 User’s Manual BIOS SETUP UTILITY B o o t C h i p s e t P o w e r [Enable]... -
Page 44: Table 45 Trusted Computing
V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80°C/176°F, 85°C/185°F, 90°C/194°F, 95°C/203°F CPU Shutdown Temperature Options: Disabled, 80°C/176°F, 85°C/185°F, 90°C/194°F, 95°C/203°F KEMX-2030 User’s Manual Table 45 Trusted Computing BIOS SETUP UTILITY B o o t C h i p s e t... -
Page 45: Boot Menu
Hit ‘DEL’ Message Display [Enabled] When set to Enabled, the system displays the message ‘Press DEL to run Setup’ during POST. Options: Disabled, Enabled KEMX-2030 User’s Manual Table 47 Boot Menu BIOS SETUP UTILITY C h i p s e t... -
Page 46: Chipset Menu
Select the amount of system memory used by the Internal graphics device. Options: Disabled, Enabled 1MB, Enabled 8M Hyper Threading Technology Options: Disabled, Enabled KEMX-2030 User’s Manual Table 48 Chipset Menu BIOS SETUP UTILITY B o o t P o w e r... -
Page 47: Table 49 Video Function Configuration
24Bit 2CH Local Flat Panel Scaling Options: Auto, Forced Scaling, Disabled Panel BackLight Voltage Options: Min 0.0V, Max: 5.0V KEMX-2030 User’s Manual Table 49 Video Function Configuration BIOS SETUP UTILITY B o o t P o w e r C h i p s e t... -
Page 48: Power Menu
Options: Disabled, Enabled, If the value is Enabled. RTC Alarm Date (Days) [Every Day] RTC Alarm Time [00:00:00] KEMX-2030 User’s Manual Table 50 Power Menu BIOS SETUP UTILITY B o o t C h i p s e t P o w e r... -
Page 49: Security Menu
Select this item to set or change the user password. The User Password item on top of the screen displays the default Not Installed. After you have set a password, this item displays Installed. KEMX-2030 User’s Manual Table 51 Security Menu BIOS SETUP UTILITY... -
Page 50: Exit Menu
Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation. KEMX-2030 User’s Manual Table 52 Exit Menu BIOS SETUP UTILITY... - Page 51 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KEMX-2030 User’s Manual...
-
Page 52: Chapter 5 Driver Installation
Driver Installation If your KEMX-2030 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. -
Page 53: Appendix A System Resources
NPU / Math coprocessor) Primary IDE channel Secondary IDE channel Note: If the “Used For” device is disabled in setup, the corresponding interrupt is available for other devices. KEMX-2030 User’s Manual Appendix A Appendix A Comment Note (1) Note (1) - Page 54 I/O Address Map I/O Address 00h – 0Fh C0h – DFh 20h, 21h 2Eh, 2Fh A0h, A1h 40h – 43h (XT/AT) KEMX-2030 User’s Manual Comment Note (1) Note (1) Unavailable if LPT used in ECP mode. Note (1) Used For...
- Page 55 VIN2 VIN3 VIN4 VIN5 VIN6 5VSB SYS_TEMP CPU_TEMP PRDCHOT# BEEP KEMX-2030 User’s Manual KeyBoard Controller PS/2 P OS Math Co-Processor, X87 Unit Secondary IDE Primary IDE GAME I/O Sound Blaster / AD Lib Plug and Play Configuration Register HW Monitor Access Port...
-
Page 56: Appendix B Dio (Digital I/O) Kit User Guide
Go in to the “DIO KITS” folder. Double Click on the DIO installation program to start the installation. The installation program name will vary according to the platform which it applied to. For example, if the platform name is KEMX-2030, the installation program will be name as “DIO Tool for KEMX-2030.exe”. KEMX-2030 User’s Manual... - Page 57 As the .NET Framework 2.0 is a prerequisite, the installation program will prompt to install .NET Framework installation first should the .NET Framework 2.0 is not installed. The .NET Framework 2.0 installation would take a couple minutes to finish. Click “Next” to agree to start installation program KEMX-2030 User’s Manual...
- Page 58 “Next” to agree to continue the installation process Click “Next” to agree all setting made and start installation process After the installation process is complete, click “Close” to close down the installation program Installation is now complete. KEMX-2030 User’s Manual...
- Page 59 Click on “Switch Output” button can switch the corresponding output. The input readings will only be update by hitting the “Read Input” button. CN3 to DIO Program look up table: Pin # DIO Input# Pin # DIO Output # KEMX-2030 User’s Manual Appendix B 10 (GND) 9 (+5V)
- Page 60 How to uninstall the test program: From Control Panel, select the “Add or Remove Program”. Select the “Quanmax DIO Tool”, click on “Remove” button to start the uninstall process Click on “Yes” button to confirm the removal of the DIO Tool Kit. KEMX-2030 User’s Manual...
