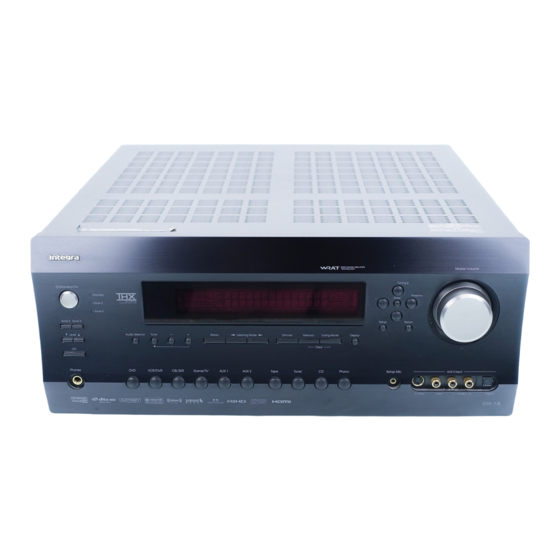

AV Receiver
DTR-7.8
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTR-7.8 and is the answer not in the manual?

Questions and answers

Related Manuals for Integra DTR-7.8

Summary of Contents for Integra DTR-7.8

  • Page 1 AV Receiver DTR-7.8 Instruction Manual...

  • Page 2: Important Safety Instructions

    Thank you for purchasing an Integra AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver.
  • Page 3 Precautions 1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal with- out the permission of the copyright holder. 2. AC Fuse—The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact the dealer from whom you purchased this unit..
  • Page 4 Precautions—Continued For British models Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue: Neutral Brown:...

  • Page 5: Table Of Contents

    Connecting a Power Amplifier ...40 Connecting an RI Dock ...41 Connecting the Power Cords of Other Components (North American model only) ...41 Connecting Integra/Onkyo Components ...42 Connecting the Power Cord ...42 Turning On the AV Receiver ... 43 Turning On and Standby ...43 First Time Setup ...

  • Page 6: Features

    Features Amplifier • 7-channel amplifier • 130 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven from 20 Hz to 20 kHz, with a maximum total harmonic distortion of 0.08% (FTC) • Linear Optimum Gain Volume Circuitry •...

  • Page 7: Supplied Accessories

    Features—Continued ©2005 SIRIUS Satellite Radio Inc. “SIRIUS,” SiriusConnect, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. Available only in the contiguous United States (excluding Alaska and Hawaii) and Canada. Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending.

  • Page 8: Multiroom Capability

    Multiroom Capability You can use three speaker systems with this AV receiver—a surround-sound speaker system (up to 7.1 channels) in your main listening room, a stereo speaker system in a second room, or Zone 2, as we call it, and another stereo speaker system in a third room that we call Zone 3 (external power amplifier required).

  • Page 9: Getting To Know The Av Receiver

    Getting to Know the AV Receiver Front Panel North American model Other models The actual front panel has various logos printed on it. They are not shown here for clarity. For detailed information, see the pages in parentheses. Standby/On button (43) Sets the AV receiver to On or Standby.
  • Page 10 Getting to Know the AV Receiver—Continued Zone 3 indicator (115) Flashes when Zone 3 is being set. Lights up when Zone 3 is on. Remote-control sensor (14) Receives control signals from the remote controller. Stereo button (82) Selects the Stereo listening mode. Listening Mode [ Select the listening modes.

  • Page 11: Display

    Getting to Know the AV Receiver—Continued Display For detailed information, see the pages in parentheses. Speaker/channel indicators (87) Indicate the speaker configuration and channels used by the current input source. – : A box is displayed for each speaker that’s set in the Speaker Configuration.

  • Page 12: Rear Panel

    Getting to Know the AV Receiver—Continued Rear Panel RS232 COMPONENT VIDEO ASSIGNABLE MONITOR IN 3 IN 2 IN 1(DVD) OUT 1 REMOTE CONTROL DIGITAL ASSIGNABLE COAXIAL IN 1 (DVD) IN 2 (VCR/DVR) IN 3 (CBL/SAT) OPTICAL PHONO IN 1 (GAME/TV) SURR BACK R ZONE2 R IN 2...
  • Page 13 Getting to Know the AV Receiver—Continued IR IN A/B and OUT A commercially available IR receiver can be con- nected to the IR IN A or B jack, allowing you to control the AV receiver while you’re in Zone 2, or control it when it’s out of sight, for example, installed in a cabinet.

  • Page 14: Remote Controller

    Remote Controller Installing the Batteries To open the battery compartment, press the small hollow and slide open the cover. Insert the three supplied batteries (AA/R6) in accordance with the polarity diagram inside the battery compartment. Slide the cover shut. Notes: •...

  • Page 15: About The Remote Controller Modes

    (see page 119). ■ CD/CDR/MD Mode By default, you can control an Integra/Onkyo CD player in this mode. By entering the appropriate remote control code, you can control a CD player, MD recorder, or CD recorder made by another manufacturer (see page 119).
  • Page 16 Remote Controller—Continued For detailed information, see the pages in parentheses. Standby button (43) Sets the AV receiver to Standby. On button (43) Turns on the AV receiver. Input Selector buttons (60) Used to select the input source. Macro buttons (123) Used with the Macro function.

  • Page 17: Dvd Mode

    Remote Controller—Continued DVD Mode To set the remote controller to DVD mode, press the [DVD] Remote Mode button. Standby Input TV CH Game AUX 1 AUX 2 Tape Tuner TV VOL Phono D.TUN Clear --/--- 10 Input Selector Macro Zone 3 Remote Mode Zone 2 CDR/MD...

  • Page 18: Cd/Md/Cdr Modes

    Remote Controller—Continued CD/MD/CDR Modes To control an Integra/Onkyo CD player, MD recorder, or CD recorder, or a CD or MD player/recorder made by another manufacturer, press the [CD] Remote Mode button to select the CD/MD/CDR remote controller mode. In order to control an Onkyo MD recorder or CD recorder, or a component made by another manufacturer, you must first enter the appropriate remote control code...

  • Page 19: Dock Mode

    Remote Controller—Continued Dock Mode Dock mode is for controlling an Apple iPod in an Onkyo RI Dock. When Using an RI Dock: • Connect the RI Dock to the TAPE IN or GAME/TV IN L/R jacks. • Set the RI Dock’s RI MODE switch to HDD or HDD/DOCK.

  • Page 20: Connecting Your Speakers

    Connecting Your Speakers Enjoying Home Theater Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. You can enjoy DVDs featuring Dolby Digital or DTS. With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo’s original DSP listening modes.

  • Page 21: Attaching Speaker Labels

    Connecting Your Speakers—Continued Connecting Your Speakers Speaker Configuration For the best surround-sound experience, you should con- nect seven speakers and a powered subwoofer. The following table shows which channels you should use based on the number of speakers you have. Number of speakers: ✓...

  • Page 22: Speaker Connection Precautions

    Connecting Your Speakers—Continued Speaker Connection Precautions Read the following before connecting your speakers: • You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more but less than 6, be sure to set the speaker impedance to 4 ohms (see page 44).

  • Page 23: Bi-Amping The Front Speakers

    Connecting Your Speakers—Continued Bi-amping the Front Speakers The FRONT L/R and SURR BACK L/R terminal posts can be used with front speakers and surround back speakers respectively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers that support bi-amping, providing improved bass and treble performance.

  • Page 24: Connecting Antennas

    Connecting Antennas This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

  • Page 25: Connecting An Outdoor Fm Antenna

    Connecting Antennas—Continued Connecting an Outdoor FM Antenna If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available out- door FM antenna instead. Notes: • Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.

  • Page 26: Connecting Your Components

    Connecting Your Components About AV Connections • Before making any AV connections, read the manuals supplied with your other AV components. • Don’t connect the power cord until you’ve completed and double-checked all AV connections. Optical Digital Jacks The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed.

  • Page 27: Connecting Audio And Video Signals To The Av Receiver

    Connecting Your Components—Continued Connecting Audio and Video Signals to the AV Receiver By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you can switch the audio and video signals simultaneously simply by changing the input source on the AV receiver. : Signal Flow Video Audio...
  • Page 28 Connecting Your Components—Continued ■ HDMI Monitor Setting Set to No With the HDMI Monitor setting set to No (see page 45), video input signals flow through the AV receiver as shown, with composite video and S-Video sources being upconverted for the component video output.

  • Page 29: Connecting A Tv Or Projector

    Connecting Your Components—Continued Connecting a TV or Projector Step 1: Video Connection Choose a video connection that matches your TV ( , Step 2: Audio Connection Choose an audio connection that matches your TV ( , • With connection , you can listen to and record audio from your TV or listen in Zone 2 or Zone 3. •...

  • Page 30: Connecting A Dvd Player

    Connecting Your Components—Continued Connecting a DVD player Step 1: Video Connection Choose a video connection that matches your DVD player ( , If you use connection , you must connect the AV receiver to your TV with the same type of connection. Step 2: Audio Connection Choose an audio connection that matches your DVD player ( , •...
  • Page 31 Connecting Your Components—Continued Hooking Up the Multichannel Input If your DVD player supports multichannel audio formats such as DVD-Audio and SACD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel input. Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s MULTI CH FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your DVD player.

  • Page 32: Connecting A Vcr Or Dvr For Playback

    Connecting Your Components—Continued Connecting a VCR or DVR for Playback With this hookup, you can use the tuner in your VCR or DVR to listen to your favorite TV programs Hint! via the AV receiver, which is useful if your TV has no audio outputs. Step 1: Video Connection Choose a video connection that matches your VCR or DVR ( , connection...

  • Page 33: Connecting A Vcr Or Dvr For Recording

    Connecting Your Components—Continued Connecting a VCR or DVR for Recording Step 1: Video Connection Choose a video connection that matches your VCR or DVR ( source to be recorded must be connected to the AV receiver via the same type of connection. Step 2: Audio Connection Choose an audio connection that matches your VCR or DVR ( Connection...

  • Page 34: Connecting A Satellite, Cable, Or Terrestrial Set-Top Box Or Other Video Source

    Connecting Your Components—Continued Connecting a Satellite, Cable, or Terrestrial Set-top box or Other Video Source With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs Hint! via the AV receiver, which is useful if your TV has no audio outputs. Step 1: Video Connection Choose a video connection that matches the video source ( , If you use connection...

  • Page 35: Connecting Components With Hdmi

    Connecting Your Components—Continued Connecting Components with HDMI About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components.

  • Page 36: Making Hdmi Connections

    Connecting Your Components—Continued Making HDMI Connections Step 1: Use HDMI cables to connect the AV receiver’s HDMI jacks to your HDMI-compatible DVD player, TV, projector, and so on. Step 2: Assign each HDMI IN to an input selector. See “HDMI Input Setup” on page 46. ■...

  • Page 37: Connecting A Game Console

    Connecting Your Components—Continued Connecting a Game Console Step 1: Video Connection Choose a video connection that matches your game console ( , If you use connection , you must connect the AV receiver to your TV with the same type of connection. Step 2: Audio Connection Choose an audio connection that matches your DVD player ( , •...

  • Page 38: Connecting A Camcorder Or Other Av Component

    Connecting Your Components—Continued Connecting a Camcorder or Other AV Component Step 1: Video Connection Choose a video connection that matches your camcorder ( Step 2: Audio Connection Choose an audio connection that matches your camcorder ( Connection AUX 2 Input S Video AUX 2 Input Video AUX 2 Input L/R AUX 2 Input Digital...

  • Page 39: Connecting A Cd Player

    Connecting Your Components—Continued Connecting a CD Player Step 1: Choose a connection that matches your CD player ( , COAXIAL IN 2 OPTICAL IN 2 Connect one or the other • With connection , you can listen to and record audio from the CD player or listen in Zone 2 or Zone 3. •...

  • Page 40: Connecting A Cassette, Cdr, Minidisc, Or Dat Recorder

    Connecting Your Components—Continued Connecting a Cassette, CDR, MiniDisc, or DAT Recorder Step 1: Choose a connection that matches your recorder ( , COAXIAL IN 2 OPTICAL IN 2 Connect one or the other • With connection , you can play and record or listen in Zone 2 or Zone 3. •...

  • Page 41: Connecting An Ri Dock

    On or Standby, or Ready mode in this case, so any components connected to them cannot be turned on or off automatically. • Integra/Onkyo components connected via directly to a wall outlet, not an AC OUTLET on the AV receiver.

  • Page 42: Connecting Integra/Onkyo Components

    Connecting Your Components—Continued Connecting Integra/Onkyo Step 1: Make sure that each Integra/Onkyo component is connected to the AV receiver with an analog audio cable (RCA). Step 2: Make the necessary Step 3: If you’re using an MD, CDR, or RI DOCK component, change the Input Display (see page 49).

  • Page 43: Turning On The Av Receiver

    Turning On the AV Receiver • North American model Standby/On Standby indicator Turning On and Standby On the AV receiver, press the [Standby/On] button. Remote AV receiver controller On the remote controller, press the [Receiver] Remote Mode button, fol- lowed by the [On] button. Receiver The AV receiver comes on, the display lights up, and the Standby indicator goes off.

  • Page 44: First Time Setup

    First Time Setup This section explains the settings that you need to make before using the AV receiver for the very first time. Speaker Settings Game AUX 1 If you change these settings, you must run the auto- Tape Tuner matic speaker setup again (see page 53).

  • Page 45: Hdmi Monitor Setup

    First Time Setup—Continued HDMI Monitor Setup Standby Input TV CH Game AUX 1 AUX 2 Tape Tuner TV VOL Phono D.TUN Clear --/--- 10 Input Selector Macro Zone 3 Remote Mode Zone 2 CDR/MD Cable Dock Receiver Tape/AMP Dimmer Sleep 2, 3 Enter Disc...

  • Page 46: Hdmi Input Setup

    First Time Setup—Continued Use the Up and Down [ buttons to select “Monitor Out2,” and use the Left and Right ] buttons to select: Monitor:Select this if you’ve con- nected the COMPONENT VIDEO MONITOR OUT 2/ZONE 2 OUT to a TV or other component in your main room.
  • Page 47 First Time Setup—Continued Press the [Receiver] button, fol- lowed by the [Setup] button. Receiver The main menu appears onscreen. Use the Up and Down [ buttons to select “1. Input/Output Assign,” and then press [Enter]. Enter The Input/Output Assign menu appears.

  • Page 48: Component Video Input Setup

    First Time Setup—Continued Component Video Input Setup Standby AUX 1 Game Tape Tuner Phono --/--- 10 Input Selector Macro Remote Mode CDR/MD Cable Dimmer 2, 3 Enter Disc Album 1, 5 Prev Display Playlist Listening Mode Stereo Surround Repeat Audio Subtitle If you connect a video component to a COMPONENT VIDEO IN, you must assign that input to an input...

  • Page 49: Changing The Input Display

    First Time Setup—Continued Press the [Setup] button. Setup closes. Notes: • For composite video and S-Video upconversion for the COMPONENT VIDEO MONITOR OUT 1 or 2, the HDMI Monitor setting must be set to No (see page 45). See page 27 for more information on video signal flow and upconversion.

  • Page 50: Digital Input Setup

    First Time Setup—Continued Digital Input Setup Standby AUX 1 AUX 2 Game Tape Tuner D.TUN Phono --/--- 10 Input Selector Macro Remote Mode CDR/MD Cable Dimmer 2, 3 Enter Disc Album 1, 5 Prev Display Playlist Listening Mode Stereo Surround Repeat Audio Subtitle...
  • Page 51 First Time Setup—Continued Press the [Setup] button. Setup closes. Notes: • Only FRONT can be assigned to the AUX 2 input selector. • The TUNER input selector cannot be assigned and is fixed at the “- - -” option. • When an HDMI IN is assigned to an input selector in “HDMI Video Setup”...

  • Page 52: Analog Input Setup

    First Time Setup—Continued Analog Input Setup Standby Game AUX 1 AUX 2 Tape Tuner Phono --/--- 10 Input Selector Macro Remote Mode CDR/MD Cable Dimmer 2, 3 Enter Disc Album 1, 5 Prev Display Playlist Listening Mode Surround Stereo Repeat Audio Subtitle Direct...

  • Page 53: Automatic Speaker Setup (Audyssey Multeq Xt)

    First Time Setup—Continued Automatic Speaker Setup (Audyssey MultEQ XT) With the supplied speaker setup microphone, Audyssey MultEQ XT can measure the number of speakers con- nected, their sizes, crossover frequencies, and distances from the listening position and calculate the optimal speaker settings for you automatically.
  • Page 54 First Time Setup—Continued Turn on the AV receiver and the connected TV. On the TV, select the input to which the AV receiver is connected. Place the setup microphone at the 1st measurement position, and connect it to the Setup Mic jack.

  • Page 55: Error Messages

    First Time Setup—Continued After the 3rd or 7th measurement, the following screen appears. Auto Speaker Setup Enter Please select “Next”, when measuring next position, and select “finish”, when ending. Next finish(Calculate) Enter Use the Up and Down [ buttons to select an option, and then press [Enter].
  • Page 56 First Time Setup—Continued Speaker Detect Error Auto Speaker Setup -----Speaker Detect Error----- FL : Yes FR : Yes SL : Yes SR : Yes SBL : Yes SBR : Yes SW : Yes Retry Cancel This message appears if a speaker is not detected. “Yes” means that a speaker was detected.

  • Page 57: Using A Powered Subwoofer

    First Time Setup—Continued Reviewing the Results Use the Up and Down [ buttons to select the settings that you want to review, and then Enter press [Enter]. Auto Speaker Setup Save Review SP Config Review SP Distance Review SP Level Enter Cancel The options are:...

  • Page 58: Tv Format Setup (Not North American Models)

    First Time Setup—Continued TV Format Setup (not North American models) Standby Game AUX 1 AUX 2 Tape Tuner Phono D.TUN --/--- 10 Input Selector Macro Remote Mode CDR/MD Cable Dimmer 2, 3 Enter Disc Album 1, 5 Prev Display Playlist Listening Mode Stereo Surround...

  • Page 59: Am Frequency Step Setup(On Some Models)

    First Time Setup—Continued AM Frequency Step Setup (on some models) Standby Input AUX 1 AUX 2 TV CH Game Tape Tuner TV VOL Phono D.TUN Clear --/--- 10 Input Selector Macro Zone 3 Remote Mode Zone 2 CDR/MD Cable Dock Receiver Tape/AMP Dimmer...

  • Page 60: Playing Your Av Components

    Playing Your AV Components Basic AV Receiver Operation AV receiver Remote controller Receiver AUX 1 AUX 2 Game Tape Tuner Phono AV receiver Remote controller Use the AV receiver’s input selector buttons to select an input source. To select an input source with the remote controller, press its [Receiver] Remote Mode button, and then use its Input Selector buttons.

  • Page 61: Listening To The Radio

    Listening to the Radio Listening to AM/FM Stations Tuning Mode Tuner With the built-in tuner, you can enjoy AM and FM radio stations and store your favorite stations as presets for easy selection. Use the [Tuner] input selector button to select AM or FM. In this example, FM has been selected.
  • Page 62 Listening to the Radio—Continued ■ Tuning into Stations by Frequency You can tune into AM and FM stations directly by enter- ing the appropriate frequency. Standby Number buttons Game AUX 1 Tape Tuner Phono --/--- 10 Input Selector Macro Remote Mode Cable Dimmer Press the [Receiver] button, fol-...

  • Page 63: Using Rds (Not North American Model)

    Listening to the Radio—Continued Using RDS (not North American model) RDS only works in areas where RDS broadcasts are available. When tuned to an RDS station, the RDS indi- cator appears. RDS indicator ■ What is RDS? RDS stands for Radio Data System and is a method of transmitting data in FM radio signals.

  • Page 64: Displaying Radio Text (Rt)

    Listening to the Radio—Continued Displaying Radio Text (RT) RT/PTY/TP When tuned to an RDS station that’s broadcasting text information, the text can be displayed. Press the [RT/PTY/TP] button once. The RT information scrolls across the display. Notes: • The message “Waiting” may appear while the AV receiver waits for the RT information.

  • Page 65: Listening To Xm Satellite Radio (North American Model Only)

    Listening to the Radio—Continued Listening to XM Satellite Radio (North American Model Only) Important XM Radio Information XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and entertainment. XM is broadcast in superior digital audio from coast to coast.

  • Page 66: Selecting Xm Satellite Radio

    Listening to the Radio—Continued Use the Up and Down [ buttons to select “3. Tuner,” and then press [Enter]. Enter The Tuner screen appears. 7-3.Tuner Satellite Radio Enter Use the Left and Right [ buttons to select “XM.” If there are 2 items on the Tuner Enter screen, use Up and Down [ ]/[ ] buttons to select “Satellite...

  • Page 67: Selecting Xm Radio Channels

    Listening to the Radio—Continued To sign up, go to: http://activate.xmradio.com Or call: 1-800-967-2346 For XM Canada, go to: http://xmradio.ca Or call: 1-877-438-9677 Notes: • RADIO ID cannot be selected in Category Search mode. You must select Channel Search mode (see right column).

  • Page 68: Displaying Xm Radio Information

    Listening to the Radio—Continued Memory Tuning Mode Remote Mode CDR/MD Cable Dimmer CH + / – Enter Disc Album Prev Display Display Playlist Selecting Channels on the AV receiver: Press the [Tuning Mode] button repeatedly to select Channel Search mode or Category Search mode.

  • Page 69: Xm Radio Messages

    Listening to the Radio—Continued Use the Up and Down [ buttons to select “4. Satellite Radio,” and then press [Enter]. Enter The Satellite Radio screen appears. The name of the currently selected input selector is displayed in a box. Enter Position the XM Mini-Tuner Antenna so that as many bars as possible (up to 3) appear on the...

  • Page 70: Positioning The Antenna

    Listening to the Radio—Continued Listening to SIRIUS Satellite Radio (North American Models Only) Important SIRIUS Satellite Radio Information SIRIUS is available in the US for subscribers with addresses in the continental US and is available in Canada for subscribers with a Canadian address. To Get SIRIUS Satellite Radio a subscription and compatible tuner and antenna are required and sold separately.

  • Page 71: Selecting Sirius Satellite Radio

    Listening to the Radio—Continued Enter Tuner Standby Input TV CH Game AUX 1 AUX 2 Tape Tuner TV VOL Phono D.TUN Tuner Clear --/--- 10 Input Selector Macro Zone 3 Remote Mode Zone 2 CDR/MD Cable Dock Receiver Tape/AMP Dimmer Sleep Enter Disc...

  • Page 72: Signing Up For Sirius Satellite Radio

    Listening to the Radio—Continued Signing Up for SIRIUS Satellite Radio Before you can use SIRIUS Satellite Radio, you must first sign up for an account. You’ll need a major credit card and your SIRIUS Satellite Radio ID, which you can get from the AV receiver, as explained below, or from the SiriusConnect Home tuner package.

  • Page 73: Parental Lock

    Listening to the Radio—Continued Within 8 seconds, use the num- ber buttons to enter the channel number. For example, to select channel #20, Game AUX 1 AUX 2 press 0, 2, 0, or 2, 0, [Enter]. Tape Tuner D.TUN Note: Clear While the [Receiver] button is flashing, you cannot select another input source...

  • Page 74: Changing The Pin Number

    Listening to the Radio—Continued Press the [D.TUN] button, and then use the number buttons to enter the 4-digit PIN number. D.TUN Clear Use the Left and Right [ buttons to select a number on the screen, and then press [Enter]. AUX 1 AUX 2 Game...
  • Page 75 Use the Up and Down [ buttons to select “4. Source Setup,” and then press [Enter]. Enter The Source Setup menu appears. 4.Source Setup 1.IntelliVolume 2.A/V Sync Enter 3.Name Edit 4.Satellite Radio 5.SIRIUS Parental Lock Note: If the Satellite Radio mode is set to None or XM (see page 71), the “5.

  • Page 76: Displaying Sirius Satellite Radio Information

    Listening to the Radio—Continued Standby AUX 1 Game Tape Tuner Tuner Phono --/--- 10 Input Selector Macro Remote Mode Cable Dimmer Enter Disc Album Prev Display Display Playlist Listening Mode Stereo Surround Displaying SIRIUS Satellite Radio Information Press the [Display] button AV receiver repeatedly to cycle through the available information.
  • Page 77 Listening to the Radio—Continued Position the SiriusConnect Home antenna so that as many bars as possible (up to 3) appear on the SIRIUS Satellite signal strength meter. 4-4.SAT Radio SIRIUS Antenna Aiming Satellite SIRIUS ID 000000000000 If you cannot receive a satellite signal, position the SiriusConnect Home antenna so that as many bars as possible (up to 3) appear on the SIRIUS Terres-...

  • Page 78: Presetting Am, Fm, Xm, And Sirius Stations

    Listening to the Radio—Continued Presetting AM, FM, XM, and SIRIUS Stations 2, 4 You can store a combination of up to 40 of your favorite AM, FM, XM, and SIRIUS radio stations. Tune into the AM, FM, XM, or SIR- IUS station you want to store as a preset.

  • Page 79: Common Functions

    Common Functions This section explains functions that can be used with any input source. TV CH Game AUX 1 AUX 2 Tape Tuner TV VOL Phono D.TUN Clear --/--- 10 Input Selector Macro Zone 3 Remote Mode Zone 2 CDR/MD Cable Dock Receiver...

  • Page 80: Using The Sleep Timer

    Common Functions—Continued Using the Sleep Timer With the sleep timer, you can set the AV receiver so that it turns off automatically after a specified period. Press the remote controller’s Sleep [Sleep] button repeatedly to select the required sleep time. You can set the sleep time from 90 to 10 minutes in 10 minute steps.

  • Page 81: Selecting Audio Inputs

    Common Functions—Continued Selecting Audio Inputs Playlist Random Listening Mode Stereo Surround Repeat Audio Subtitle Play Mode Direct All ST Test Tone CH Sel Level- Level+ Open/Close Video Off Audio Sel Audio Sel L Night Re-EQ RC- 691 M If you connect a component to more than one audio input, such as a DVD player connected to analog, digital, multichannel, and HDMI inputs, you can use the [Audio Sel] button to select which audio input you want to use...

  • Page 82: Using The Listening Modes

    Using the Listening Modes Selecting the Listening Modes For a description of each listening mode, see “About the Listening Modes” on page 87. • The Dolby Digital and DTS listening modes can only be selected if your DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

  • Page 83: Listening Modes Available For Each Source Format

    Using the Listening Modes—Continued Listening Modes Available for Each Source Format Analog and PCM Sources Source format Media Button Listening Mode [Direct] Direct [Stereo] Stereo Multichannel Dolby D Dolby D Plus DTS, DTS 96/24 DTS-ES Discrete/Matrix DTS-HD High Resolution DTS-HD Master Audio Dolby TrueHD Dolby PLII Movie/ Dolby PLIIx Movie...
  • Page 84 Using the Listening Modes—Continued DSD, Dolby Digital, and Dolby Digital Plus Sources Source format Button Listening Mode [Direct] Direct [Stereo] Stereo Multichannel Dolby D Dolby D Plus DTS, DTS 96/24 DTS-ES Discrete/Matrix DTS-HD High Resolution DTS-HD Master Audio Dolby TrueHD Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/...
  • Page 85 Using the Listening Modes—Continued TrueHD and DTS Sources Source format Media Button Listening Mode [Direct] Direct [Stereo] Stereo Multichannel Dolby D Dolby D Plus DTS, DTS 96/24 DTS-ES Discrete/Matrix DTS-HD High Resolution DTS-HD Master Audio TrueHD Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music* Dolby PLII Game/...
  • Page 86 Using the Listening Modes—Continued DTS-HD Sources Source format Button Listening Mode [Direct] Direct [Stereo] Stereo Multichannel Dolby D Dolby D Plus DTS, DTS 96/24 DTS-ES Discrete/Matrix DTS-HD High Resolution DTS-HD Master Audio TrueHD Dolby PLII Movie/ Dolby PLIIx Movie Dolby PLII Music/ Dolby PLIIx Music* Dolby PLII Game/ Dolby PLIIx Game*...

  • Page 87: About The Listening Modes

    Using the Listening Modes—Continued About the Listening Modes The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound. Direct In this mode, audio from the input source is output directly with minimal processing, providing high-fidel- ity reproduction.
  • Page 88 Using the Listening Modes—Continued DTS-HD Master Audio Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc for- mats, this new DTS format offers up to 7.1 discrete chan- nels of uncompressed digital audio with 96 kHz/24-bit sampling rate and signal resolution.

  • Page 89: Recording

    Recording This section explains how to record the input source and how to record audio and video from separate sources. Notes: • The surround sound and DSP listening modes cannot be recorded. • Copy-protected DVDs cannot be recorded. • Sources connected to the analog multichannel input cannot be recorded.

  • Page 90: Onscreen Setup Menus

    Onscreen Setup Menus The onscreen setup menus appear on the connected TV and provide a conve- nient way to change the AV receiver’s various settings. Settings are organized into eight categories on the main menu, most containing a submenu. Menu Map The following map shows how the setup menus are organized.

  • Page 91: Adjusting The Listening Modes

    Adjusting the Listening Modes Standby Input TV CH Game AUX 1 AUX 2 Tape Tuner TV VOL Phono D.TUN Clear --/--- 10 Input Selector Macro Zone 3 Remote Mode Zone 2 CDR/MD Cable Dock Receiver Tape/AMP Dimmer Sleep Enter Enter Disc Album Setup...

  • Page 92: Audio Adjust

    Adjusting the Listening Modes—Continued Audio Adjust With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like. Press the [Receiver] Remote Receiver Mode button, followed by the [Setup] button. The main menu appears onscreen. Use the Up and Down [ ]/[ ] buttons to select “3.

  • Page 93: Direct Setting

    Adjusting the Listening Modes—Continued Direct Setting Delay Enable ■ DSD This setting determines whether or not DSD (SACD) audio signals are passed through the DSP for A/V Sync, delay, etc., processing when the Direct listening mode is selected. No: DSD signals are not processed by the DSP. Yes: DSD signals are processed by the DSP.

  • Page 94: Dolby Ex

    Adjusting the Listening Modes—Continued Dolby Digital Settings ■ Dolby EX This setting determines how Dolby EX signals are han- dled. Auto: When the source is Dolby EX, you can select the Dolby EX or THX Surround EX listening mode. Manual: When the source is Dolby EX, you can select any of the listening modes compatible with this format (e.g., Dolby EX, Dolby Pro Logic IIx, etc.).
  • Page 95 Adjusting the Listening Modes—Continued Use the Up and Down [ buttons to select an input selec- tor, and then press [Enter]. Enter The audio formats supported by that input selector appear. 5-x.Listening Mode Preset Analog/PCM Dolby Digital Enter D.F.2ch D.F.Mono If the input selector is assigned to an HDMI IN, use the Down [ select the audio formats shown on the...

  • Page 96: Advanced Setup

    Advanced Setup Speaker Setup This section explains items on the Speaker Config menu. Some of the speaker settings are set automatically by the Automatic Speaker Setup function (see page 53). Input Selector Macro Remote Mode CDR/MD Cable Dock Dimmer Enter Enter Disc Album...
  • Page 97 Advanced Setup—Continued Use the Up and Down [ buttons to select “Front,” and then use the Left and Right Enter ] buttons to select a crossover frequency. Note: • Fixed at Full Band if Subwoofer (step 4) is set to No. Enter Use the Up and Down [ buttons to select “Center,”...
  • Page 98 Advanced Setup—Continued Low-Pass Filter for the LFE Channel This setting is not set automatically by the Automatic Speaker Setup function (see page 53). With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can be used to filter out unwanted hum.

  • Page 99: Speaker Distance

    Advanced Setup—Continued Speaker Distance These settings are set automatically by the Automatic Speaker Setup function (see page 53). With the Speaker Distance settings, you can specify the distance from each speaker to the listening position. Press the [Receiver] Remote Mode button, followed by the Receiver [Setup] button.

  • Page 100: Speaker Level Calibration

    Advanced Setup—Continued Speaker Level Calibration These settings are set automatically by the Automatic Speaker Setup function (see page 53). With the Level Calibration settings, you can adjust the level of each speaker while listening to the test tone so that the volume of each speaker is the same at the listen- ing position.

  • Page 101: Equalizer Settings

    Advanced Setup—Continued Equalizer Settings These settings are set automatically by the Automatic Speaker Setup function (see page 53). With the Equalizer settings, you can adjust the tone of speakers individually with a 15-band equalizer. The vol- ume of each speaker can be set on page 100. Press the [Receiver] Remote Mode button, followed by the Receiver...

  • Page 102: Thx Audio Setup

    Advanced Setup—Continued Use the Up [ “Channel” again, and use the Left and Right [ Enter select another speaker. Repeat steps 6 and 7 for each speaker. Enter Press the [Setup] button. Setup closes. Notes: • This procedure can also be performed on the AV receiver by using its [Setup], [Enter], and arrow but- tons.

  • Page 103: Source Setup

    Advanced Setup—Continued Use the Up and Down [ buttons to select “THX Sub- woofer,” and use the Left and Enter Right [ ] buttons to select: No: Select this if you do not have a THX-certified subwoofer. Yes: Select this if you have a THX- certified subwoofer.

  • Page 104: Name Edit

    Advanced Setup—Continued When you’ve finished, press the [Setup] button. Setup closes. IntelliVolume With IntelliVolume, you can set the input level for each input selector individually. This is useful if one of your source components is louder or quieter than the others. Use the Up and Down [ input selector, and use the Left and Right [ tons to set the level.

  • Page 105: Sirius Parental Lock

    Advanced Setup—Continued Use the Up and Down [ buttons to select “Display,” and use the Left and Right [ Enter buttons to select: Default: The default name is dis- played. Custom: The custom name is dis- played. Enter When Default is selected, the station’s frequency appears on the display when a radio preset is selected.

  • Page 106: Volume Setup

    Advanced Setup—Continued Miscellaneous Setup This section explains items on the Miscellaneous menu. Clear --/--- 10 Input Selector Macro Remote Mode CDR/MD Cable Dock Dimmer Enter Enter Disc Album Setup Prev Display Playlist Press the [Receiver] Remote Mode button, followed by the Receiver [Setup] button.

  • Page 107: Display Position

    Advanced Setup—Continued ■ Power On Volume This setting determines what the volume will be each time the AV receiver is turned on. When the Volume Display preference is set to Absolute, the range is Last, Min, 1 to Max. When it’s set to Rela- tive, the range is Last, –∞...

  • Page 108: Remote Control

    Remote Control ■ Remote ID Muting When several Integra/Onkyo components are used in the same room, their remote ID codes may overlap. To dif- Random ferentiate the AV receiver from the other components, you can change its remote ID from 1, the default, to 2 or Note: •...

  • Page 109: Analog Multich

    Advanced Setup—Continued Tuner ■ AM Freq Step (on some models) See “AM Frequency Step Setup (on some models)” on page 59. ■ Satellite Radio (on North American model) If you connect an XM Satellite Radio antenna or SIRIUS Satellite Radio antenna to the AV receiver (both sold sep- arately), set this setting to XM or SIRIUS respectively.

  • Page 110: Lock Setup

    Advanced Setup—Continued • HDMI power control only works with HDMI-compat- ible components that support it and may not work properly with some components due to their settings or compatibility. • When set to Enable, the AV receiver consumes more power. •...

  • Page 111: Zone 2 And Zone 3

    Zone 2 and Zone 3 In addition to your main listening room, you can also enjoy playback in two other rooms, or as we call them, Zone 2 and Zone 3. And, you can select a different source for each room. Connecting Zone 2 There are two ways you can connect Zone 2 speakers: 1.

  • Page 112: Connecting Zone 3

    Zone 2 and Zone 3—Continued Zone 2 Video Outputs The AV receiver features a composite video output and component video output for connection to a TV in Zone 2, so you can enjoy both audio and video in that zone. Hookup •...

  • Page 113: Powered Zone 2 Setting

    Zone 2 and Zone 3—Continued Powered Zone 2 Setting If you’ve connected your Zone 2 speakers to the AV receiver, as explained in “Connecting Your Zone 2 Speakers Directly to the AV receiver” on page 111, you must set the Powered Zone 2 setting to Act (Activated). Standby Input AUX 1...

  • Page 114: Zone 2/Zone 3 Out Settings

    Zone 2 and Zone 3—Continued Zone 2/Zone 3 Out Settings If you’ve connected your Zone 2 or Zone 3 speakers to an amp with no volume control, set the Zone 2 Out or Zone 3 Out setting, respectively, to Variable so that you can set the zone’s volume, balance, and tone on the AV receiver.
  • Page 115 Zone 2 and Zone 3—Continued Selecting an Input Source for Zones On the remote controller, press the [Zone 2] or [Zone 3] Remote Remote Mode button. controller Zone 3 On the AV receiver, press the [Zone 2] or [Zone 3] button. Zone 2 The Zone 2 or Zone 3 indicator flashes, AV receiver...
  • Page 116 Zone 2 and Zone 3—Continued Adjusting the Volume of Zones Remote On the remote controller, press controller the [Zone 2] or [Zone 3] Remote Zone 3 Mode button, and then use the [Level–] and [Level+] buttons. Zone 2 On the AV receiver, press the [Zone 2] or [Zone 3] button, and Level- Level+...

  • Page 117: Using The 12V Triggers

    Zone 2 and Zone 3—Continued Using the 12V Triggers The 12V triggers A, B, and C can be used to turn on 12V trigger-capable components automatically when they are selected as the input source. The triggers can be set so that they activate when a connected component is selected as the input source for the main room, Zone 2, Zone 3, or any combination of rooms.

  • Page 118: Using The Remote Controller In Zone 2/3 And Multiroom Control Kits

    Zone 2 and Zone 3—Continued Using the Remote Controller in Zone 2/3 and Multiroom Control Kits To control the AV receiver with the remote controller while you’re in Zone 2 or Zone 3, you’ll need a commer- cially available multiroom remote control kit for each zone.

  • Page 119: Controlling Other Components

    • The Dock remote mode can only be used with the Onkyo RI Dock at this time. • The [DVD] and [CD] Remote Mode buttons are preprogrammed for use with Integra/Onkyo DVD players and CD players, respectively. • To control another manufacturer’s CD recorder or MD recorder, enter the appropriate remote control code to the [CD] Remote Mode button.

  • Page 120: Remote Control Codes For Integra/Onkyo Components Connected Via

    Press the Remote Mode button, point the remote controller at the AV receiver, and operate the component. If you want to control an Integra/Onkyo component by pointing the remote controller directly at it, or you want to control an Integra/Onkyo component that’s not connected , use the following remote control codes: •...
  • Page 121 Controlling Other Components—Continued To control another component, point the remote controller at it and use the buttons explained below. (You must select the appropriate remote controller mode with the Remote Mode buttons first.) With some components, certain buttons may not work as expected, and some may not work at all. ■...

  • Page 122: Learning Commands

    Controlling Other Components—Continued Learning Commands The AV receiver’s remote controller can learn the com- mands of other remote controllers. By transmitting, for example, the Play command from your CD player’s remote controller, the remote controller can learn it, and then transmit the exact same command when its Play ] button is pressed in the CD remote mode.

  • Page 123: Using Macros

    Controlling Other Components—Continued Using Macros You can program the remote controller’s Macro buttons to perform a sequence of remote control actions. Example: To play a CD you typically need to perform the follow- ing actions: 1. Press the [Receiver] Remote Mode button to select the Receiver remote controller mode.

  • Page 124: Troubleshooting

    Troubleshooting If you have any trouble using the AV receiver, look for a solution in this section. If you can’t resolve the issue yourself, contact the dealer from whom you purchased this unit. If you can’t resolve the issue yourself, try resetting the AV receiver before contacting the dealer from whom you purchased this unit.
  • Page 125 Troubleshooting—Continued The subwoofer produces no sound • If the source material contains no audio in the LFE channel, the subwoofer produces no sound. • Check the Speaker Configuration (page 96). The Zone 2/3 speakers produce no sound • The Zone 2/3 speakers only output sources that are connected to an analog input.

  • Page 126: Remote Controller

    (page 122). • With some AV components, certain buttons may not work as expected, and some may not work at all. • To control an Integra/Onkyo component that’s con- nected via , point the remote controller at the AV receiver.

  • Page 127: Video Section

    Specifications Amplifier Section Rated Output Power North American: 130 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven from 20 Hz to 20 kHz, with a maximum total harmonic distortion of 0.08% (FTC) 150 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven at 1 kHz, with a maximum total harmonic distortion of 0.7% (FTC) 160 watts minimum continuous power per channel, 6 ohm...
  • Page 128 Integra Division of ONKYO U.S.A. CORPORATION 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of ONKYO CORPORATION I0805-2 Sales & Product Planning Div.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124 SN 29344459A (C) Copyright 2007 ONKYO CORPORATION Japan.

Table of Contents

Save PDF
