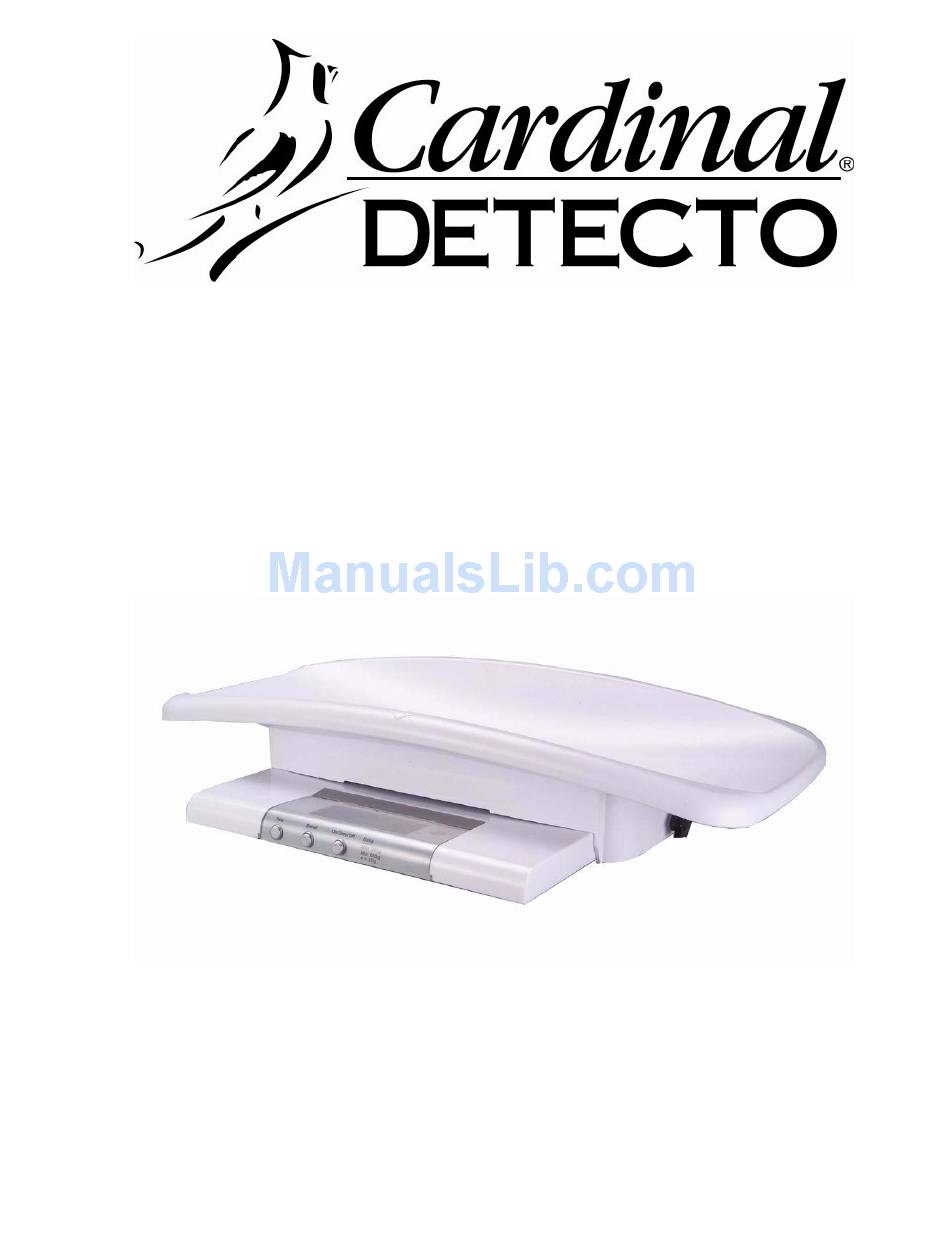

- Page 1 Model MB130 Baby Scale User Manual CARDINAL SCALE MFG. CO. PO BOX 151 • WEBB CITY, MO 64870 PH (417) 673-4631 • FAX (417) 673-5001 8535-M155-O1 Rev B 02/13 www.detectoscale.com Technical Support: Ph: 866-254-8261 • techsupport@cardet.com 8535-M155-O1 Rev B • MB130...
- Page 2 8535-M155-O1 Rev B • MB130...
-
Page 3: Table Of Contents
........ERROR MESSAGES 8535-M155-O1 Rev B • MB130... - Page 4 Persons engaging the procedures do so entirely at their own risk. Serial Number ______________________ Date of Purchase ___________________ Purchased From ____________________ ___________________________________ ___________________________________ ___________________________________ RETAIN THIS INFORMATION FOR FUTURE USE 8535-M155-O1 Rev B • MB130...
-
Page 5: Introduction

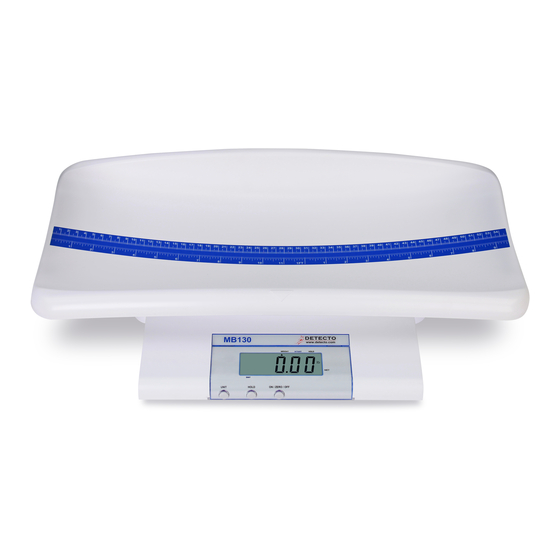

INTRODUCTION The Model MB130 Baby Scale is a 44lb (20kg) capacity battery-operated baby scale. The scale is equipped with a removable baby tray to allow weighing small children. With a 9-volt battery (not included) the scale can be used as a portable scale or with the included 9VDC AC Power Adapter the scale can be used in a fixed location. -
Page 6: Key Functions
This insures that only the baby’s or child’s weight is displayed. The kg annunciator is turned on to indicate the weight shown is in kilograms. The lb annunciator is turned on to indicate the weight shown is in pounds. 8535-M155-O1 Rev B • MB130... -
Page 7: Scale Assembly
1. Install tray from the rear of scale, sliding it to the front of scale (toward the display). Note that arrow on tray should point to front of scale. 2. Turn scale upside down to screw tray and platform together properly. 8535-M155-O1 Rev B • MB130... - Page 8 SCALE ASSEMBLY, CONT. 3. Hand-tighten the screws to secure the tray to the platform 4. Scale assembly is finished. Turn scale over to begin weighing operations. 8535-M155-O1 Rev B • MB130...
-
Page 9: Installing/Replacing The Battery
1. Turn scale upside down to locate battery 2. Remove battery housing from scale. housing. 3. The scale uses a 9VDC battery. 4. Install the 9VDC battery. 5. Replace battery housing in scale to complete procedure. 8535-M155-O1 Rev B • MB130... -
Page 10: Ac Power Adaptor
AC POWER ADAPTOR 1. Locate AC Power adaptor jack at rear of scale. 2. Install AC Power Adaptor into jack on rear of scale as shown below. 8535-M155-O1 Rev B • MB130... -
Page 11: Error Messages
„ Under Zero The load is under the limit when powering on. Power OFF scale and try again. If the trouble still exists, call your scale service representative. 8535-M155-O1 Rev B • MB130... - Page 12 8535-M155-O1 Rev B • MB130...
