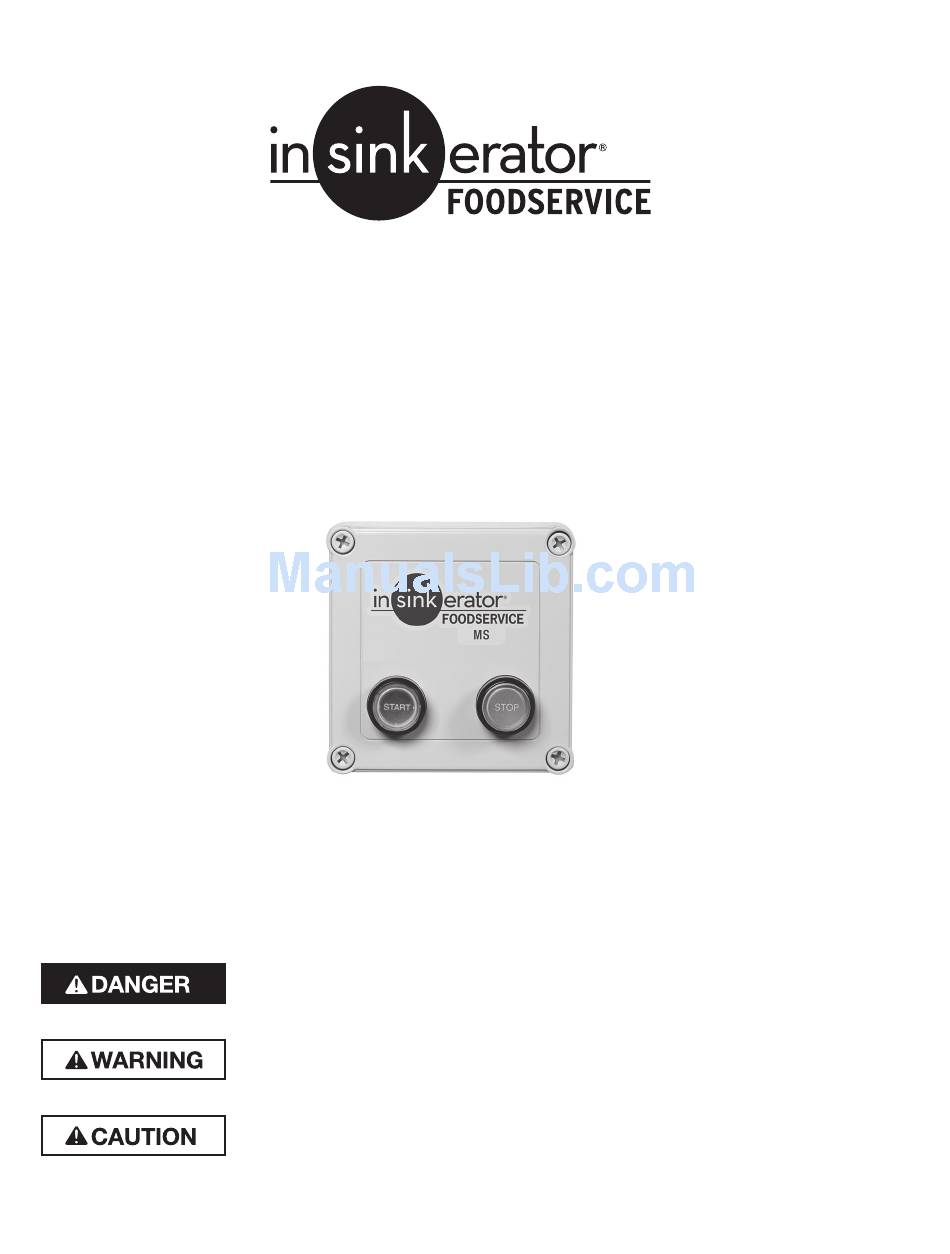

Please be certain that the person who installs or uses this appliance carefully reads and understands the Safety Instructions contained in this manual. www.insinkerator.com/foodservice Installation Manual Model MS Part No. 14703 - Rev A...
The warranty includes parts and labor, provided the service is performed by an InSinkErator Factory Authorized Service Center. This warranty does not apply if failure is due to: faulty or improper electrical installation, faulty or improper plumbing installation, product abuse or misuse, or accidental damage.
INTRODUCTION The MS Control Center is UL and CUL ® use with InSinkErator Foodservice Disposers. See Table 1 for approved disposer and control center combinations. The control center operates the disposer. Its main functions are: • To start and stop the disposer.
Plumbing Connections Figure 2. Typical Installation Diagram PLUMBING CONNECTIONS The flow control valve, syphon breaker and solenoid valve are supplied with all complete disposer packages (packed separately). Make certain that the solenoid valve supplied is the proper voltage. Make certain that the valves are plumbed according to water flow direction arrows marked on valves or the valves will not function properly.
ELECTRIC SHOCK • Turn off the electrical supply to the disposer before attempting any work on it. Use a voltmeter or circuit tester to ensure that power is off. • All installation work must conform to local plumbing and electrical codes. •...
1. Do not overload disposer with excess amounts of garbage and water. (See disposer instructions for recommended water flows.) If trouble still persists, call your nearest InSinkErator Authorized Service Agency. For the location of your nearest service agency, call toll-free 1-800-845-8345.
120 V 1-phase 1/2 to 2 HP Call Toll Free 1-800-845-8345 for the nearest InSinkErator Authorized Service Agency or to reach Technical Support. MS-4 Wiring Diagram P/N 14356 • Ensure that the control center voltage and phase match the disposer motor and electrical supply.
208 - 230 V 1-phase 1/2 to 2 HP Call Toll Free 1-800-845-8345 for the nearest InSinkErator Authorized Service Agency or to reach Technical Support. MS-5 Wiring Diagram P/N 14356A • Ensure that the control center voltage and phase match the disposer motor and electrical supply.
208 - 230 V 3-phase 1/2 to 5 HP Call Toll Free 1-800-845-8345 for the nearest InSinkErator Authorized Service Agency or to reach Technical Support. MS-5 Wiring Diagram P/N 14356A • Ensure that the control center voltage and phase match the disposer motor and electrical supply.
380/460 V 3-phase 1/2 to 10 HP Call Toll Free 1-800-845-8345 for the nearest InSinkErator Authorized Service Agency or to reach Technical Support. MS-6 Wiring Diagram P/N 14356B • Ensure that the control center voltage and phase match the disposer motor and electrical supply.
