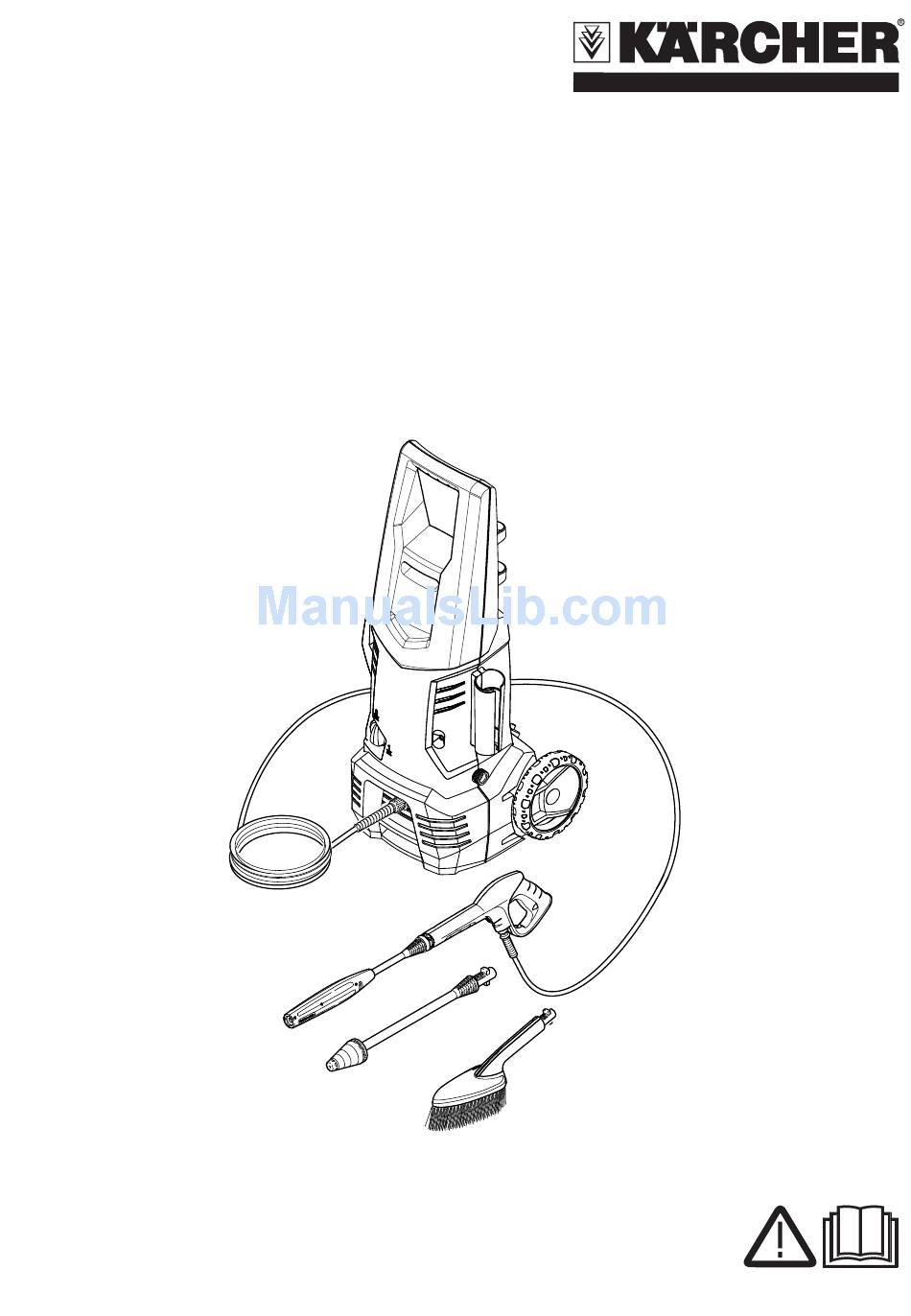

K 3.150

Operating Instructions

Before first use of the unit
read these operating instructions
and act in accordance with them.
59635360 12/09

Advertisement

Table of Contents

   Summary of Contents for Kärcher K 3.150

  • Page 1: Operating Instructions

    K 3.150 Operating Instructions Before first use of the unit read these operating instructions and act in accordance with them. 59635360 12/09...
  • Page 2: Description Of The Appliance

    Description of the Appliance 1 High pressure connection 12 Coupling element for water connection 2 Appliance switch "0/OFF“/ „I/ON“ 13 Trigger gun 3 Storage for mains connection cable 14 Key to detach the high-pressure hose 4 Transport handle from the trigger gun 5 Storage for washing brush 15 Lock trigger gun 6 Storage for spray lance...
  • Page 3: Table Of Contents

    You will find current information about the store them for later use or subsequent own- ingredients at: ers. http://www.karcher.de/de/unternehmen/ umweltschutz/REACH.htm Proper Use Scope of delivery This high-pressure cleaner is designed for domestic use only: The scope of delivery of your appliance is il- –...
  • Page 4: Safety Instructions

    oil. The spray mist thus generated is Safety instructions highly inflammable, explosive and poi- sonous. Do not use acetone, undiluted Danger acids and solvents as they are damag- Never touch the mains plug and the ing to the materials from which the ap- socket with wet hands.
  • Page 5: High Pressure Hose

    Wear protective clothing and safety High pressure hose goggles to protect against splash back containing water or dirt. The high pressure hose is specially con- structed with reinforced walls to handle wa- Caution ter pressure up to 11 MPa (1600 psi) - it can In case of extended downtimes, switch be easily damaged and should be stored the appliance off at the main switch / ap-...
  • Page 6: Operation

    Operation Before Startup Mount loose parts delivered with appliance Water supply prior to start-up. According to the applicable regula- Illustrations on Page 2 tions, the appliance must never be Illustration used on the drinking water supply Insert the transport wheels and lock them. without a system separator.
  • Page 7: Transport

    Spray lance with Dirtblaster Finish operation For particularly dirty items or areas. Not suitable for use with detergents. Caution Only separate the high-pressure hose from Spray lance with pressure regulation the trigger gun or the appliance while there Carrying out the most common cleaning is no pressure in the system.
  • Page 8: Storage

    Storage Maintenance and care Caution Danger In order to prevent accidents or injuries, Turn off the appliance and remove the keep in mind the weight of the appliance mains plug prior to any care and mainte- when selecting a storage location for it (see nance work.
  • Page 9: Troubleshooting

    Appliance does not start, motor hums Cause: Voltage reduction due to weak or E-mail us: mains supply or when using an extension info@karcher.co.uk cable. When switching on, first pull the lever of the trigger gun and then switch the ap- pliance switch to "I/ON".
  • Page 10: Technical Specifications

    Technical specifications CE declaration We hereby declare that the machine de- Electrical connection scribed below complies with the relevant Voltage 220-240 basic safety and health requirements of the 1~50/60 EU Directives, both in its basic design and Connected load 1,65 kW construction as well as in the version put Mains fuse (slow-blow) 13 A...
  • Page 11: Spare Parts

    Spare Parts English 11...
