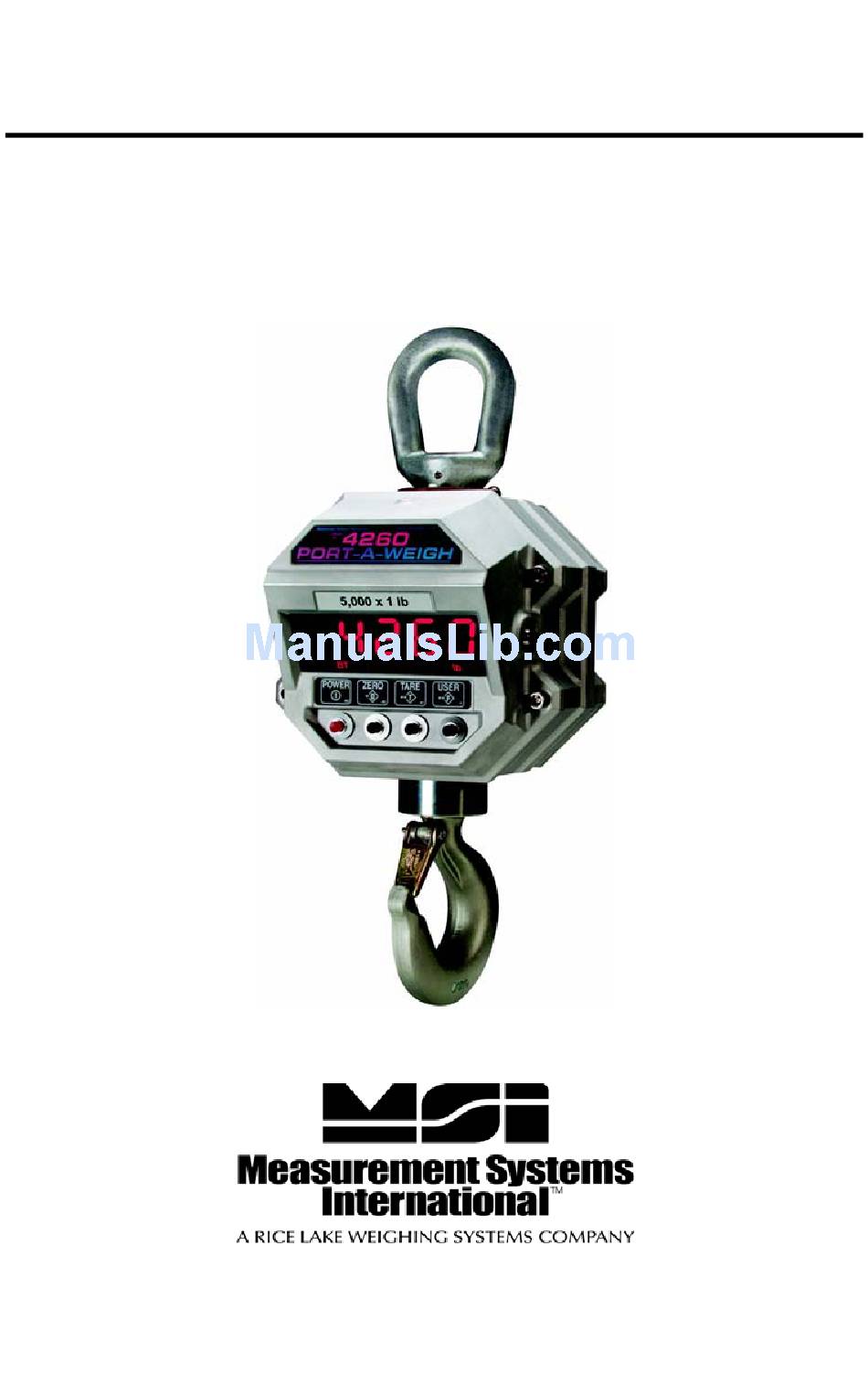

- Page 1 MSI-4260B Port-A-Weigh Crane Scales Operator’s Manual 152159 Rev A...
-
Page 3: Table Of Contents
Contents Introduction ................1 1.1 Safety Section ..............2 1.2 General Information ............4 1.2.1 Operator’s Manual & MSI-4260 Conventions .....4 1.3 MSI-4260 Annunciators ............. 5 1.4 Specifications ..............6 1.5 Features ................8 1.6 Options ................8 1.7 Unpacking ................8 1.8 Installation ................ - Page 4 Appendix ................53 8.1 Troubleshooting ............... 53 8.1.1 Service Counters ..............55 8.2 MSI-4260 Port-A-Weigh Dimensions ......56 The MSI Limited Warranty 57 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars.
-
Page 5: Introduction
. Multiple options and accessories, including RF Remote Control OSHA safety standards and RF Remote Display (using the MSI-8000 Remote Display) are available to further enhance the performance and application versatility of the MSI-4260. If you have any questions or comments please contact... -
Page 6: Safety Section
"MSI Crane Scale Safety and Periodic Maintenance Manual" (available at www.msiscales.com). Keep hands, feet and loose clothing away from moving parts. There are no user serviceable parts within the MSI-4260. Any repairs are to be performed by qualified service personnel only. MSI-4260 Port-A-Weigh Operator’s Manual... - Page 7 ZERO TARE USER Push button legend User Programmable Function Key IP-68 rated push buttons Figure 1-1 MSI-4260 Front Panel Key Descriptions POWER MSI-4260 Power Key - Turns the On and Off. ZERO Zero Key - Used to zero out residual weight on the scale.
-
Page 8: General Information
7-segment font. Not all characters can be displayed with this font, but a close approximation is shown. 3. If a function key does not work, it is probably because the MSI-4260 is not setup to support the key. For example, if the Function Key is set for... -
Page 9: Msi-4260 Annunciators
1.3 MSI-4260 Annunciators The MSI-4260 uses blue and red LEDs to indicate weight mode and other information. The STABLE annunciator indicates that the weight has settled within the motion window (usually ±1d). When this symbol is off the scale will not zero, tare, or totalize. -
Page 10: Specifications
Operating Time 100 hours typical/150 hours max. (depends on operating mode) Enclosure NEMA 4/1P65 powder coated alodined cast aluminum Load Cell Standard 350 Ω Bridge, MSI Trinocular (>10k lb.) USER Programmable multifunction button for use as TEST, TOTAL, UNIT, PEAK, NET/GROSS, VIEW TOTAL, LEARN... - Page 11 100 (30m) typical range Line-of-Sight. Uses 802.15.4, 2.4GHz handheld transceiver. Remote Display Table 1-2. Options The MSI-4260 Port-A-Weigh scale has a safe mechanical WARNING overload of 200%, and an ultimate overload of 500%. Overloads greater than 500% may result in structural failure and dropped loads.
-
Page 12: Features
• Five large, 1.2 inch (30.5 mm) LED digits for clear weight readings from a distance. Display tilted down for easier viewing from below. • Easy to maintain: Full digital calibration assures reliable, repeatable measurements. Can be calibrated without test weights using MSI C-Cal technology. • Selectable for kg/lb unless prohibited by LFT regulations. -
Page 13: Installation
One of the most common installation problems is using an oversize shackle or too large a hook to interface with the MSI-4260. This can cause off center loading and stress points that will reduce the life of the lifting eye or hook. -
Page 14: Battery Pack
• The low battery warning will indicate about 2-4 hours of additional use before the MSI-4260 turns itself off. • If the MSI-4260 is not going to used again soon, remove the SLA battery to prevent deep discharge while the unit is in storage. -
Page 15: Battery Charger
The charger keeps a maintenance float charge on the battery to ensure the best possible operation times. For scales that are in high usage, MSI recommends obtaining a spare battery so one can always be on the charger. -
Page 16: Battery Removal & Replacement
5. Remove the battery by pulling straight back. 6. Install a fully charged battery by plugging it in to the exposed battery jacks. The MSI-4260 may or may not turn on once the new battery is installed. 7. Reseat the access panel. -
Page 17: Comm Port
The MSI-4260 comes standard with one Comm Port Cable wired for RS-232 (MSI P/ N 501705-0001) following the AT standard for 9 pin serial cables (DCE). An un- terminated cable is available (MSI P/N 12023) if you wish to wire your own serial cable for RS-232. -
Page 18: Servicing The Msi-4260
1.11 Servicing the MSI-4260 MSI’s Dealer Network provides both on-site and depot servicing of MSI-4260 Crane Scales. Please contact your local dealer. MSI also operates a service center for all our products. Contact MSI Service at 1-206-433-0199 to obtain an RMA (returned material authorization). -
Page 19: Rf Connectivity
The MSI-4260 has several options for RF Connectivity: 1. 802.15.4 – Standards based DSSS (Direct Sequence Spread Spectrum) connection at 2.4 GHz This is used for connectivity to MSI’s Model 8000 hand held remote display. It can also be used with a 802.15.4 modem to connect to scoreboards or computers. -
Page 20: Operation
Note function to work. The scale digits display 0 (or 0.0 or 0.00, etc). The backup memory in the MSI-4260 stores the zero reading, and can restore it even if the power fails. Rules for Use: • Works in GROSS mode or NET mode. Zeroing while in Net mode will zero the gross weight causing the display to show the negative Tare value. -
Page 21: Tare
NET weight. A Tare value is entered by pressing the TARE key. The TARE function in the MSI-4260 is defined as a Tare-In, Tare-Out operation. The first press of the key stores the current weight as a tare value and then the... -
Page 22: User Defined Function Keys
Use the key to exit ZERO ZERO entirely from the TEST function. – MSI-4260 Software Version Number: Press to see the Software TARE Version. – Battery Voltage: Press to see the battery voltage. TARE ... - Page 23 Switches the display between Net and Gross modes. Net Weight is defined as Gross Weight minus a Tare Weight. RF Remote Control, and the MSI-8000 have this function as a standard Note feature. On the MSI-8000, you must configure a Function Key to Net/ Gross Mode to enable this feature.
- Page 24 USER key. PEAK HOLD is not available on NTEP or OIML LFT certified scales. UNIT The Function key will switch the weight units between pounds and kilograms. UNIT switching is not available on OIML certified LFT scales. MSI-4260 Port-A-Weigh Operator’s Manual...
-
Page 25: Set Up
4.0 Set Up 4.1 Menu Map USER KEY AUTO OFF TIME FUNCTIONS Disabled (default) With the Power off, hold 15 minutes down the USER key, then turn the Power on Test Display 30 minutes (default) *Total 45 minutes *View Total 1 hour USER *Net/Gross... -
Page 26: Function Keys
4.2 Function Keys The MSI-4260 has 1 user definable function key on the Front Panel, and an additional user definable function Function key on the RF Remote Control that can be programmed to any of several functions. Function Key Setup... -
Page 27: Auto- Off
4.3 Auto- Off The Auto-Off feature, when enabled, prolongs the battery life of the scale by turning POWER off when the scale is not in use. Any time a button is depressed (any button), or the detected weight is in Motion exceeding 5 or 10d, the time limit is reset. Therefore, the scale will stay on indefinitely if the weight is changing or any button is pressed at least once. -
Page 28: Sleep
While in the Sleep Mode, the Green Acknowledge annunciator will blink at a 1s rate to indicate the MSI-4260 is in sleep mode. To wake up either a button must be pushed (front panel or RF remote), or the weight must change by 5 d or more. -
Page 29: Display Brightness
4.5 Display Brightness The Display Setup menu is used to set the display brightness. There are four fixed brightness settings and one automatic light sensing brightness setting. Auto setting will automatically detect the ambient light and adjust the brightness of the display accordingly. -
Page 30: Set Points
The MSI-4260 comes standard with LED outputs for a triggered set point. Set Point 1 is Blue, Set Point 2 is Green and Set Point 3 is Red. The MSI- 4260 has an audible output option that is triggered by Set Point 1. Contact MSI for other Set Point Output Options. - Page 31 Set Point Setup (continued) To enter a decimal point, push TARE USER POWER while the digit is blinking. fixed blinking Error Correction: If you input a wrong value, press ZERO to step USER USER back one digit and change the digit with the USER key.
-
Page 32: Total Mode
4.7 Total Mode The MSI-4260 can keep track of all weighments using the Total feature. Either manual total, which totals by pushing a configured USER key on the front panel or the RF Remote, or Auto-Total, which can be used to automatically add up each weighment. -
Page 33: Units
4.8 Units Units can be changed in two ways: • Program a User Function Key to Units • Change the units with the setup menu with the following procedure Note The OIML LFT scales do not allow units to be changed. Units Setup Hold 1) With the 4260 off, press and hold... -
Page 34: Filter Setup
If the reading is not stable, it can often be improved by increasing the filter setting. Settling time will be longer as the filter setting is increased. However, the MSI-4260 employs algorithms that speed up large weight changes while still controlling vibration even with high filter settings. Filter Setup... -
Page 35: Calibration
5.0 Calibration The MSI-4260 is calibrated using standard weights. It is required that the weight used is at least 10% of full capacity in order to achieve rated accuracy. For example, use at least a 500kg test weight to calibrate a 5000kg capacity scale. Although a single span point is usually adequate for rated accuracy, the MSI-4260 supports Multi-Point calibration with up to 4 span points + Zero. - Page 36 When the entire calibration weight is displayed, push TARE a second time to finalize the calibration span point. If the resultant cal value is within limits, the display will read “PASS” briefly. Figure 5-2. Standard Calibration Procedure (continued) MSI-4260 Port-A-Weigh Operator’s Manual...
- Page 37 14) The display now reads TARE “LoAd3” or “LoAd4”. To enter another span point Repeat steps 12 and 13 for additional span points press TARE or press ZERO if you are finished. After LoAD4 has passed, the 4260 will automatically advance to the next step.
-
Page 38: Initial Calibration
ZERO to step step 16. USER back one digit and reenter. 13) To change the capacity, press To enter a decimal point, push blinking USER. POWER while the digit is blinking Figure 5-4. Initial Calibration MSI-4260 Port-A-Weigh Operator’s Manual... -
Page 39: Guidelines For Capacity And Resolution
For this reason, MSI recommends that resolution is kept in the 1:2000 to 1:3000 range. Some improvement in stability can be achieved by increasing the filtering. -
Page 40: C-Cal Calibration
MSI-4260 is used on. For example, if the hoist is rated for 9000 lb, you can use an MSI 10000 lb MSI 4260 and reset the capacity to 9000 lb so that the Scale will indicate overload at 9000 lb instead of 10000 lb. - Page 41 Cal Switch C-Cal Calibration Access Procedure Remove 1) Remove the seal screw. With Hex Seal a small screwdriver press the Screw Cal Switch behind the seal Press Switch screw. behind the hole with a small The CAL Setup Menu Screwdriver appears.
-
Page 42: Calibration Setup Menu
5.4 Calibration Setup Menu The Calibration Setup Menu contains two items beyond Calibration: Standard and Auto Zero Maintenance “Auto0”. In addition, more menus will appear that are transferred from the Main Setup Menu when Legal-for-Trade settings are used. MSI-4260 Port-A-Weigh Operator’s Manual... -
Page 43: Standard
This is useful for Metric only countries. Another use of the One Unit standard is to allow the scale to be calibrated in units other than lb or kg, since conversions are eliminated. Contact MSI for more information on the Standards settings. Calibration... -
Page 44: Auto Zero Maintenance
AZM capture window. The AZM capture window (usually 1 ‘d’) and capture time (usually 8 seconds) can be adjusted by MSI to meet custom requirements. The settings of AZM are dictated in Legal-for-Trade Standards and cannot be adjusted. - Page 45 Cal Switch Auto Zero Access Maintenance Setup Remove Hex Seal If you are already in the Cal menu Screw skip to step 2 Press Switch Remove the seal screw. With behind the hole with a small a small screwdriver press the Screwdriver Cal Switch behind the seal screw.
-
Page 46: Rf Remote Control Option
RFRC. Scale Remote Controller The RFRC provides the ability to turn the MSI-4260 on ZERO remotely. The RFRC is available in three versions differing only in transmit frequency. The standard USA version operates at 418MHz. -
Page 47: Setting The Transmitter Address
17 seconds. Any MSI-4260 can learn up to 7 different remotes. However, never program multiple MSI-4260s to the same remote since they will all respond at the same time if they are in range. 6.4.1 Resetting the 4260 RF Remote Receiver 1. -
Page 48: Contention And Jamming Considerations
While the transmitted signal consists of encoded digital data, only one carrier of any frequency can occupy airspace without contention at any given time. This is not to say that you cannot have multiple remote controls for the MSI- 4260, but rather that you can’t use two simultaneously. -
Page 49: Rf Remote Control Fcc Statement
6.7 RF Remote Control FCC Statement Instruction to the User: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 50: Rf Remote Display Option
The RS-232 port located on the right side of the MSI-4260 is useful for setup and calibration using a computer and MSI’s SCCMP Software. (SCCMP operation is detailed in the SCCMP User Guide). For RF operation, the MSI-4260 uses an 802.15.4 transceivers to communicate between... -
Page 51: Printer / Serial Output Setup
RF linked weight device can measure are available in user formatted form. The Control Mode programs what causes the MSI-4260 to print. The modes are: 1) When an assigned F-Key is pressed, one transmission of the selected string type is output. 2) On Load –... - Page 52 MMMMM crlf 8 or 9 - Carriage Return, Line Feed. Used to add a space between print records. crlf Printer / Output Setup Press Simultaneously 1) With the MSI-8000 on, press the TARE USER TARE key and the USER keys simultaneously.
- Page 53 TARE to enter the Print interval rate in seconds. Use 0 for the rate number entry screen. The fastest the MSI-8000 can go (~5 times blinking current print rate appears on the per second). To set a once a minute Example Value transmission, set the rate to 60.
-
Page 54: 802.15.4 Rf Network Setup
3. Network ID – This is a 64 bit number that all interconnected devices must match. The MSI-4260 limits this number to a max of 5 digits for a range of 0- 99999. Do not use a small number here to help avoid other 802.15.4 networks that default to a Network ID of 0. - Page 55 TARE and jump to step 10. In this example we’ll enter 3 as an SCID number. Any value from 1-254 is acceptable. However, MSI recommends a value from 20 – 30. USER USER 7) To input the SCID value,...
- Page 56 ID number. Press to start a new number. Allowed Network ID numbers range from 0 to 99999. MSI recommends a random number of at least four example value only digits to ensure that the 8000 system won’t conflict with any other 802.11.4 networks (Zigbee).
-
Page 57: Appendix
8.0 Appendix 8.1 Troubleshooting Problem Possible Cause Solution Display is blank when Discharged battery Recharge, allow at least 4 hours POWER button is charge depressed Defective battery Replace Corroded battery or Clean contacts battery contacts Defective switch or circuit Requires Authorized Service board Display does not Improperly updated... - Page 58 ‘‘d’. It is also possible to increase the motion window. Contact MSI if you have a problem getting the MSI-4260 to zero, tare, or total due to stability issues.
-
Page 59: Service Counters
9. Press TEST (USER). The display flashes the C-Cal value. 10.Press TEST (USER). Returns to standard weighing mode. Only a MSI factory representative can reset the service counters, WARNING as these are important safety warning features. Depending on the circumstances, a thorough load train inspection might be necessary to ensure user safety. -
Page 60: Msi-4260 Port-A-Weigh Dimensions
8.2 MSI-4260 Port-A-Weigh Dimensions MSI-4260 Port-A-Weigh Operator’s Manual... -
Page 61: The Msi Limited Warranty
The MSI Limited Warranty MEASUREMENT SYSTEMS INTERNATIONAL, INC., WARRANTS load sensing elements and meters against defects in workmanship and materials for a period of one year from date of purchase and warrants electrical cables and batteries against the same defects for a period of ninety (90) days from date of purchase. - Page 62 Notes MSI-4260 Port-A-Weigh Operator’s Manual...
- Page 64 Measurement Systems International A RICE LAKE WEIGHING SYSTEMS COMPANY 14240 Interurban Avenue South Suite 200 Seattle, WA 98168-4661 Phone: 206-433-0199 Fax: 206-244-8470 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 11/2013 152159 Rev A...
