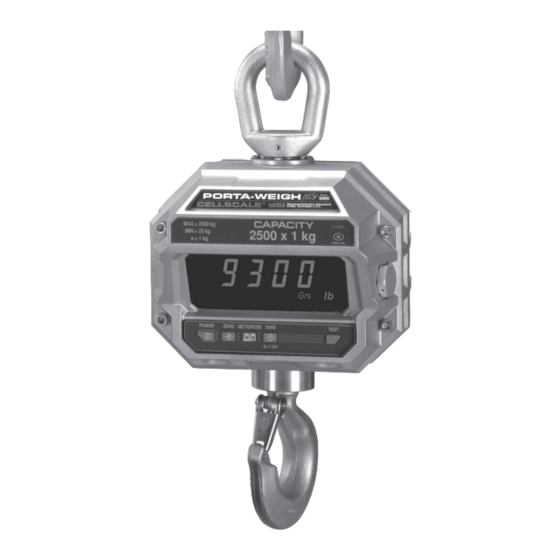

- Page 1 MSI-9300 Series Porta-Weigh+ Crane Scale MSI-9300 Crane Scales MSI-9300HT Hi-Torque Crane Scales User Guide Measurement Systems International...
-
Page 2: Table Of Contents
PECIFICATIONS IMENSIONS Hardware Overview .............................31 General Features ............................31 General Specifications ..........................32 Dimensions and Load Train Specifications, Standard MSI-9300 ...............33 Dimensions and Load Train Specifications, MSI-9300HT ..............33 Options and Accessories ..........................34 The MSI Limited Warranty .........................34 • Page 2 MSI-9300 Crane Scale™... -
Page 3: Section 1 - Introduction & Installation
The Measurement Systems International MSI-9300 Series Porta-Weigh Plus Crane Scales are designed to provide a rugged weight indicator and data system for any type and size of crane used in industry. Two basic styles are available: MSI-9300 and MSI-9300HT. This guide is used for both versions as they have identical electronics. -
Page 4: Battery Removal & Replacement
MSI-9300 Porta-Weigh+ Crane Scale shackle or too large a hook to interface with the MSI-9300. This can cause off center loading and stress points that will reduce the life of the MSI-9300 lifting eye or hook. Use the appropriate interface hardware for the capacity of the scale. -
Page 5: Battery Life
The MSI-9300 battery life depends on a number of factors: Brightness of the LED and number of segments lit, the amount of RF activity, and the age and condition of the SLA (sealed lead acid) battery. The MSI-9300 will automatically turn the scale off when the SLA battery drops to approximately 10.5V. You must recharge the battery when this happens. -
Page 6: Fcc Statement
Amber = Charging Green = Float The charger is a universal input type and is rated for 100-240VAC, 50-60Hz. AC power cords suitable for any world location are available from MSI. FCC STATEMENT FCC ID: HSW-2450M Note: This unit has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 7: Msi-9300 Porta-Weigh Plus Display
INTERNATIONAL MSI-9300 PORTA-WEIGH PLUS DISPLAY The MSI-9300 has six 1.2” (30.5mm) ultrabright LED Digits along with annunciators. The brightness of the display is automatically adjusted to the lighting conditions. When the ambient light is dim, the LEDs are lower in intensity. When ambient light is bright, the LED intensity level is increased to allow sunlight readability. -
Page 8: Section 2 - Scale Operation
MSI-9300 Series crane scales are capable of hosting multiple independent scale inputs. These are connected via RF using MSI-6260CS and/or MSI-9300 Series crane scales setup as Network Slaves, or by special order, additional inputs can be hard-wired directly. In addition, the CellScale Math channels can be used for manipu- lating the scale data. -
Page 9: Tare
1) AUTO TARE – When the TARE key is pushed twice, the current weight is zeroed and Net Weight is dis- played. This is the only Tare function available from the MSI-9300 keypad. 2) KEYBOARD TARE – Available from a 3750CS or 9750A Indicator only. Using the numeric keys, the operator keys in the desired Tare Weight then pushes the ENTER Key. -
Page 10: Special Tare Modes
Tare values. Multiple Tare Memories MSI-9300 Series crane scales are capable of storing Tare values through the use of the ID Codes. Each ID code stores an independent Tare. ID Codes are accessible through the MSI-3750CS, MSI-9750A or MSI-9850, or through a MSI-9020 CellModem using Host Commands. -
Page 11: Test
The MSI- 9300 offers a heat shield option for foundry use that increases the dwell time possible when lifting melt pots. MSI-9300 Series Crane Scales must be immediately removed from the high heat source when the inter- nal temperature reaches 158°F or 70°C. -
Page 12: Section 3 - Msi-9300 Setup Menu
3) The Zero key is used to exit out of the current menu. At the root level the Zero key turns off the Setup mode and returns the MSI-9300 to weight display. To Start the Setup Menu 1) If the MSI-9300 is on, turn it off with the POWER key. TEST 2) Press and hold the TEST key. -
Page 13: User Key Function
Setup Menu items. AUTOMATIC OFF The MSI-9300 can be set to turn itself off in periods of inactivity by enabling the Automatic Off feature. The Auto Off timer is reset whenever a button is pushed or weight changes. There are 4 settings: 1) OFF –... -
Page 14: Units
UNITS The MSI-9300 will display and convert weight in pounds or kilograms. The TEST/USER key can be set to switch between lb and kg if desired. If only 1 weight unit is needed, use this procedure to set the desired unit. -
Page 15: Total
The MSI-9300 CellScale feature set provides Total and Statistics capabilities. The MSI-9300 keypad allows the enabling and display of some of these features. More extensive total and statistics capability is provided when a 9750A or 3750CS meter is part of the network. However, the MSI-9300 allows the setting of the following Total features: 1) OFF –... -
Page 16: Automatic Temperature Display
MSI-9300 Porta-Weigh+ Crane Scale AUTOMATIC TEMPERATURE DISPLAY The MSI-9300 will display its internal temperature once every 20 seconds if enabled with the following proce- dure. To Enable Auto Temp Display (° Auto) & Set Temperature Units 1) Start the Setup Mode using the procedure on page 12. - Page 17 When the crane scale is a Host (Master) device, only the network number can be changed, the master “My ID” will not change. All remote devices on the previous network will lose communciation. Rev 1 7/27/02 for SW Ver 1-1 • MSI-9300 Crane Scale™ User Guide Page 17...
-
Page 18: Rf Remote Control
It does not have the range of the Spread Spectrum modems built into the RF versions of MSI-9300 Series crane scales and is intended for local control only. Range will vary from 25’ to 100’... -
Page 19: Contention Considerations
TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment Rev 1 7/27/02 for SW Ver 1-1 • MSI-9300 Crane Scale™ User Guide Page 19... -
Page 20: Section 4 - The Embedded Cellscale
Xon/Xoff if you desire. While the Comm Port is in use, the display of the MSI-9300 Series crane scale is in standby with the message “C-Port” or “H-Port” displayed. The only key that will function in this mode is the Power key. -
Page 21: Set Points
The Internal CellScale can monitor up to 32 Set Points. Set Points are used for safety warnings and process control. The MSI-9300 has LED annunciators for Set Points 1 through 3. Set Points are programmed from a 3750CS, a 9750A, or through the Terminal Access Mode. On special order MSI can supply audible alarms, sirens, or other warning devices for Set Point outputs. -
Page 22: Calibration Procedure
It uses the Scan List to identify which chan- nels are available for calibration. For multiple channel systems, the channel list must be set up before starting the calibration procedure. See Section 4 in the MSI-9000 CellScale User Guide. •... - Page 23 This list is for a type ‘A’ scale with up to 10000 counts resolution. This is the standard default. MSI recommends all MSI-9300 Series crane scales calibrated at 5000 divisions or less. Too many divisions will compromise stability and settling time. Use the largest division size suitable for your application.
- Page 24 13) Press [n]. Type in the test weight value and enter it using the return key. In this example we will use 5000 kg as the first test weight. Type in the new test weight value: 5000 Kilograms • Page 24 MSI-9300 Crane Scale™ User Guide...
- Page 25 16) Type [n] to bring up the weight entry screen. Type in the correct value for the 2nd test weight. Push return to enter the value. Type in the new test weight value: 2000 Kilograms Rev 1 7/27/02 for SW Ver 1-1 • MSI-9300 Crane Scale™ User Guide Page 25...
-
Page 26: Cellscale Settings For Msi-9300
RF SYSTEM SETUP MSI-9300 Series crane scales use an embedded CellScale to communicate through an advanced 2.4GHz Spread Spectrum modem. Details of the RF Network setup is covered in the MSI-9000 CellScale User Guide. LEGAL STANDARD The MSI-9300 Series scales must be configured properly for use in Legal -for-Trade transactions. For most industrial applications, LFT settings are not required. -
Page 27: Rf System Setup
2) Multiple remote RF display devices are allowed, but only one device is allowed to zero, tare, or any other control function. This device is determined in the Communications Menu (page 28). See “Sealing the MSI-9000” on the following page for details on sealing the settings and calibrations. -
Page 28: Legal-For-Trade Control Device
9750A as the control device, but you can still operate a scoreboard display con- nected to a CellModem (MSI-9020). Additional 9750A’s can monitor the weight, but they would not be able to zero or tare the weight, or change the weight mode. -
Page 29: Sealing Msi-9300 Crane Scales
SEALING MSI-9300 CRANE SCALES The 9300 Series Crane Scales are sealed with a standard lead-wire seal. The seal is used to prevent removal of the seal screw covering the calibration enable switch. The wire is passed through the seal screw and through an adjacent casting bolt. - Page 30 MSI-9300 Porta-Weigh+ Crane Scale • Page 30 MSI-9300 Crane Scale™ User Guide...
-
Page 31: Appendix - Specifications & Dimensions
The calibration program is user friendly, with menus that are easy to use on a full graphics screen. Calibration is also available using the MSI-3750CS, MSI-9850 or MSI-9750A Meters. Seal can be provided on front panel in Legal-For-Trade systems. -
Page 32: General Specifications
• Zero – 100% of capacity, limited by Legal-for-trade settings. • Units – lb, kg on MSI-9300 display. Ton, Ton (metric), oz, g, daN, or user defined using the math channels through remote indicators (3750CS or 9750A). • Standard Crane Scale Capacities – 500 lb / 250 kg, 2000 lb / 1000 kg, 5000 lb / 2500 kg, 10000 lb / 5000 kg, 20000 lb / 10000 kg, 30000 lb / 15000 kg, 50000 lb / 25000 kg, 70000 lb / 35000kg, 100000 lb / 50000kg. -
Page 33: Dimensions And Load Train Specifications, Standard Msi-9300
MEASUREMENT SYSTEMS INTERNATIONAL DIMENSIONS AND LOAD TRAIN SPECIFICATIONS, STANDARD MSI-9300 DIMENSIONS AND LOAD TRAIN SPECIFICATIONS, MSI-9300HT B (DIA.) 13.45/342 New top interface specifically designed to easily accomodate optional low headroom adapter 9.1/231 Note: Standard hook orientation shown. Please specify if alternate orientation is required. -
Page 34: Options And Accessories
Stand-alone Option – Remove CellScale RF Modem • Slave Load Cell Input – RF MSI-9300 or 6260CS units can function as slave Crane Scale inputs to a MSI- 9300 or other CellScale based products. Up to three RF connected slaves are possible. - Page 35 Measurement Systems I N T E R N A T I O N A L 14240 Interurban Avenue South, STE 200 Seattle, Washington, 98168-4661 U.S.A. ©2006 by Measurement Systems International Phone: 206-433-0199 • FAX: 206-244-8470 Printed in U.S.A. PUB.307-06-04 Internet: www.msiscales.com • E-mail: info@msiscales.com...
