Lightwave JSJS LW270 Operation Manual

13a 2 gang switched socket
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
LightwaveRF
connect
13A 2 Gang Switched Socket
Operation Manual
Model No: JSJS LW270
It is important to install this product in accordance
with the tting instructions below. Failure to do so
may render your guarantee void.
IMPORTANT: PLEASE RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE AND FOR GUIDANCE ON
THE ASSOCIATION OF REMOTE HANDSETS. FOR
HELP AND SETUP GUIDANCE PLEASE VISIT
www.lightwaverf.com

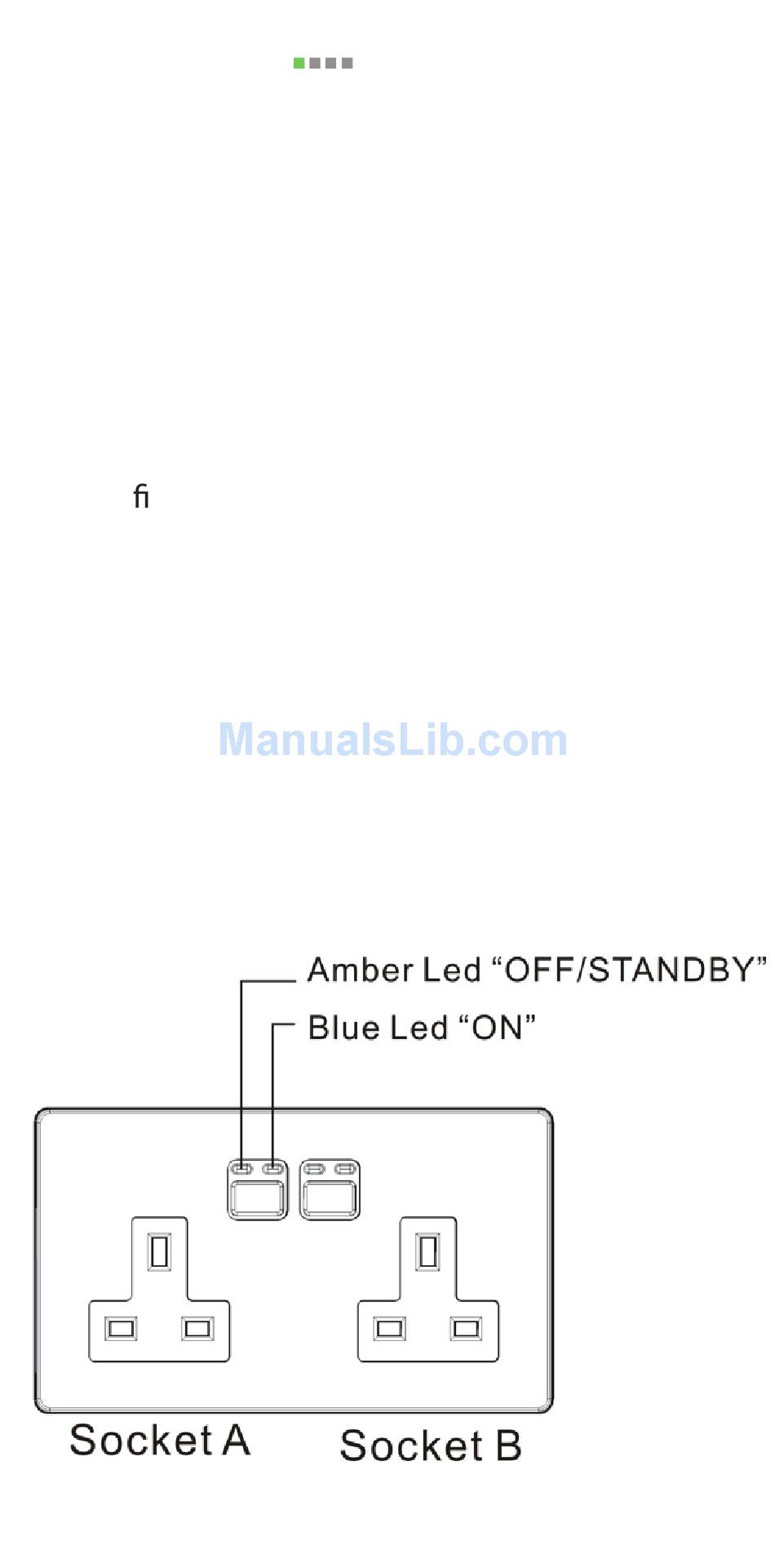

OVERVIEW:

Advertisement

loading
Need help?

Need help?

Do you have a question about the JSJS LW270 and is the answer not in the manual?

Questions and answers

Related Manuals for Lightwave JSJS LW270

Summary of Contents for Lightwave JSJS LW270

  • Page 1 LightwaveRF connect 13A 2 Gang Switched Socket Operation Manual Model No: JSJS LW270 It is important to install this product in accordance with the tting instructions below. Failure to do so may render your guarantee void. IMPORTANT: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND FOR GUIDANCE ON THE ASSOCIATION OF REMOTE HANDSETS.
  • Page 2 FITTING AND WIRING INSTRUCTIONS: Important Things to Consider Before you Begin 1). Before commencing work, ALWAYS isolate the mains power supply and remove the fuse in the fuse box or switch o the circuit breaker in the consumer unit. 2). If unit is to be used as a replacement for an existing product, remove existing unit from its location and disconnect the wiring.

  • Page 3: Installation Guide

    Installation Guide 1. Turn o mains electrical supply. 2. Ensure that the wall (back) box has a minimum depth of 25mm. 3. Remove the existing socket and disconnect the wiring. 4. Gently remove plate by inserting a at screwdriver into the slots/s of the plate and lift away from the unit.
  • Page 4 4. Connect the wiring as per the diagrams below, making sure all wires are fully inserted into the terminals and fully tightened. NOTE: Bare each individual wire approximately 8-13mm, and then screw in tightly into the terminals. Max: 8mm Min: 13mm...
  • Page 5 Additional slave units (maximum of 6 in line) will allow for 2-way / multi-way operation (units can only be operated manually). 5. Gently screw the socket into the wall (back) box, making sure that the plastic spacers are correctly aligned and that no wires are trapped between the socket and the back of the wall box.
  • Page 6 6. Replace the plate – a ‘click’ sound should be heard to signify that the plate has been correctly replaced. SETUP: Pairing with handheld Remote transmitters Each socket can pair with up to 6 di erent remote transmitters at any one time as it has a maximum of 6 memories.
  • Page 7 Pairing using LEARNING MODE: 1. Ensure the socket is connected the amber LED will be illuminated. 2. Press and hold down the ‘MANUAL’ button on the socket to be paired, until the blue and amber LEDs ash alternately (this refers to either the left OR the right socket depending on which of the ‘MANUAL’...

  • Page 8: Operation

    3. Using a LightwaveRF Connect Remote press one of the ‘OFF’ buttons; the amber light on the socket will ash to con rm that the remote is now unpaired. Clearing Memory (will remove all paired remotes): 1. Ensure the socket is connected and ready with a mains power line and load.

  • Page 9: Specification

    SPECIFICATION: 220~240V~50Hz Max. 13A Resistive Load RF frequency: 433.92 MHz BS1363 Amber / Blue LED indicator. Manual ON / OFF function. Birmingham Science Park Aston Faraday Wharf Holt Street Birmingham B7 4BB Tel: 01902 500 562 Email: support@jsjsdesigns.com...
