# Button Description
20 or Press to change TV channels.
CH
21 FAVORITE Press to toggle the Favorite/Normal mode.
See "Setting up the channel list" on page
10 for more information.
22 DISPLAY Press to display status information.
23 EXIT Press to close the on-screen menu.
24 FREEZE Press to freeze the video image. Press
again to unfreeze the image. Do not freeze
the video image for long periods of time.
You may damage the TV screen.
25 PICTURE Press to select the brightness or contrast
adjustment. Lets you adjust the brightness
and contrast without opening the on
screen menu.
Using the remote control
To use the remote control:
• Point the remote control towards the remote
sensor on the front of your TV.
Notes
• Do not expose the remote control to shock or
liquids.
• Do not use the remote control in an area with
high humidity.
• Do not place the remote control in direct
sunlight.
• Do not place objects, such as furniture,
between the remote control and the remote
sensor.
• The remote control may not work if direct
sunlight or bright light shines on the remote
sensor. Either move your TV or change the
angle at which you use the remote control.

Setting up your TV

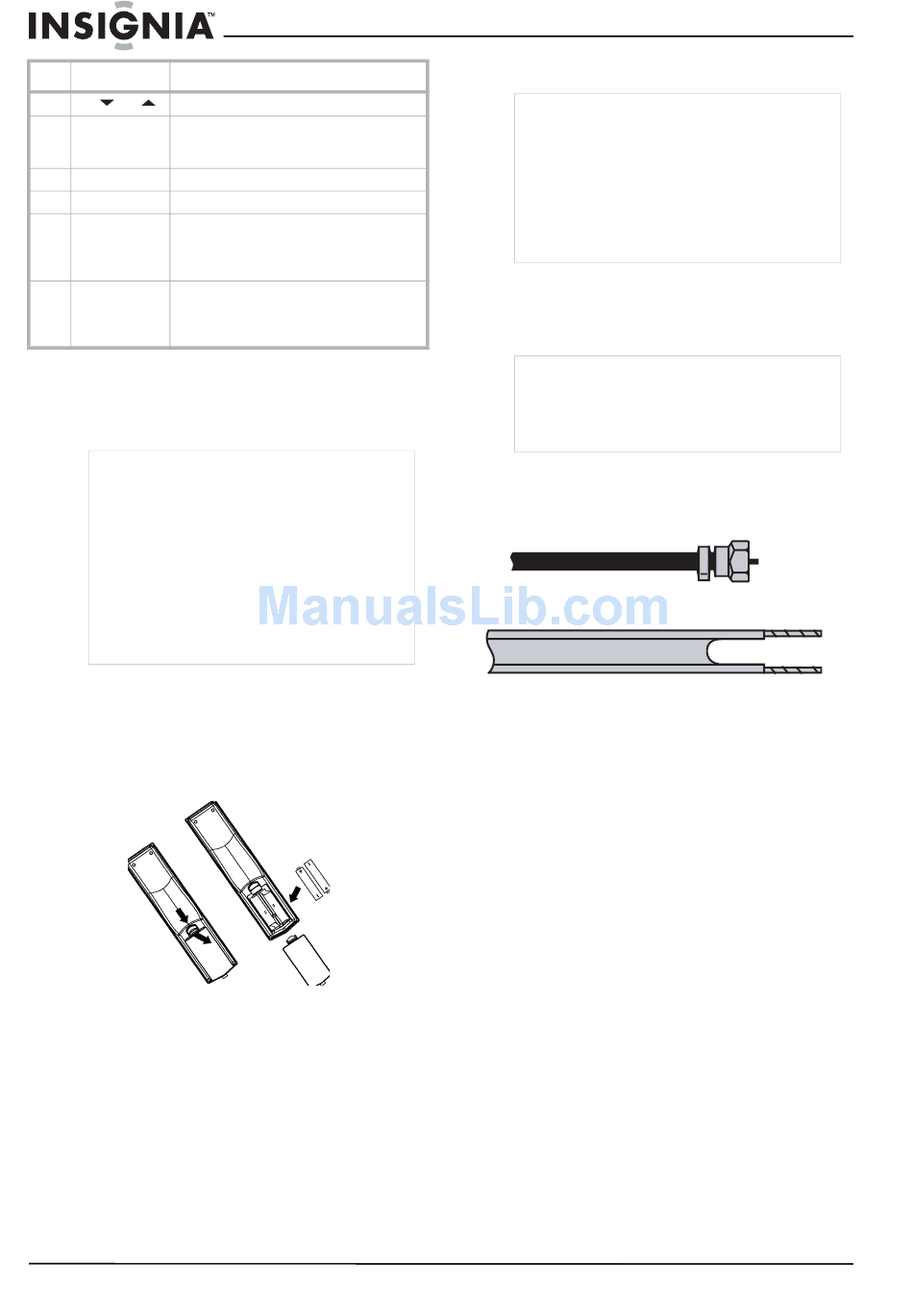

Installing remote control batteries

To install the remote control batteries:
1 Remove the battery cover.
2 Insert two AAA batteries into the battery
compartment. Make sure that you match the
+ and – symbols on the batteries with the +
and – symbols in the battery compartment.
8
3 Replace the cover.
Notes

Connecting your TV to a power outlet

To connect your TV to a power outlet:
•
Notes

Connecting an outside antenna

Antenna cables come in two types: 75 ohm and
300 ohm.
• If your antenna cable has a 75 ohm
connector, connect the cable to the coaxial
jack on the back of your TV.
• If your antenna cable has a 300 ohm
connector, connect the cable to a
300-75 ohm adapter (not included), connect
the adapter to a 75 ohm cable, then connect
the other end of the 75 ohm connector to the
coaxial jack on the back of your TV.

Connecting cable TV

Your TV has a 75 ohm jack for connecting cable
TV.
Some cable TV providers scramble the signals
for "premium" (pay) channels. To view these
channels, you need a converter/descrambler
box.
If you do not have a converter/descrambler box,
you can connect your cable TV directly to your
TV. If you have a converter/descrambler box, you
can connect your cable TV using an RF switch
(not supplied). For more information about
connecting a converter/descrambler box, contact
your cable TV provider.
To connect cable TV without a
converter/descrambler box:
1 Connect one end of a 75 ohm cable to the
coaxial jack on the back of your TV.
2 Connect the other end of the cable to the
cable TV wall outlet.
www.insignia-products.com
Insignia NS-LCD47HD-09 47" LCD HD TV
• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• Battery chemicals can cause a rash. If the
batteries leak, clean the battery compartment
with a cloth. If chemicals touch your skin, wash
immediately.
• If the remote control is not going to be used for
an extended period of time, remove the
batteries.
Plug the power cord into a power outlet.
• Make sure that you use the correct type of
power. See the label on your TV.
• If you do not intend to use your TV for an
extended period of time, unplug the power cord
from the power outlet.
75 ohm cable
300 ohm cable
