© 2013 CASIO COMPUTER CO., LTD.
MA1310-EA

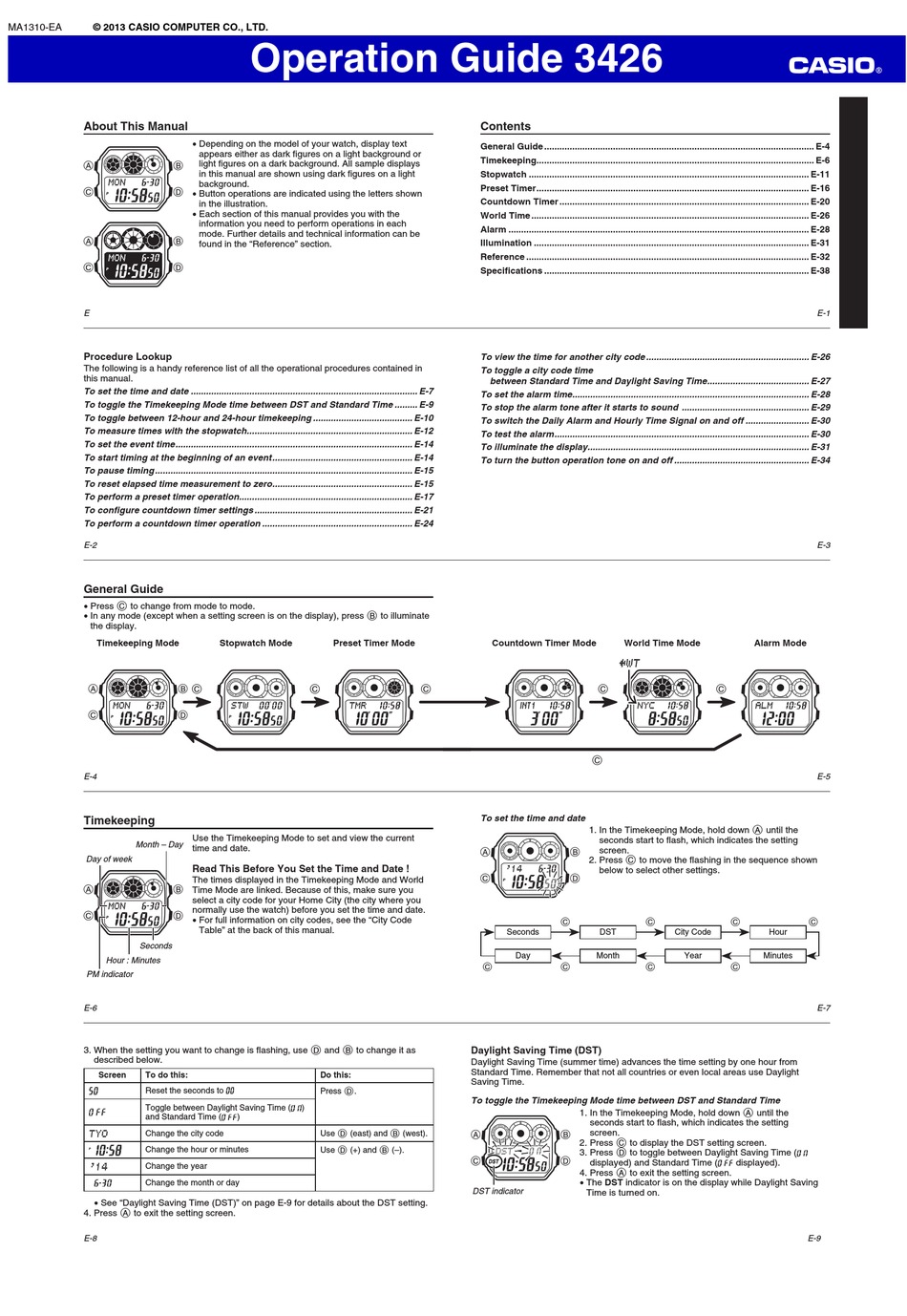

About This Manual
E
Procedure Lookup
The following is a handy reference list of all the operational procedures contained in
this manual.
To set the time and date ......................................................................................... E-7
To toggle the Timekeeping Mode time between DST and Standard Time ......... E-9
To toggle between 12-hour and 24-hour timekeeping ....................................... E-10
To measure times with the stopwatch ................................................................. E-12
To set the event time ............................................................................................. E-14
To start timing at the beginning of an event ....................................................... E-14
To pause timing ..................................................................................................... E-15
To reset elapsed time measurement to zero ....................................................... E-15
To perform a preset timer operation .................................................................... E-17
To confi gure countdown timer settings .............................................................. E-21
To perform a countdown timer operation ........................................................... E-24
E-2
General Guide
 Press C to change from mode to mode.
 In any mode (except when a setting screen is on the display), press B to illuminate
the display.
Timekeeping Mode
E-4

Timekeeping

Month – Day
Day of week
Seconds
Hour : Minutes
PM indicator
E-6
3. When the setting you want to change is fl ashing, use D and B to change it as
described below.
Screen
To do this:
Reset the seconds to
Toggle between Daylight Saving Time (
and Standard Time (
Change the city code
Change the hour or minutes
Change the year
Change the month or day
 See "Daylight Saving Time (DST)" on page E-9 for details about the DST setting.
4. Press A to exit the setting screen.
E-8
Operation Guide 3426
 Depending on the model of your watch, display text
appears either as dark fi gures on a light background or
light fi gures on a dark background. All sample displays
in this manual are shown using dark fi gures on a light
background.
 Button operations are indicated using the letters shown
in the illustration.
 Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the "Reference" section.
 To ensure that this watch provides you with the years of
service for which it is designed, be sure to carefully read
and follow the instructions under "Operating Precautions"
and "User Maintenance".
 Be sure to keep all user documentation handy for future
reference.
Stopwatch Mode
Preset Timer Mode
C
C
Use the Timekeeping Mode to set and view the current
time and date.
Read This Before You Set the Time and Date !
The times displayed in the Timekeeping Mode and World
Time Mode are linked. Because of this, make sure you
select a city code for your Home City (the city where you
normally use the watch) before you set the time and date.
 For full information on city codes, see the "City Code
Table" at the back of this manual.
Do this:
Press D.
)
)
Use D (east) and B (west).
Use D (+) and B (–).
Contents
General Guide .......................................................................................................... E-4
Timekeeping ............................................................................................................. E-6
Stopwatch .............................................................................................................. E-11
Preset Timer ........................................................................................................... E-16
Countdown Timer .................................................................................................. E-20
World Time ............................................................................................................. E-26
Alarm ...................................................................................................................... E-28
Illumination ............................................................................................................ E-31
Reference ............................................................................................................... E-32
Specifi cations ........................................................................................................ E-38
Operating Precautions ......................................................................................... E-m1
User Maintenance ............................................................................................... E-m11
To view the time for another city code ................................................................ E-26
To toggle a city code time
between Standard Time and Daylight Saving Time ........................................ E-27
To set the alarm time ............................................................................................. E-28
To stop the alarm tone after it starts to sound .................................................. E-29
To switch the Daily Alarm and Hourly Time Signal on and off ......................... E-30
To test the alarm .................................................................................................... E-30
To illuminate the display ....................................................................................... E-31
To turn the button operation tone on and off ..................................................... E-34
Countdown Timer Mode
C
C
To set the time and date
1. In the Timekeeping Mode, hold down A until the
2. Press C to move the fl ashing in the sequence shown
C
Seconds
Day
C
C
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from
Standard Time. Remember that not all countries or even local areas use Daylight
Saving Time.
To toggle the Timekeeping Mode time between DST and Standard Time
1. In the Timekeeping Mode, hold down A until the
seconds start to fl ash, which indicates the setting
screen.
2. Press C to display the DST setting screen.
3. Press D to toggle between Daylight Saving Time (
displayed) and Standard Time (
4. Press A to exit the setting screen.
 The DST indicator is on the display while Daylight Saving
DST indicator
Time is turned on.
World Time Mode
Alarm Mode
C
C
seconds start to fl ash, which indicates the setting
screen.
below to select other settings.
C
C
DST
City Code
Month
Year
Minutes
C
C
displayed).
E-1
E-3
E-5
C
Hour
E-7
E-9
