- Page 1 Installation- and Operating instructions for CU8801-0000 USB2.0-Extender-Tx Version: 1.1 Date: 2013-06-27...
-
Page 3: Table Of Contents
3.1.1 Transport 3.1.2 Unpacking Mounting/ Demounting Connecting devices 3.3.1 Connecting cables 3.3.2 Connecting Power Supply 4 Operation Architecture Description 4.1.1 Configuration 4.1.2 Configuration 2 4.1.3 Configuration 3 4.1.4 Configuration 4 Maintenance 4.2.1 Cleaning 4.2.2 Maintenance Shutting down 4.3.1 Disposal CU8801-0000... - Page 4 Table of contents 5 Dimensions 6 Technical Data 7 Appendix Beckhoff Support and Service 7.1.1 Beckhoff branches and partner companies 7.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approval for USA FCC Approval for Canada CU8801-0000...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply. CU8801-0000... -
Page 6: Description Of Safety Symbols
• the operation manual is in good condition and complete, and always available for reference at the location of the product • none of the safety and warning notes attached to product are removed, and that all notes remain legible. CU8801-0000... -
Page 7: Product Description

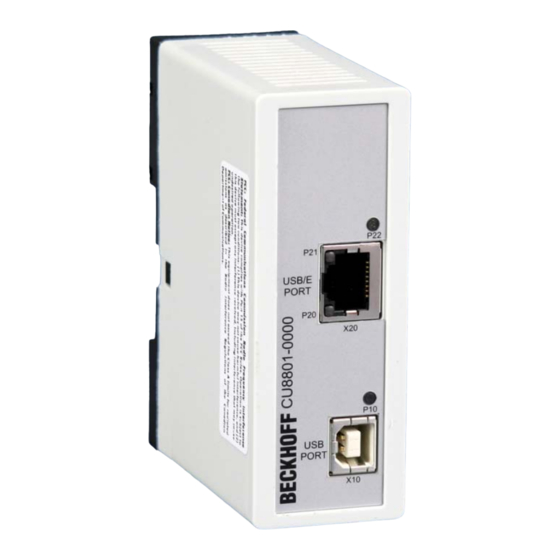

2 Product Description 2.1 Product Overview The Beckhoff CU8801-0000 USB2.0-Extender-Tx allows to extend the limits of USB cable length. Standard USB cable are specified for cable length up to 5 meters. For some industrial applications there is need for longer distances. This box can extend the distance up to 50 meters. This box sends the USB signals from input port to the receiver unit. -
Page 8: Connections
PC on, otherwise over-current messages can be Note displayed. UL Requirements To meet the UL requirements, the USB hub CU8801-0000 must not be connected to unlimited power sources! Attention 2.2.2 Data Connections There are two kind of connectors: USB Port type B and RJ45 connector. The pins are described below:... -
Page 9: Led-Diagnostics
USB connection established between transmitter and receiver Activity no data traffic lights yellow data traffic between USB device and Host Host no USB device connected or not identified lights green connected USB device identified from Host CU8801-0000... -
Page 10: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CU8801-0000... -
Page 11: Mounting/ Demounting
Installation 3.2 Mounting/ Demounting The USB-Extender-Tx CU8801-0000 can be snapped onto a 35 mm mounting rail conforms to EN 50022: To release the CU8801-0000 from the mounting rail: 1. first pull the lug at the bottom of the hub downwards by using a screw driver (1) 2. -
Page 12: Connecting Devices
• Switch off all the devices that are to be connected • Disconnect all the devices that are to be connected from the power supply • Connect all the cables between the CU8801-0000 and the devices that are to be connected • Reconnect all devices to the power supply. -
Page 13: Operation
The maximal distance of extension is 61 meters: 5 meters of cable from USB host to the USB hub; 1 meter cable to the extension box CU8801; up to 50 meters extension cable and 5 meters from extension box CU8851 to USB device. CU8801-0000... -
Page 14: Configuration
This configuration shows a CP29xx/ CP39xx Control Panel connected to the CU8801 extension box. The maximal distance of extension is 51 meters: 1 meter of cable from the host computer to the CU8801 extension box; up to 50 meters extension cable to the Control Panel. CU8801-0000... -
Page 15: Maintenance
The device can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. 4.2.2 Maintenance The CU8801-0000 USB2.0-Extender-Tx is maintenance-free. 4.3 Shutting down 4.3.1 Disposal Observe national electronics scrap regulations Observe the national electronics scrap regulations when disposing of the device. -
Page 16: Dimensions
The product is characterized by small overall installed size. With a height of 100 mm, the module dimensions exactly match those of the Beckhoff Bus Terminals. Together with the lowered connector surfaces, this means that it can be used in a standard terminal box with a height of 120 mm... -
Page 17: Technical Data
Technical Data 6 Technical Data Product name CU8801-0000 Number of USB type B ports (upstream) Number of USB–Extender-Tx ports (RJ45) Supported standard USB 2.0 backward compatible Supported baud rates USB 480 Mbit, 12 Mbit, 1.5 Mbit Status display 4 LEDs... -
Page 18: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 19: Approvals For Usa And Canada
Technical modifications to the device may cause the loss of the FCC approval. Note 7.4 FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. CU8801-0000...
