- Page 1 Installation- and Operating instructions for CU8800-0010 USB-Extender-TX Version: 1.3 Date: 2012-06-26...
-
Page 3: Table Of Contents
LED-Diagnostics 3 Installation Transport and Unpacking 3.1.1 Transport 3.1.2 Unpacking Mounting/ Demounting Connecting devices 3.3.1 Connecting cables 3.3.2 Connecting Power Supply 4 Operation Architecture Description Maintenance 4.2.1 Cleaning 4.2.2 Maintenance Shutting down 4.3.1 Disposal 5 Dimensions 6 Technical Data CU8800-0010... - Page 4 Table of contents 7 Appendix Beckhoff Support and Service 7.1.1 Beckhoff branches and partner companies Beckhoff Support 7.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approval for USA FCC Approval for Canada CU8800-0010...
-
Page 5: Foreword
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. 1.1.4 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply. CU8800-0010... -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.2.2 Operator’s obligation to exercise diligence The operator must ensure that •... -
Page 7: Product Description

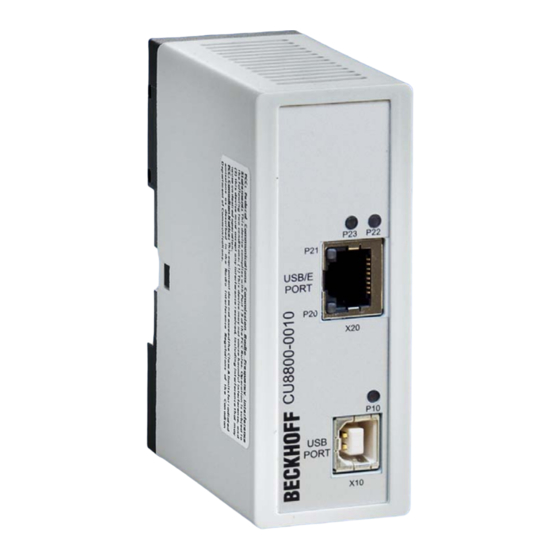

2 Product Description 2.1 Product Overview The Beckhoff CU8800-0010 USB-Extender-TX allows to extend the limits of USB cable length. Standard USB cable are specified for cable length up to 5 meters. For some industrial applications there is need for longer distances. This box can extend the distance up to 50 meters. This box sends the USB signals from input port to the receiver box CU8850 or CU8860. -
Page 8: Connections
Note established before switching the PC on, otherwise over-current messages can be displayed. UL Requirements To meet the UL requirements, the USB hub CU8800-0010 must not be connected to Attention unlimited power sources! 2.2.2 Data Connections There are two kind of connectors: USB Port type B and RJ45 connector. The pins are described below:... -
Page 9: Led-Diagnostics
USB/E device is supplied with +15 V DC USB/E no device connected to USB/E port Port lights green connected device is a Full Speed device. (12 MBit/s) USB/E no device connected to USB/E port Port lights green connected device is a Low Speed device (1.5 Mbit/s) CU8800-0010... -
Page 10: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CU8800-0010... -
Page 11: Mounting/ Demounting
Installation 3.2 Mounting/ Demounting The USB-Extender-Tx CU8800-0010 can be snapped onto a 35 mm mounting rail conforms to EN 50022: To release the CU8800-0010 from the mounting rail: 1. first pull the lug at the bottom of the hub downwards by using a screw driver (1) 2. -
Page 12: Connecting Devices
Product Description. When connecting the cables to the CU8800-0010, proceed according to the following sequence: • Switch off all the devices that are to be connected • Disconnect all the devices that are to be connected from the power supply •... -
Page 13: Operation
The maximal distance of extension is 61 meters: 5 meters of cable from USB host to the USB hub; 1 meter cable to the extension box CU8800; up to 50 meters extension cable and 5 meters from extension box to USB device. CU8800-0010... - Page 14 The maximal distance is also 61 meters: 1 meter of cable from USB host to the USB extension box CU8800; up to 50 meters extension cable; 5 meters from extension box to USB hub and 5 meters of cable to the USB device. CU8800-0010...
-
Page 15: Maintenance
The device can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. 4.2.2 Maintenance The CU8800-0010 USB-Extender-TX is maintenance-free. 4.3 Shutting down 4.3.1 Disposal Observe national electronics scrap regulations Observe the national electronics scrap regulations when disposing of the device. -
Page 16: Dimensions
The product is characterized by small overall installed size. With a height of 100 mm, the module dimensions exactly match those of the Beckhoff Bus Terminals. Together with the lowered connector surfaces, this means that it can be used in a standard terminal box with a height of 120 mm... -
Page 17: Technical Data
Technical Data 6 Technical Data Product name CU8800-0010 Number of USB type B ports (upstream) Number of USB –Extender-Tx ports (RJ45) Supported standard USB 1.1 Supported baud rates 12 Mbit, 1.5 Mbit Status display 5 LEDs USB extension wiring length... -
Page 18: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 19: Approvals For Usa And Canada
Technical modifications to the device may cause the loss of the FCC approval. Note 7.4 FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. CU8800-0010...
