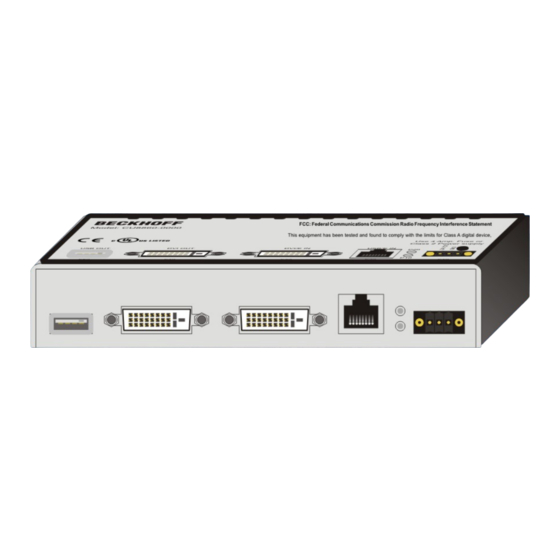

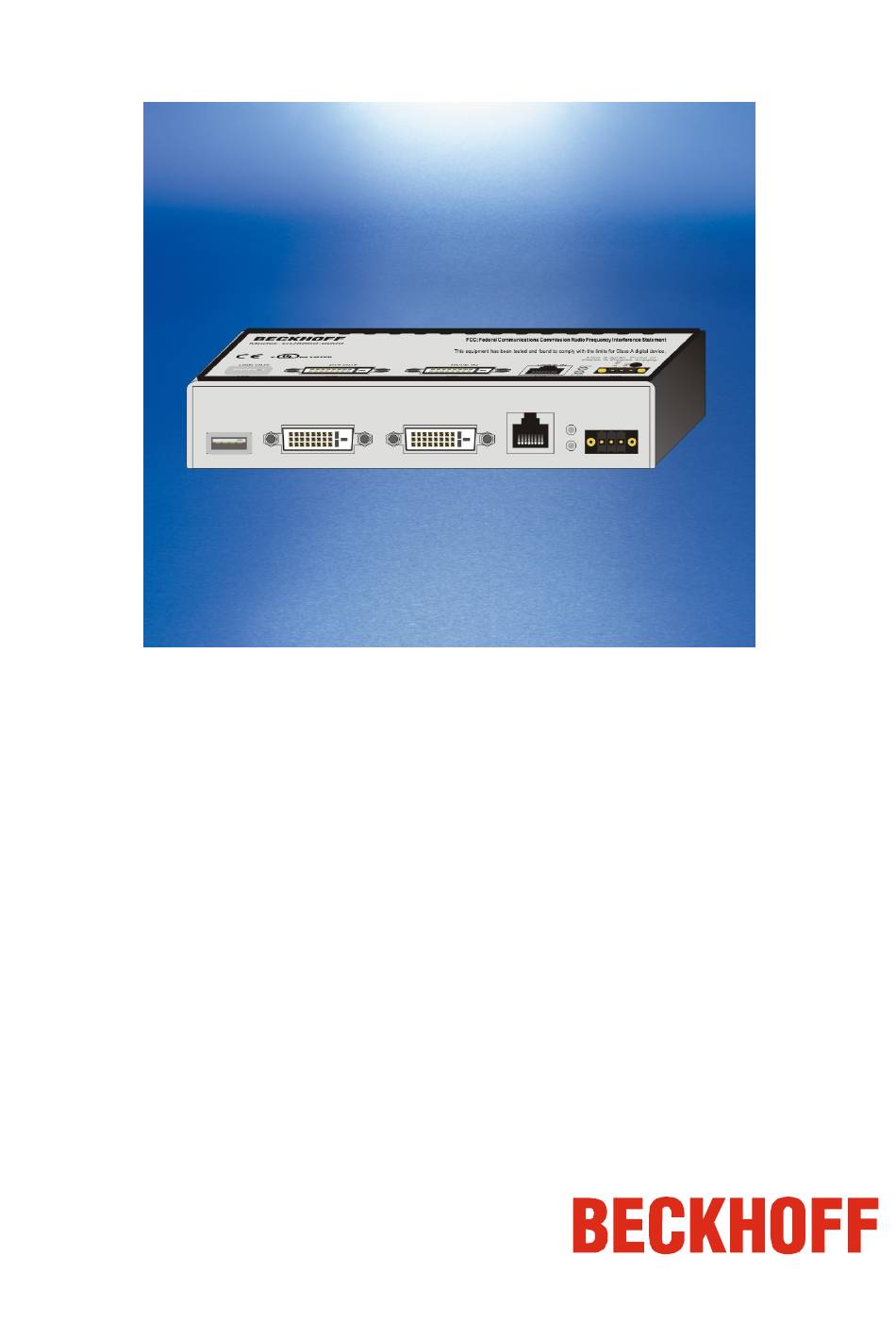

- Page 1 CU8860-0000 USB-Extender-Rx (USB and DVI Extender) Version: 0.3 Date: 2006-02-20...
-
Page 2: Table Of Contents
Mounting on a 35 mm C mounting rail Power Supply 3.3.1 UL requirements Data - Connectors LED Diagnostics Architecture Description Approvals for USA and Canada FCC Approval for USA FCC Approval for Canada Appendix BECKHOFF support and service 5.1.1 BECKHOFF support 5.1.2 BECKHOFF service BECKHOFF headquarters CU8860-0000... -
Page 3: Foreword
1.1.2 Conditions of delivery Furthermore the general conditions of delivery of company Beckhoff Automation GmbH apply. 1.1.3 Copyright © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. -
Page 4: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.2.2 Description of safety symbols The following safety symbols are used in this operating manual. -
Page 5: Product Overview
2 Product Overview 2.1 Introduction The Beckhoff USB-Extender-Rx allows to extend the limits of USB cable length. Standard USB cable are specified for cable length up to 5 meters. For some industrial applications there is need for longer distances. This box can extend the distance up to 50 meters. -
Page 6: Technical Data
Product Overview 2.2 Technical Data Product name CU8860-0000 Number of USB type A ports (downstream) Number of USB–Extender-Rx ports (RJ45) Number of DVI Input ports Number of DVI Output ports Supported standard DVI, USB 1.1 Supported baud rates USB 12 Mbit (Full Speed), 1,5 Mbit (Low Speed) -
Page 7: Dimensions
Product Overview 2.3 Dimensions CU8860-0000... -
Page 8: Installation
3.2 Mounting / Unmounting The USB-Extender-RX CU8860-0000 can be installed in two ways. There are two versions of mounting kits to install the unit (a) onto a planar surface or (b) onto a 35 mm mounting rail that conforms to EN 50022. - Page 9 It will be fixed on the backside of the unit with four screws (4 x M3, 4 mm). The four notches can be used to fix the unit on the surface. The following picture shows how to fix the plate on the unit. The device has no restrictions for installation positions. The following picture shows some variations. CU8860-0000...
-
Page 10: Mounting On A 35 Mm C Mounting Rail
1. Lower the backside of the installed adapter onto the rail and press it down. 2. Push the unit towards the rail until it snaps in. To release the CU8860-0000 from the mounting rail: 3. Press down the unit until it gets loose on the rail 4. -
Page 11: Power Supply
NEC class 2. A class 2 power supply shall not be connected in series or parallel with another (class 2) power source! To meet the UL requirements, the USB hub CU8800-0000 must not be connected to unlimited power sources! CU8860-0000... -
Page 12: Data - Connectors
USB type A Port (X50) (standard cable) Assignment Data - Data + Shell Shield RJ 45 Port (X20) (standard CAT5 cable) Signal Assignment 15 V 15 V + Ground USB TX USB RX USB RX USB TX 15 V 15 V + Ground CU8860-0000... -
Page 13: Led Diagnostics
The following table shows the possible states for the LEDs: Allocation State Meaning Power load green current < 500 mA on USB port current > 500 mA DVI-Link green DVI signal is connected (clock signal is sensed) DVI signal is not connected (No clock signal is sensed) CU8860-0000... -
Page 14: Architecture Description
The maximal distance of extension is 61 meters: 5 meters of cable from USB host to the USB hub; 1 meter cable to the extension box CU8800; up to 50 meters extension cable and 5 meters from extension box to USB device. The DVI Signal is also extended to maximum 55 meters. (see configuration1) CU8860-0000... - Page 15 Due to signal quality the maximal distance is 59 meters: 1 meter of cable from USB host to the USB extension box CU8800; up to 50 meters extension cable; 5 meters from extension box to USB hub and 3 meters of cable to the USB device. The DVI Signal is also extended to maximum 55 meters. (see configuration1) CU8860-0000...
-
Page 16: Approvals For Usa And Canada
4.2 FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. CU8860-0000... -
Page 17: Appendix
+ 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 e-mail: info@beckhoff.de Web: www.beckhoff.com The addresses of Beckhoff’s branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com. You will also find further documentation for Beckhoff components there. CU8860-0000...
