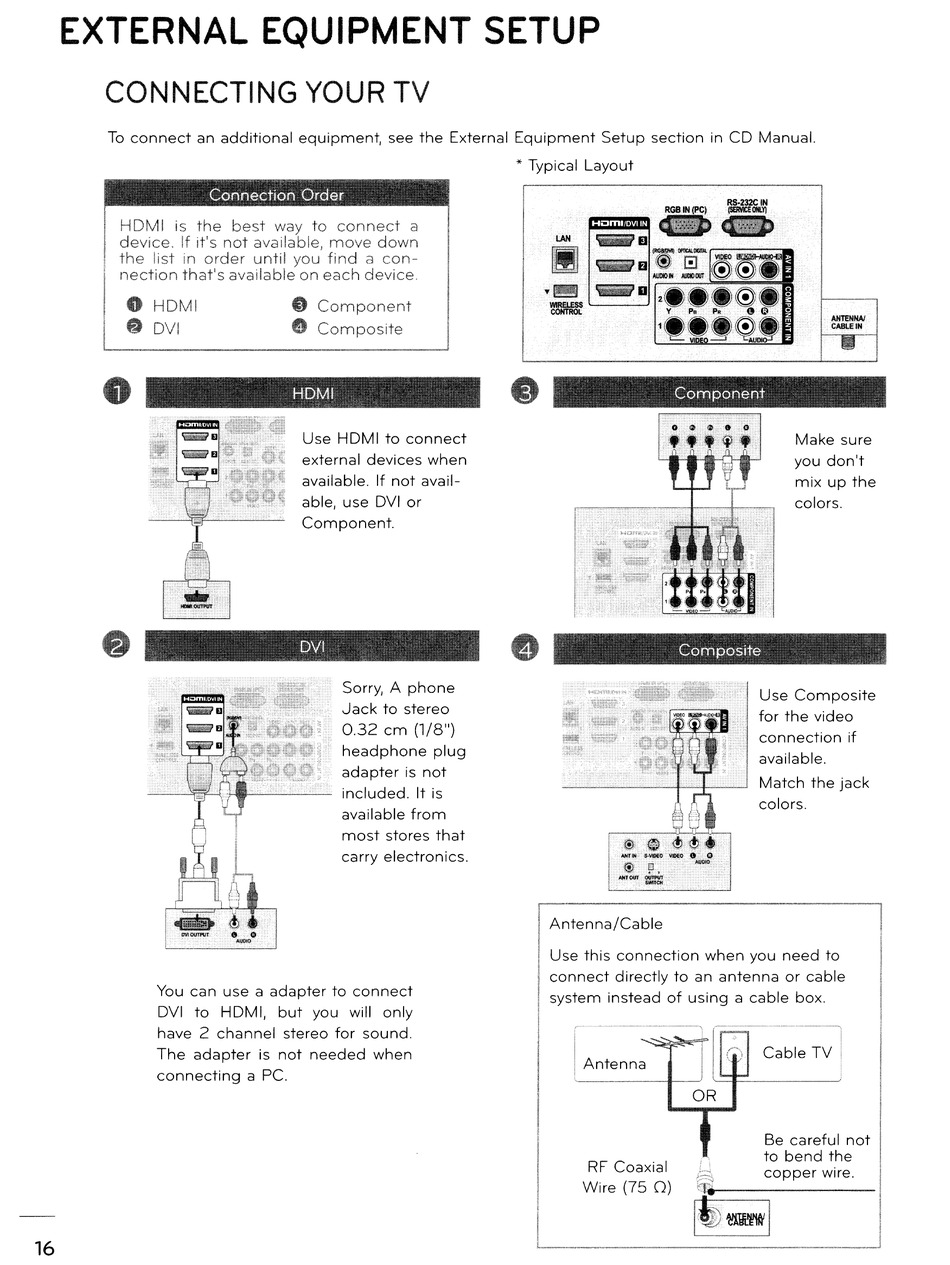

EXTERNAL EQUIPMENT SETUP
CONNECTING YOUR TV
To connect an additional equipment, see the External Equipment Setup section in CD Manual.
* Typical Layout
AHTE~NAI
CABLE IN
• Component
e
Composite
• HDMI
• DVI
HDMI is the best way to connect a
device. If it's not available, move down
the list in order until you find a con-
nection that's available on each device .
~
-
- -
-
-~-
Connection Order
HDMI
Component
Use HDMI to connect
external devices when
available. If not avail-
able, use DVI or
Component.
Make sure
you don't
mix up the
colors.
Composite
Antenna/Cable
Cable TV
Use Composite
for the video
connection
if
available.
Match the jack
colors.
Antenna
Use this connection when you need to
connect directly to an antenna or cable
system instead of using a cable box.
Sorry, A phone
Jack to stereo
0.32 cm (1/8")
headphone plug
adapter is not
included. It is
available from
most stores that
carry electronics.
You can use a adapter to connect
DVI to HDMI, but you will only
have 2 channel stereo for sound.
The adapter is not needed when
connecting a Pc.
OR
RF Coaxial
Wire (75 0)
Be careful not
; . to bend the
j:~~ copper wire.
