.LG
Life's Good

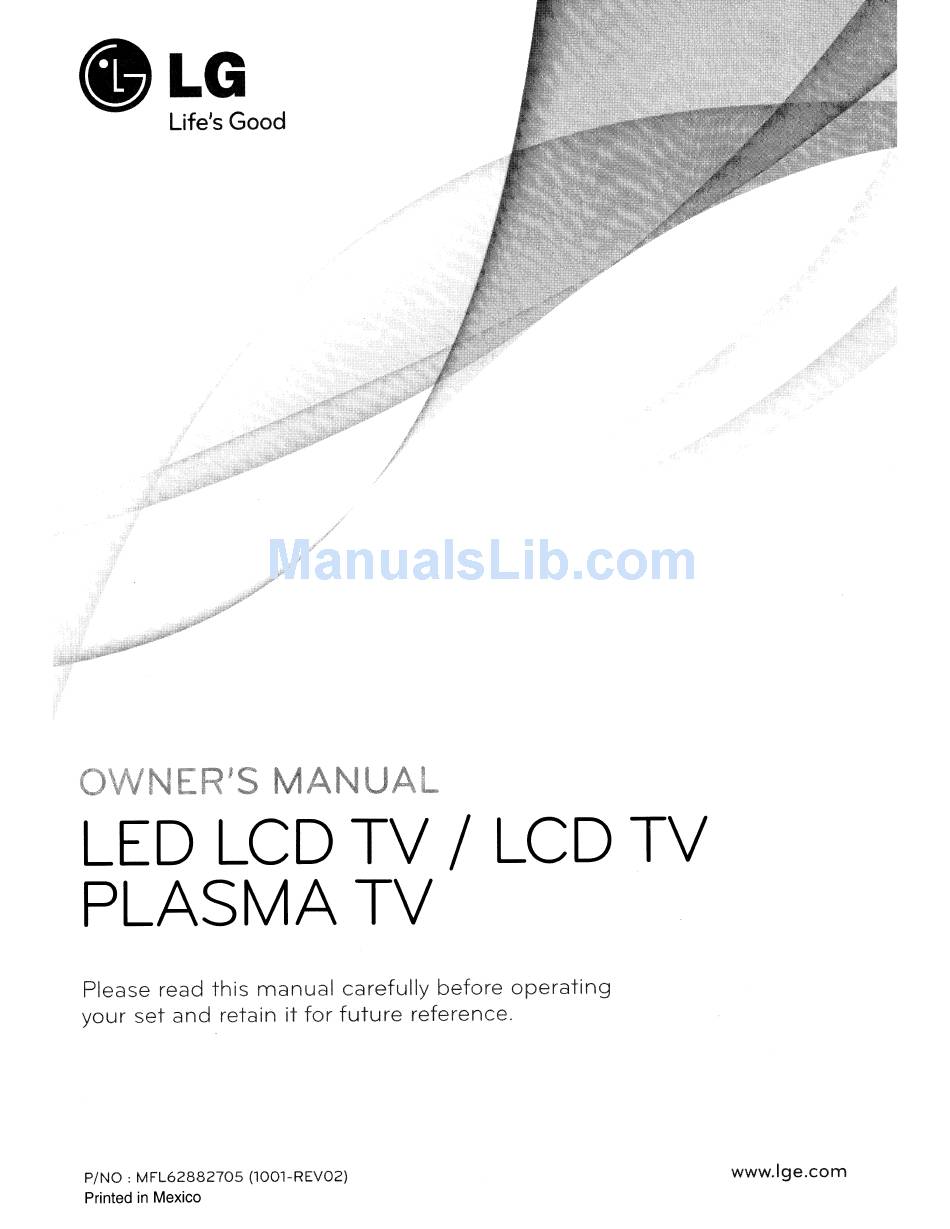

OWNER·S
MANUAL
LED LCD TV / LCD TV
PLASMA TV
Please read this manual carefully before operating
your set and retain it for future reference.
P/NO: MFL62882705 (1001-REV02)
Printed in Mexico
www.lge.com
